LI-21

Front Fog Light Bulb

LIGHTING SYSTEM

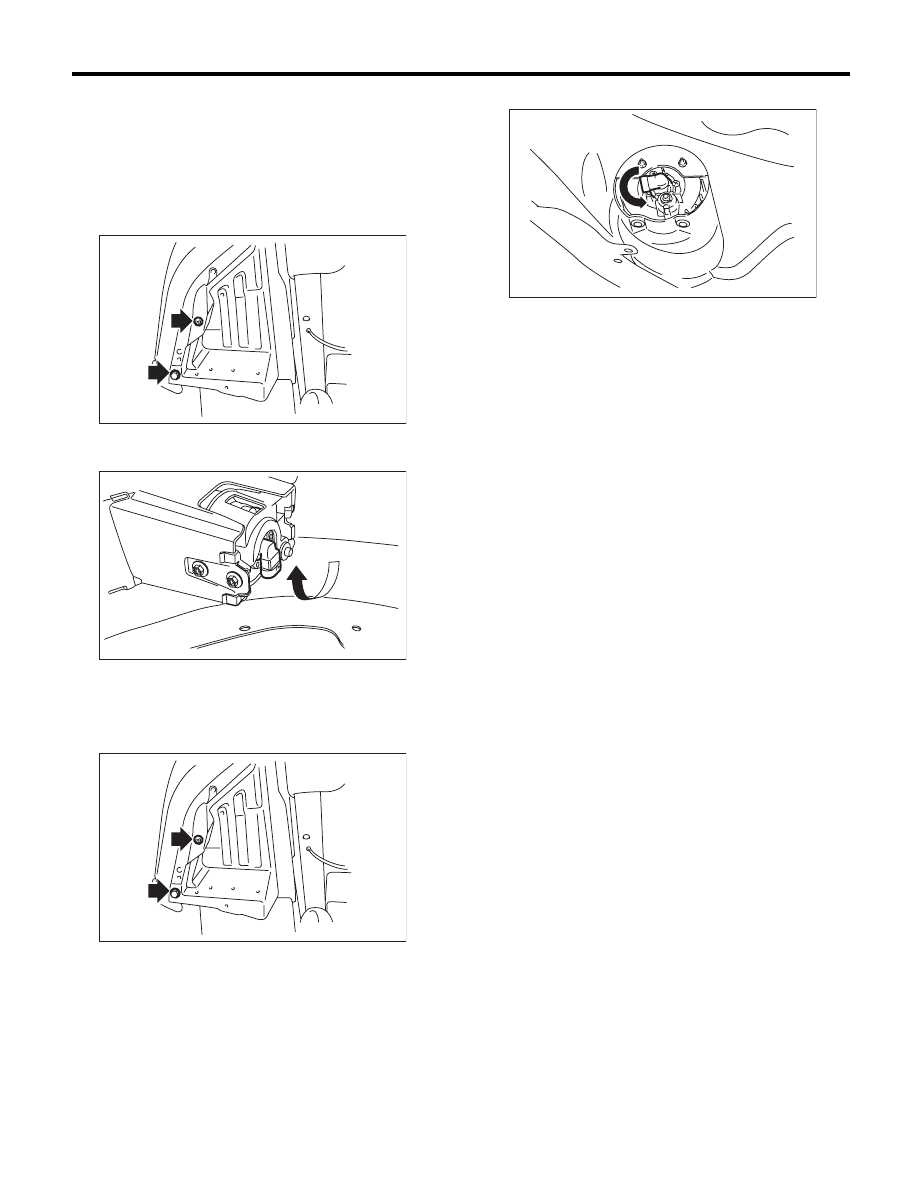

17.Front Fog Light Bulb

A: REMOVAL

1. EXCEPT FOR OUTBACK MODEL

1) Disconnect the ground cable from battery.
2) Disengage the two clips, and then turn over the
lower mud guard.

3) Disconnect the harness connector.
4) Retain the bulb then detach the fog light bulb.

2. OUTBACK MODEL

1) Disconnect the ground cable from the battery.
2) Disengage the two clips, and then turn over the
lower mud guard.

3) Disconnect the harness connector.

4) Remove the back cover.

5) Remove the spring retainer then detach the fog
light bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

LI-00288

LI-00705

LI-00288

LI-00774

LI-22

Side Turn Signal Light Assembly

LIGHTING SYSTEM

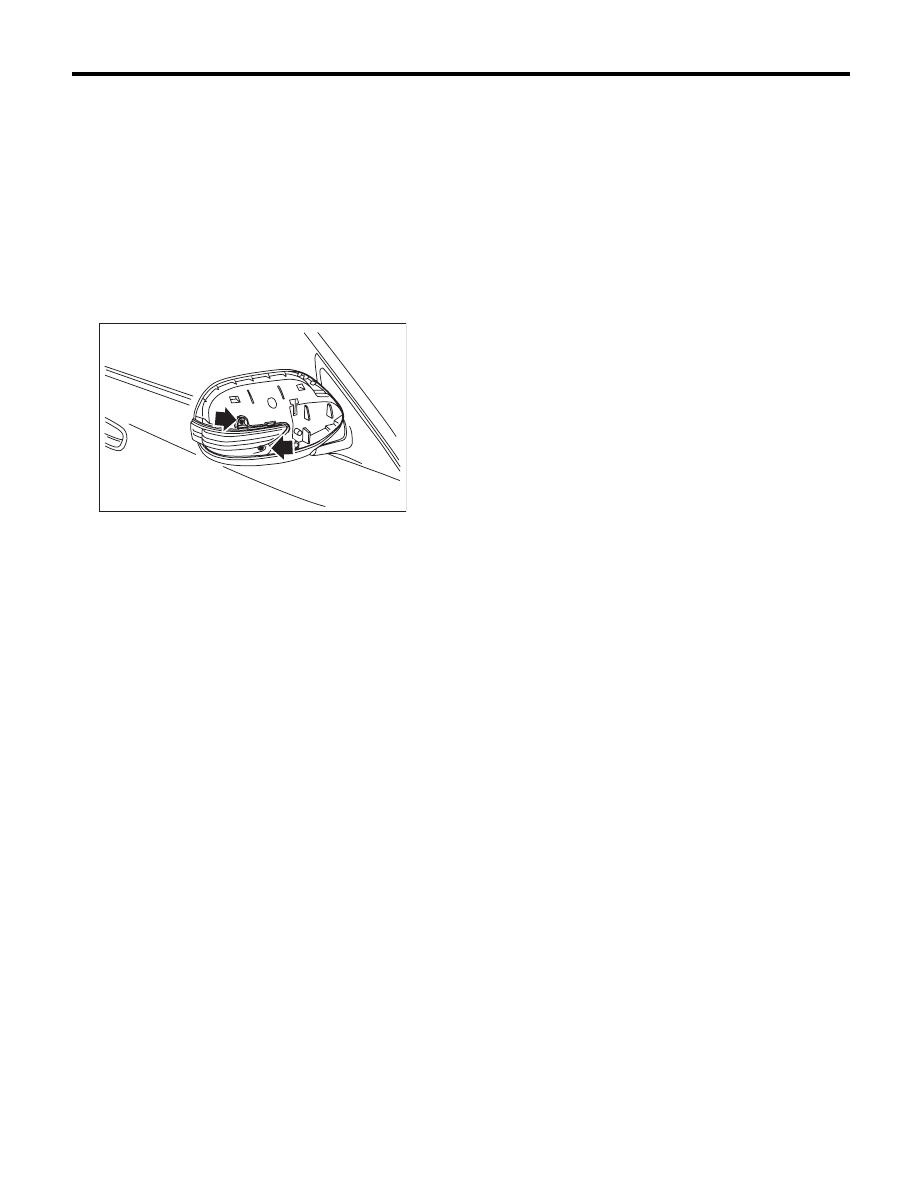

18.Side Turn Signal Light

Assembly

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the scalp cap. <Ref. to GW-19, RE-
PLACEMENT, Scalp Cap.>
3) Remove the mirror. <Ref. to GW-21, REPLACE-
MENT, Outer Mirror.>
4) Disconnect the harness connector, remove the 2
mounting screws and then remove the side turn
signal light assembly.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

0.8 N·m (0.08 kgf-m, 0.59 ft-lb)

C: INSPECTION

1) Install the side turn signal light assembly and
check that it blinks normally.
2) If it does not blink normally, replace the side turn
signal light assembly with a new part.

NOTE:
Since LED (Light Emitting Diode) is used for the
side turn signal light, replace the side turn signal
light assembly if the LED burns out.

LI-00707

LI-23

Rear Combination Light Assembly

LIGHTING SYSTEM

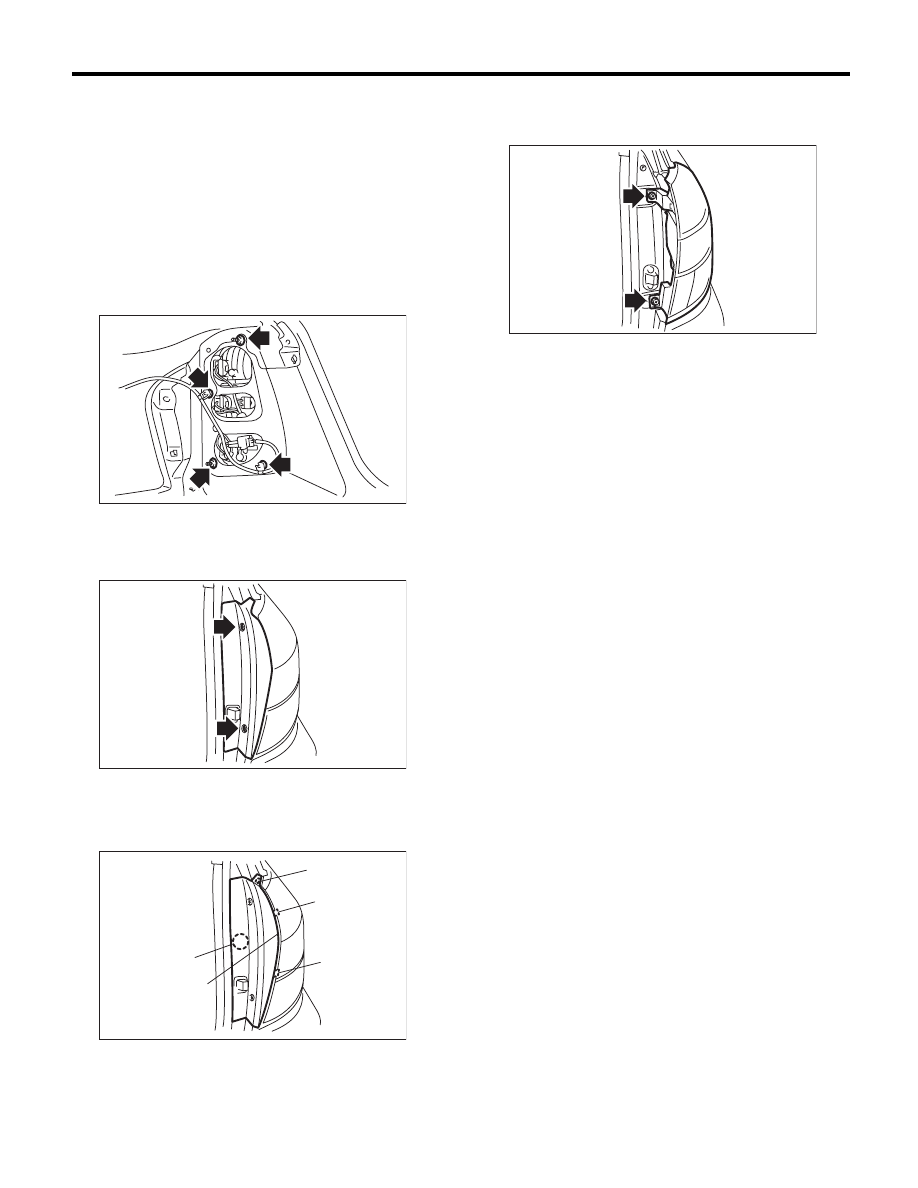

19.Rear Combination Light

Assembly

A: REMOVAL

1. SEDAN MODEL

1) Disconnect the ground cable from the battery.
2) Remove the trunk room side trim. <Ref. to EI-70,
REMOVAL, Trunk Room Trim.>
3) Remove the four nuts, and then detach the rear
combination light after disconnecting the connec-
tor.

2. WAGON MODEL

1) Disconnect the ground cable from the battery.
2) Remove the clips.

3) While pressing the section (A), insert your finger
or a flat tip screwdriver wrapped with tape into the
clearance (B) to remove claws in the order of (C),
(D), (E), and remove the rear combination cover.

4) Remove the two bolts, and then detach the rear
combination light by pulling it to the rear side of ve-
hicle.

5) After turning the sockets of the tail/stop light
bulbs and rear turn signal light bulbs, remove the
rear combination light.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Sedan model:

4.5 N·m (0.46 kgf-m, 3.3 ft-lb)

Wagon model:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

LI-00294

LI-00295

LI-00284

(E)

(C)

(D)

(B)

(A)

LI-00296

LI-24

Tail/Stop Light Bulb

LIGHTING SYSTEM

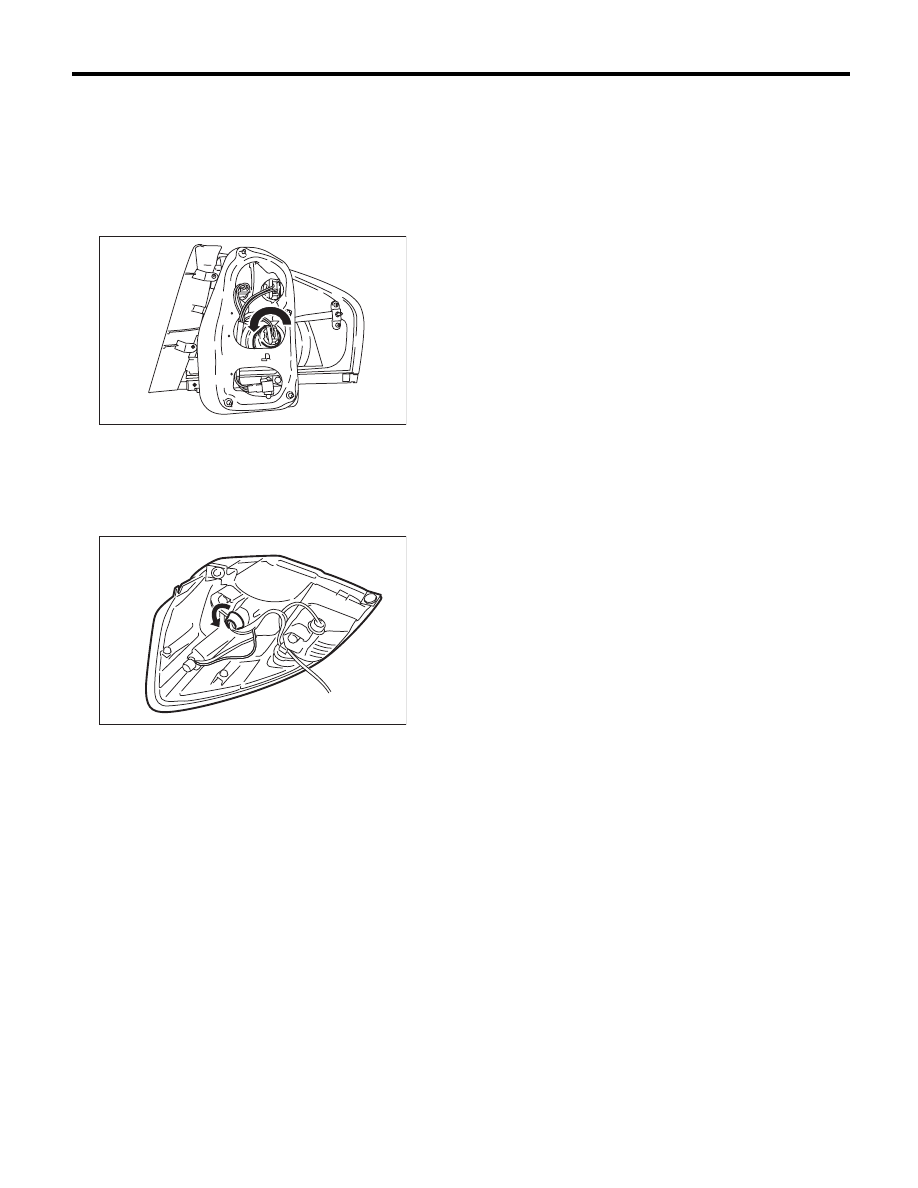

20.Tail/Stop Light Bulb

A: REMOVAL

1. SEDAN MODEL

1) Disconnect the ground cable from the battery.
2) Remove the trunk side trim cover.
3) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Remove the rear combination light assembly.
<Ref. to LI-23, WAGON MODEL, REMOVAL, Rear
Combination Light Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

LI-00775

LI-00440
