LI-17

Parking Light Bulb

LIGHTING SYSTEM

14.Parking Light Bulb

A: SPECIFICATION

The parking light bulb is integrated into the front
turn signal light bulb as a unit; therefore, refer to
“Front Turn Signal Light Bulb” for the removal pro-
cedure. <Ref. to LI-16, REMOVAL, Front Turn Sig-
nal Light Bulb.>

LI-18

Front Side Marker Light Bulb

LIGHTING SYSTEM

15.Front Side Marker Light Bulb

A: SPECIFICATION

The front side marker light bulb is integrated into
the front turn signal light bulb as a unit; therefore,
refer to “Front Turn Signal Light Bulb” for the re-
moval procedures. <Ref. to LI-16, REMOVAL,
Front Turn Signal Light Bulb.>

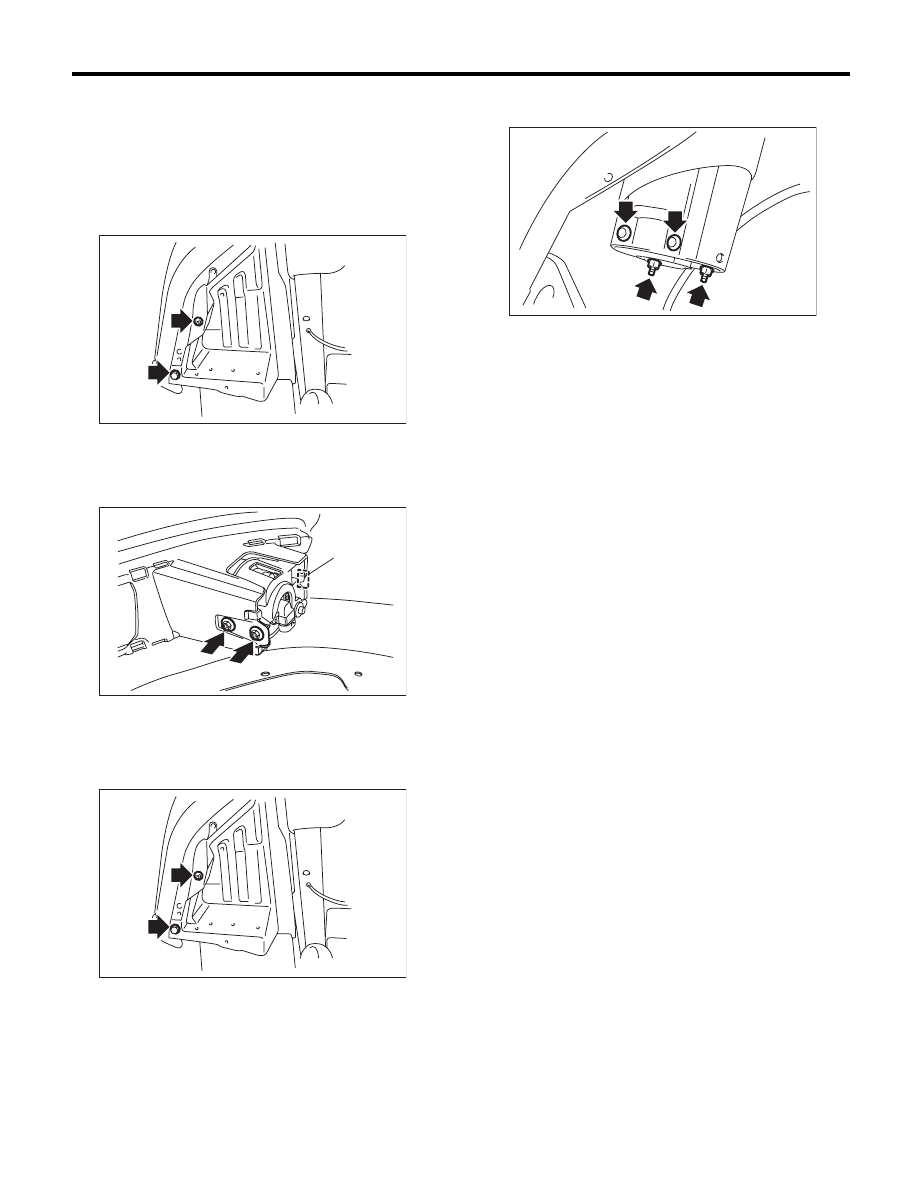

LI-19

Front Fog Light Assembly

LIGHTING SYSTEM

16.Front Fog Light Assembly

A: REMOVAL

1. EXCEPT FOR OUTBACK MODEL

1) Disconnect the ground cable from the battery.
2) Disengage the two clips, and then turn over the
lower mud guard.

3) Disconnect the harness connector.
4) Remove the mounting bolts and claw (A), and
detatch the fog light assembly by pulling it back-
ward.

2. OUTBACK MODEL

1) Disconnect the ground cable from the battery.
2) Disengage the two clips, and then turn over the
lower mud guard.

3) Disconnect the harness connector.

4) Remove the mounting nuts and clips, and de-
tach the fog light assembly by pulling it out.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

C: ADJUSTMENT

1. FOG LIGHT AIMING

NOTE:
Before checking the fog light beam level, be sure of
the following:
• The area around the fog light has not sustained
any accident, damage or other type of deformation.
• Vehicle is parked on a level surface.
• The inflation pressure of tires is correct.
• Vehicle’s fuel tank is fully filled.
1) Bounce the vehicle several times to normalize
the suspension.
2) Make certain that someone is seated in the driv-
er’s seat.
3) Measure the height of the fog light center.
4) Loosen the screws and clips of the mud guard,
and then turn over the front mud guard.

LI-00288

LI-00703

(A)

LI-00288

LI-00756

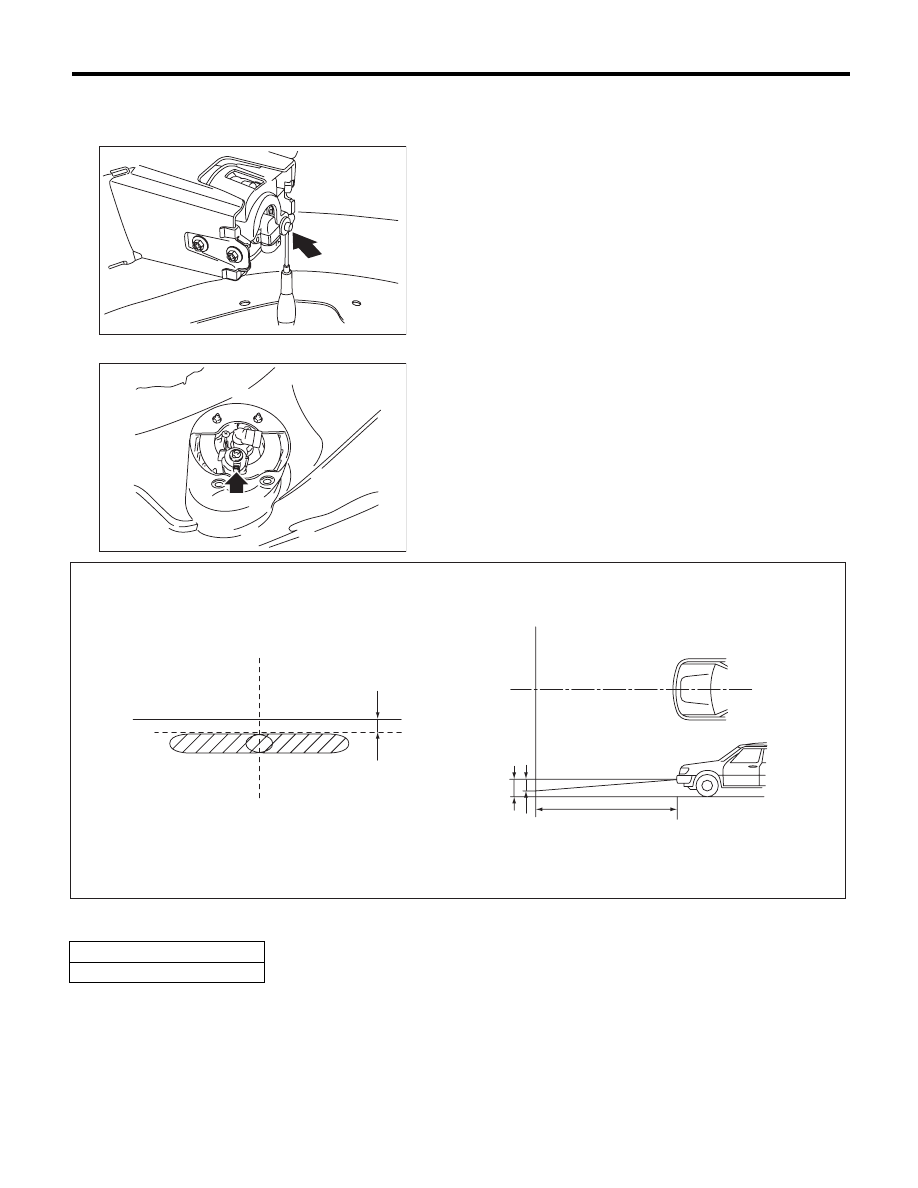

LI-20

Front Fog Light Assembly

LIGHTING SYSTEM

5) Adjust the fog light pattern by inserting a Philips
screwdriver to the aiming screw hole.
• Except for the OUTBACK model

• OUTBACK model

LI-00704

LI-00773

(A)

Vehicle center

(B)

3 m (10 ft)

(H)

Height of fog light center

LI-00403

H

H

(A)

(A)

(B)

h

(h)

h mm (in) at 3 m (10 ft)

40 (1.58)
