Subaru Legacy IV (2008 year). Manual - part 60

ME(H4SO)-36

Engine Mounting

MECHANICAL

10.Engine Mounting

A: REMOVAL

1) Remove the engine unit. <Ref. to ME(H4SO)-29,
REMOVAL, Engine Assembly.>
2) Remove the engine mounting from engine as-
sembly.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Engine mounting

35 N·m (3.6 kgf-m, 25.8 ft-lb)

C: INSPECTION

Make sure that no crack or other damages do not
exist.

ME(H4SO)-37

Preparation for Overhaul

MECHANICAL

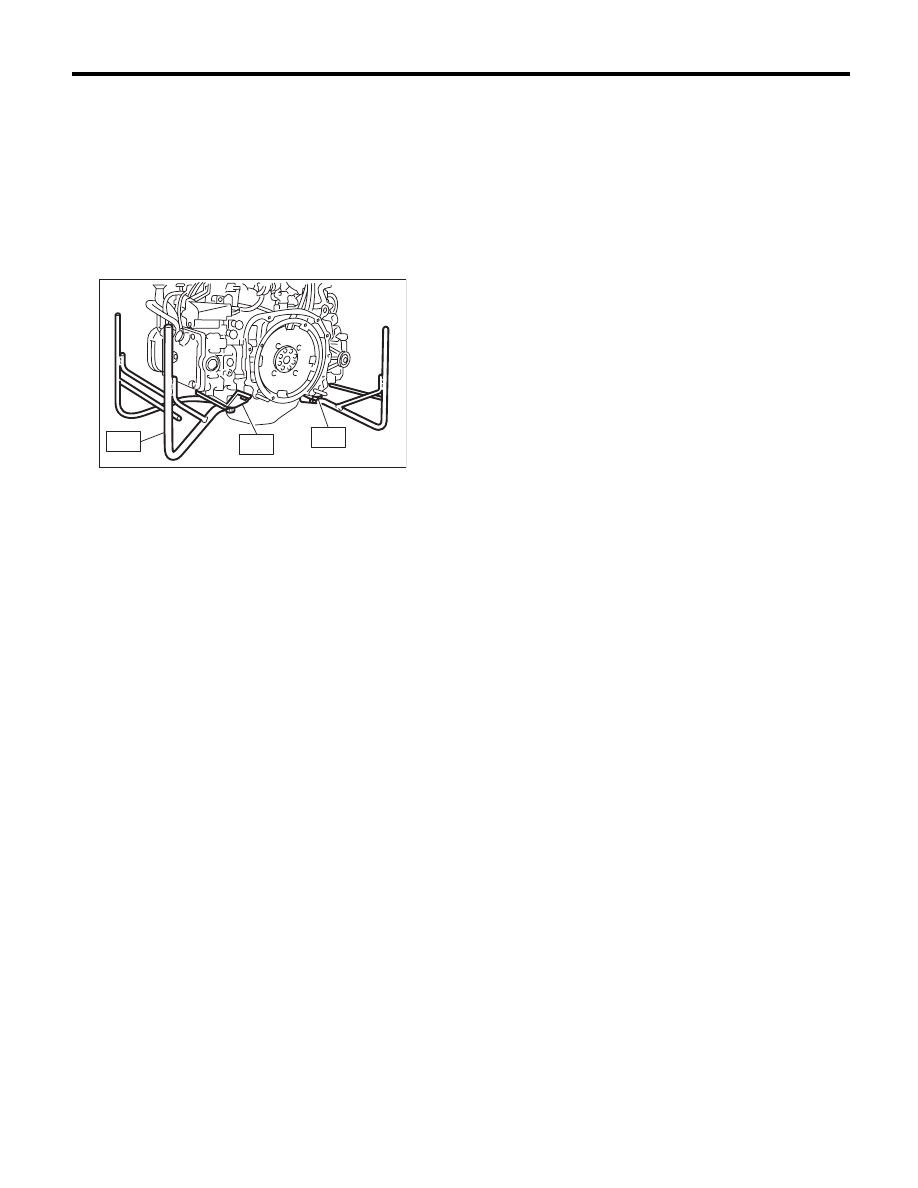

11.Preparation for Overhaul

A: PROCEDURE

1) After removing the engine from body, secure it to
ST in the following procedure.
ST1

498457000

ENGINE STAND ADAPTER
RH

ST2

498457100

ENGINE STAND ADAPTER
LH

ST3

499817100

ENGINE STAND

2) In this section the procedures described under
each index are all connected and stated in order.
The procedure for overhauling of the engine will be
completed when you go through all steps in the
process.
Therefore, in this section, to conduct the particular
procedure within the flow of a section, you need to
go back and conduct the procedure described pre-
viously in order to do that particular procedure.

ME-00221

ST2

ST1

ST3

ME(H4SO)-38

V-belt

MECHANICAL

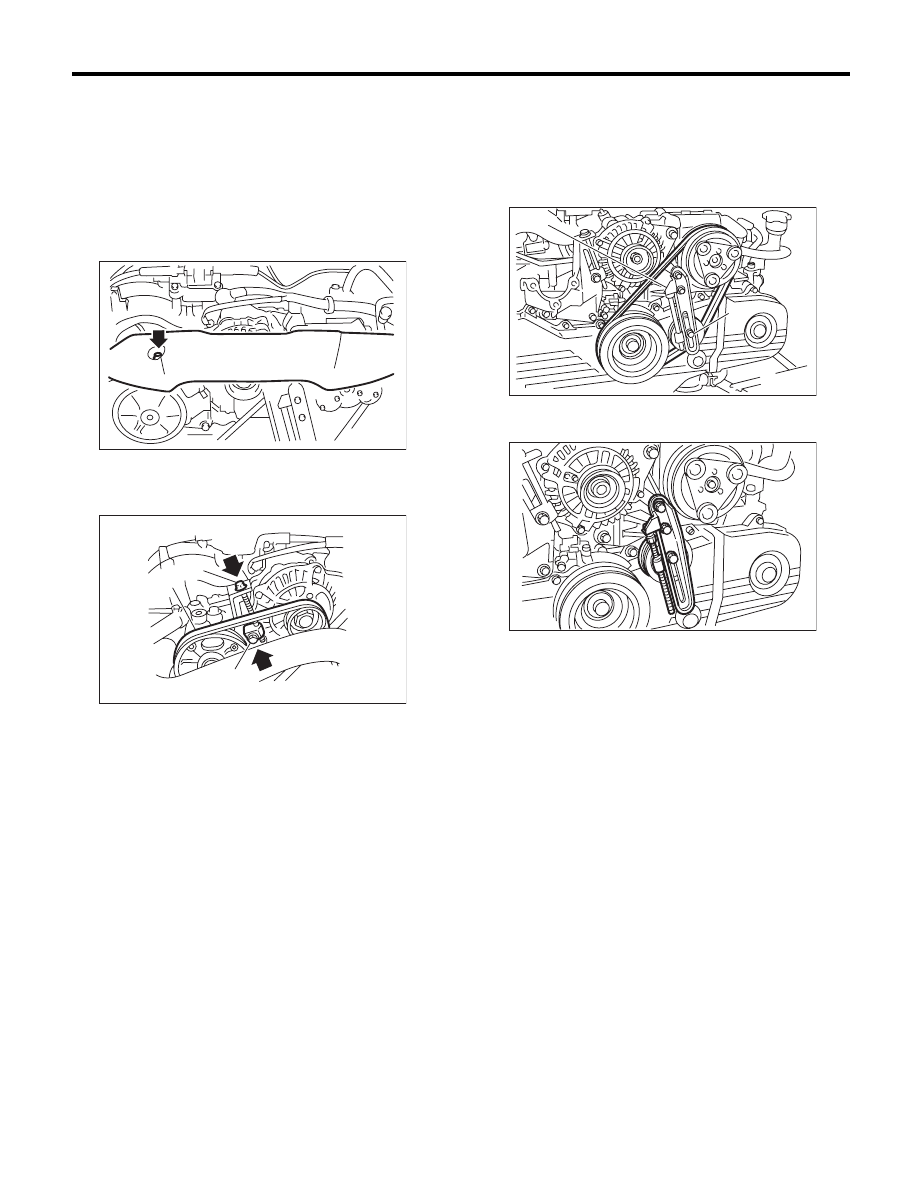

12.V-belt

A: REMOVAL

NOTE:
When replacing the single part, perform the work
with the engine installed to body.

1. FRONT SIDE BELT

1) Remove the V-belt covers.

2) Loosen the bolt (A).
3) Loosen the slider bolt (B).
4) Remove the front side belt (C).

2. REAR SIDE BELT

1) Remove the front side belts. <Ref. to
ME(H4SO)-38, FRONT SIDE BELT, REMOVAL,
V-belt.>
2) Loosen the lock nut (A).
3) Loosen the slider bolt (B).

4) Remove the rear side belt.
5) Remove the belt tensioner.

ME-03945

(B)

(C)

(A)

ME-02699

ME-00224

(A)

(B)

ME-00225

ME(H4SO)-39

V-belt

MECHANICAL

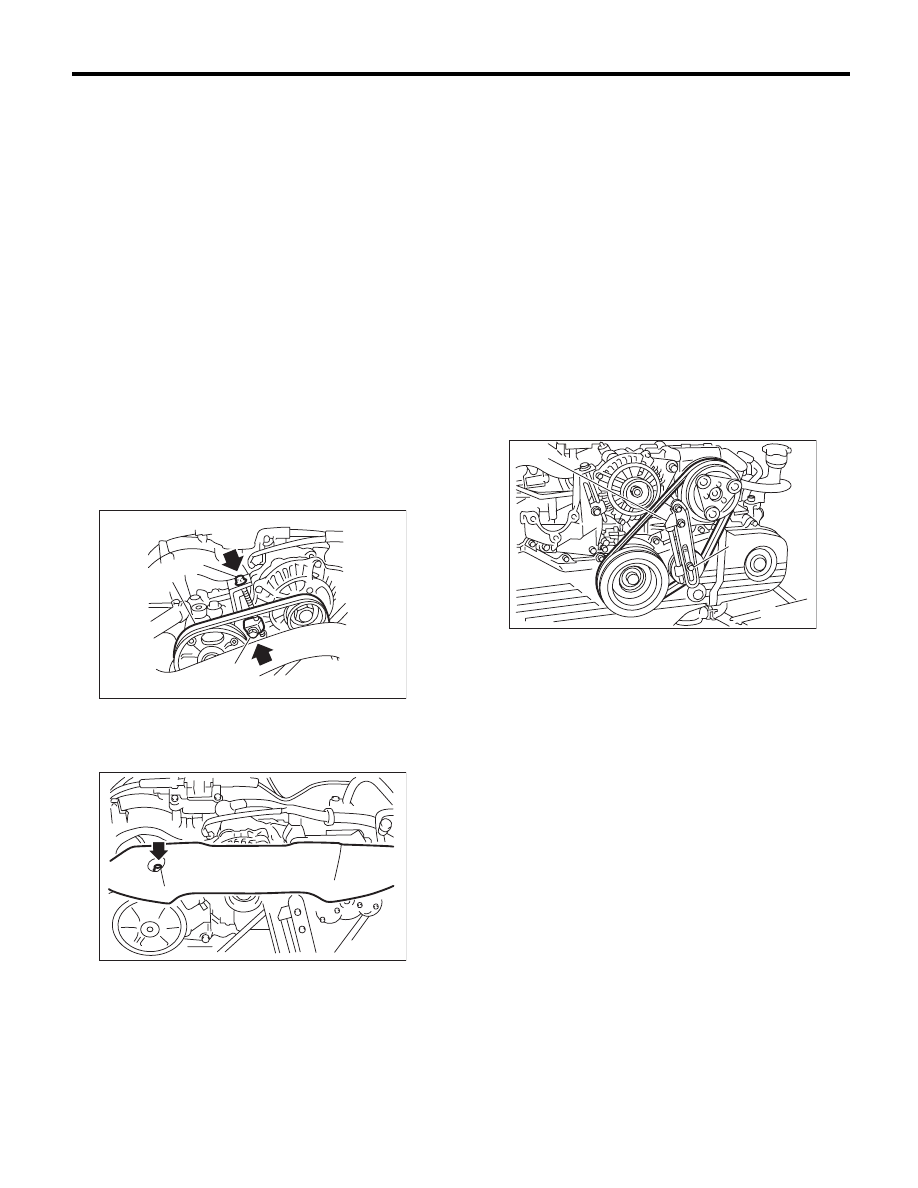

B: INSTALLATION

1. FRONT SIDE BELT

CAUTION:
• When reusing the front side belt, wipe off
dust and water with cloth.
• Do not use the front side belt if there is any
oil, grease or coolant on the belt.
• Be careful not to rub the belt end surface with
bare hands; exposed core may cause injury.
1) Wipe off any dust, oil and water on the groove of
each pulley with cloth.
2) Install the front side belt (C), and adjust the slider
bolt (B) so as to obtain the specified belt tension.
<Ref. to ME(H4SO)-40, INSPECTION, V-belt.>
3) Tighten the bolt (A).
4) Tighten the slider bolt (B).

Tightening torque:

Bolt (A)

25 N·m (2.5 kgf-m, 18.4 ft-lb)

Slider bolt (B)

8 N·m (0.8 kgf-m, 5.9 ft-lb)

5) Install the V-belt cover.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

2. REAR SIDE BELT

CAUTION:
• When reusing the rear side belt, wipe off dust
and water with cloth.
• Do not use the rear side belt if there is any oil,
grease or coolant on the belt.
• Be careful not to rub the belt end surface with
bare hands; exposed core may cause injury.
1) Wipe off any dust, oil and water on the groove of
each pulley with cloth.
2) Install the belt tensioner.
3) Install the rear side belt, and adjust the slider bolt
(B) so as to obtain the specified belt tension. <Ref.
to ME(H4SO)-40, INSPECTION, V-belt.>
4) Tighten the lock nut (A).

Tightening torque:

Lock nut (A)

23 N·m (2.3 kgf-m, 17.0 ft-lb)

5) Install the front side belt. <Ref. to ME(H4SO)-39,
FRONT SIDE BELT, INSTALLATION, V-belt.>

(B)

(C)

(A)

ME-02699

ME-03945

ME-00224

(A)

(B)
