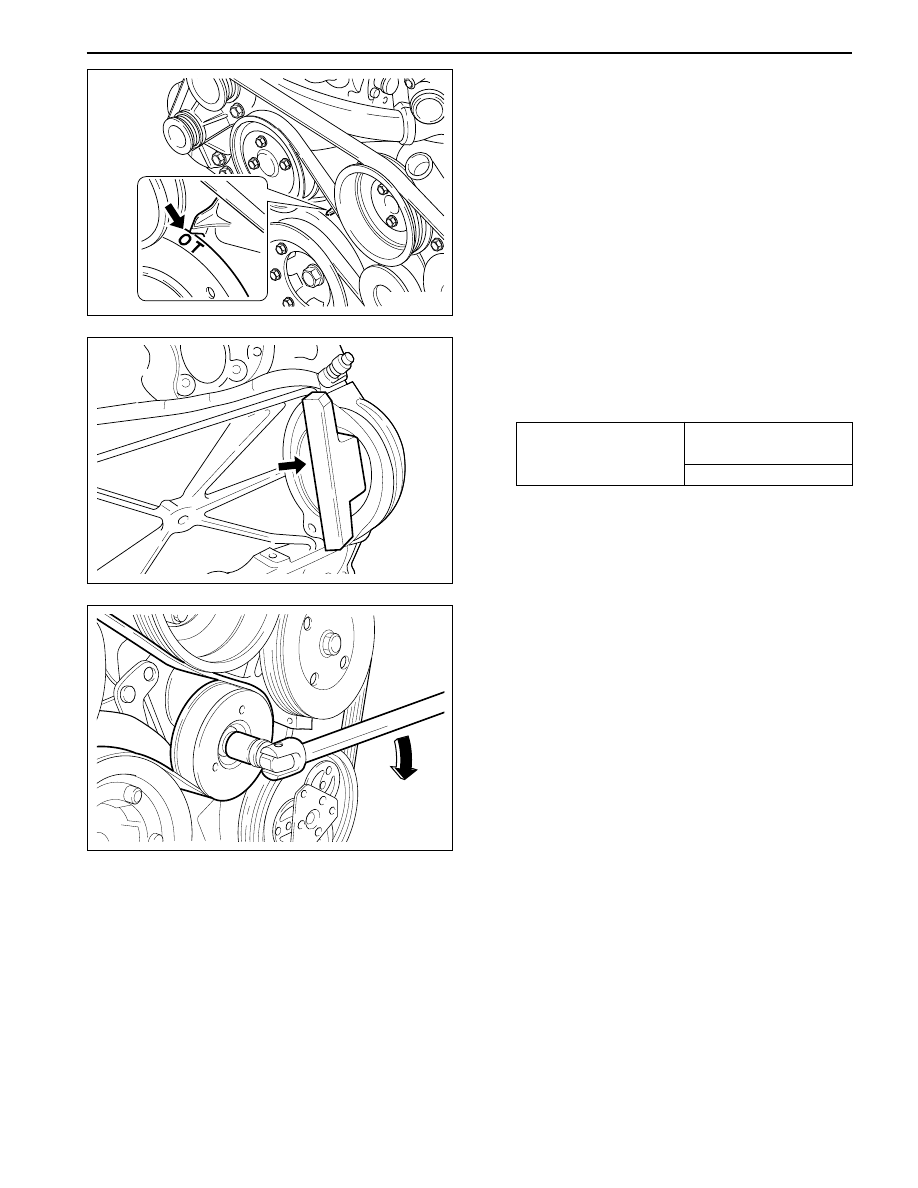

M162 ENGINE MECHANICAL  1B1-39

SSANGYONG  Y200

2. Remove the start motor and install the engine lock

602 589 00 40 00 to the flywheel ring gear.

3. Remove the vibration damper center bolt.

Installation Notice

4. Remove the vibration damper assembly using the

puller.

5. Installation should follow the removal procedure

in the reverse order.

Notice: If possible, don’t separate the vibration
damper and the pulley.

Tools Required

602 589 00 40 00

Engine Lock

Removal & Installation Procedure

1. Adjust the piston of number 1 cylinder to the TDC.

YAD1B670

YAD1B680

Tightening Torque

1st  step: 180 - 220 N•m

(133 - 162 lb-ft)

2nd step: 90° + 10°

YAD1B250

SSANGYONG  Y200

1B1-40  M162 ENGINE MECHANICAL

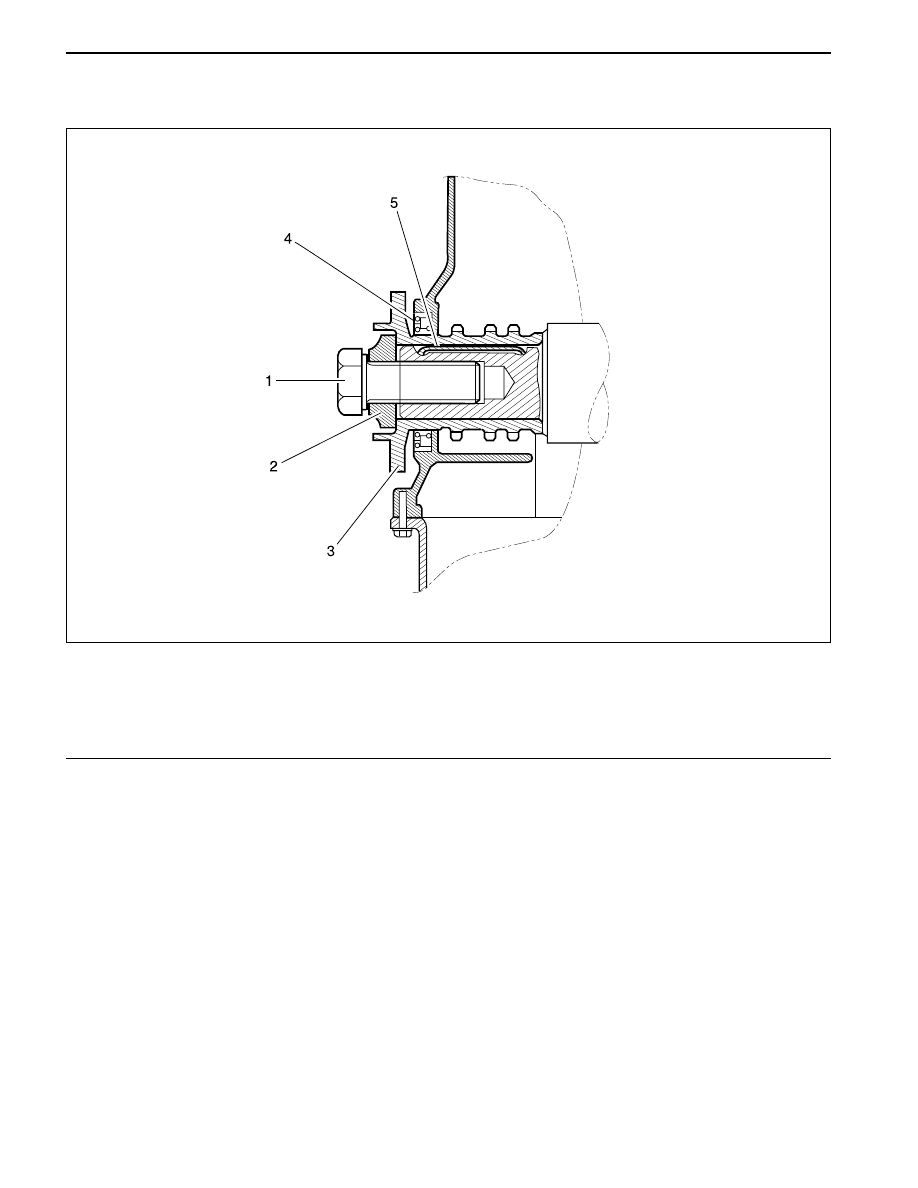

CRANKSHAFT FRONT RADIAL SEAL

Preceding Work : Removal of belt pulley and vibration damper

1 Center Bolt (M18 x 50)

.......... 1st  step

180- 220  N•m (133-162 lb-ft)

2nd step 90°+10°

2 Center Bolt Washer

YAD1B780

3 Sleeve (Special Tool)
4 Crankshaft Front Seal
5 Key

M162 ENGINE MECHANICAL  1B1-41

SSANGYONG  Y200

Tools Required

601 589 03 14 00

Crankshaft Front Seal Installer

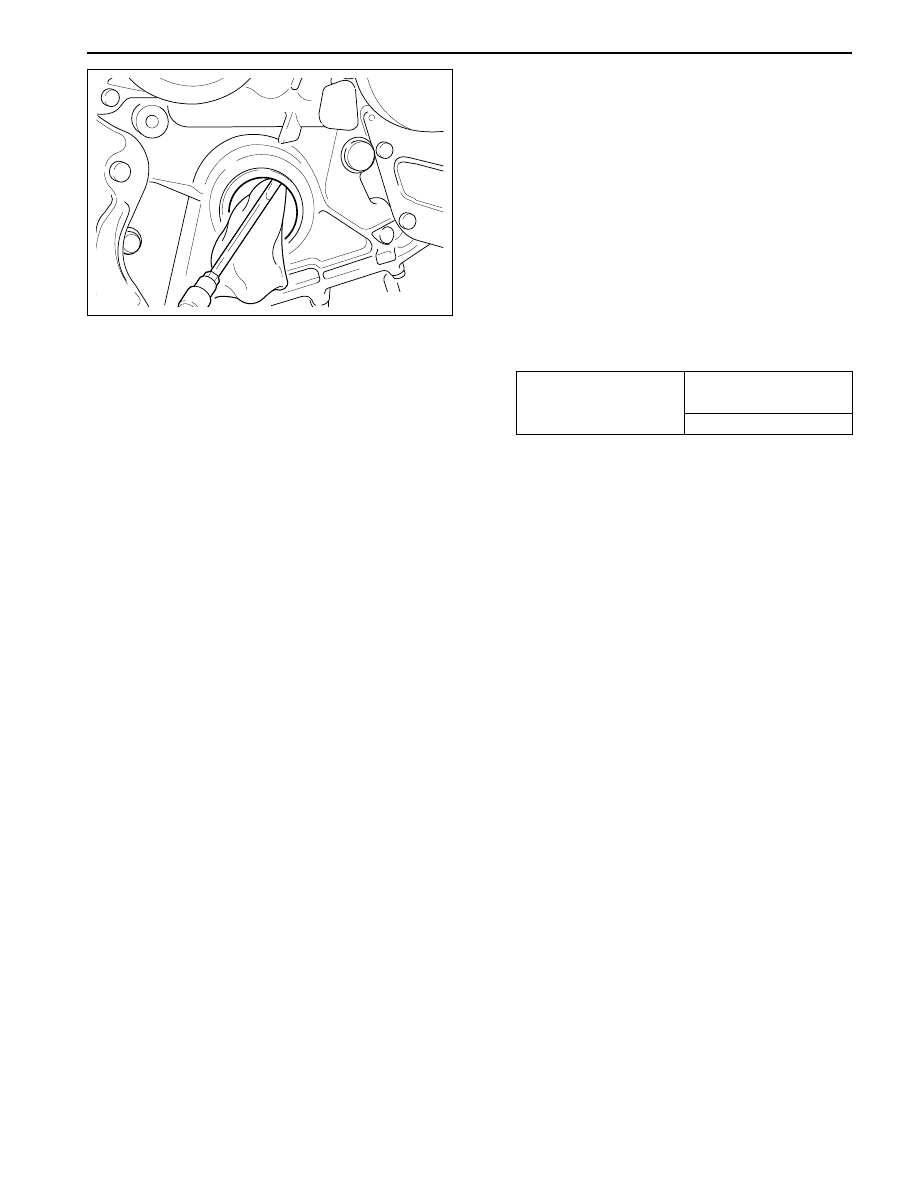

Replacement Procedure

1. Remove the radial seal with a screw driver.

Notice: Use a clean cloth not to damage the radial
seal mounting hole and the crankshaft.

2. Coat the radial sealing lip with engine oil.

3. Using the crankshaft front seal installer 601 589

03 14 00, assemble the radial seal.

4. Align the sleeve groove and the woodruff key and

tighten the center bolt until the center bolt and
the damper disk stop in the movement.

Installation Notice

5. Remove the crankshaft front seal installer 601 589

03 14 00, and install the belt pulley and the
vibration damper.

6. Check for leaks while operating the engine.

YAD1B800

Tightening Torque

1st  step: 180 - 220 N•m

(133 - 162 lb-ft)

2nd step: 90° + 10°

SSANGYONG  Y200

1B1-42  M162 ENGINE MECHANICAL

YAD1B840

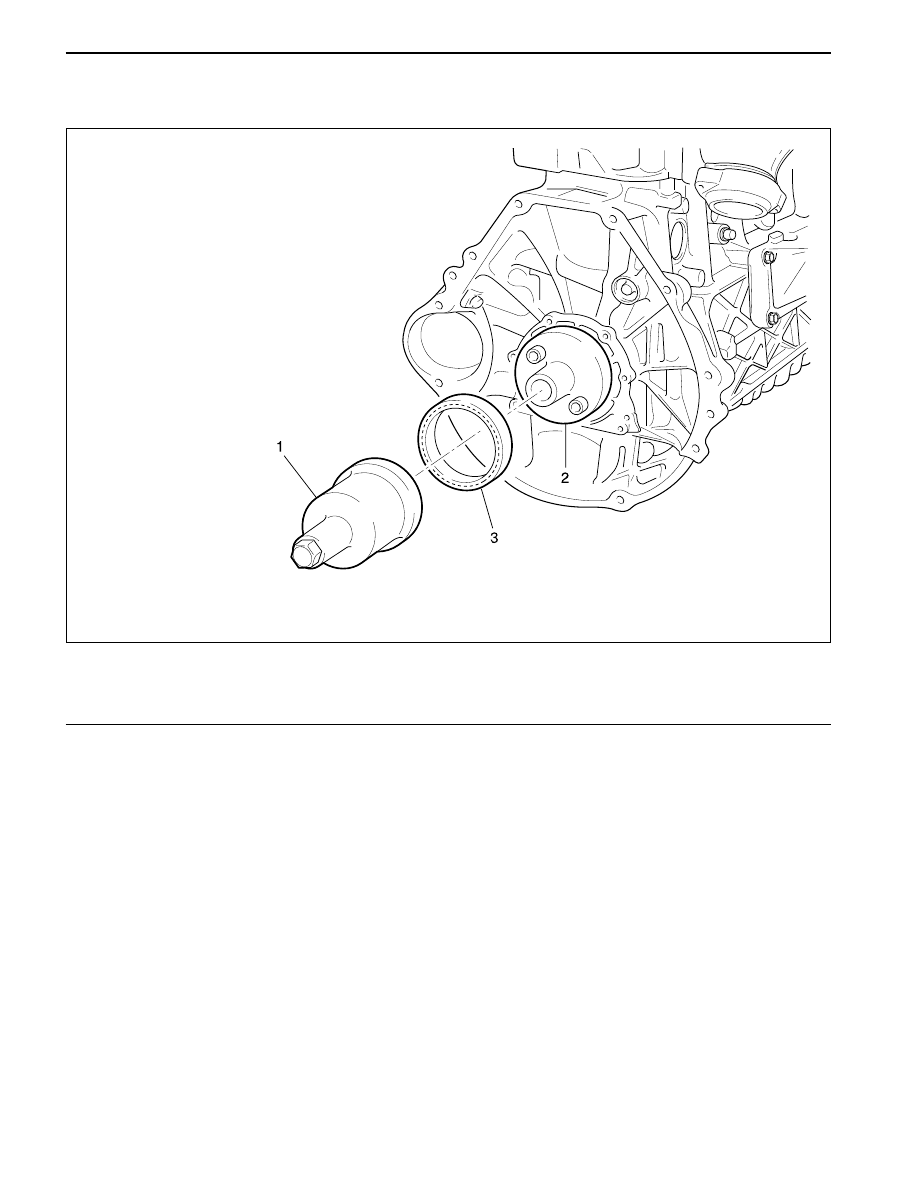

CRANKSHAFT REAR RADIAL SEAL

Preceding Work : Removal of flywheel or drive plate

1 Special Tool
2 Special Tool

3 Crankshaft Rear Seal
