M162 ENGINE MECHANICAL  1B1-35

SSANGYONG  Y200

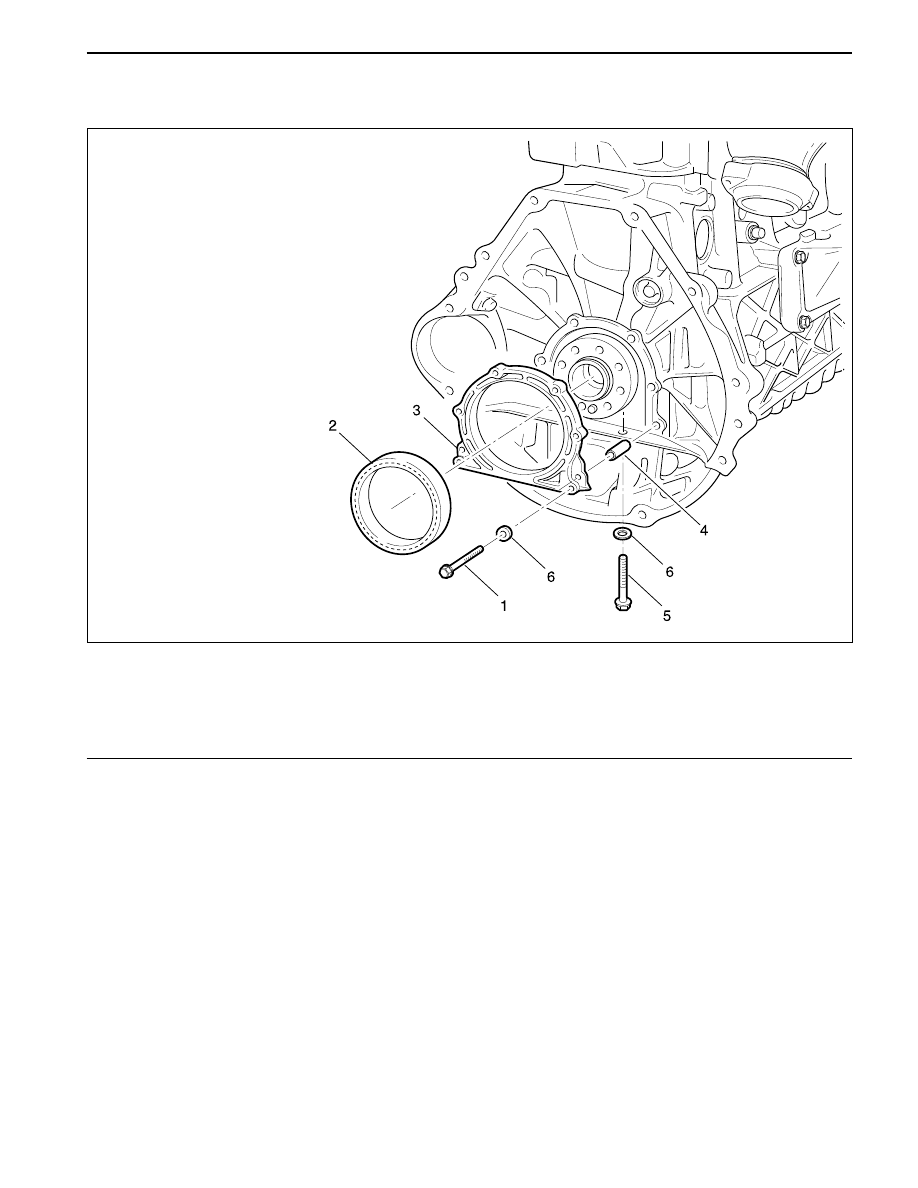

CRANKSHAFT SEALING REAR COVER

Preceding Work : Removal of the automatic transmission drive plate

1 Bolt (M6 x 20, 6 pieces)

......................................... 9-11 N•m (80-97 lb-in)

2 Radial Shaft Seal
3 Rear Cover

4 Sleeve
5 Bolt (M6 x 85, 2 pieces)

.........................................9-11 N•m (80-97 lb-in)

6 Washer

YAD1B710

SSANGYONG  Y200

1B1-36  M162 ENGINE MECHANICAL

Tools Required

601 589 03 43 00

Crankshaft Rear Seal Installer

Removal & Installation Procedure

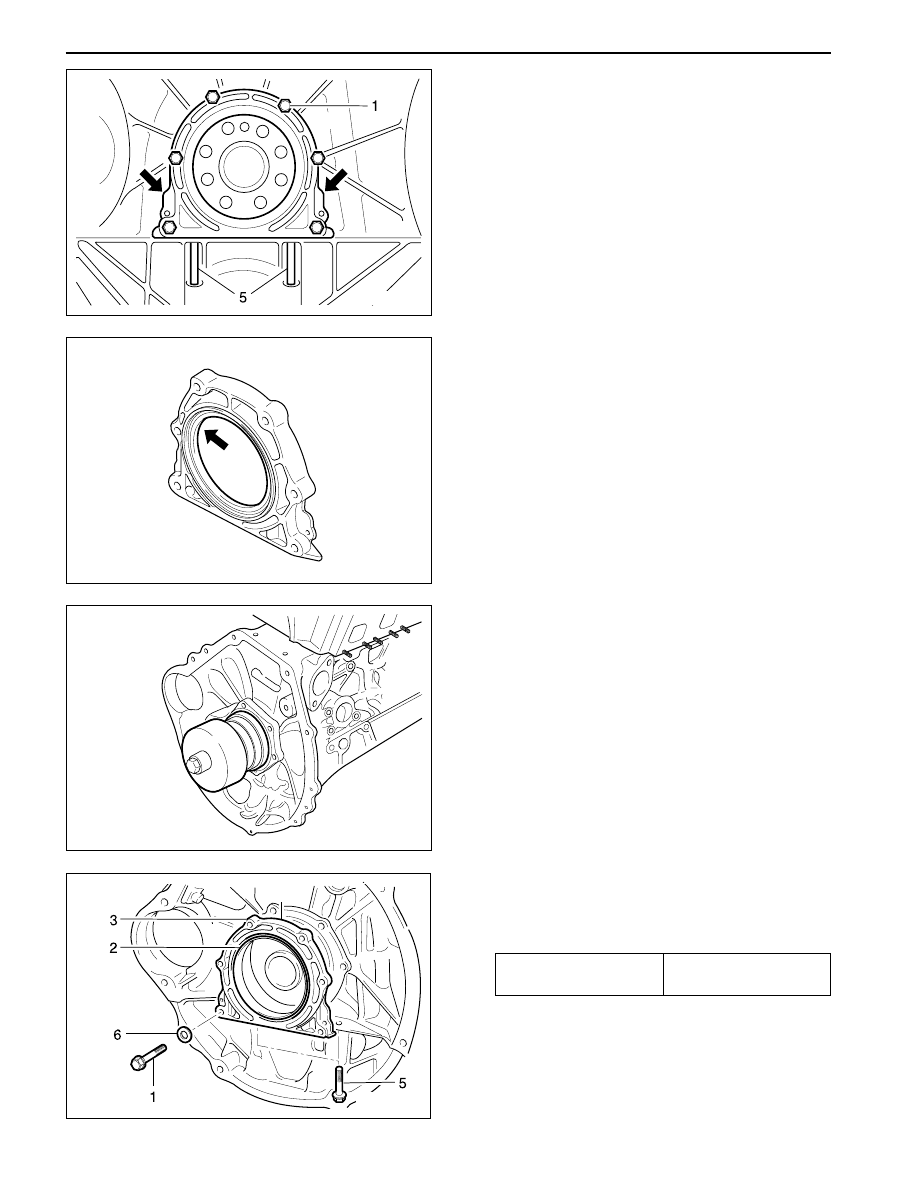

1. Unscrew the bolts (1) and (5) and remove the

closing cover by pulling the rear cover lug (arrows).

Notice:  Be careful not to damage the oil pan
gasket.

7. Install the crankshaft sealing rear cover mounting

bolts and remove the crankshaft rear seal installer
601 589 03 43 00.

Installation Notice

2. Clean the sealing surface of the crankcase and

the rear sealing cover.

3. Check the radial shaft seal and replace it if

necessary.

4. Apply the Loctite 573 to the rear cover sealing

surface.

5. Apply the engine oil to the dust lip of the radial

shaft seal.

Notice: Do not use the grease.

6. Install the crankshaft rear radial seal and the

crankshaft sealing rear cover, using crankshaft rear
seal installer 601 589 03 43 00.

Tightening Torque

9 - 11 N•m

(80 - 97 lb-in)

YAD1B740

YAD1B750

YAD1B760

YAD1B770

M162 ENGINE MECHANICAL  1B1-37

SSANGYONG  Y200

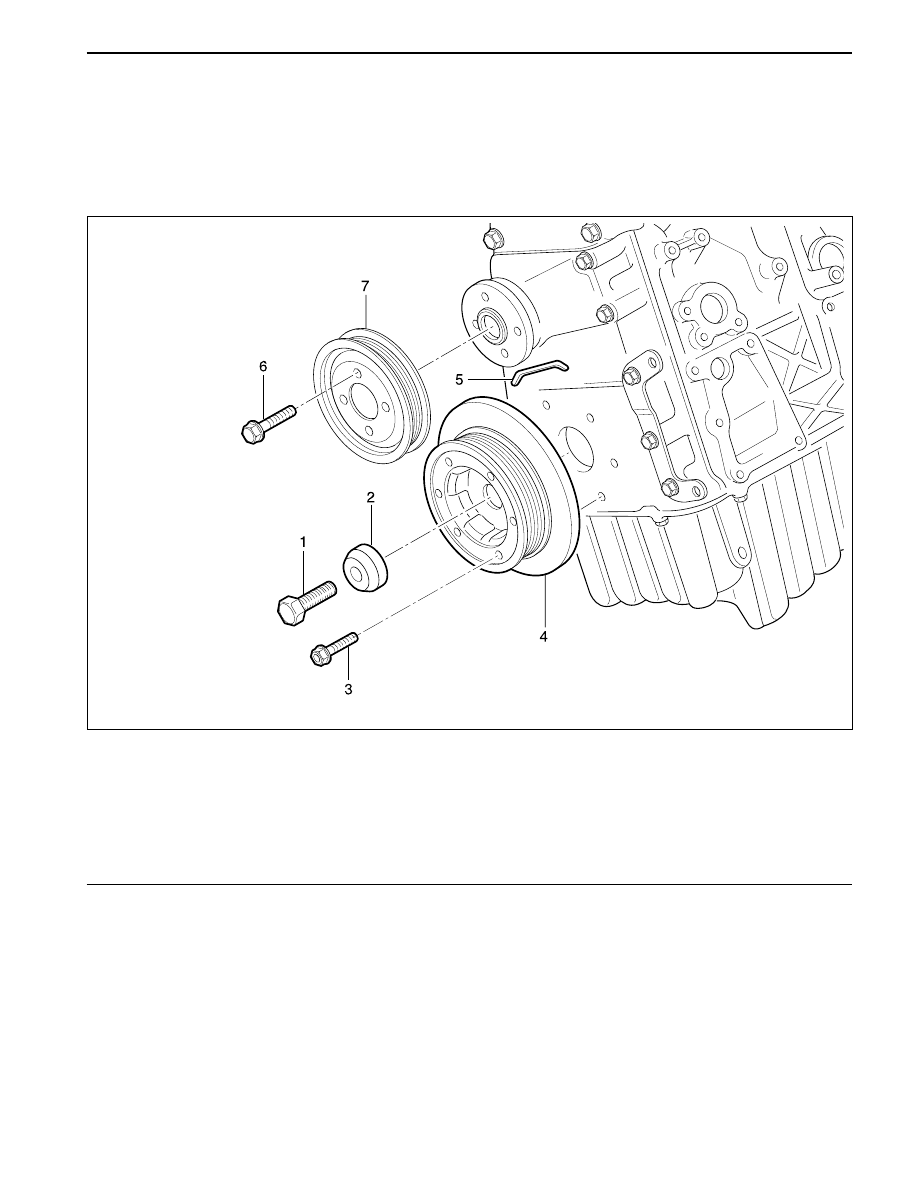

1 Center Bolt (M18 x 50)

.......... 1st step

180- 220  N•m (133-162 lb-ft)

.......... 2nd step 90°+10°

2 Vibration Damper Disk
3 Bolt (M6 x 20, 6 pieces)

............................ 7.7-9.5 N•m (68.1-84.1 lb-in)

CRANKSHAFT ASSEMBLY

BELT PULLEY AND  VIBRATION DAMPER

Preceding Work : Removal of cooling fan and viscous clutch

Removal of fan shroud

Removal of drive belt

4 Vibration Damper Assembly
5 Woodruff Key
6 Bolt (M6 x 12, 4 pieces)

....................................... 9-11 N•m (80-97 lb-in)

7 Cooling Fan Pulley

YAD1B650

SSANGYONG  Y200

1B1-38  M162 ENGINE MECHANICAL

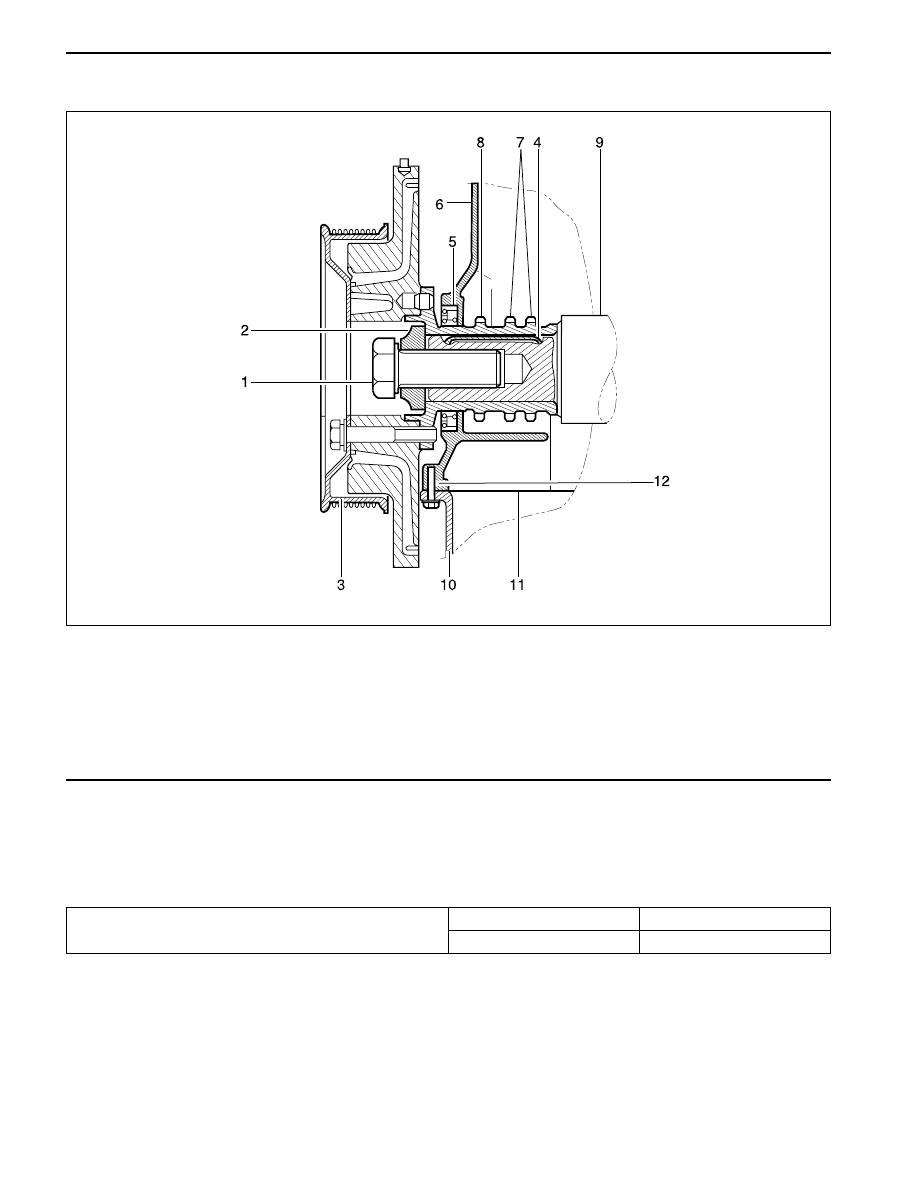

Components

1 Center Bolt (M18 x 50)
2 Vibration Damper Disk
3 Vibration Damper and Pulley Assembly
4 Woodruff Key
5 Crankshaft Front Seal
6 Timing Gear Case Cover

7 Crankshaft Sprocket (Camshaft Driven)
8 Crankshaft Sprocket (Oil Pump Driven)
9 Crankshaft

10 Oil Pan
11 Oil Pan Gasket
12 Oil Pan Mounting Bolt (M6 x 22)

Service Data Standard

Permissble Deviation of The Vibration Damper

Radial Runout

Axial Runout

0.6 mm

0.6 mm

YAD1B660
