ELECTRICAL WIRING DIAGRAMS  5-33

SSANGYONG  REXTON XDi (LHD)

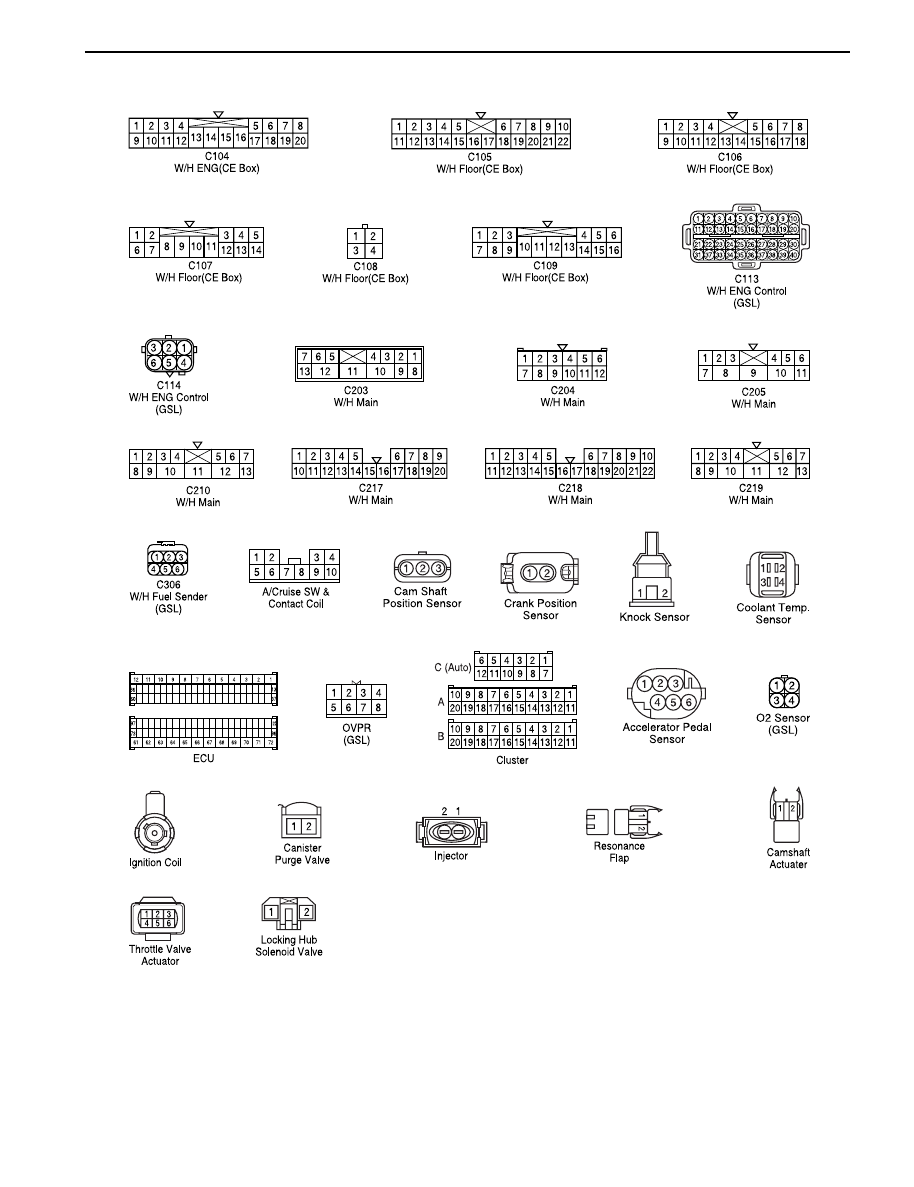

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-34  ELECTRICAL WIRING DIAGRAMS

2) 2003 MODEL ~

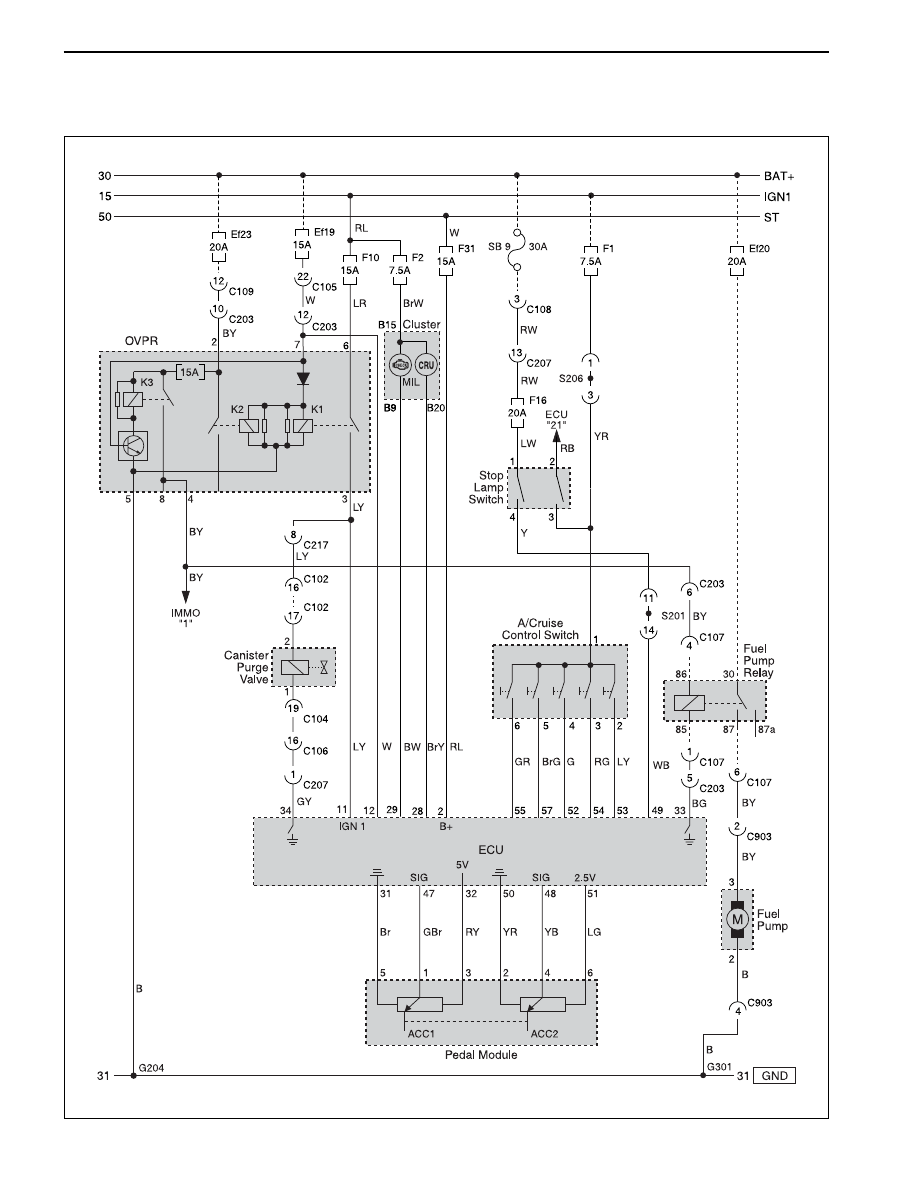

(1) OVPR, FUEL PUMP, CANISTER PURGE VALVE, PEDAL MODULE CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-35

SSANGYONG  REXTON XDi (LHD)

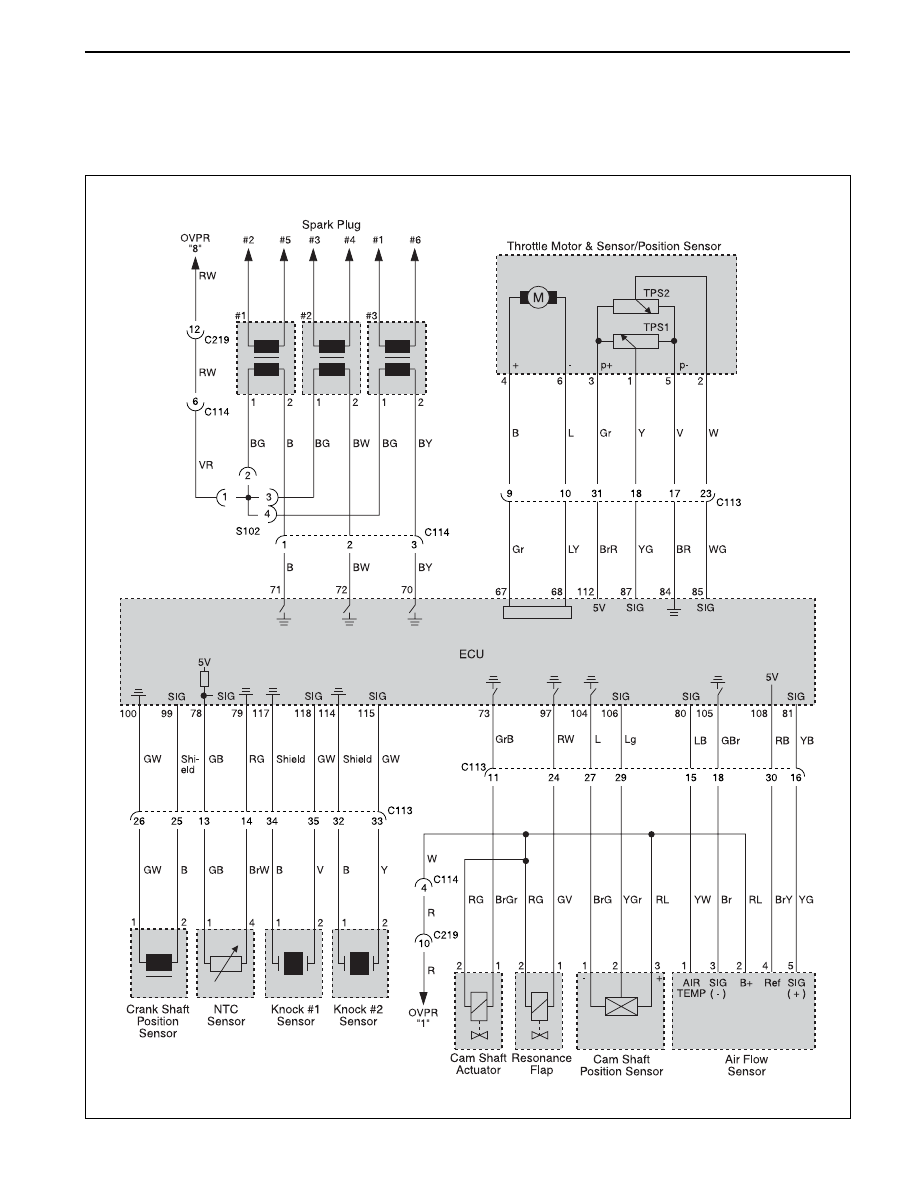

(2) SPARK PLUG, SENSOR(CAM SHAFT POSITION, NTC, CRANK SHAFT POSITION,

THROTTLE MOTOR & SENSOR, KNOCK), CAM SHIFT ACTUATOR, RESONANCE FLAP
CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-36  ELECTRICAL WIRING DIAGRAMS

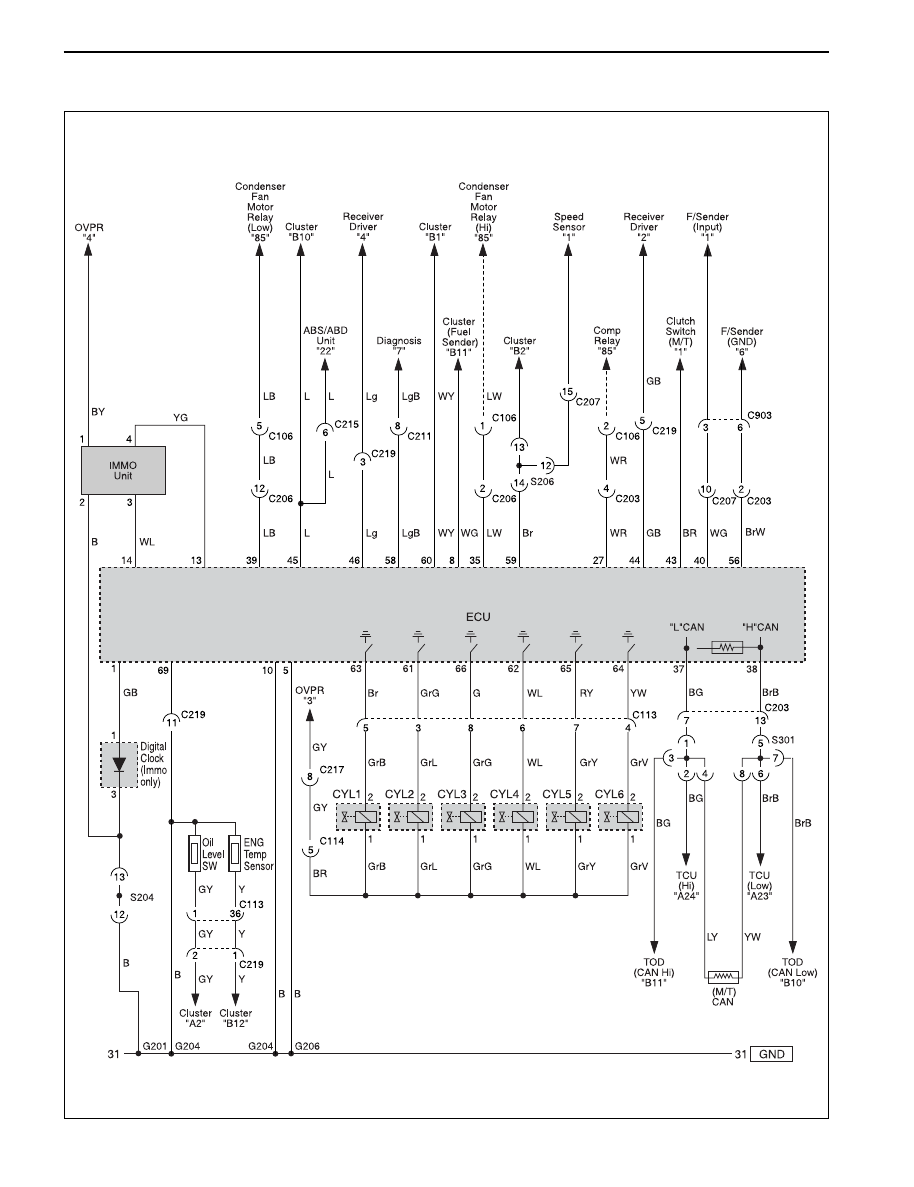

(3) DIGITAL CLOCK, ENG TEMP SENSOR, IMMOBILIZER CIRCUIT
