ELECTRICAL WIRING DIAGRAMS  5-25

SSANGYONG  REXTON XDi (LHD)

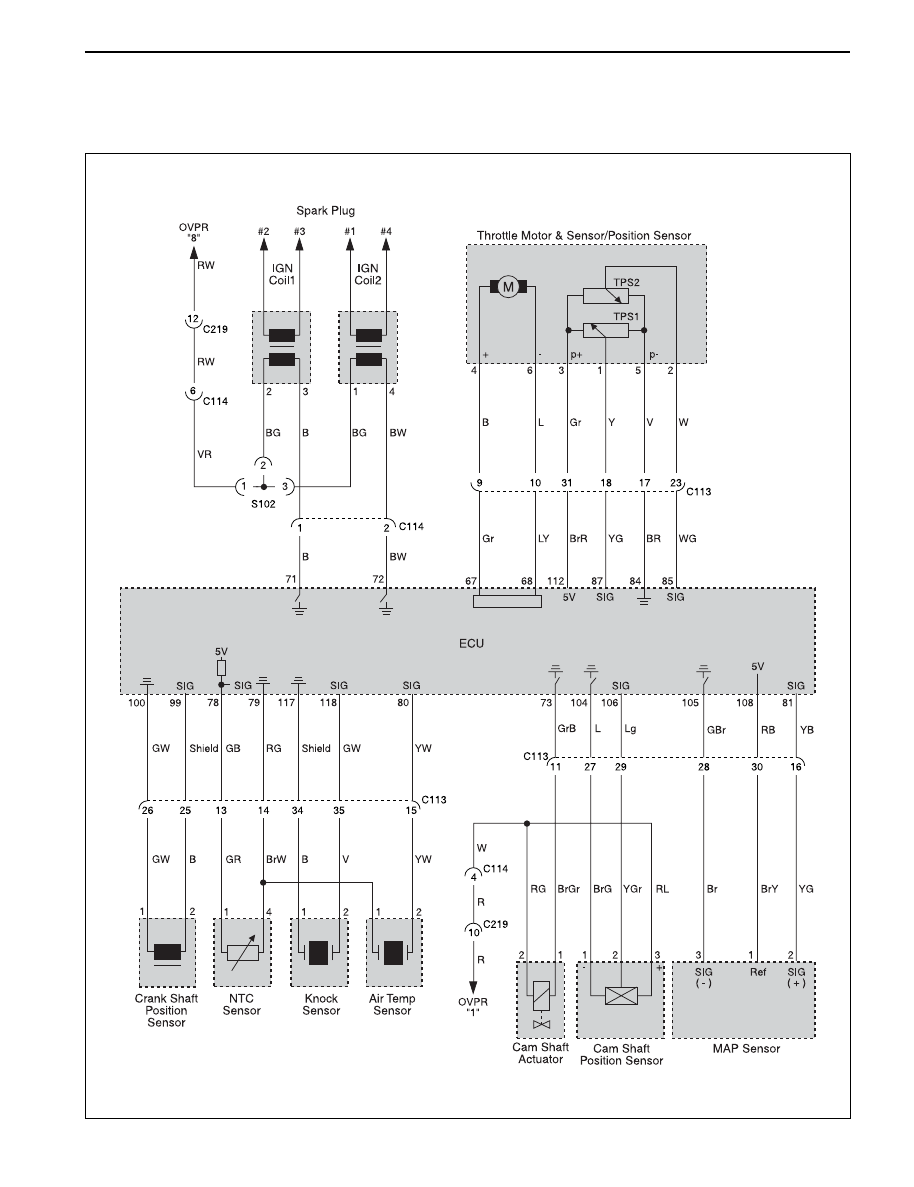

(2) SPARK PLUG, SENSOR (CAM SHAFT POSITION, MAP, NTC, CRANK SHAFT POSITION,

THROTTLE MOTOR, AIR TEMP, KNOCK), CAM SHIFT ACTUATOR CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-26  ELECTRICAL WIRING DIAGRAMS

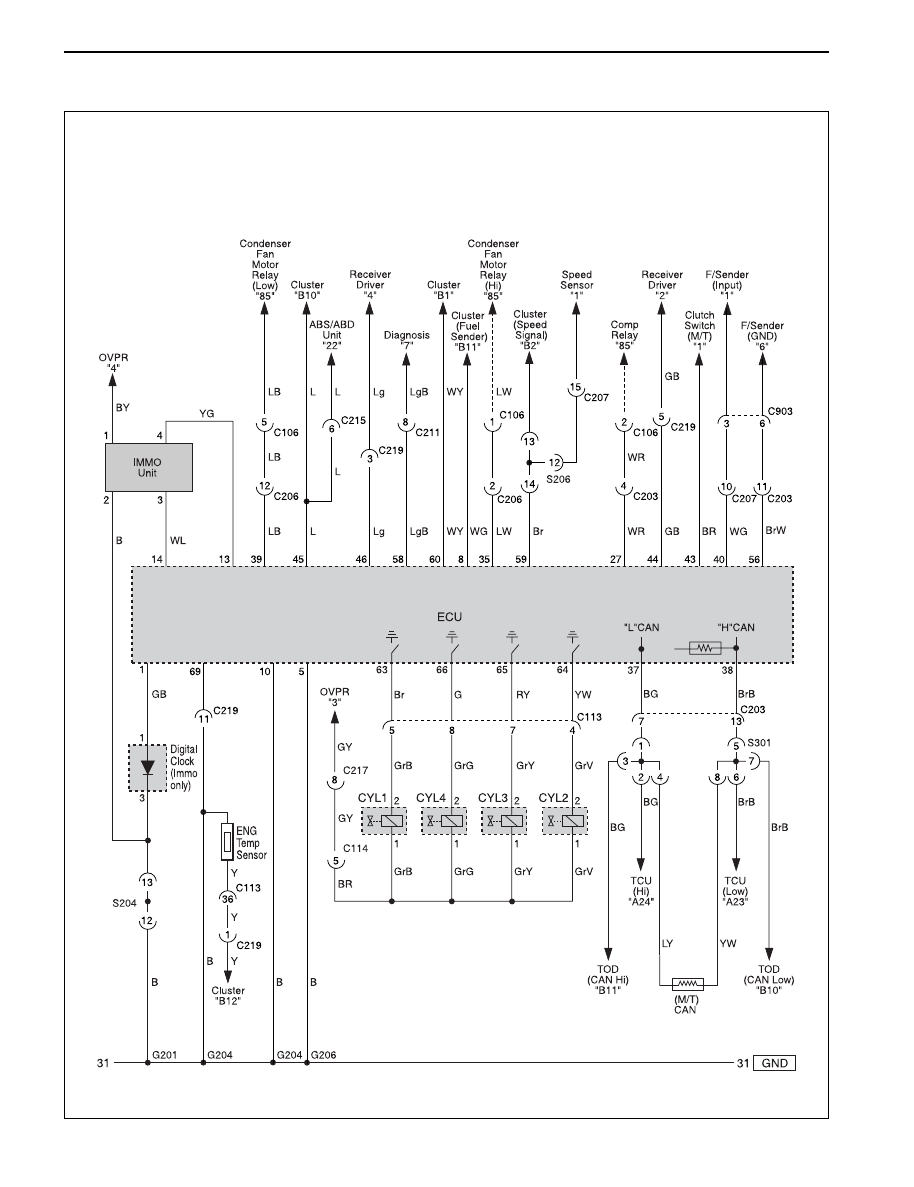

(3) DIGITAL CLOCK, ENG TEMP SENSOR, IMMOBILIZER CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-27

SSANGYONG  REXTON XDi (LHD)

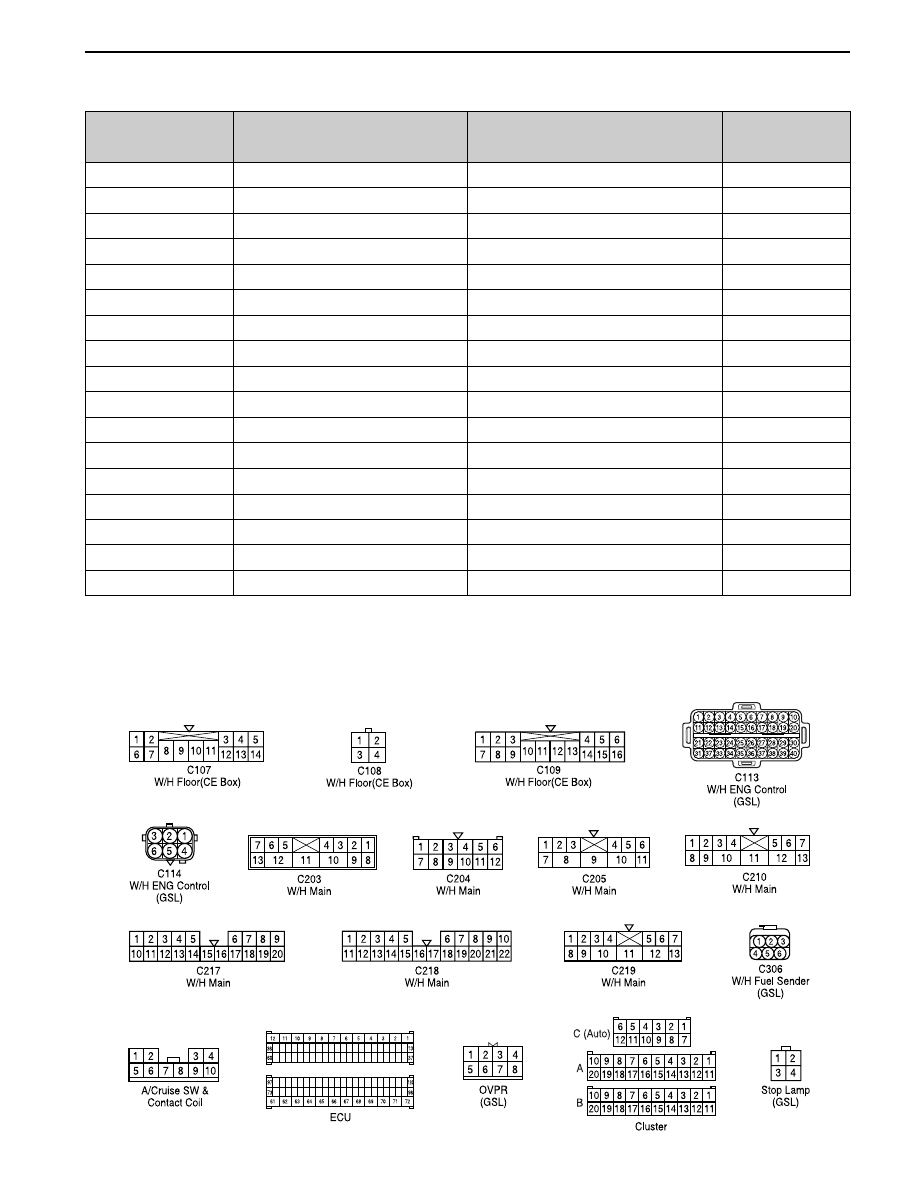

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (K) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Floor - T/M

Main - Floor (RH)

Floor - Fuel Sender

W/H Main

W/H Main

W/H Main

W/H Floor

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C108 (4Pin, Colorless)

C109 (16Pin, White)

C203 (13Pin, Green)

C204 (12Pin, Black)

C205 (11Pin, White)

C210 (13Pin, Green)

C217 (20Pin, Black)

C218 (22Pin, Yellow)

C306 (6Pin, Black)

S201 (14Pin, Black)

S206 (14Pin, Black)

G204

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Left the T/C (Under the Floor)

Upper the I/P Relay Box

Behind the Left the FATC

Inside Co-Driver Side Cowl PNL

Under Driver Seat

A/T

GSL

GND

ECU GND

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-28  ELECTRICAL WIRING DIAGRAMS

5. ECU (ELECTRONIC CONTROL UNIT) (E28, E32)

1) ~ 2002 MODEL

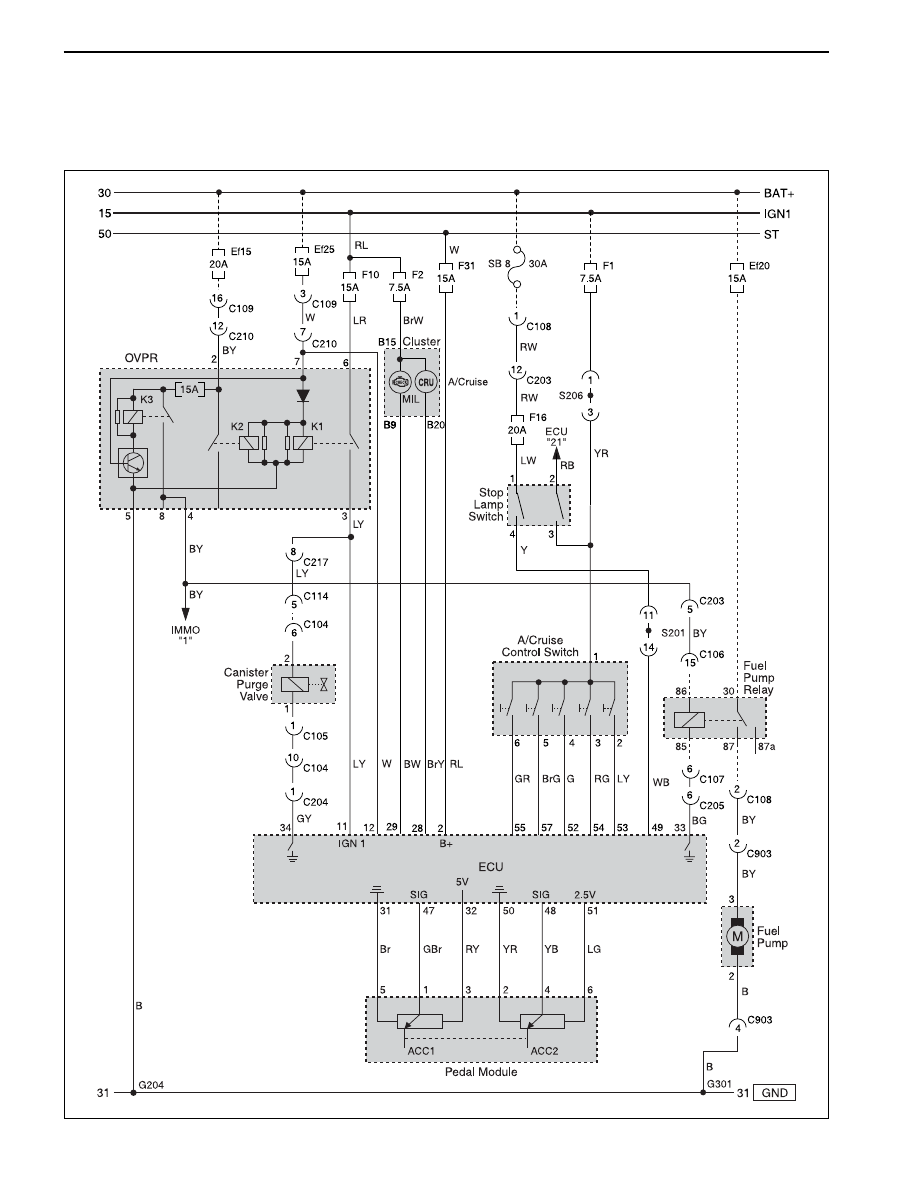

(1) OVPR, FUEL PUMP, CANISTER PURGE VALVE, PEDAL MODULE CIRCUIT
