SsangYong Rexton. Manual - part 249

ELECTRICAL WIRING DIAGRAMS  5-29

SSANGYONG  REXTON XDi (LHD)

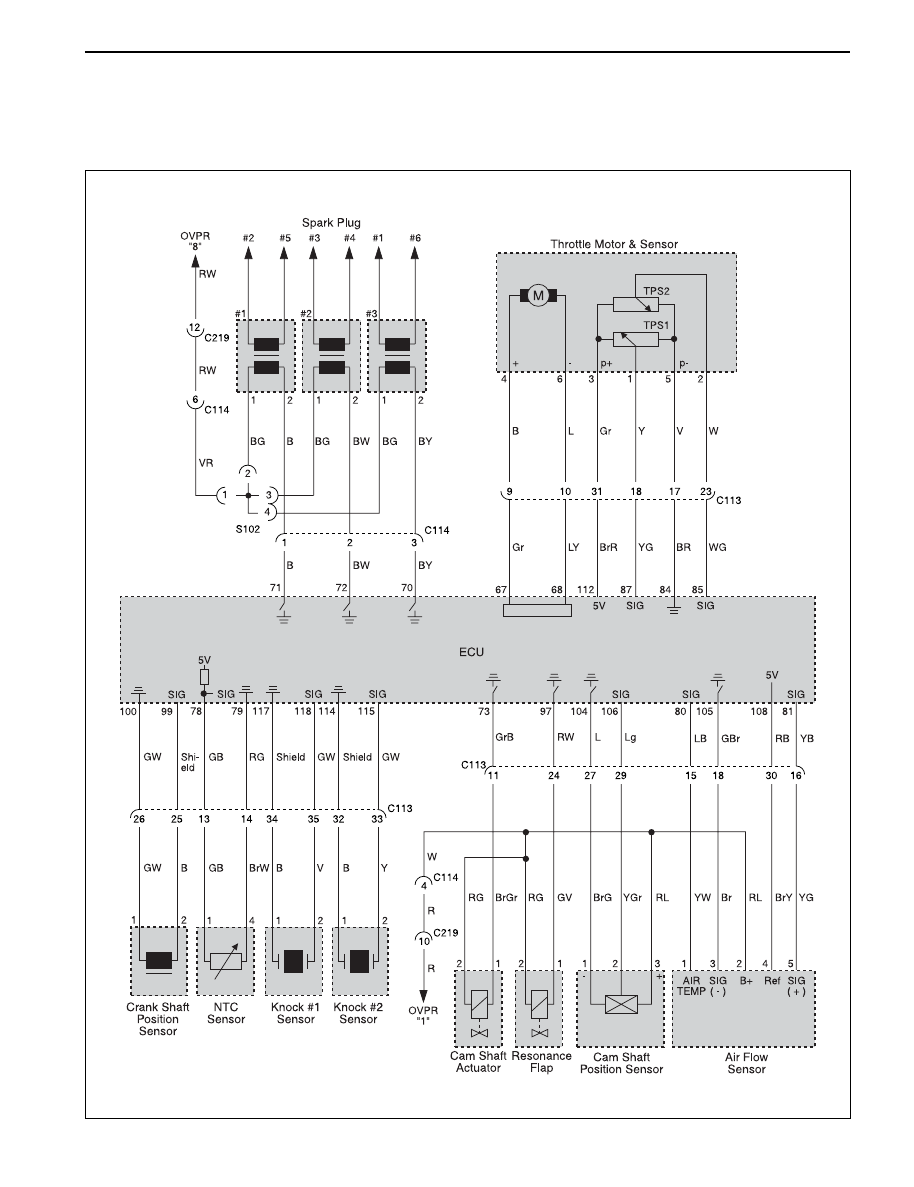

(2) SPARK PLUG, SENSOR (CAM SHAFT POSITION, NTC, CRANK SHAFT POSITION,

THROTTLE MOTOR & SENSOR, KNOCK), CAM SHIFT ACTUATOR, RESONANCE FLAP
CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-30  ELECTRICAL WIRING DIAGRAMS

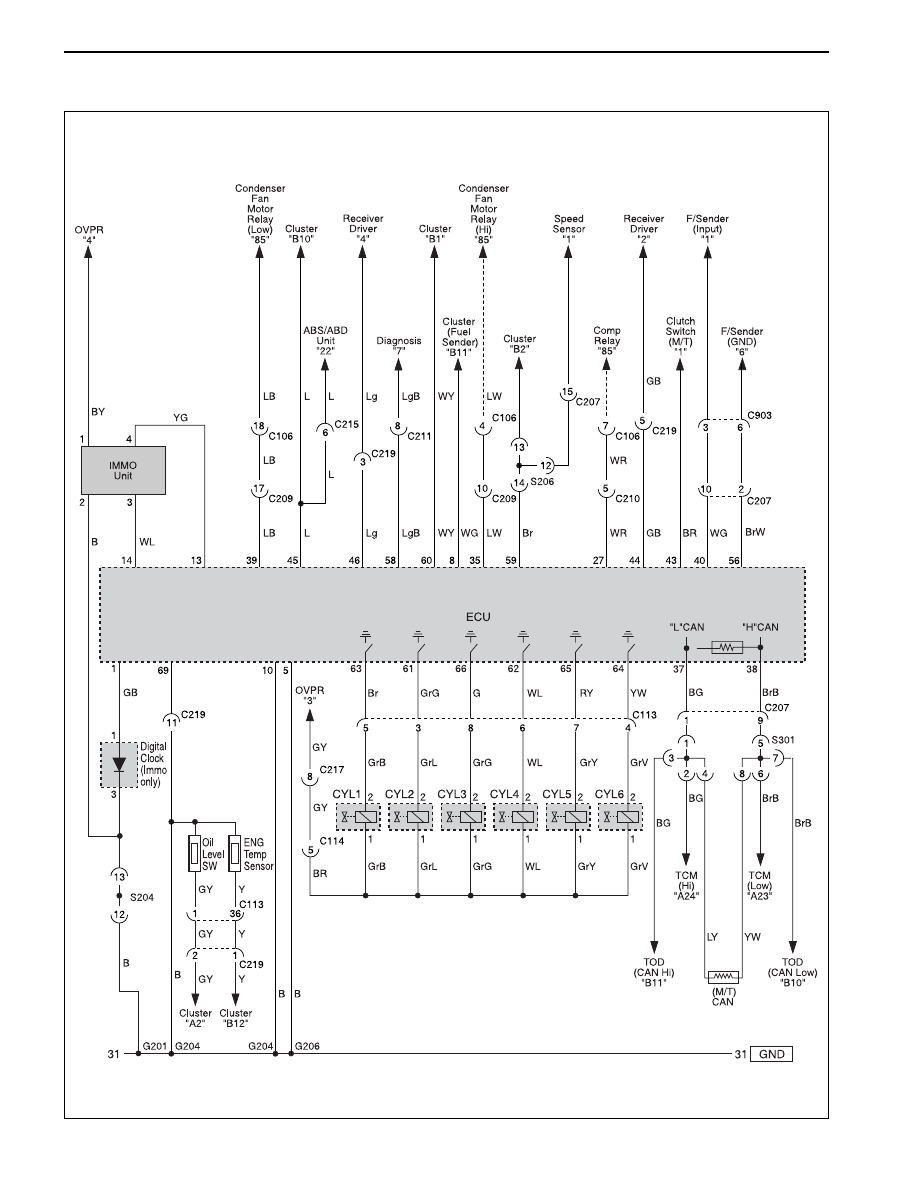

(3) DIGITAL CLOCK, ENG TEMP SENSOR, IMMOBILIZER CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-31

SSANGYONG  REXTON XDi (LHD)

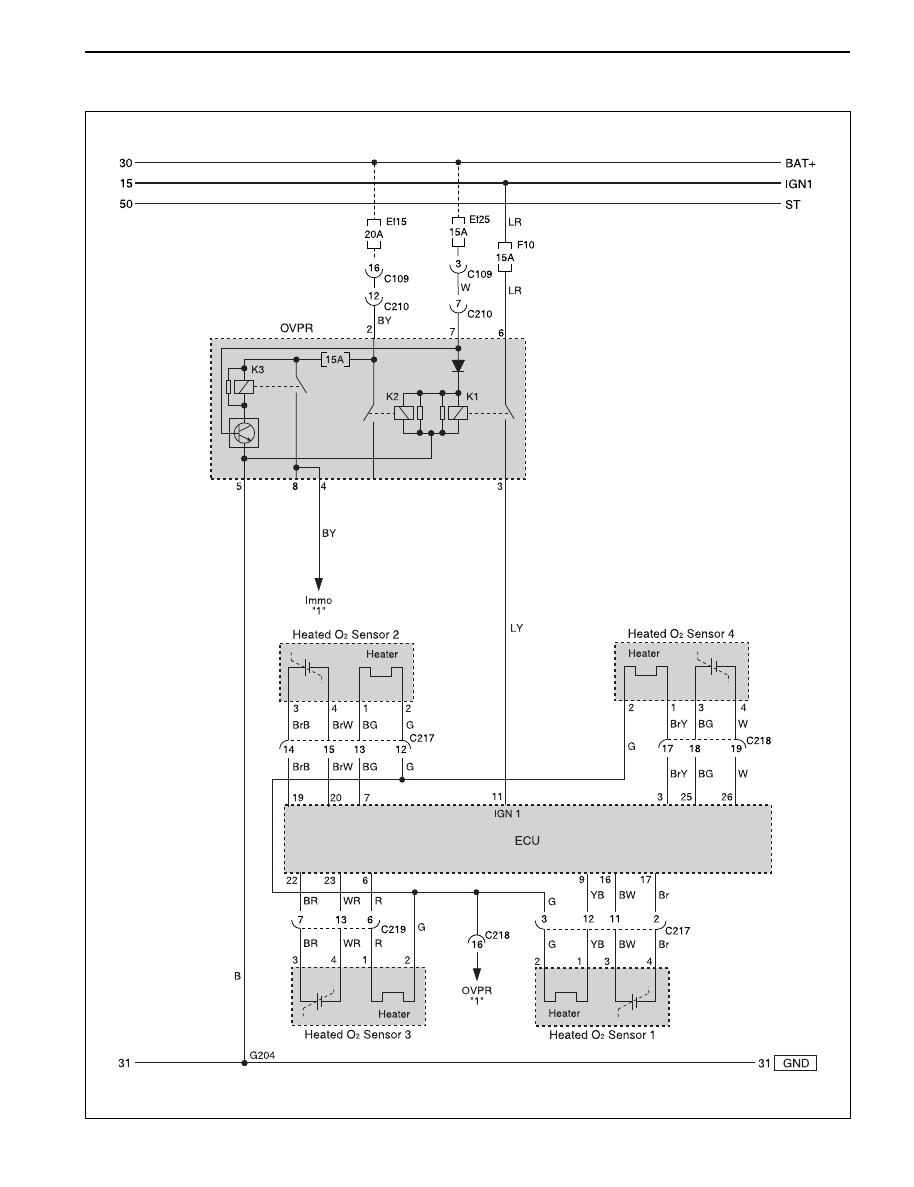

(4) O

2

SENSOR

SSANGYONG  REXTON XDi (LHD)

5-32  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (K) - Engine

Engine Room Fuse Box (M) - Engine

Engine - Engine Control

Engine - Engine Control

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Floor - T/M

Main - Floor (RH)

Engine - Main (RH)

Floor - Fuel Sender

OVPR “6” - Injector

OVPR “8” - IGN Coil

W/H Main

W/H Main

W/H Main

W/H Floor

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C108 (4Pin, Colorless)

C109 (16Pin, White)

C113 (40Pin, Black)

C114 (6Pin, Black)

C203 (13Pin, Green)

C204 (12Pin, Black)

C205 (11Pin, White)

C210 (13Pin, Green)

C217 (20Pin, Black)

C218 (22Pin, Yellow)

C219 (13Pin, Green)

C306 (6Pin, Black)

S101 (7Pin, -)

S102 (4Pin, -)

S201 (14Pin, Black)

S206 (14Pin, Black)

G204

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Left the T/C (Under the Floor)

Inside the C113, C114

Inside the Injector “6”

Upper the I/P Relay Box

Behind the Left the FATC

Inside Co-Driver Side Cowl PNL

Under Driver Seat

GSL

GSL

A/T

GSL

GSL

GSL

GND

ECU GND

Remark

Connector Position
