SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 376

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

15

REAR SUSP & AXLE

STAVIC - 2004.09

4F

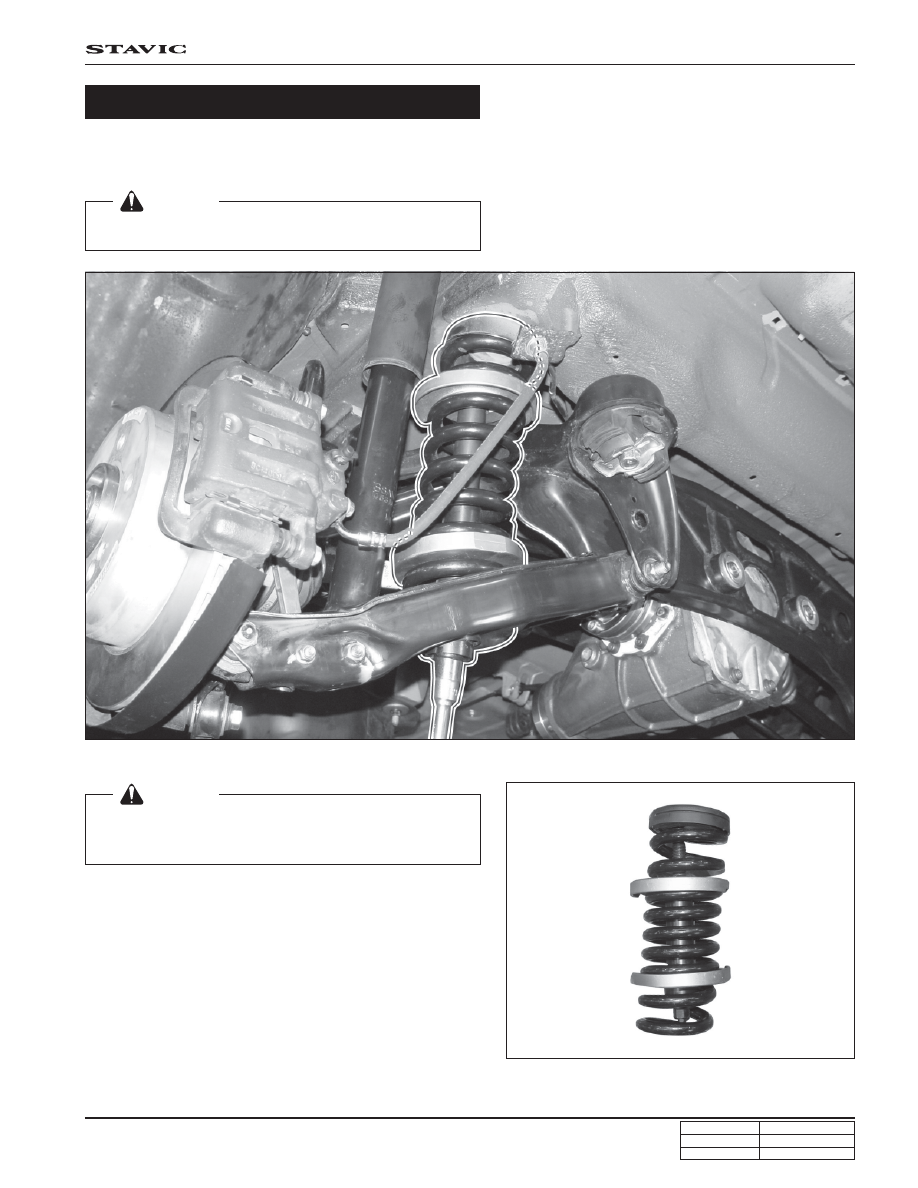

Removal and Installation

Compress the coil spring with special tool and then, disas-
semble  the spring.

 [Notice]

For easier removal, remove the spring seat first.

 [Notice]

Pay attention to use special tool and coil spring.

Sudden release of coil spring could cause a serious accident.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

16

REAR SUSP & AXLE

STAVIC - 2004.09

4F

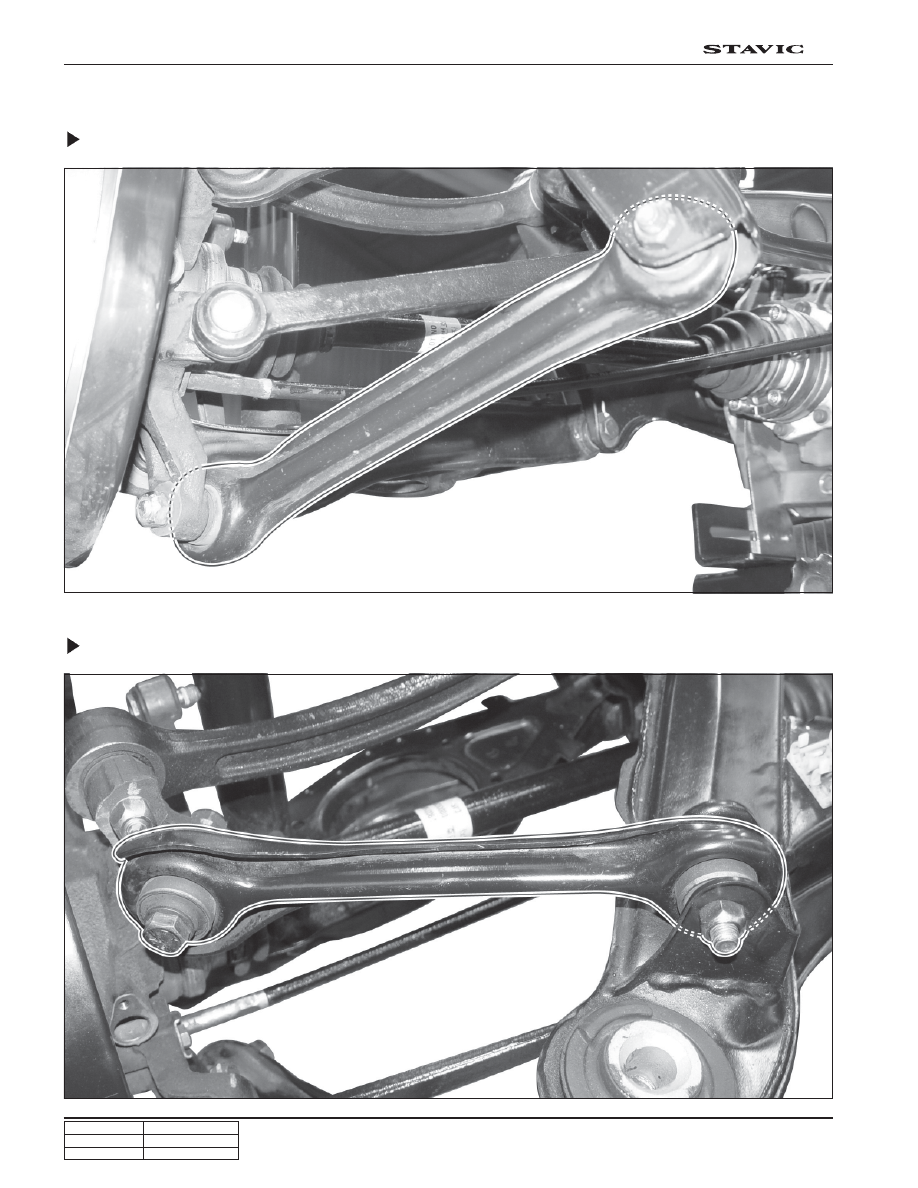

3) Thrust Link / Tension Link

Thrust Link

Tension Link

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

17

REAR SUSP & AXLE

STAVIC - 2004.09

4F

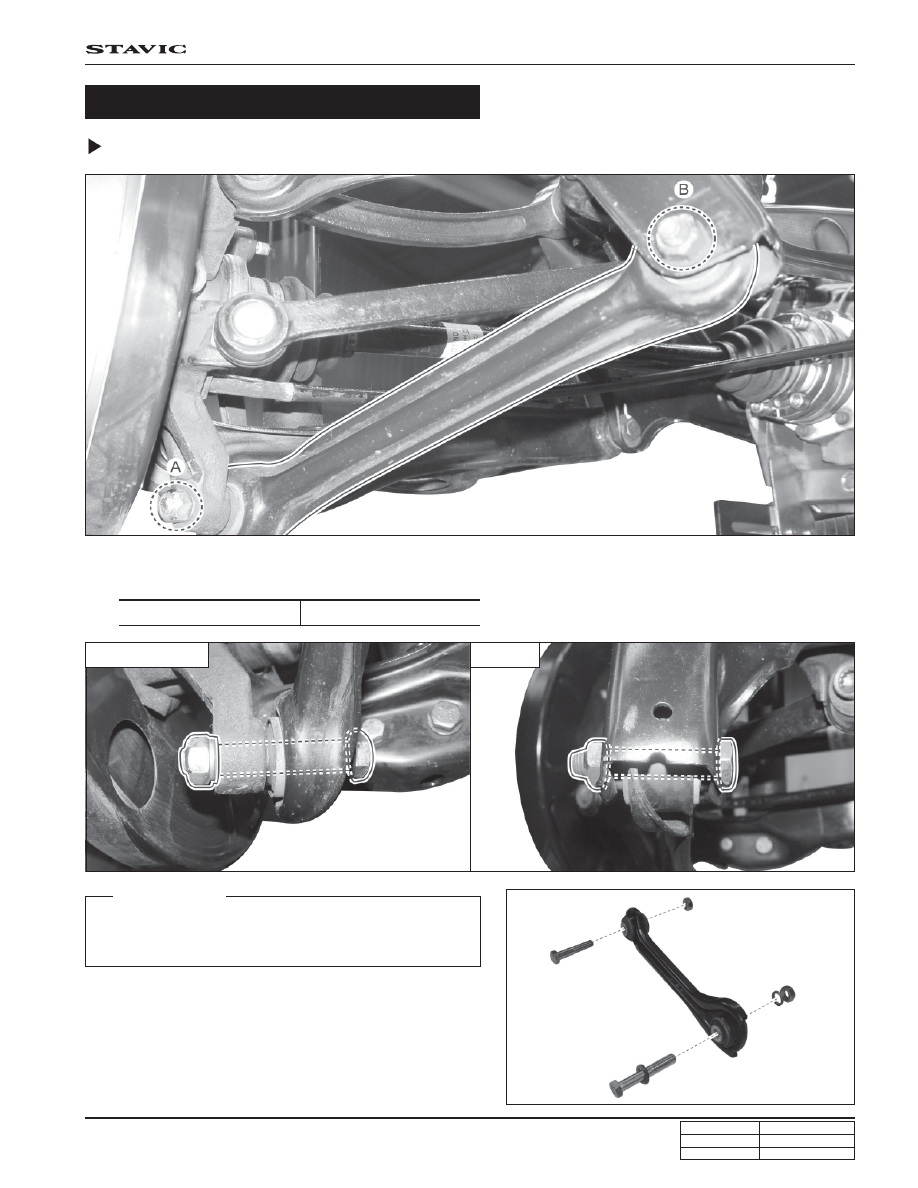

Removal and Installation

Thrust Link

1. Unscrew the thrust link mounting bolts (19 mm-2EA) and remore the link.

2. When install, apply two washers to the thrust link mounting bolt/nut (A. Wheel carrier)

B. Body

A. Wheel carrier

 [Reference]

1. Keep the right position when reinstall (faced outward).

2. Apply the longer bolt to the thrust link wheel carrier side.

Tightening torque (A, B)

70 ± 8 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

18

REAR SUSP & AXLE

STAVIC - 2004.09

4F

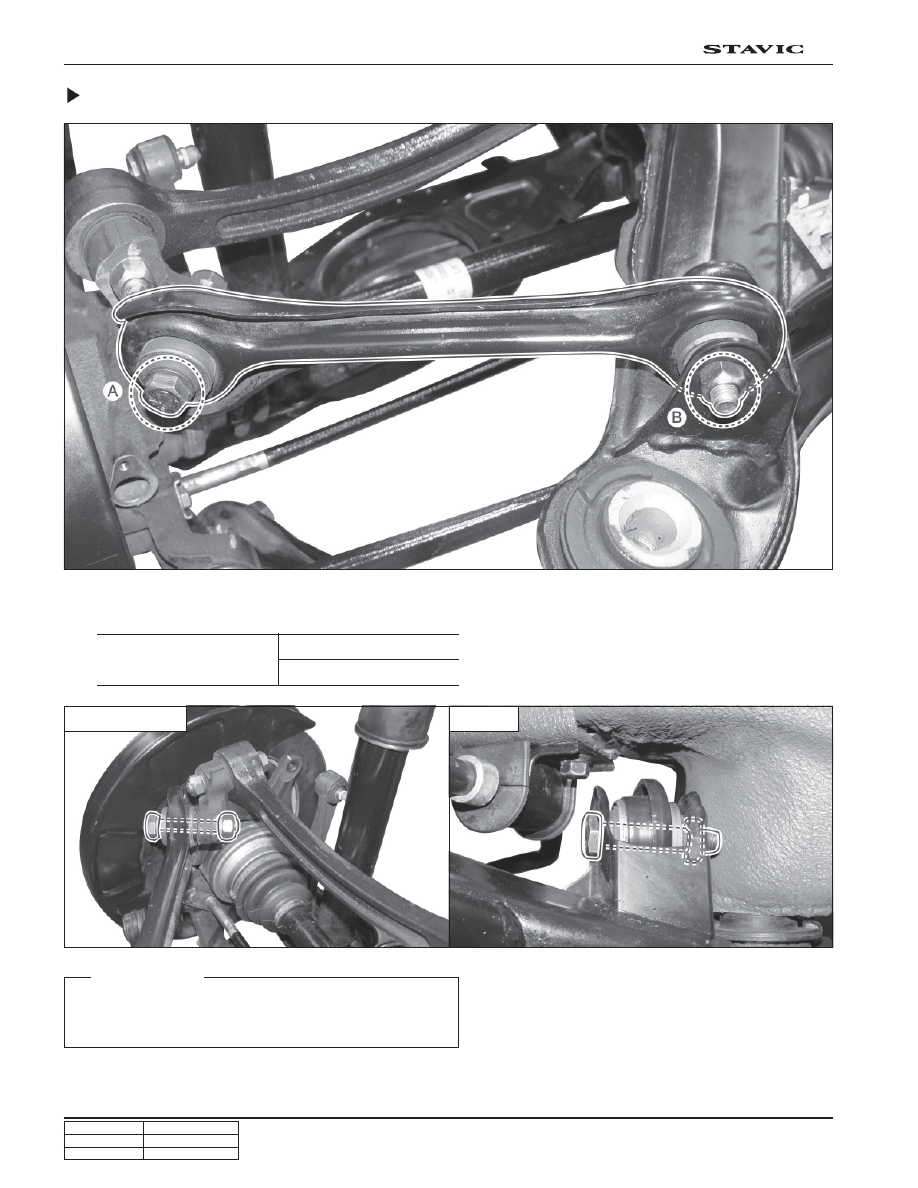

Tension Link

1. Unscrew the tension link mounting bolt (B. Body-19 mm).

2. Unscrew the tension link mounting bolt (A. Wheel carrier-19 mm).

 [Reference]

1. Keep the right position when reinstall.

2. Apply the longer bolt to the tension link wheel carrier side.

Tightening torque

Body: 70 ± 8

Wheel carrier: 70 ± 8

B. Body

A. Wheel carrier
