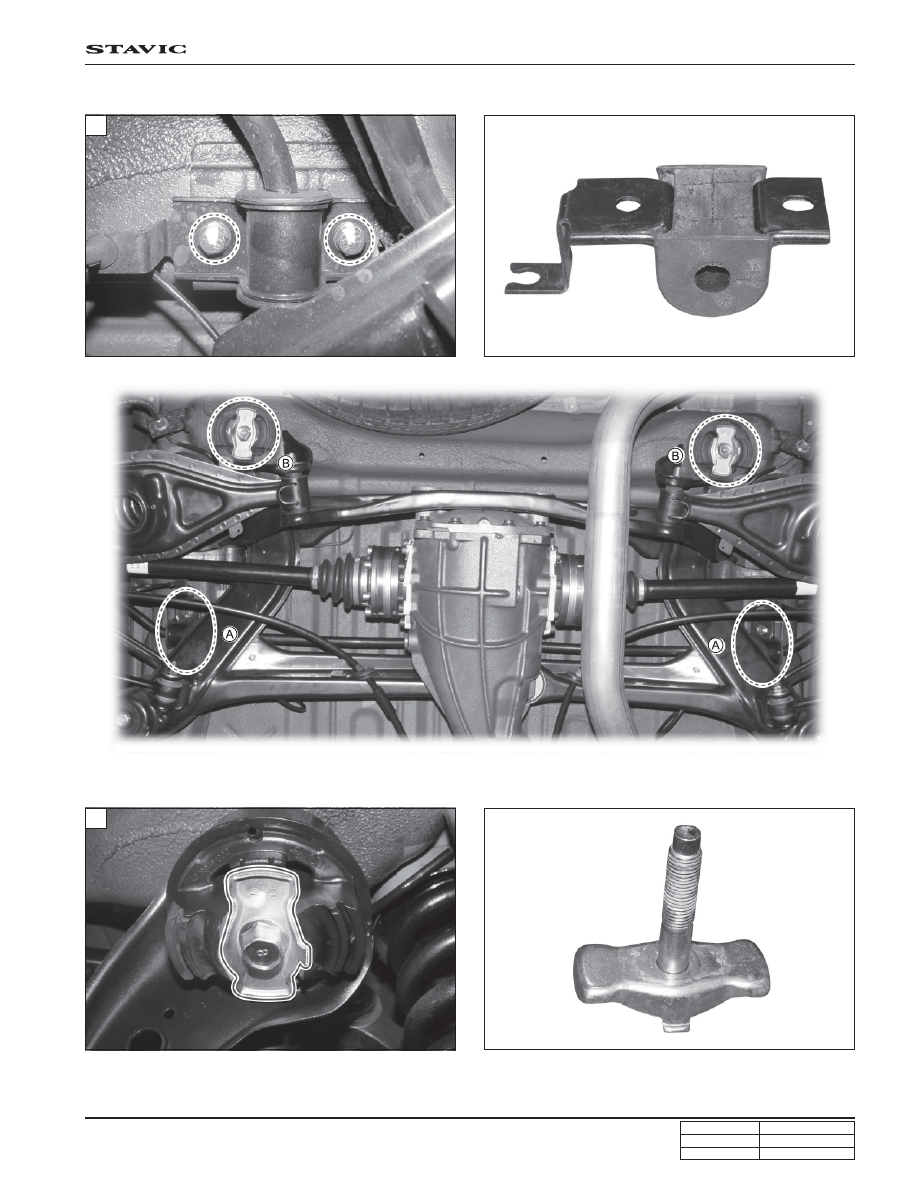

7. Unscrew the stabilizer mounting bolt (A) and remove it from the vehicle.

8. Remove rear frome mounting bolt (B) at the rear axle carrier module.

A

B

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

8

REAR SUSP & AXLE

STAVIC - 2004.09

4F

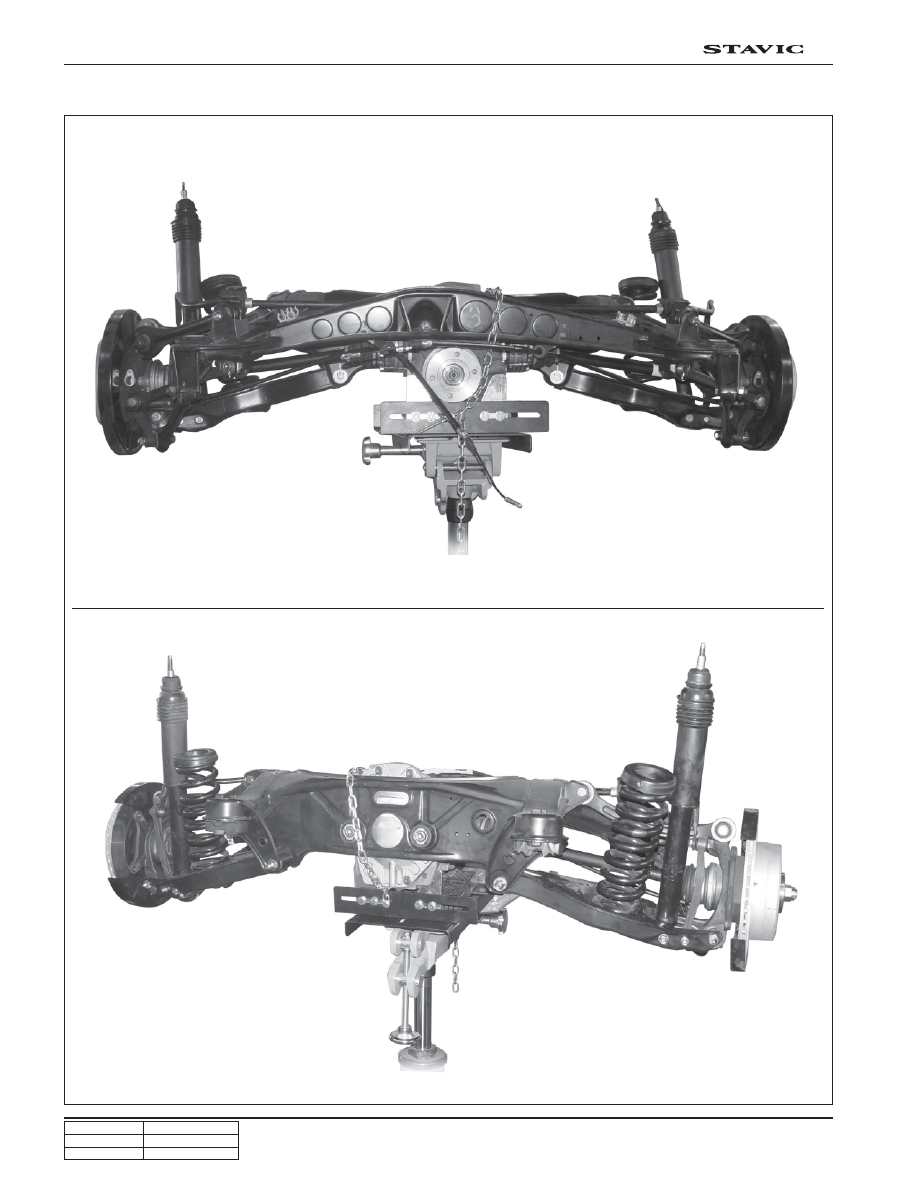

9. Remove the rear axle carrier module from the vehicle.

Front

Rear

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

9

REAR SUSP & AXLE

STAVIC - 2004.09

4F

REAR SUSPENSION SYSTEM

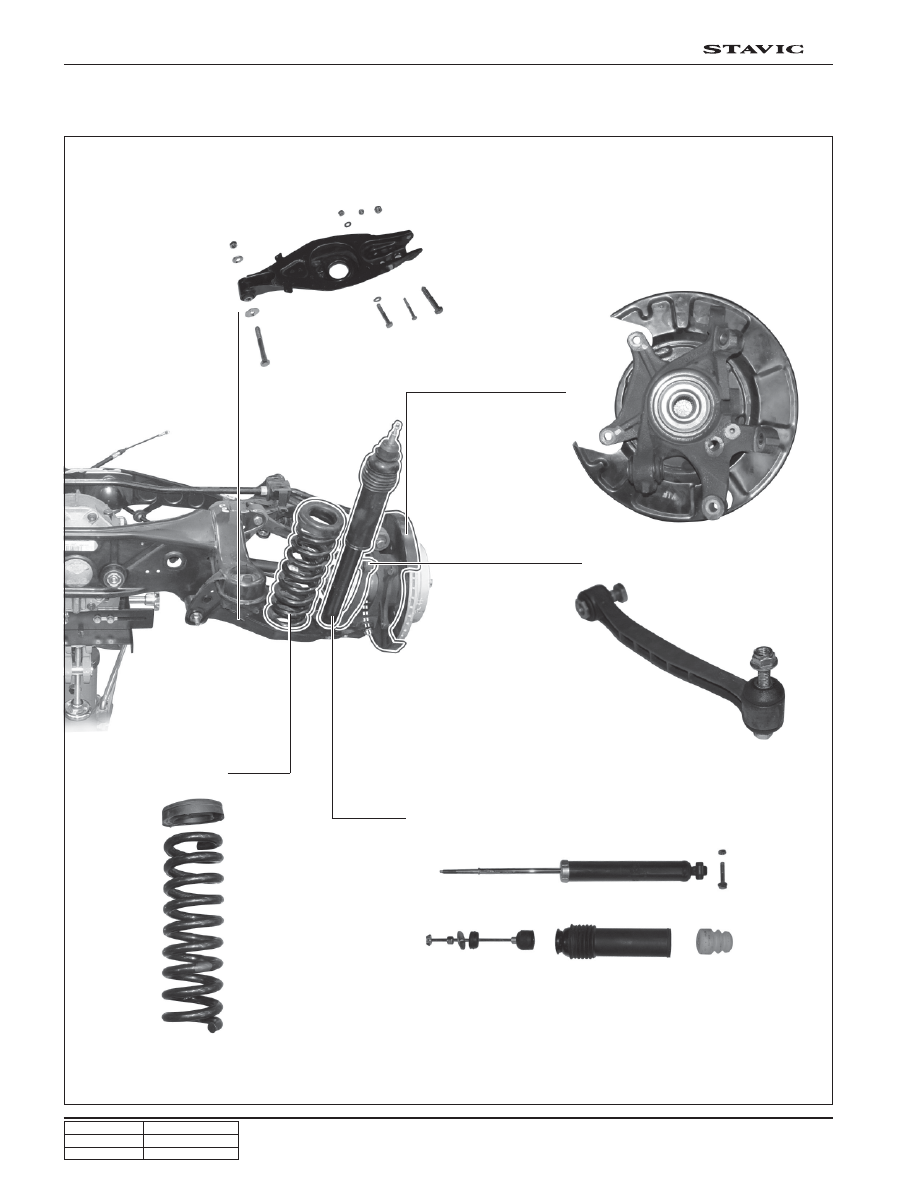

1. SYSTEM OVERVIEW

Camber link

Track rod

Thrust link

Stabilizer bar

Tension link

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

10

REAR SUSP & AXLE

STAVIC - 2004.09

4F

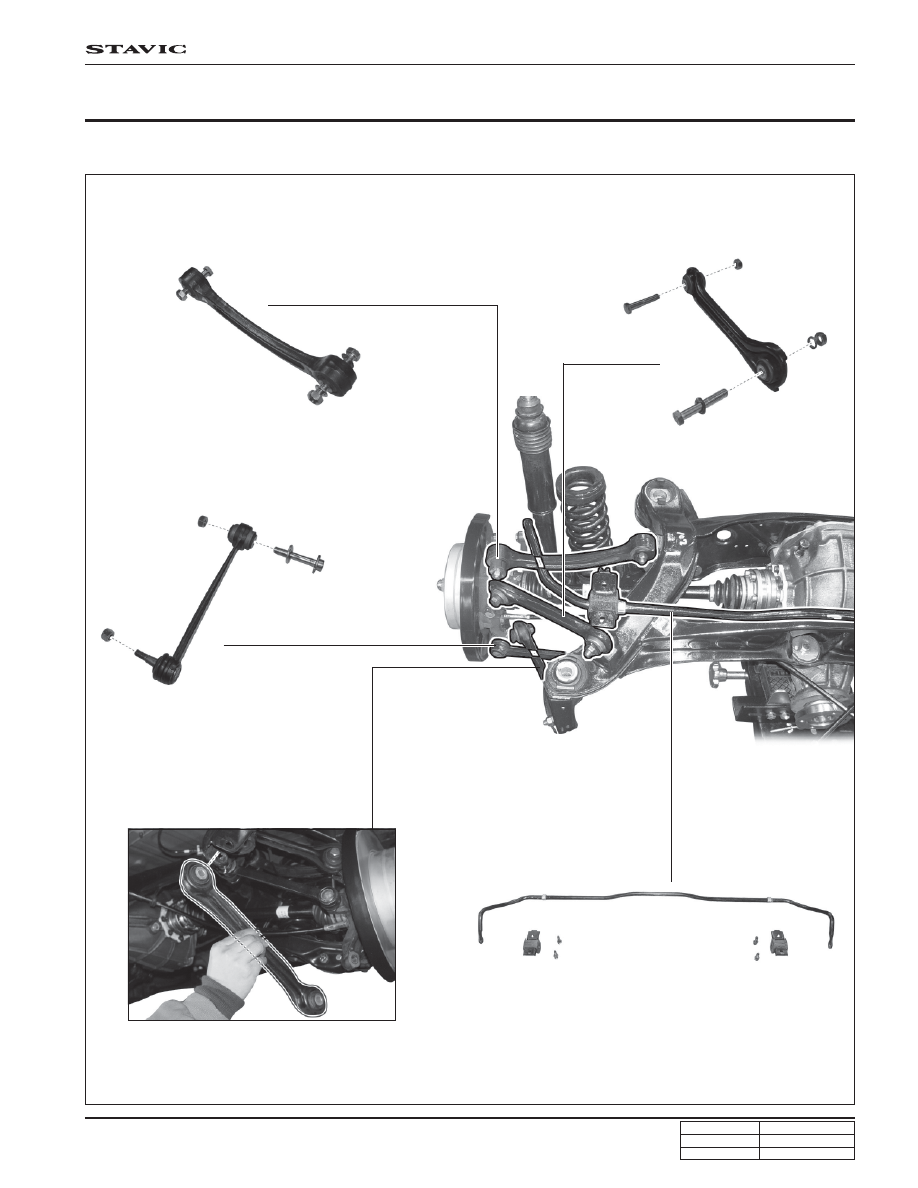

Spring link

Wheel carrier

Stabilizer link

Shock absorber

Coil spring
