SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 373

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

3

REAR SUSP & AXLE

STAVIC - 2004.09

4F

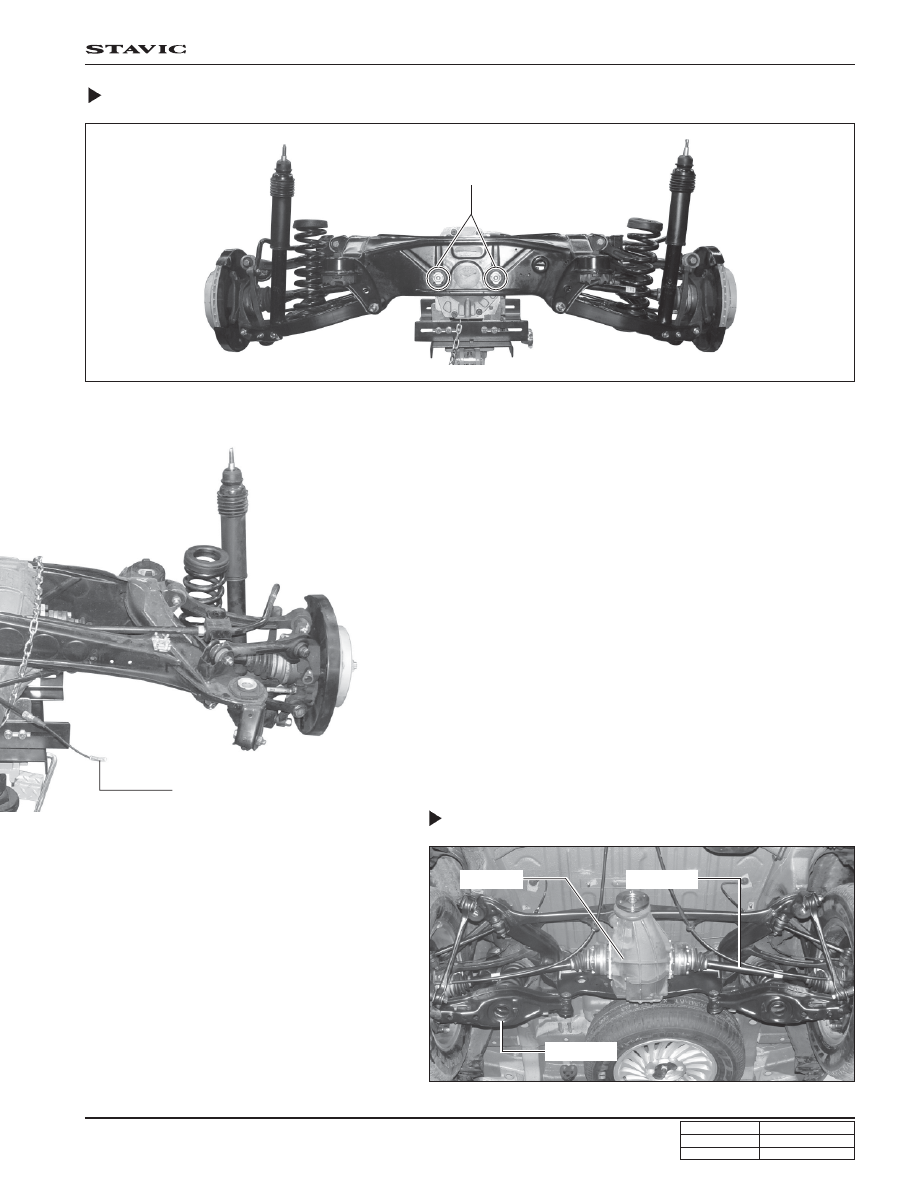

Rear View

Rear Axle & Axle Shaft

Axle mounting

Rear brake cable

Axle shaft

Spring link

Rear axle

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

4

REAR SUSP & AXLE

STAVIC - 2004.09

4F

2. SPECIFICATION

K=120 kgf/mn

Ø14

0.04° ± 0.08°

-1.0° ± 0.5°

Coil spring

Torsion bar

Toe-in

Camber

Suspension type

Spring type

Shock absorber type

Stabilizer type

Wheel alignment

Diameter (Axle) (mm)

Gear ration

Weight (kg)

Length (mn)

Oil capacity ( )

Specified oil

Ø 230

40

250.43

1.7

TOTAL-ISU EP- B85W-90

37

11

41

3.9

11

43

4.1

9

37

4.3

11

47

4.6

9

41

4.9

9

44

5.4

8

43

5.9

7

41

Number of tooth

Pinion

Gear

Multi-link

Gas

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

5

REAR SUSP & AXLE

STAVIC - 2004.09

4F

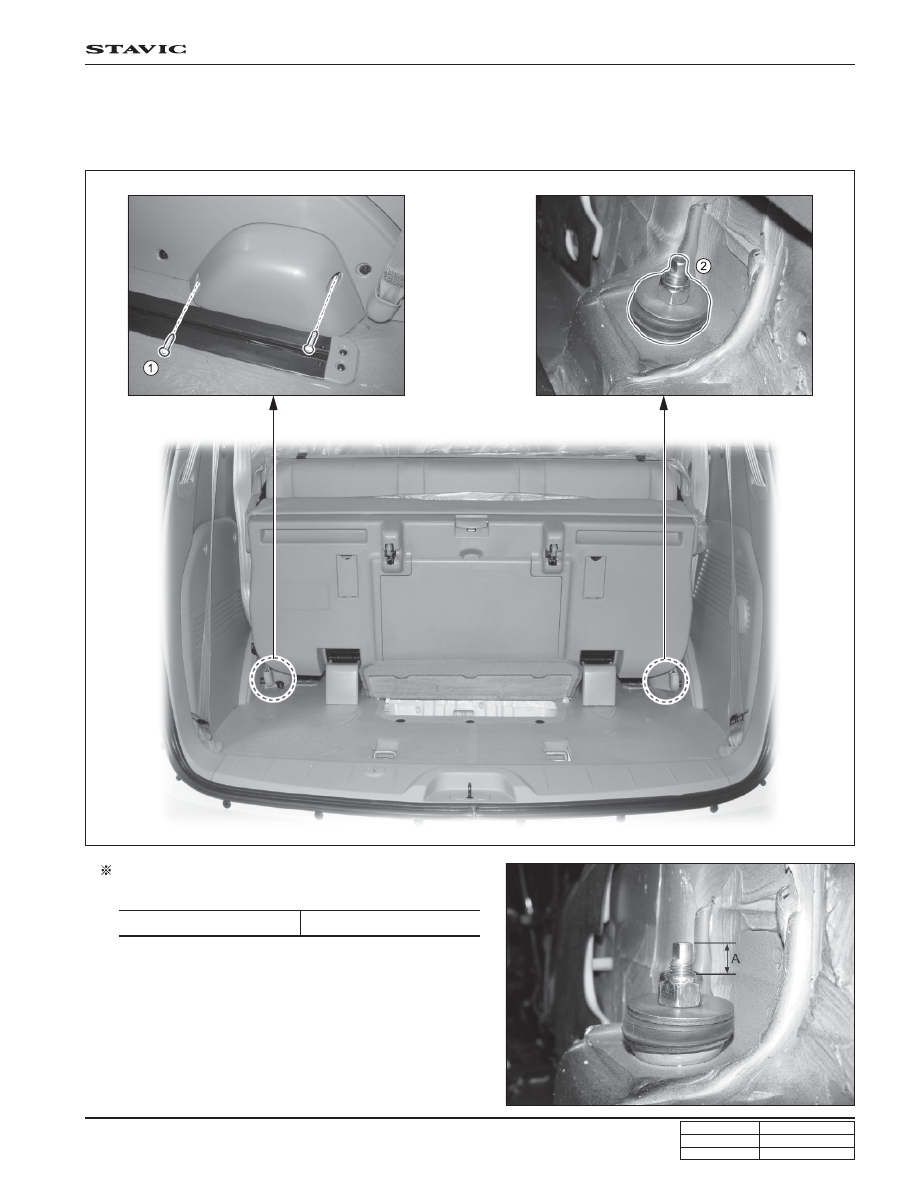

3. REMOVAL AND INSTALLATION

1. Move the 2nd  raw seat to te front end and unscrew the

rear shock absorber upper cover mounting screw (1).

2. Remove the rear shock absorber upper nut (2),

washer and bush.

Keep the specified end gap between shock absorber.
(A: 7 ~ 12 mm)

Tightening torque

30 ~ 40 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

6

REAR SUSP & AXLE

STAVIC - 2004.09

4F

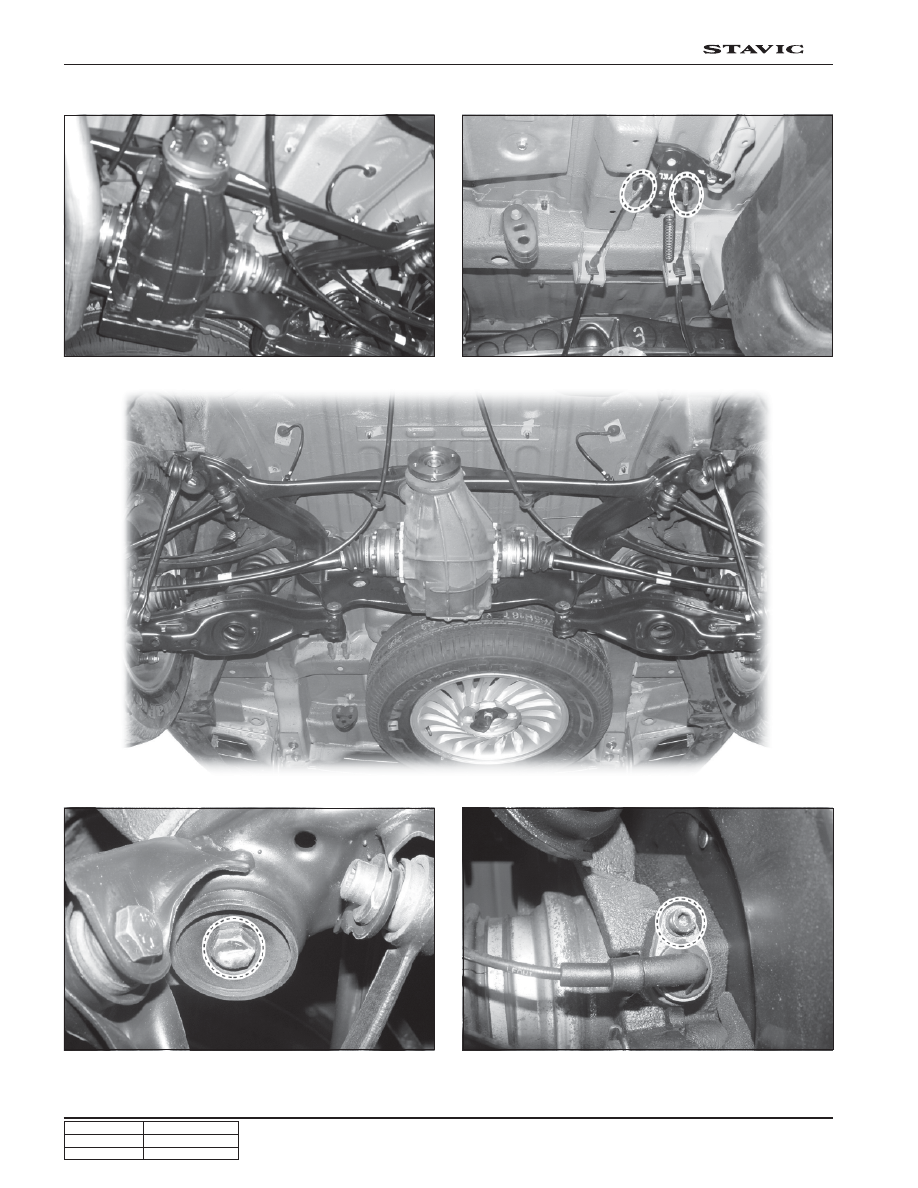

3. Remove the rear propeller shaft.

4. Disconnect the parking brake cable.

5. unscrew the frame mounting bolt on the rear axle

carrier module  front side.

6. Remove the wheel speed sensor (LH/RH).
