SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 371

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

32

4E

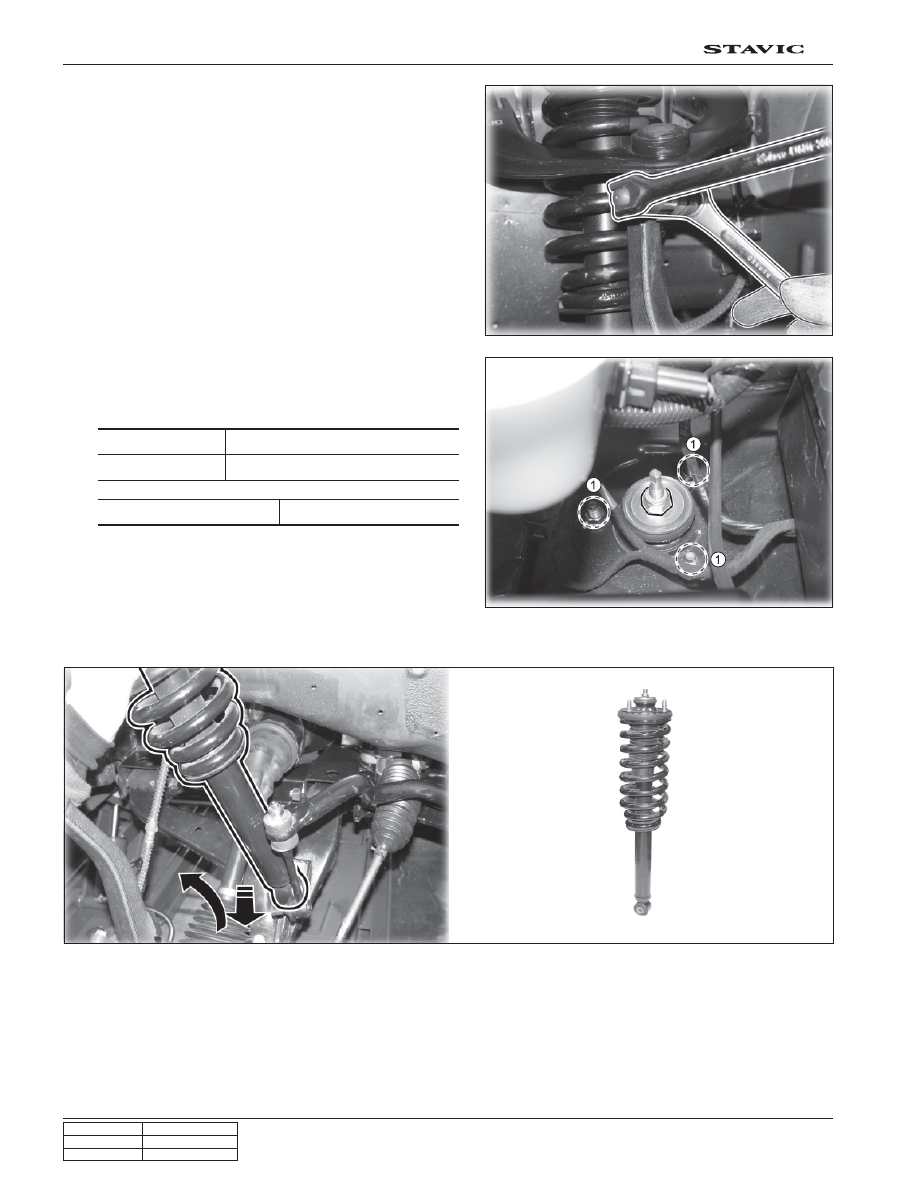

3. Unscrew the shock absorber lower bolt and pull upward as putting down the assembly.

1. Unscrew knuckle upper bolt and then, lay the knuckle

outward.

2. Unscrew the coil spring upper seat mounting nuts (1) at

the top of the shock absorber (10 mm x 3EA).

[Reference]

RH

LH

Under FFH

Under brake oil reservoir tank

Tightening torque

30 ~ 45 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

33

4E

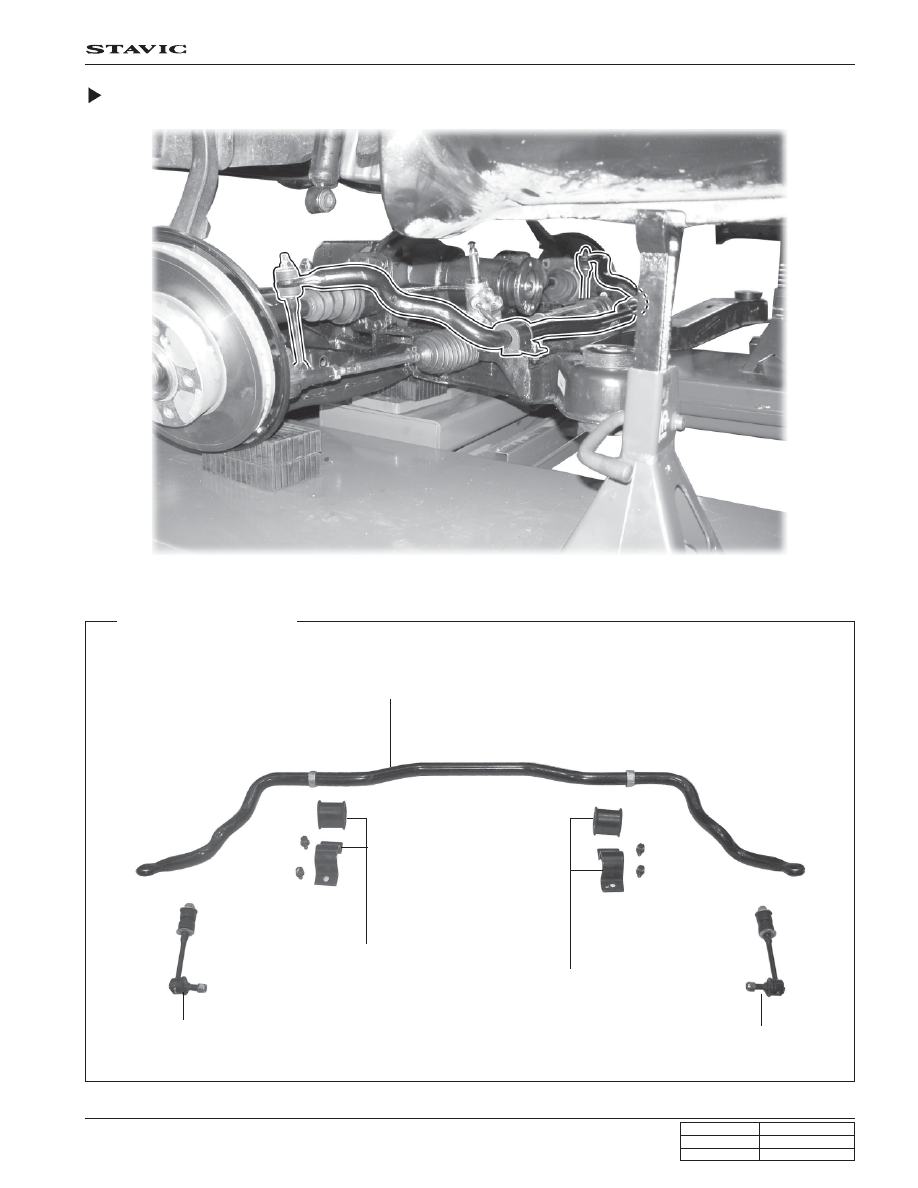

Stabilizer bar assembly

Stabilizer Bar Assembly

Stabilizer bar link

Mounting bracket

Stabilizer bar assembly

Stabilizer bar link

Mounting bracket

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

34

4E

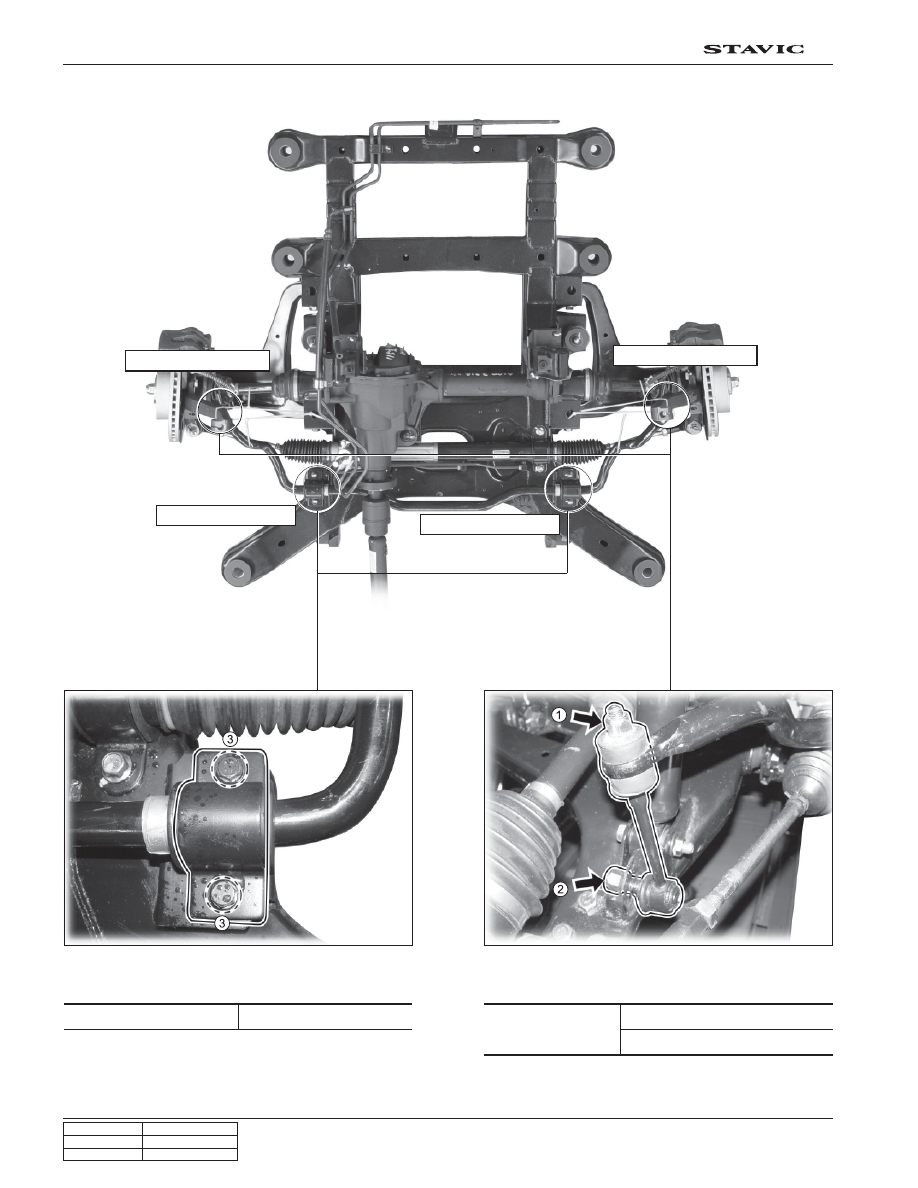

2. Unscrew the stabilizer bar cap bolts (3) and

remove the stabilizer bar.

1. Unscrew the stabilizer bar link upper nut (1) and

lower bolt (2) to remove the link.

Stabilizer bar link

Stabilizer bar link

Mounting bracket

Mounting bracket

Tightening torque

Upper bolt : 60 ~ 80 Nm

Lower bolt : 110 ~ 130 Nm

Tightening torque

110 ~ 120 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

35

4E

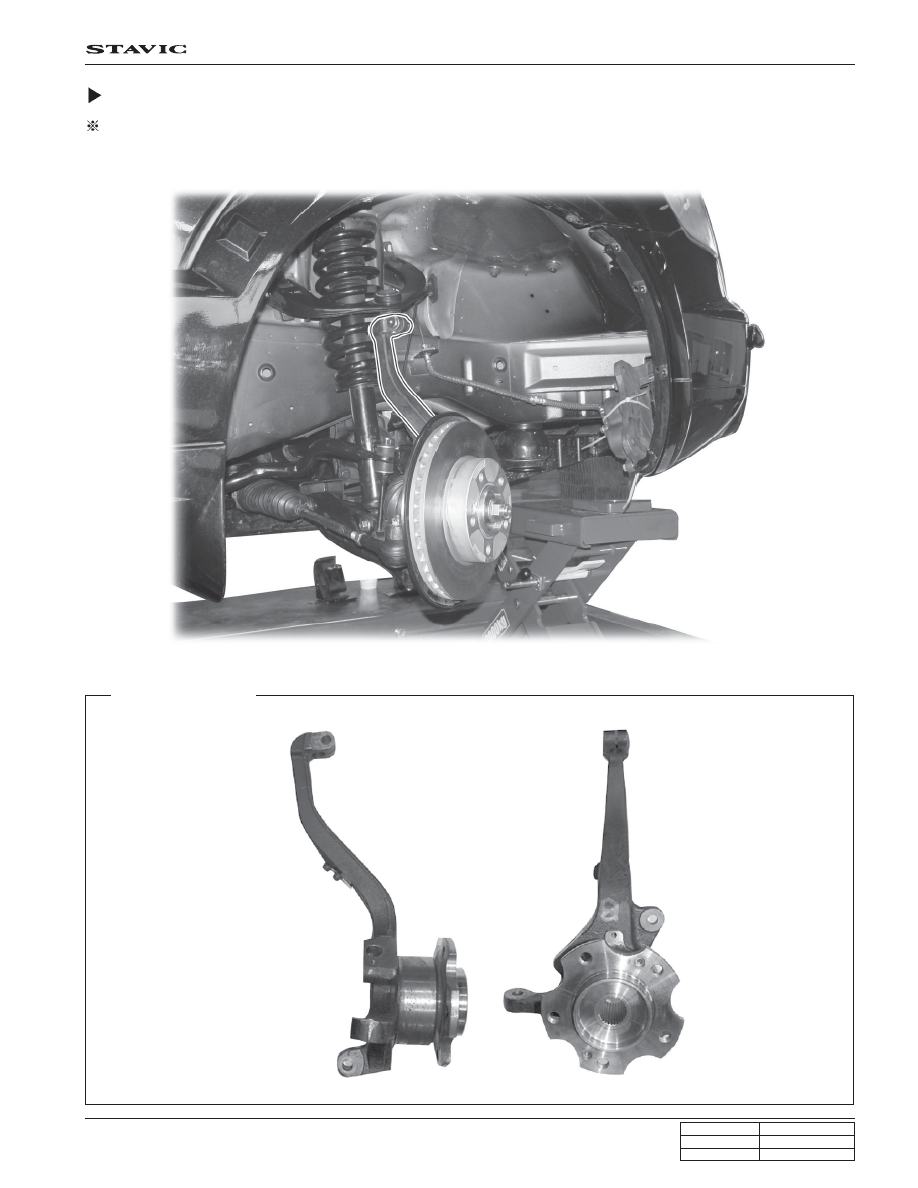

Knuckle assembly

Knuckle Assembly

Preceding  Work: 1. Removal of tires.

2. Removal of brake caliper and wheel speed sensor (Fix the sensor to the body).
