SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 369

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

24

4E

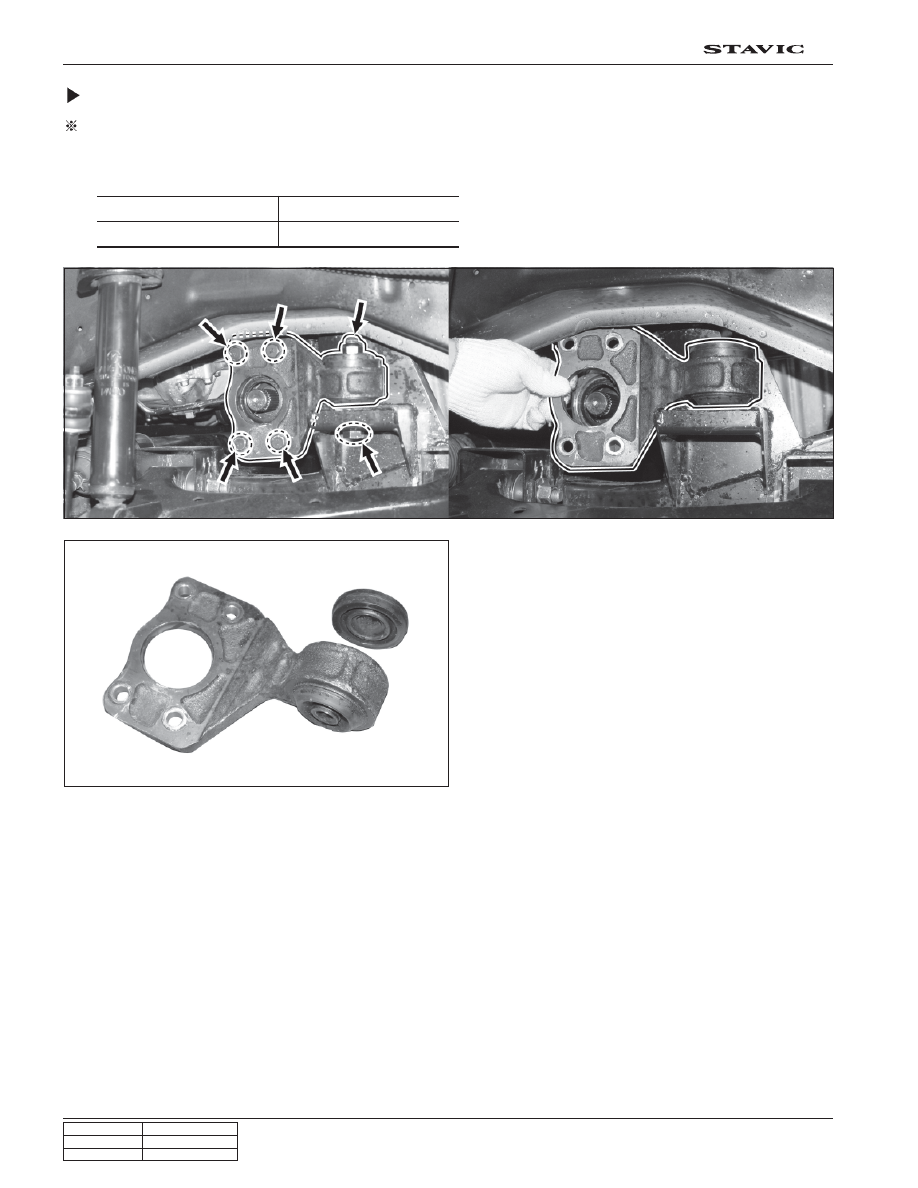

Axle Housing Oil Seal

Preceding Work: Remove the axle shaft.

1. Unscrew the axle mounting bracket bolts and nut, and remove the axle mounting bracket.

Tightening torque

Mounting bolts (4EA)

Mounting bolt / nut (1EA)

10 ± 1.0 Nm

95 ~ 142 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

25

4E

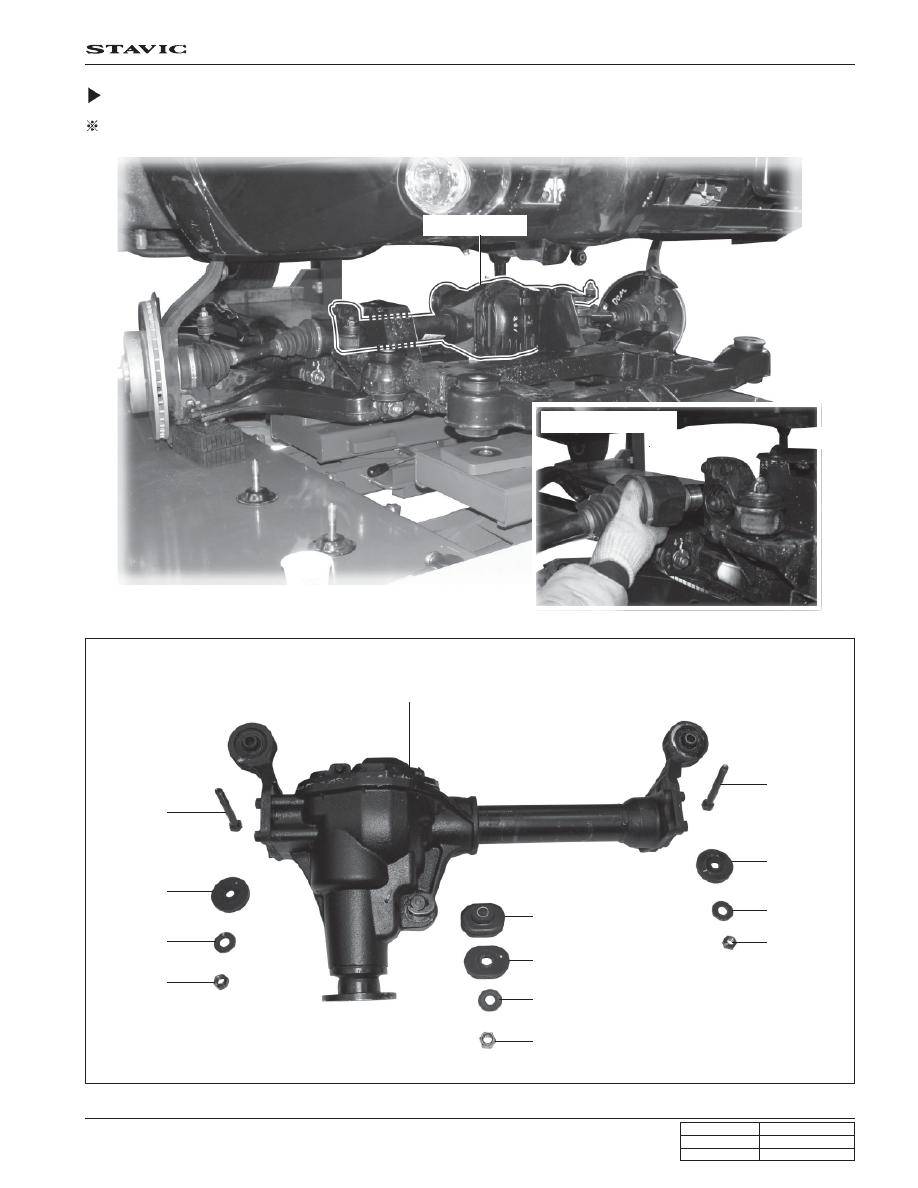

Axle Housing Assembly

Preceding Work: Remove the sub frame assembly and disassemble the axle shaft from axle assembly.

Diffential carrier &
Housing assembly

Bush

Washer

Nut

Bolt

Bush

Washer

Nut

Bush

Bush

Washer

Nut

Bolt

Axle assembly

Removal of axle shaft

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

26

4E

1. Unscrew the axle housing mounting bolt on the sub frame and disassemble the axle.

* Keep the right direction of busing when install

A. Axle mounting bolt/nut

(Tightening torque: 95 ~ 142 Nm)

B. Axle housing mounting nut - Left

(Tightening torque : 95 ~ 142 Nm)

C. Axle housing mounting nut - Right

(Tightening torque : 95 ~ 142 Nm)

Upper bush

Spacer

Lower bush

Color coke
coated

Lower bush

Bracket on the sub frame

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

27

4E

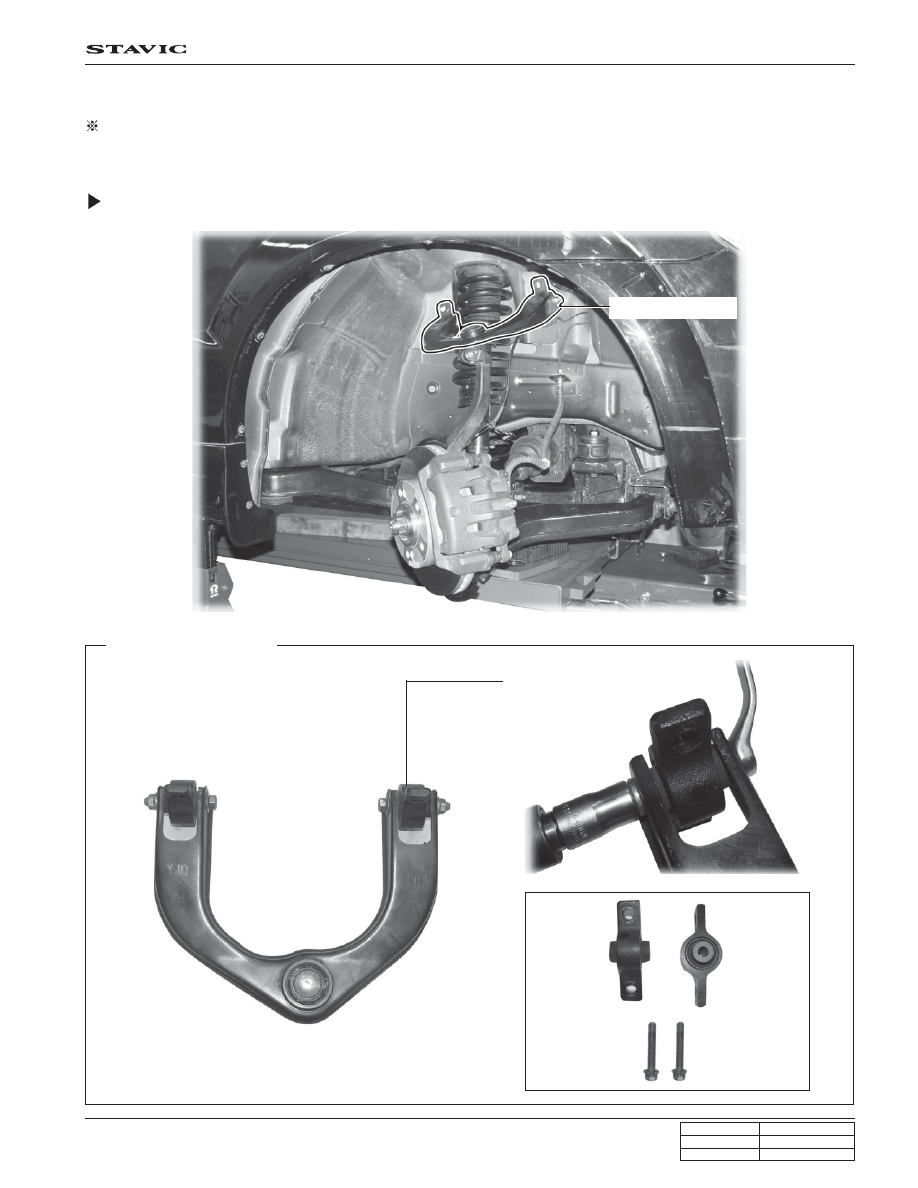

5. FRONT SUSPENSION ASSEMBLY

Preceding Work: 1. Remove the tires.

2. Remove the brake calipers and wheel speed sensors (Fix to the body).

Upper Arm Assembly

Upper arm bush

Upper arm assembly

Upper arm assembly
