FRONT SUSP & AXLE

STAVIC - 2004.09

20

4E

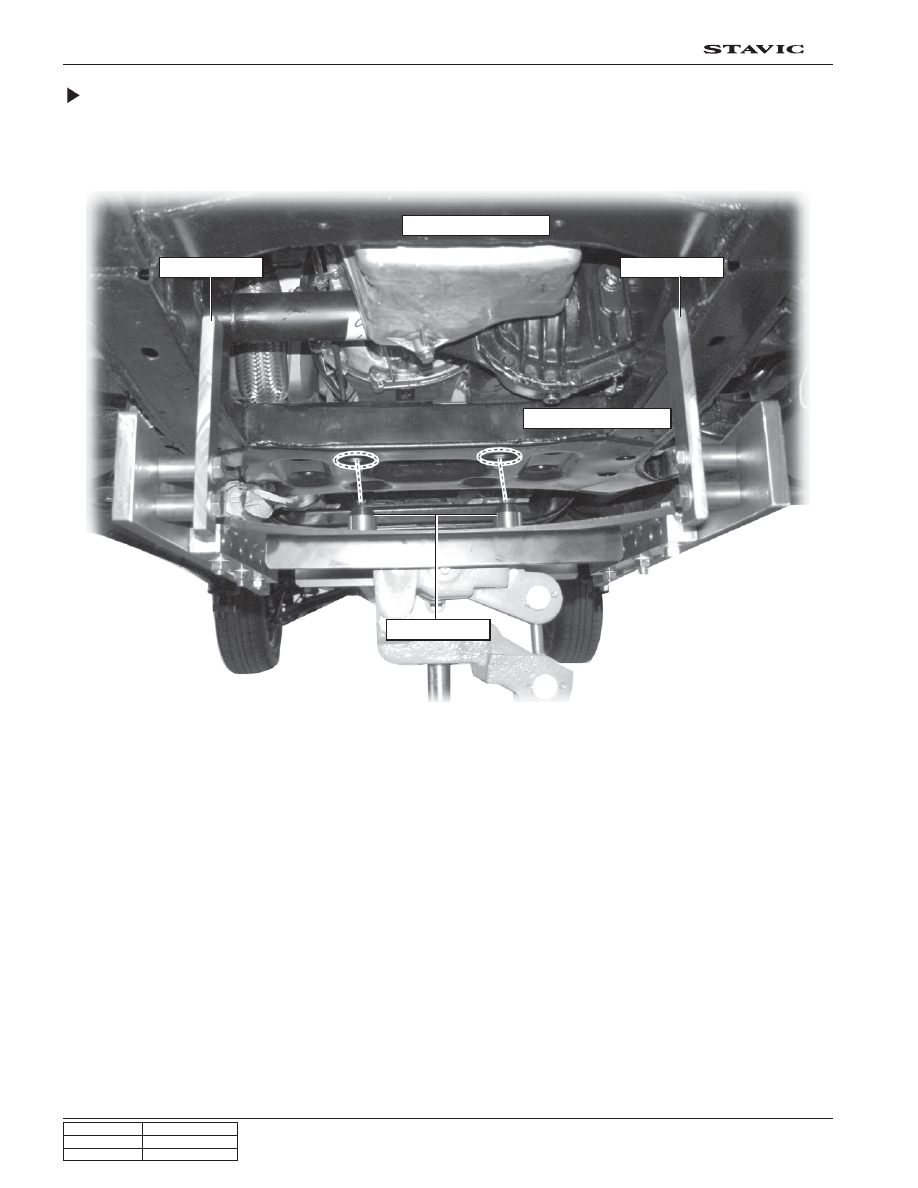

Removal of Sub Frame with Two Colume Lift

1. Since two column type lift does not have supplementary lift, special tool to support the sub frame is required. When

install, apply the special tool with guide pin on the sub frame 3rd cross member and fix the guide bar of special tool
on the 2nd cross member.

Guide bar

Guide bar

3rd cross member

2nd cross member

Guide pin

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

21

4E

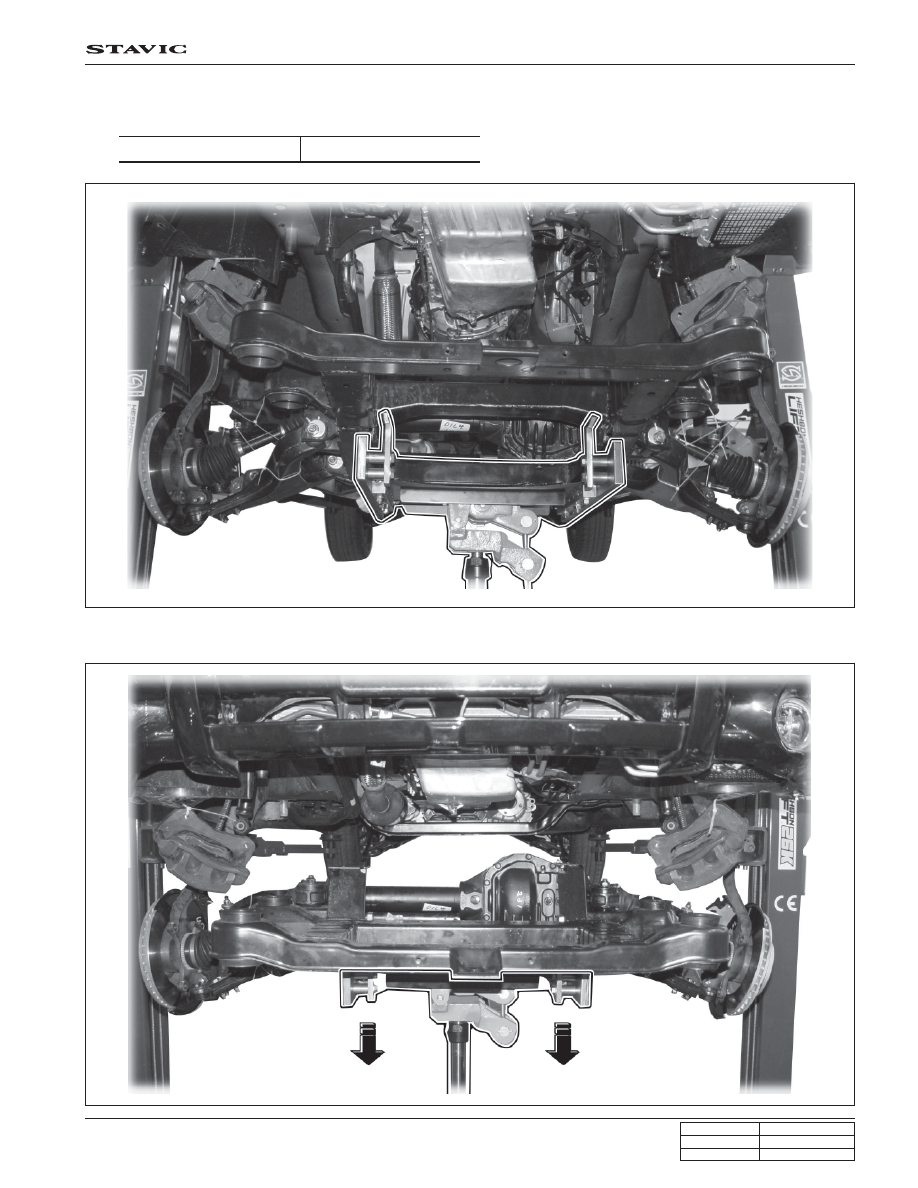

2. Do the same preceding work to remove the sub frame (page 624 ~ 626).

3. Remove the sub frame mounting bolts (19mm - 6EA)

4. Drop the special tool with sub frame slowly.

Tightening torque

95 ~ 142 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

22

4E

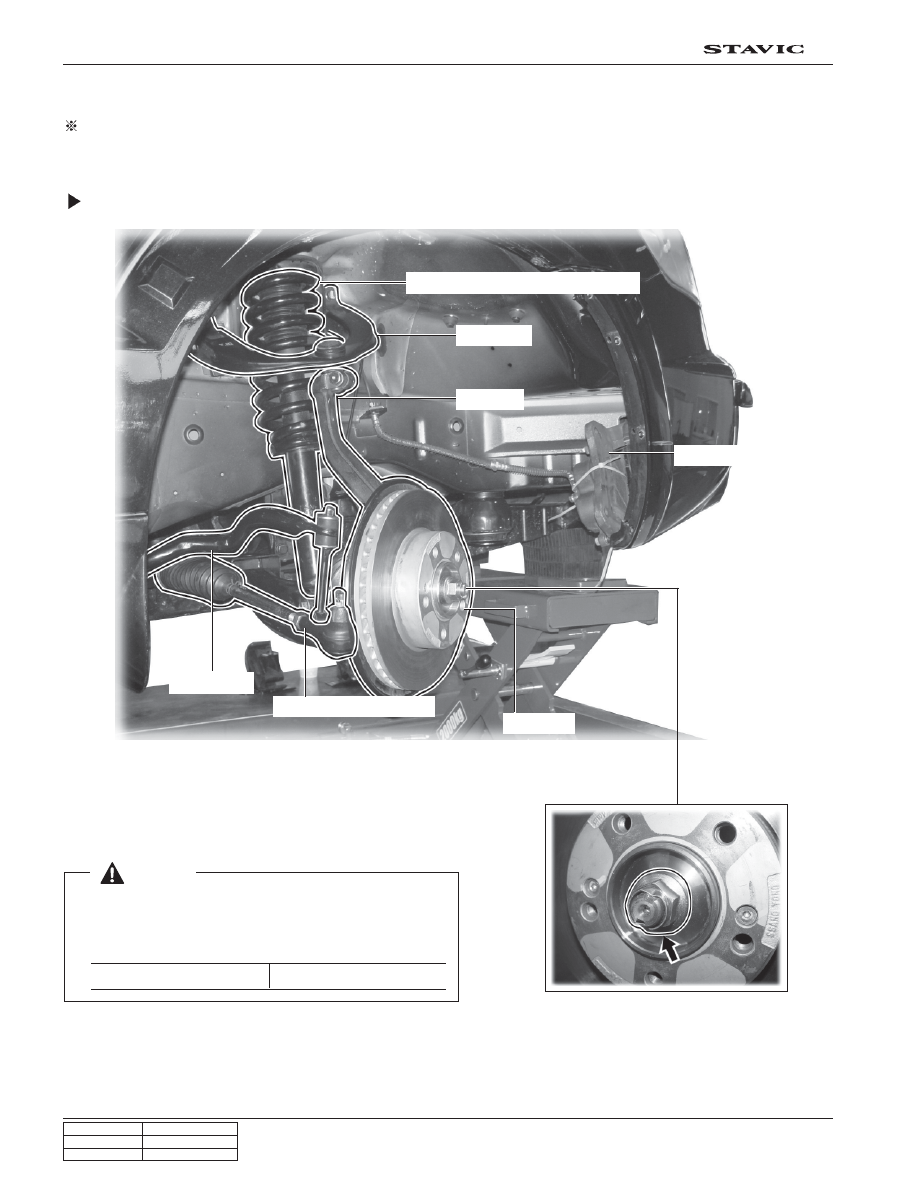

4. FRONT AXLE ASSEMBLY

Preceding Work: 1. Remove the tires.

2. Remove the brake calipers and wheel speed sensors (Fix to the body).

Axle Shaft (Drive Shaft)

Coil spring & shock absorber assembly

Upper arm

Knuckle

Brake caliper

Brake disk

Stablilizer

Power steering assembly

1. Unscrew axle shaft lock nut (30 mm - 1EA) and remove

washer.

 [Notice]

•

Axle shaft lock nut can not be reused. Replace it with new
one when reinstall.

•

Keep the tightening torque and cock the nut.

Tightening torque

250 ~ 350 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

23

4E

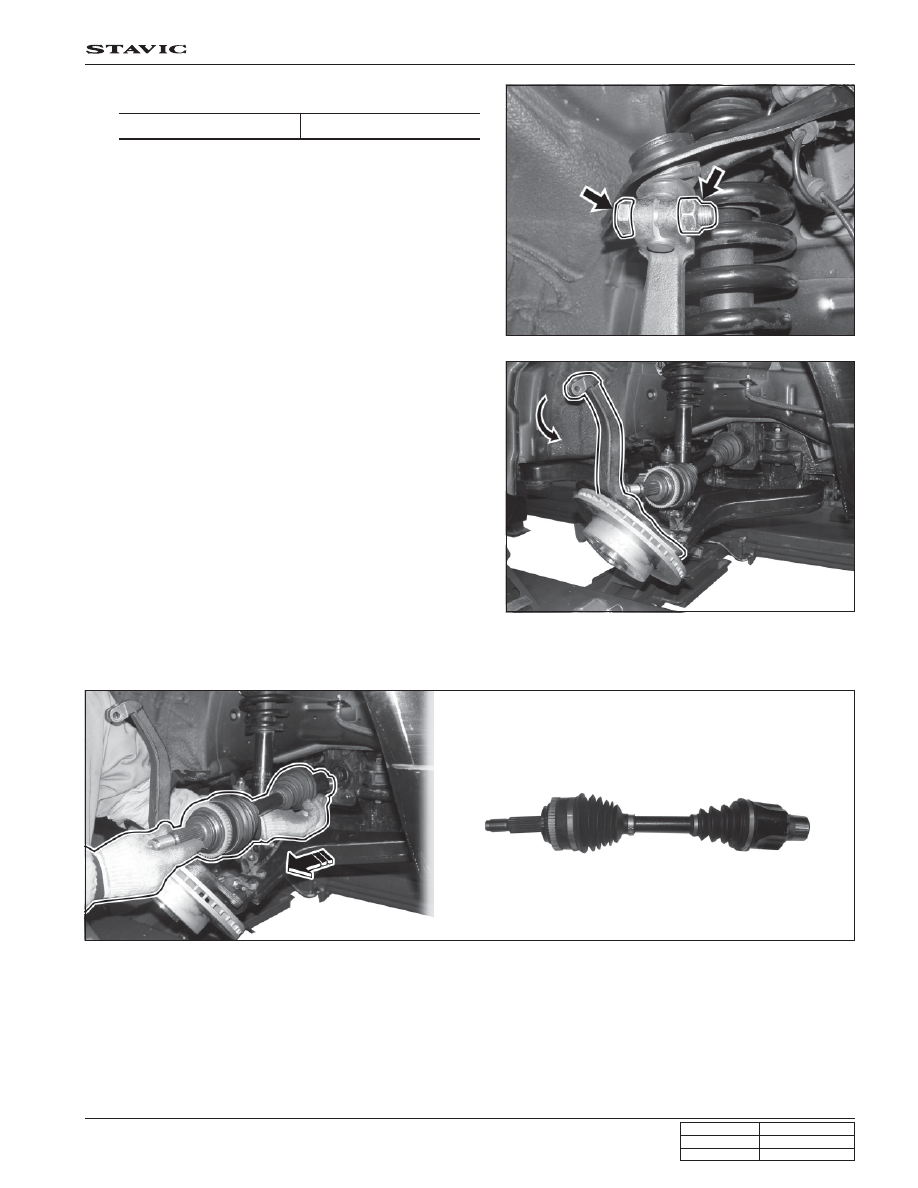

2. Unscrew the knuckle upper bolt & nut (19mm - 1EA).

3. Remove the knuckle from axle shaft and lay outward.

4. Pull out the axle shaft.

Tightening torque

140 ~ 160 Nm
