FRONT SUSP & AXLE

STAVIC - 2004.09

REMOVAL AND INSTALLATION

1. COMPONENTS

Front Syspension Assembly

1. Coil spring

2. Shock absorber

3. Upper bracket

4. bush

5. Lower bush

6. Spring-upper rubber sheet

7. Dust cover

8. Cam bolt

9. Stopper-bumper

10. Lower arm rubber bush

11. Lower arm

12. Lower arm ball joint

13. Knuckle

14. Upper arm ball joint

15. Upper arm

16. Upper arm bush

4WD

2WD

17. Axle shaft

18. Brake dust shield

19. Lock nut

20. Hub assembly

21. Washer

22. Brake disk

23. Hub assembly

13. Knuckle

18. Brake dust shield

13. Knuckle

21. Washer

22. Brake disk

19. Lock nut

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

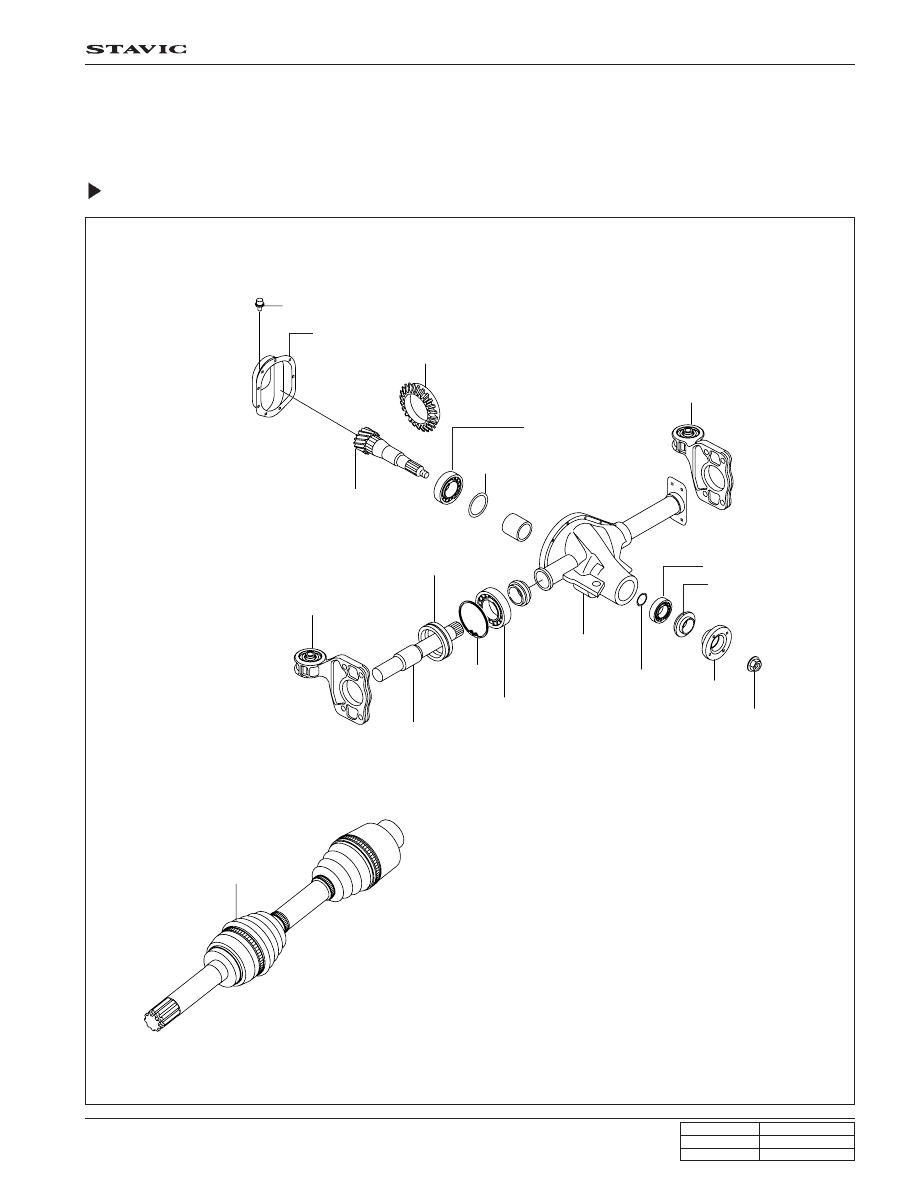

Front Axle Assembly

Air bleeder

Carrier cover

Ring gear

Pinion gear

Ball bearing

Axle mounting bracket

Oil seal

Inner shaft

Snap ring

Shim

Axle housing

Ball bearing

Lock nut

Flage

Shim

Axle shaft assembly

Axle mounting bracket

Pinion drive seal

Ball bearing

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

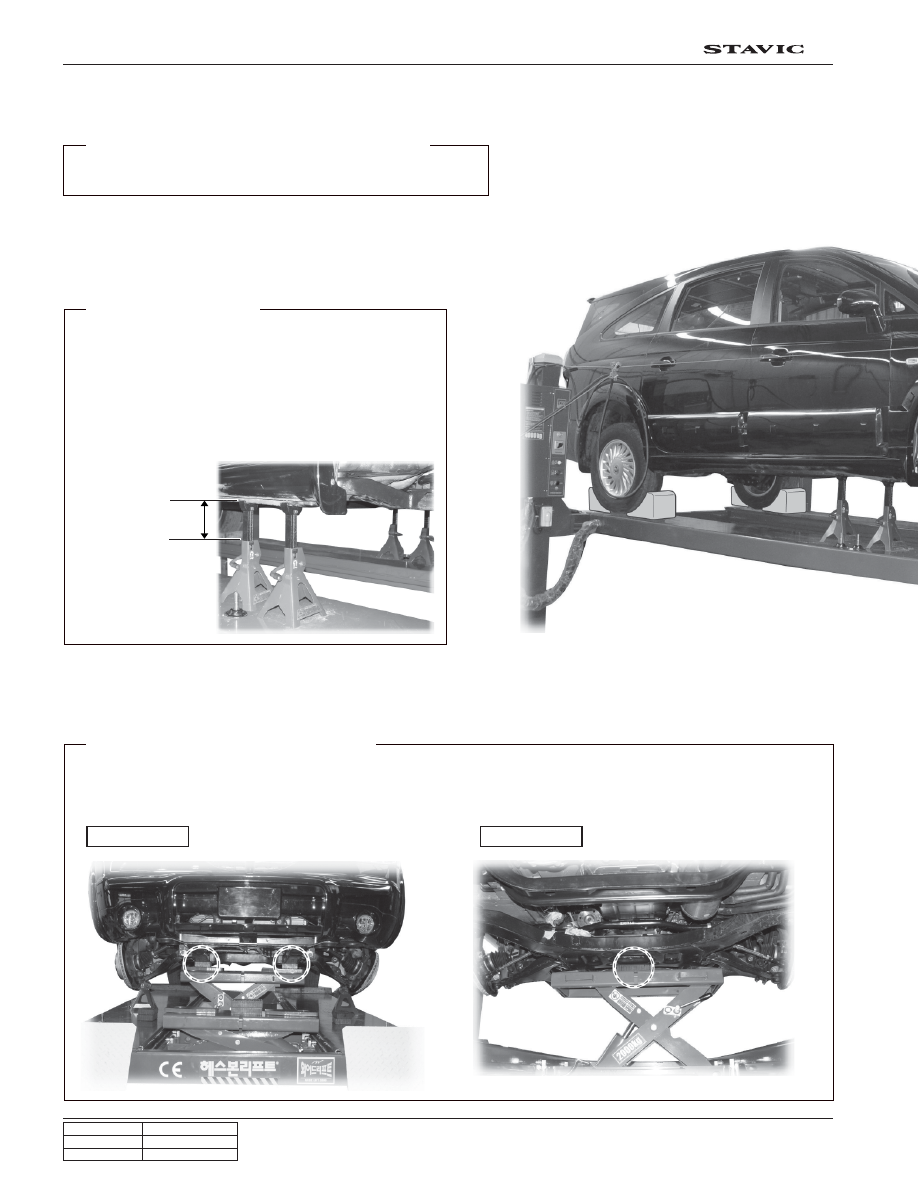

1. Install the safety wedge under both rear wheels

Because the weight balance move to rear when the sub
frame is removed, safe working condition must be
prepaired.

For this reason, Installing the safety jack to both under
body is important to avoid unexpectable accident.

(The height of safty jack to both side must be same)

The supplement lift is used when you remove or install the sub frame

(Keep in mind the center of gravity of sub frame locate near front axle mounting point)

Front

Rear

2. PRECEDING WORK FOR SUB FRAME REMOVAL

16.5 cm

(Put the shifting lever in “P” position and apply the parking brake)

2. Additional safety jack

3. The mounting location of suplement lift

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

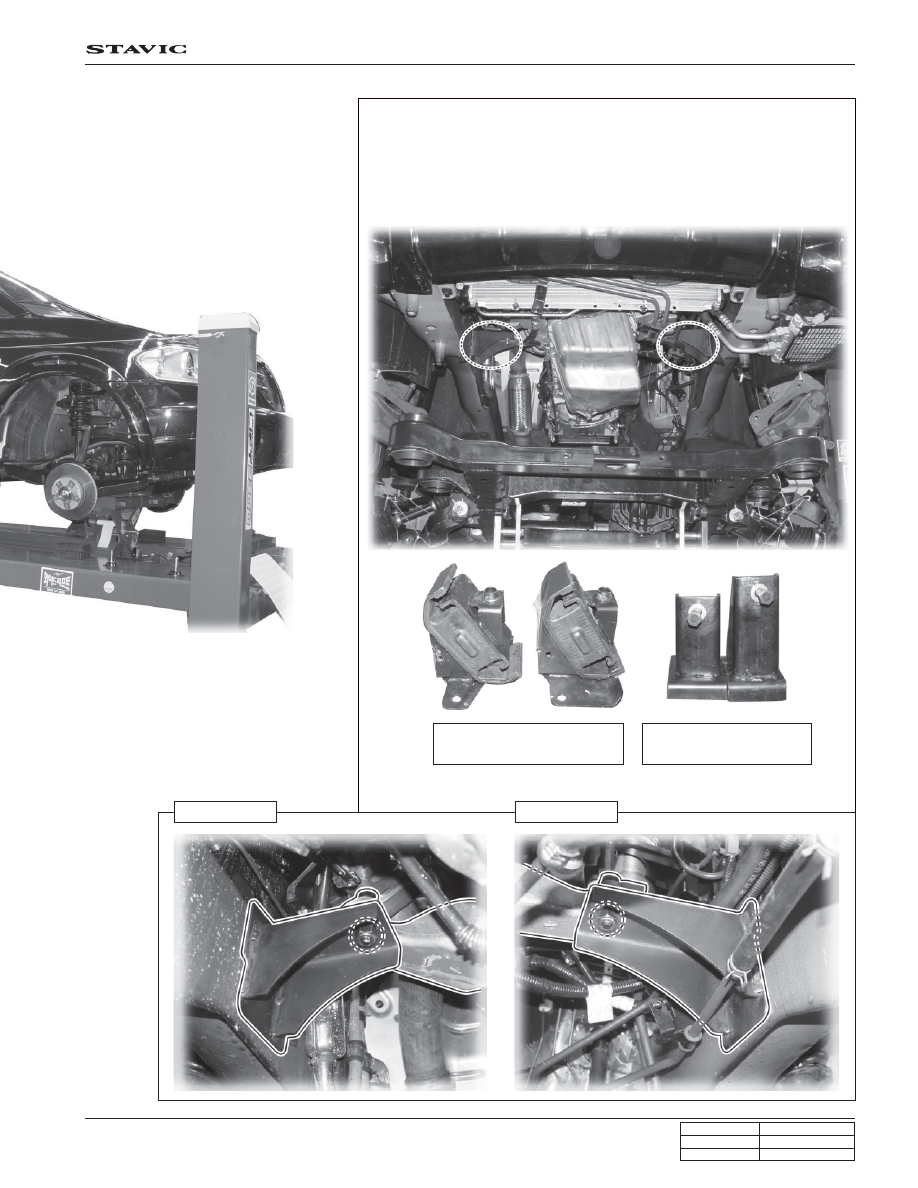

4. Remove the engine lnsulating brackets from the front sub frame as the

engine hung by an additional lift (crane)

5. Install the engine mounting bracket

Before removal of sub frame, install the special tool (Engine mounting
brackets) on the body frame

Part number : A9912 008 2B

Engine mounting

brackets on the body

Engine insulating

brackets on the sub frame
