SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 364

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

4

4E

2. SPECIFICATION

Suspension type

Spring type

Shock absorber type

Stabilizer type

Double wishbone

Coil spring : K = 8.8 (kgf/mm)

Gas type

Torsion bar :

∅ 30

Camber : 0

°

±

 30

′

Caster : 4.5

°

±

 30

′

Toe-in : 0 ~ 4 (mm)

      214 (mm)

34 (kg)

250.43 (mm)

1.4 ( )

SAE 90

3.7

11

41

3.9

11

43

4.1

9

37

4.3

11

47

4.6

9

41

4.9

9

44

5.4

8

43

5.9

7

41

Pinion

Gear

Weight

Length

Oil capacity

Specified oil

Wheel alignment

Axle size

Axle ratio

Number of tooth

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

5

4E

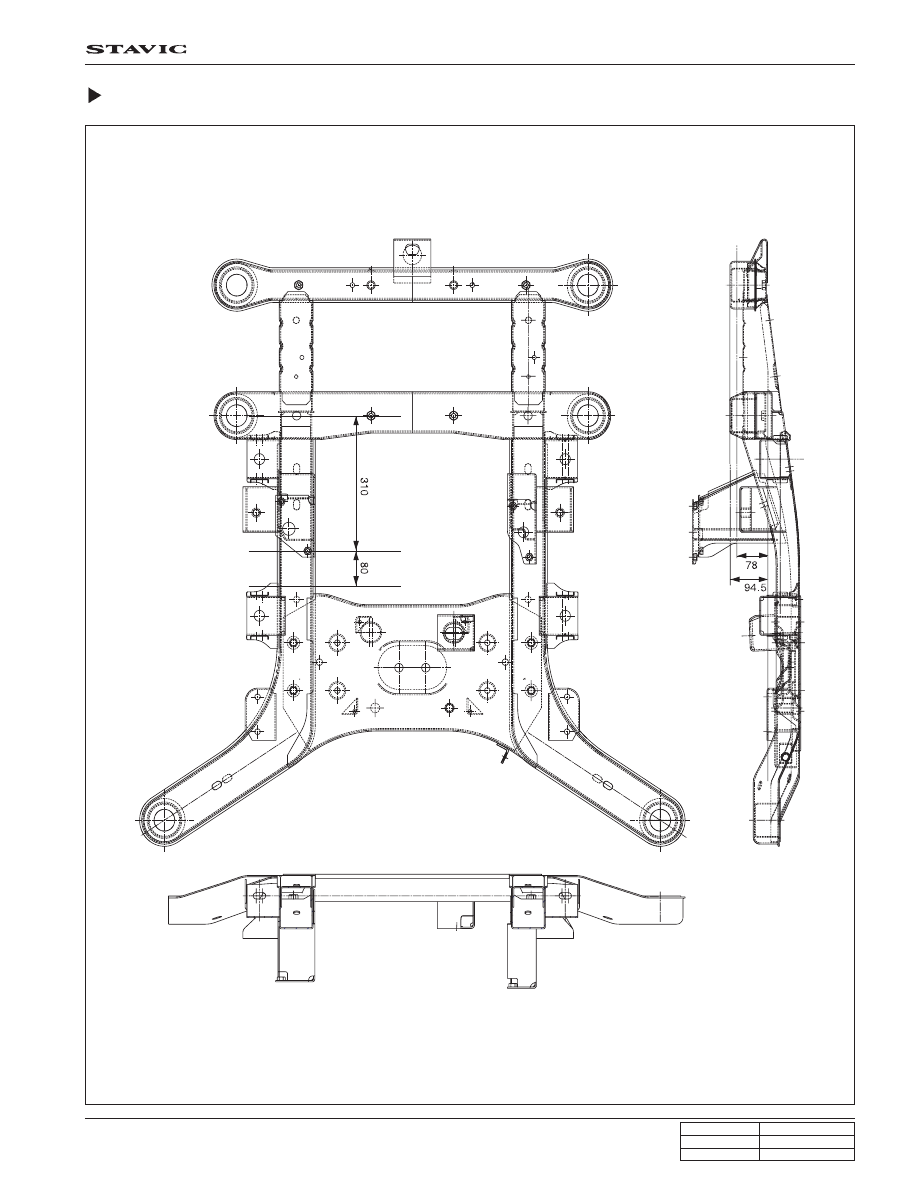

Dimension (Sub Frame)

(Unit : mm)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

6

4E

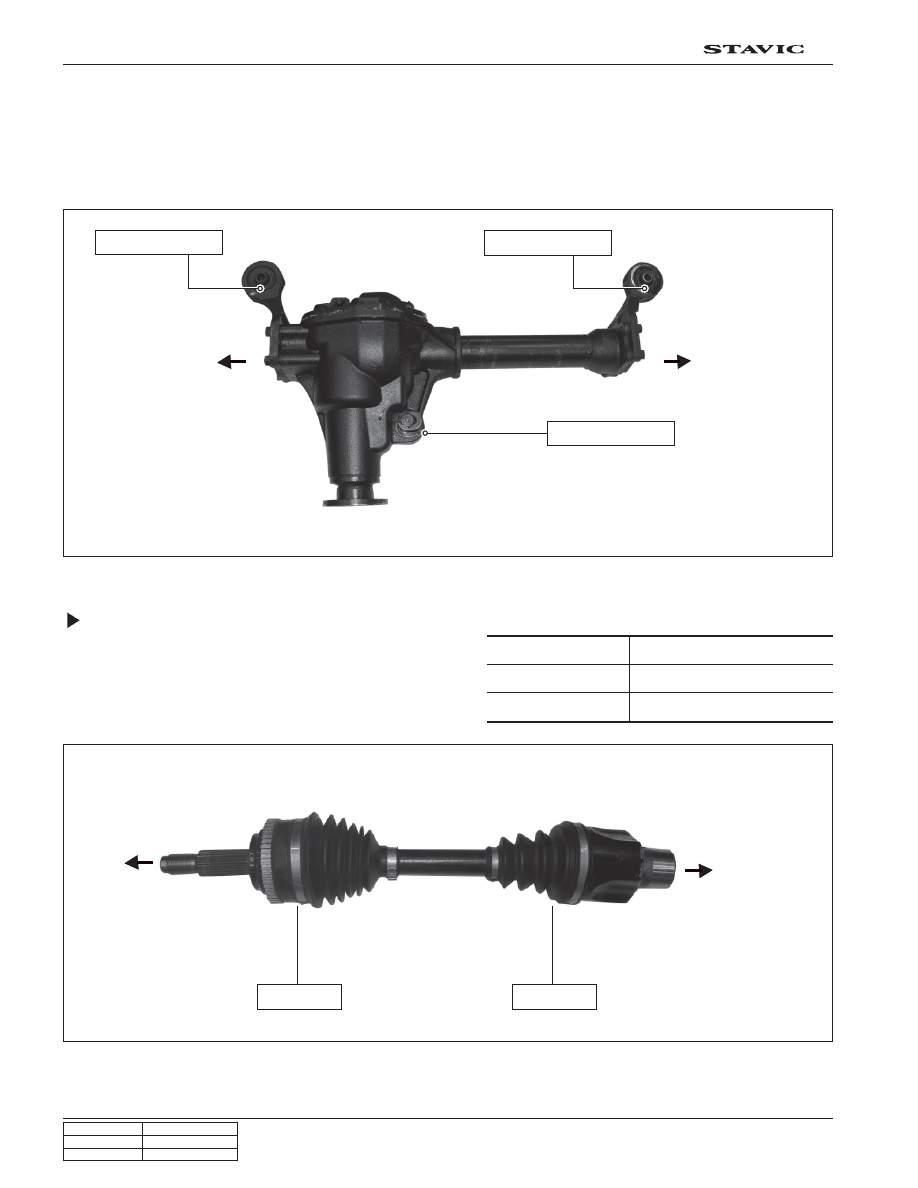

3. FRONT AXLE ASSEMBLY

Front axle assembly located between left and right wheel transfer the power from the transmission to both wheel when
4-wheel drive mode is chosen.

At the end of axle sides, axle shafts are connected by constant velocity joint and differential carrier is located in the axle
housing.

Drive Shaft Assembly

Left and right axle have same over length and removal and
maintenance are easily performed.

Left drive shaft

Right drive shaft

Front propeller shaft

Mounting Point

Mounting Point

Mounting Point

Location

In boot

Out boot

Grease capacity

140 ~ 160g

200 ~ 220g

Wheel side

Diffential carrier side

Out boot

In boot

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

7

4E

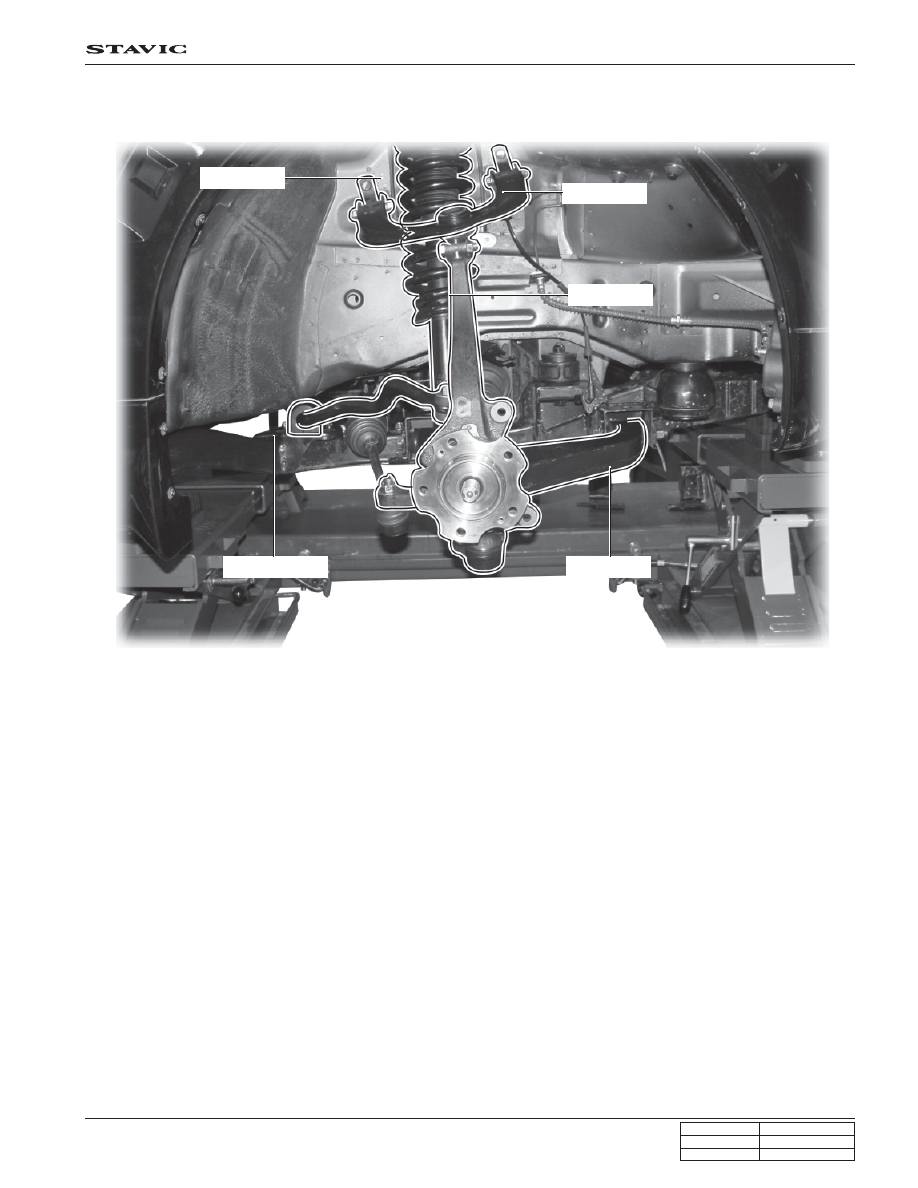

* Characteristics of front suspension

1. Upper arm mounted relatively high.

2. Coil spring and shock absorber mounted.

3. Maximzed torsion bar effciency.

4. Big rubber bush for better comfort.

5. Minimized king pin offset to decrease vehicle movement.

6. Increased effective wheel base.

7. Diversfied type (2WD, 4WD)

Upper arm

Knuckle

Lower arm

Stabilizer bar

Coil spring

4. FRONT SUSPENSION
