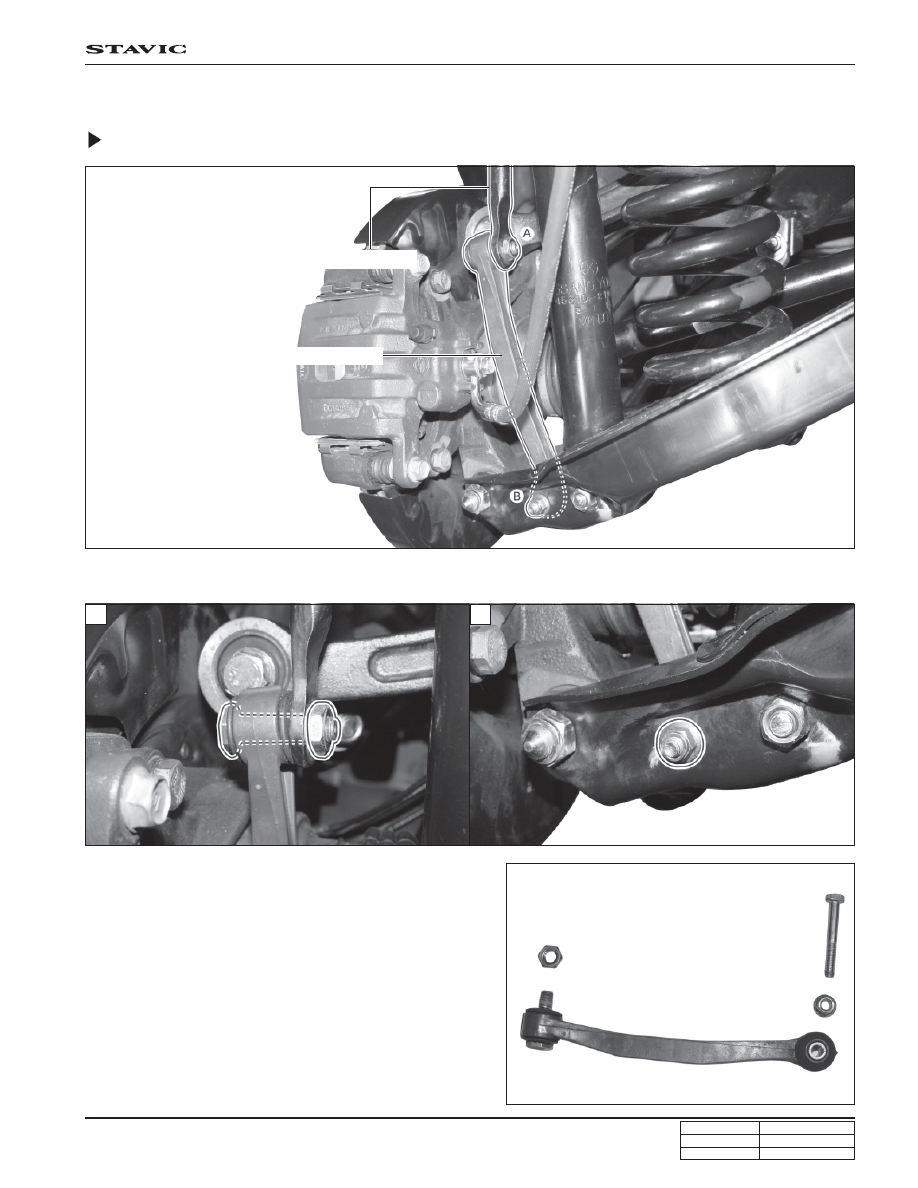

4) Track Rod

1. Unscrew the track rod mounting bolt (A. Body-19 mm)

2. Unscrew the track rod mounting bolt (B. Wheel carrier-17 mm)

Tightening torque

70 ± 8

Tightening torque

30 ± 5

A. Body

B. Wheel carrier

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

20

REAR SUSP & AXLE

STAVIC - 2004.09

4F

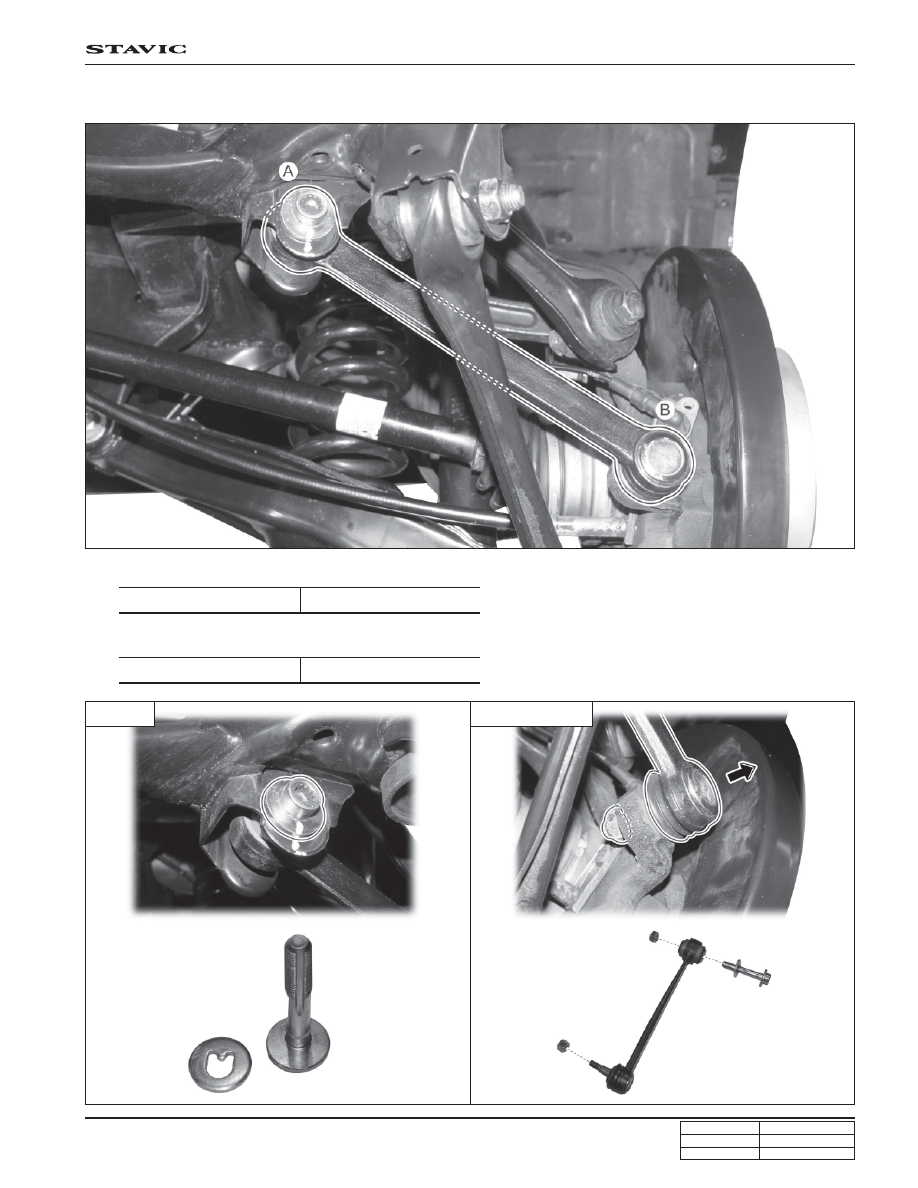

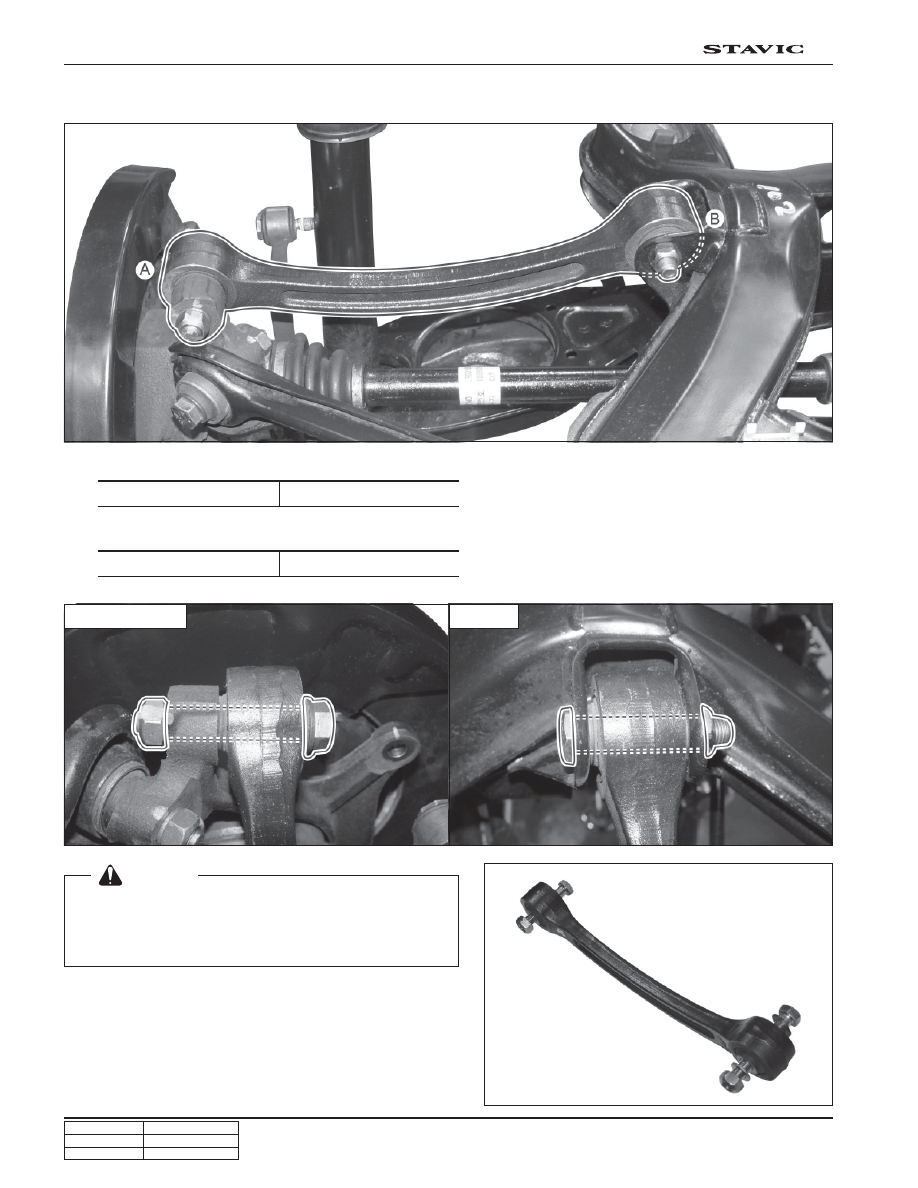

5) Camber Link

1. Unscrew the camber link mounting bolt (B. Body-19 mm)

2. Unscrew the camber link mounting bolt (A. Wheel carrier-19 mm)

Tightening torque

70 ± 8

Tightening torque

70 ± 8

 [Notice]

1. When install, apply two washer to the camber link mounting

bolt/nut (A. Wheel carrier).

2. Keep the right position when reinstall.

B. Body

A. Wheel carrier

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

21

REAR SUSP & AXLE

STAVIC - 2004.09

4F

6) Stabilizer Bar / Stabilizer Link

Stabilizer Link

1. Unscrew the stabilizer link upper mounting bolt (17 mm) and lower mounting bolt (13 mm).

Stabilizer bar

Stabilizer link

A

B

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

22

REAR SUSP & AXLE

STAVIC - 2004.09

4F

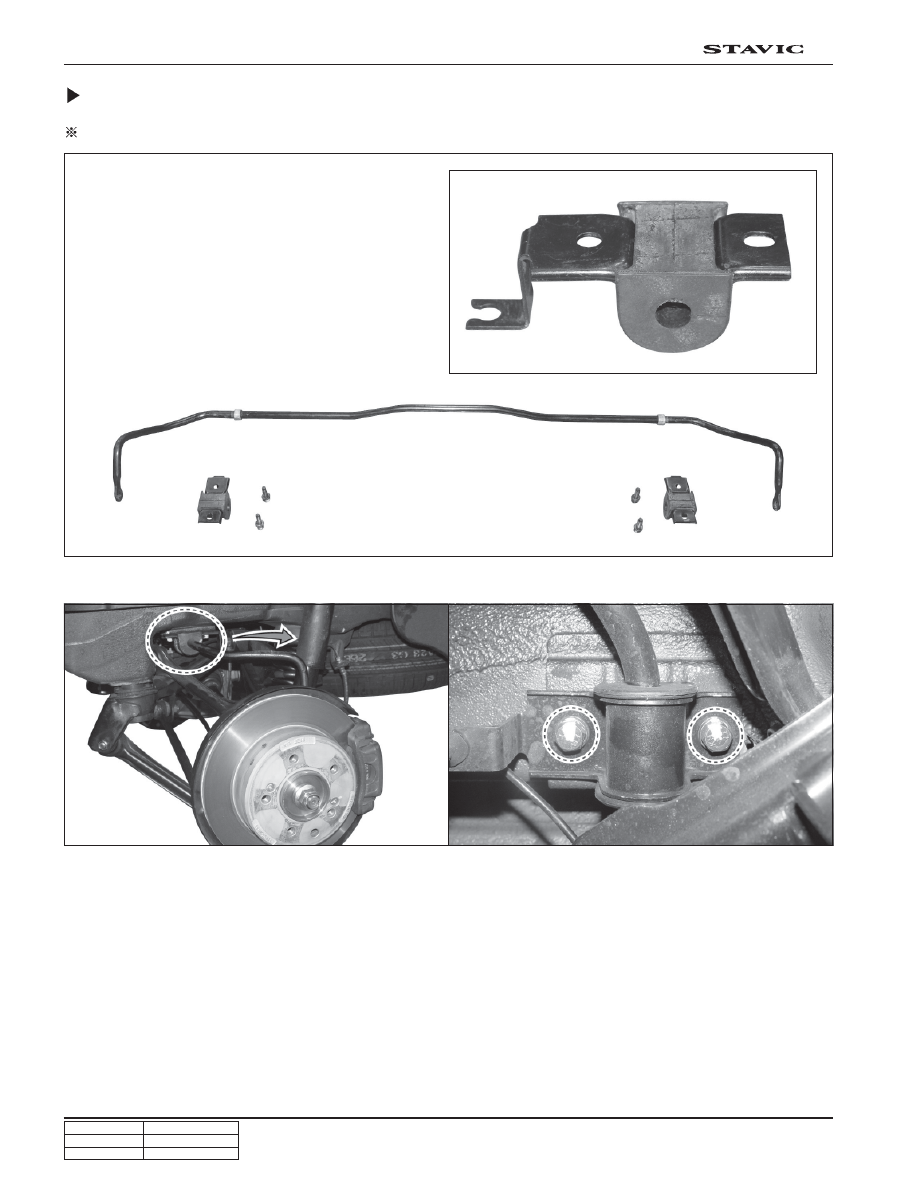

Stabilizer Bar

 Preceding work: Removal of stabilizer link

- Remove stabilizer bar mounting bracket to seperate the stabilizer bar from the vehicle.
