PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

3

2H

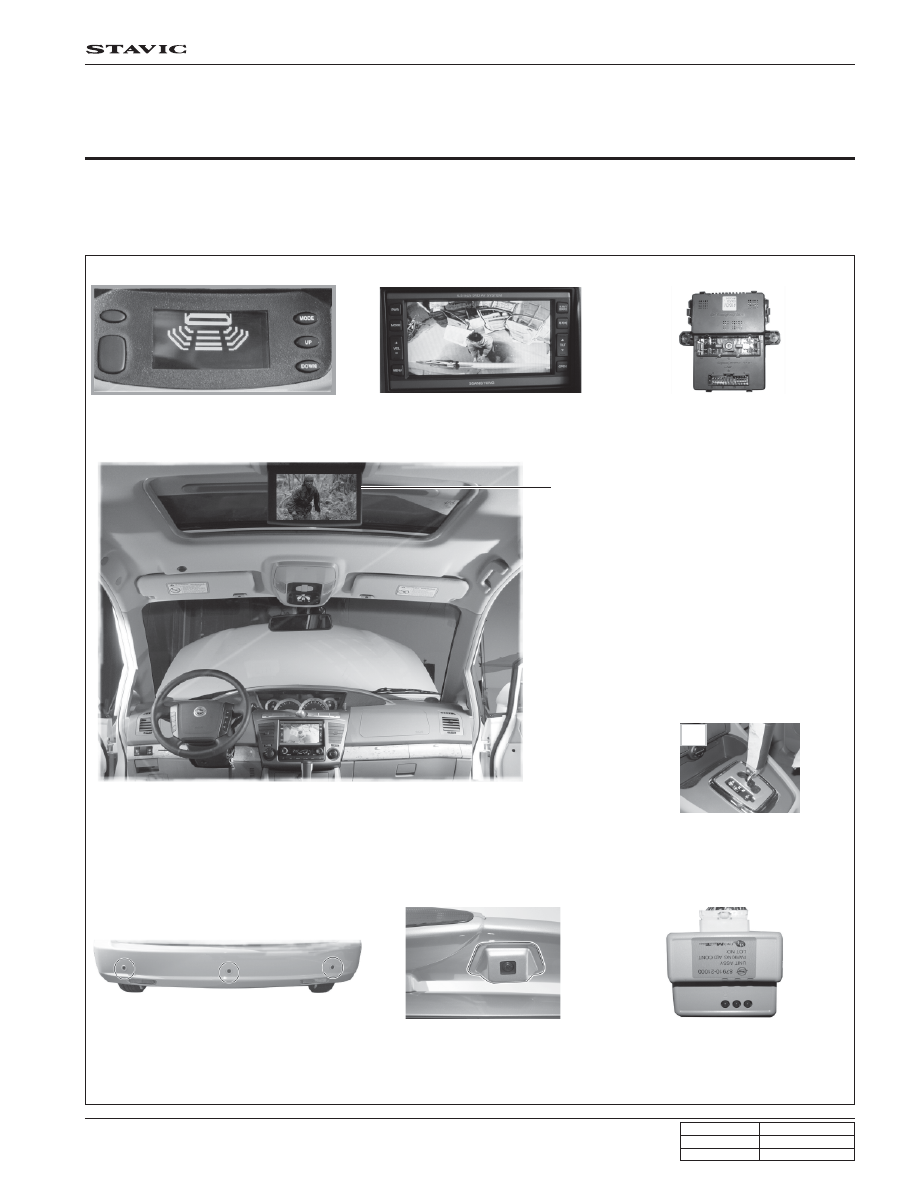

COMPONENTS OF PARKING AID SYSTEM

(PARKING AID SYSTEM + REARVIEW CAMERA)

1. REARVIEW CAMERA EQUIPPED VEHICLE

When moving the gear selector lever into R (Reverse) position while watching DVD or VCD, the rearview appears on the
front monitor but the rear monitor continuously shows current screen.

Multi-meter

Even in other modes, it is changed to the parking
aid screen when moving the gear selector lever into
“R” position.

Front monitor

When moving the gear selector lever into
“R” position while watching DVD or VCD,
the rearview appears on the front monitor.

ICM box

When moving the gear selector lever into “R”
position, the alarm buzzer in ICM box sounds
(installed at bottom of STICS).

Rearview camera

When selecting R position while A/V system is in use:

• The video mode in front A/V system is changed to rear-

view monitoring mode. However, the audio mode stays on.

• The video mode in front A/V system resumes when

shifting out from “R” position.

• The audio and video mode in rear A/V system are not

changed.

When selecting R position while A/V system is not in use:

• Both monitors are automatically turned on to display rearview.

• Both monitors are automatically turned off when shifting

out from “R” position.

Parking aid sensor

(Rear bumper)

Rearview camera

PAS unit

The three parking aid sensors send the distance
data between rear bumper and obstacle to PAS
unit.

The rearview camera sends the rear-
view to the monitor by using wide angle
lens.

It is a control unit for the parking aid system (PAS)
and transmits the signals from sensors to multi-
meter and buzzer.

(installed in tuner/amplifier bracket)

R

Gear selector lever

(R position)

Applies power to parking aid system.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

4

2H

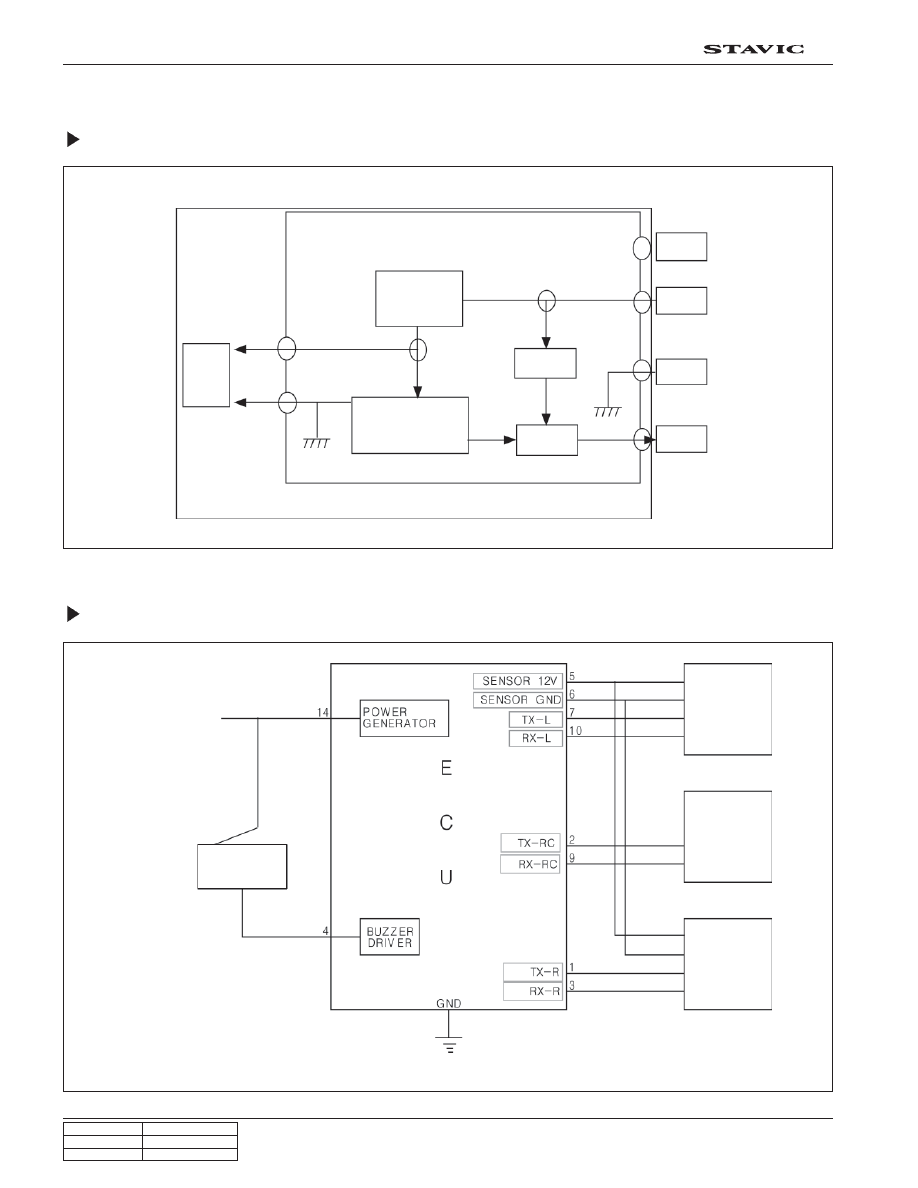

2. SYSTEM CONTROL

Parking Aid Unit

Parking Aid Sensor

Generates sensor

driving signals

Back

sonar

Signal transmitter

Regulator

AMP

& BPF

Send

12 V

GND

Receive

Reverse driving

(supplies power)

Back sonar

sensor

(LH)

Back sonar

sensor

(Center)

Back sonar

sensor

(RH)

Buzzer

(ICM box)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

5

2H

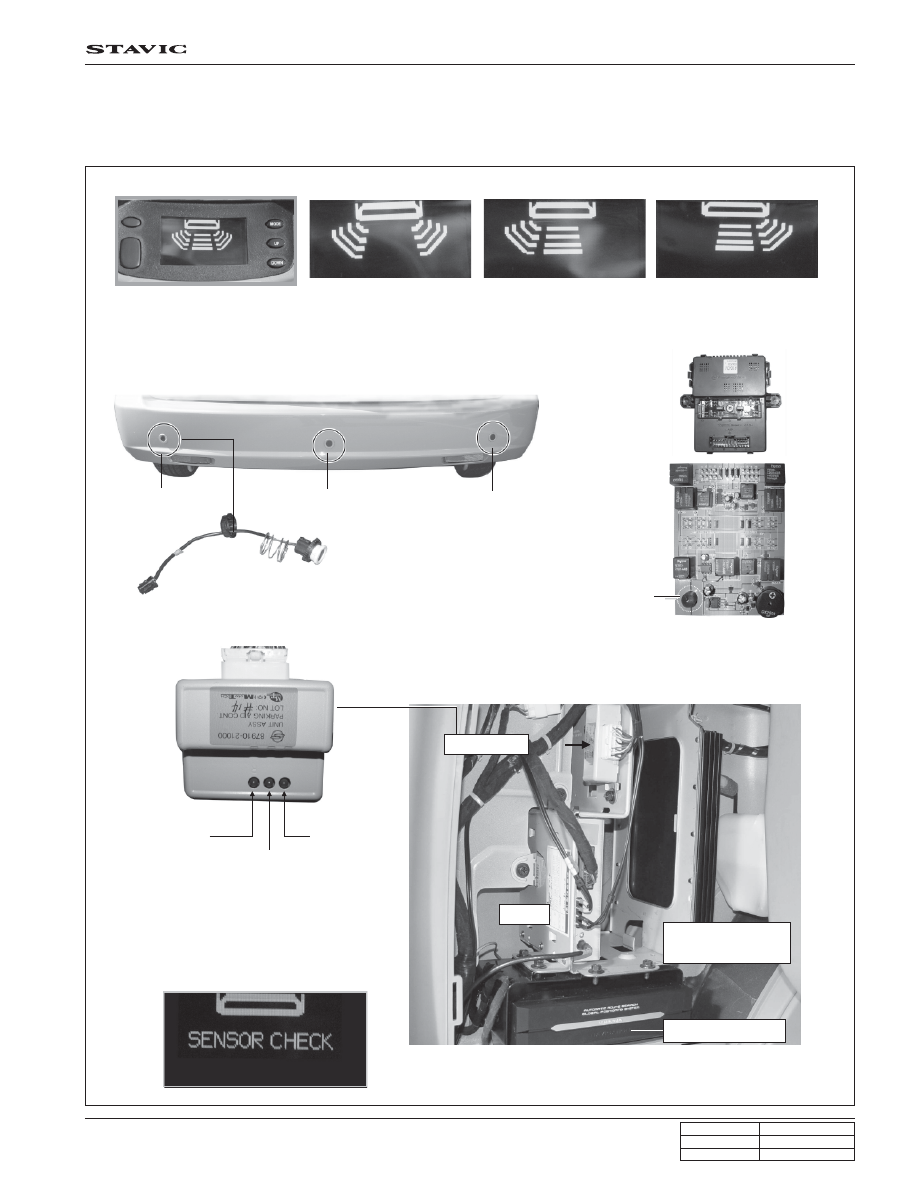

3. PARKING AID SYSTEM (PAS)

1) System Configuration

Rear left obstacles

Rear center obstacles

Rear right obstacles

PAS unit

Tuner

Amplifier with

built-in DSP

This unit controls the parking aid system. One of 3

LEDs comes on when the corresponding parking

aid sensor is defective and shows below mes-

sage on multi-meter.

Left sensor

Center sensor

Right sensor

Multi-meter

Rear left sensor

Rear center sensor

Rear right sensor

Parking aid

buzzer

Navigation unit

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

6

2H

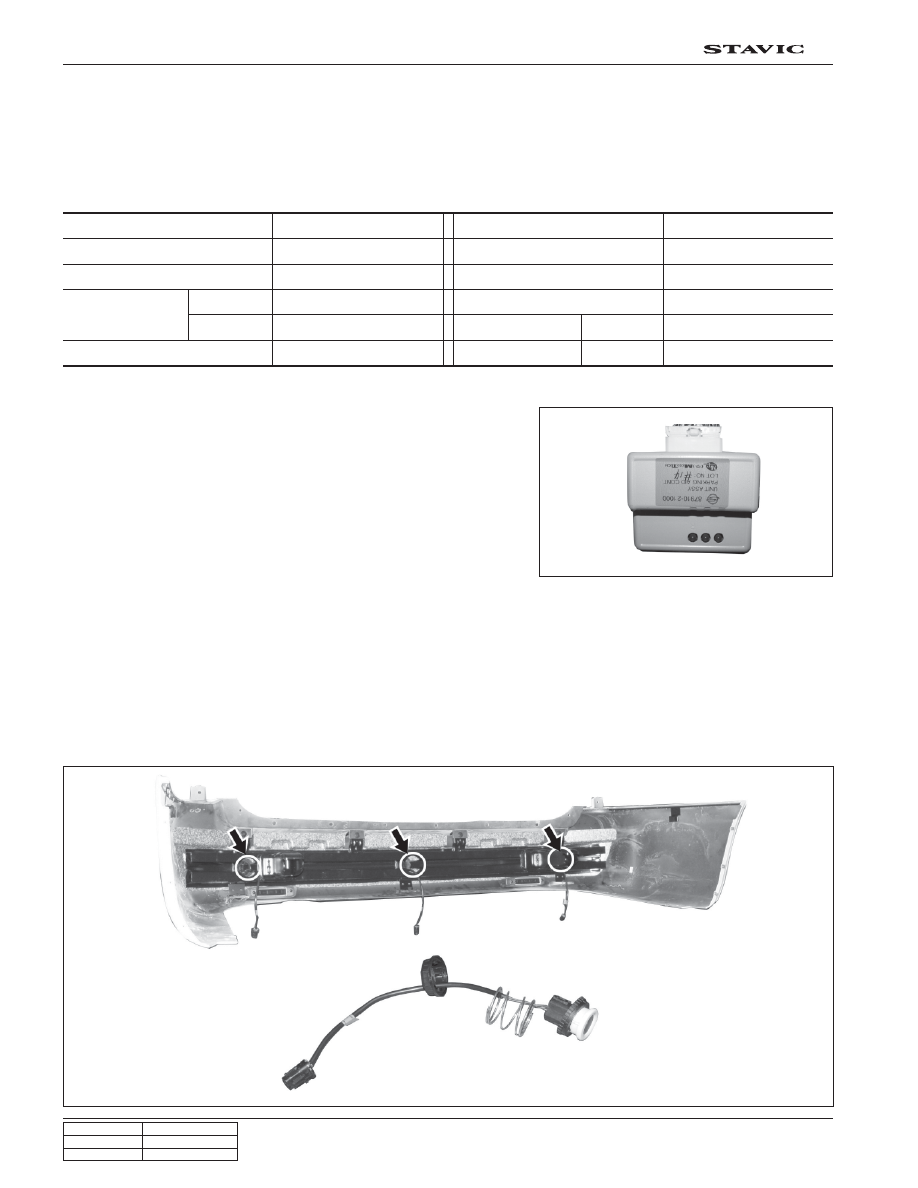

1) Parking aid unit

Detecting type: Super sonic wave

Detecting distance: 25 ~ 120 cm (distance between sensor
and obstacle)

2) Parking aid sensor

- Type: Piezo ceramic element

- Frequency: 40 KHz ± 2 KHz

- Detecting range (13.5 V)

* Horizontal: Min. 20

° at 110 ± 5 cm

Min. 100

° at 50 ± 5 cm

* Vertical: Min. 20

° at 110 ± 5 cm

Min. 60

° at 50 ± 5 cm

Descriptions

Value

Operating temperature

Storage temperature

Relative humidity

-30

°C ~ +80°C

-40

°C ~ +85°C

95%RH max

160g ± 10g max

70g ± 10g max

4. COMPONENT SPECIFICATIONS

The parking aid system emits the supersonic wave signals from the sensors on the rear bumper with a specific interval
and detects the reflected signals from obstacles while the gear selector lever is in “R” position.

The number of displaying bars is decreased and the alarm interval becomes faster as the obstacle approaches. This
supplementary system is to secure the safety distance for parking.

DC 12 V

DC 9 V ~ 16 V

Below 100 mA

Below 20 mA (each)

Over 5 M

Rated voltage

Operating voltage

Sensor insulating resistance

Weight

Unit

Sensor

Unit

Sensor

Current
consumption

Descriptions

Value
