SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 268
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN

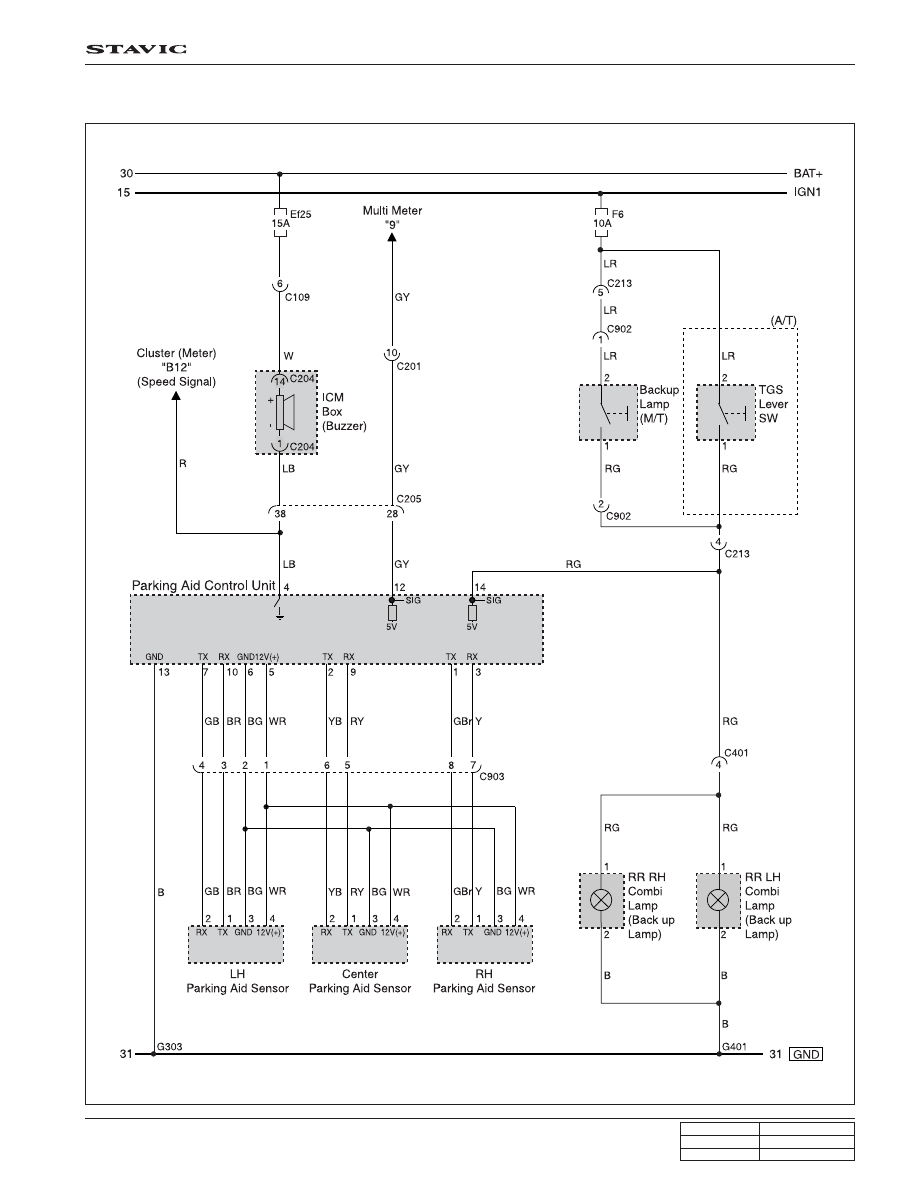

PARKING ASSISTANCE SYSTEM
STAVIC - 2004.09
7
2H
65
195

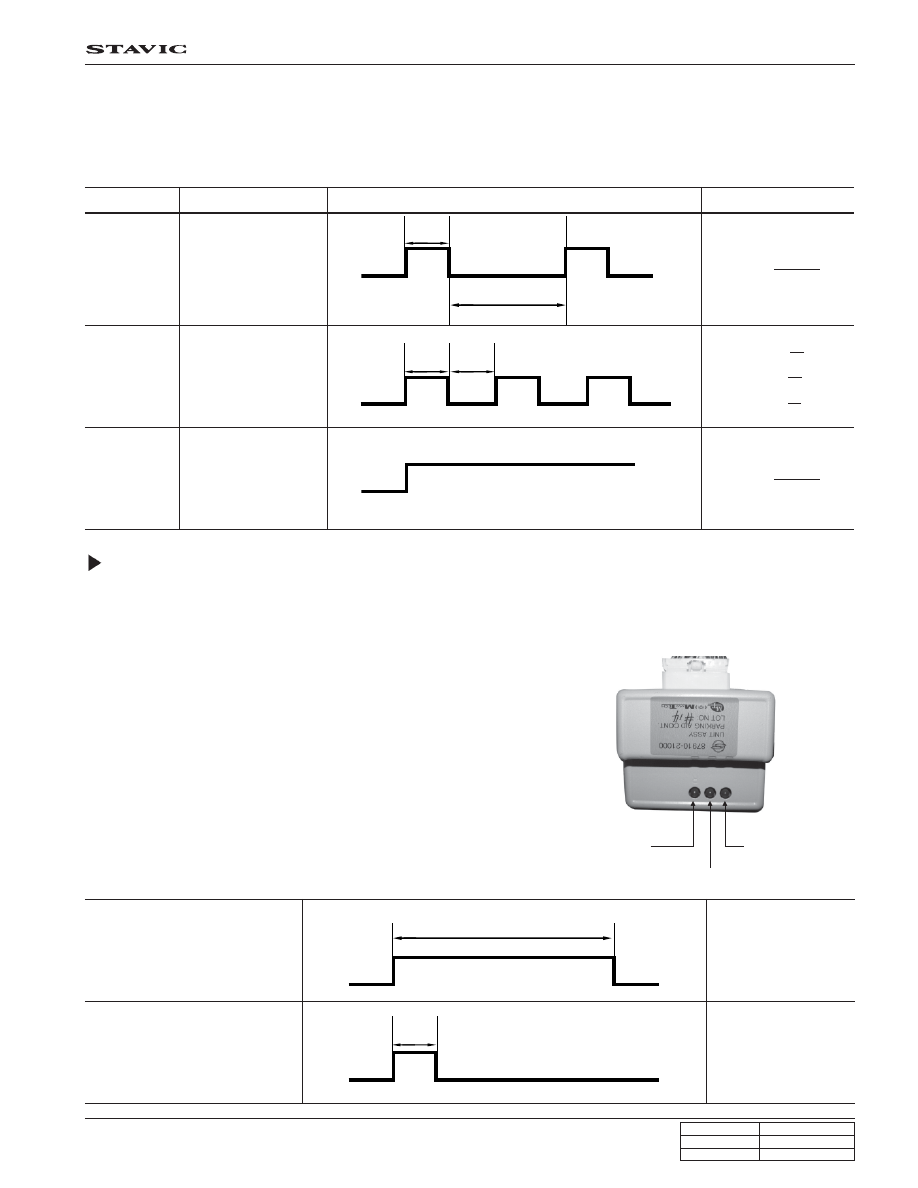

3) Alarm interval
Alarm interval and display changes according to the distance as below:
While reversing, if obstacles are within stage 1, the warning beep sounds with long intervals. If within stage 2, the
warning beep sounds with short intervals and if within stage 3, the warning beep sounds continuously.
Stage
Remark
Interval (msec)
Troubleshooting of Sensor
When the power is applied (gear selector lever is in “R” position), the sensor will be diagnosed once. If found any failure
due to open circuit to sensor or communication error, warning buzzer sounds for 3 seconds and the data on failed
sensor transmits to the instrument panel to light up the corresponding LED. If normal, the warning buzzer sounds only
for 65 ms.
1) Whenever the power is applied, the diagnosis mode is initiated.
2) Sensor failure conditions (conditions for warning beep due to failure)
(a) Sensor failure conditions (conditions for warning beep due to failure)
(b) Open in sending circuit
(c) Open in receiving circuit
(d) Open in power circuit (+, -)
* Warning beeps
When failed
When normal
65
65
300ms
65ms

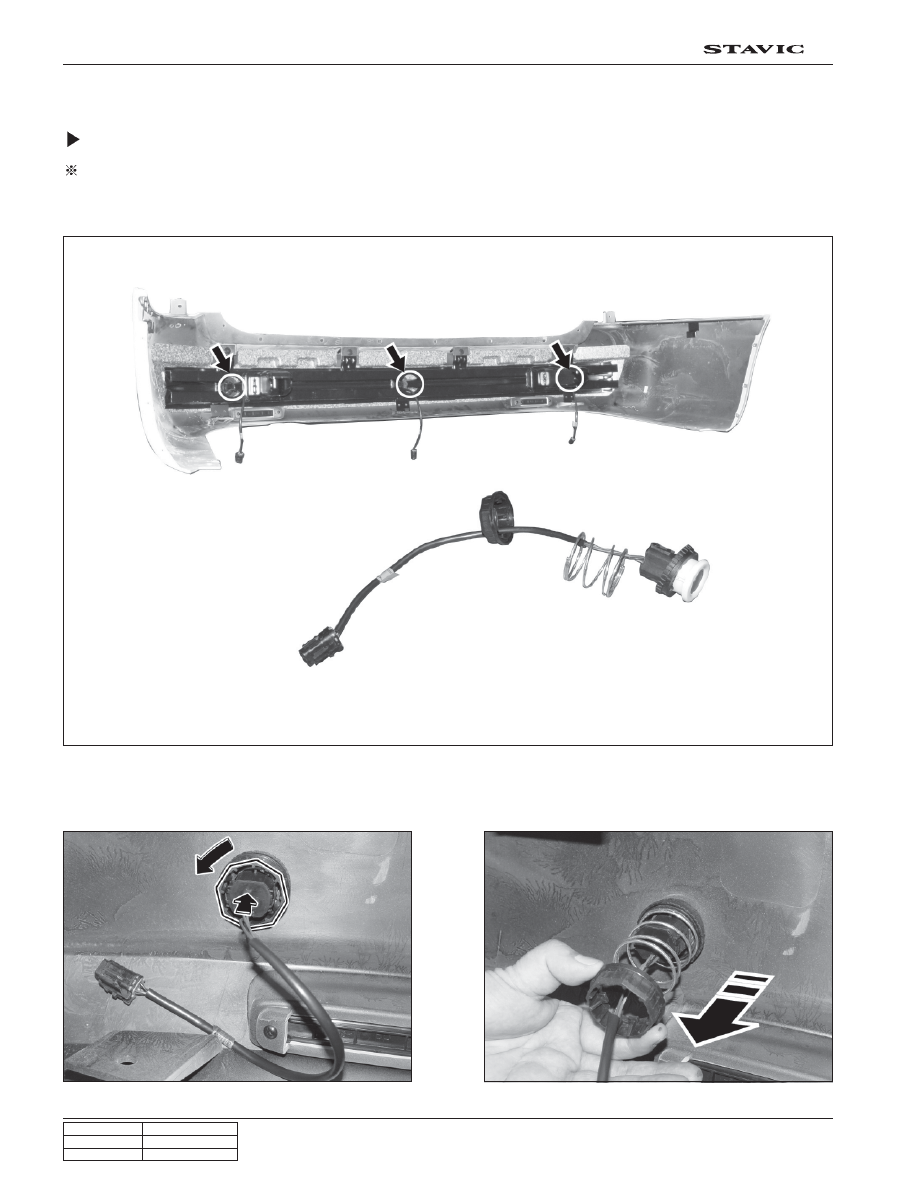

Back sonar (LH)
Back sonar (center)
Back sonar (RH)
3
2
1
“Beep
”
“Beep
,
Beep
,
Beep
”
“Beep
”
L, C, R sensor
25 ~ 50 cm
51 ~ 80 cm
81 ~ 120 cm
65
195
65
65
65ms
300ms
