2. Disconnect the connector and remove the rear monitor assembly.

Rear Monitor

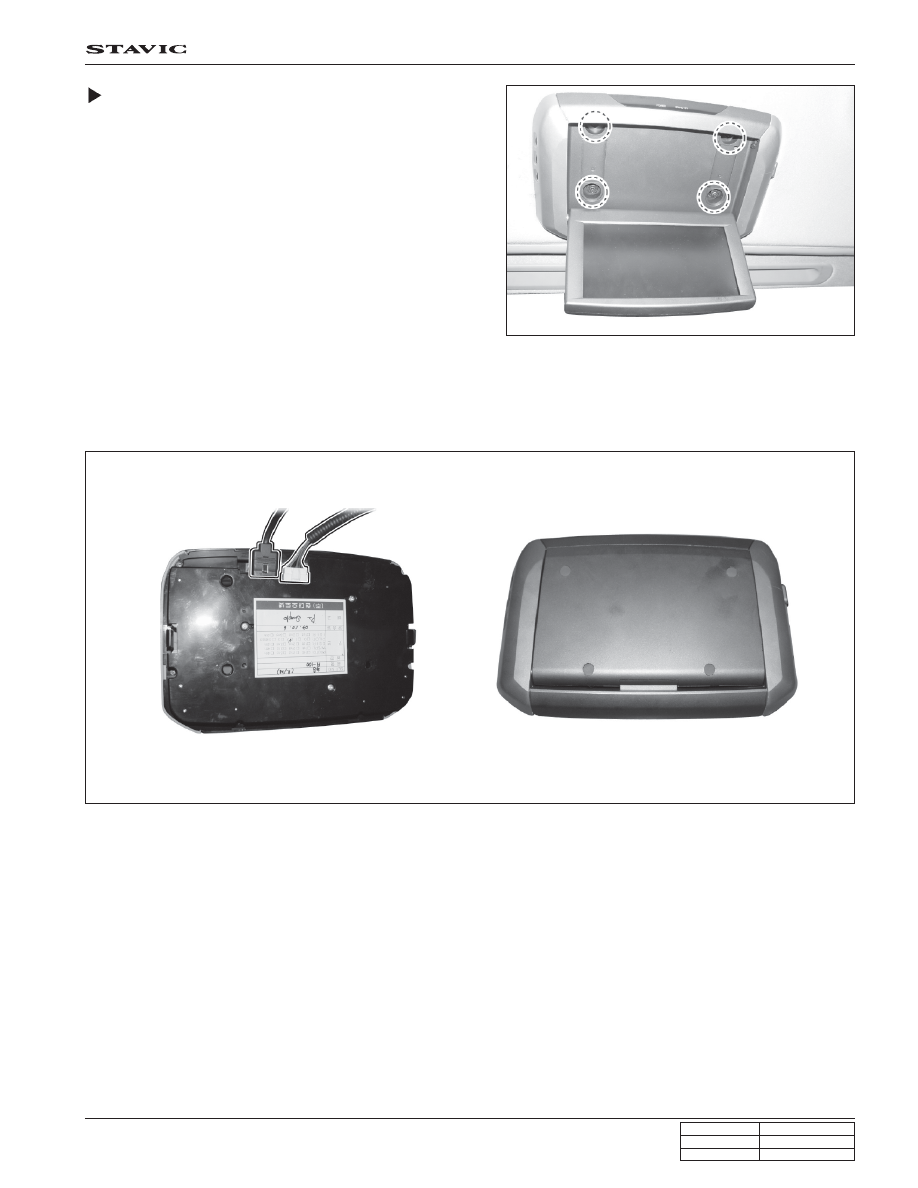

1. Unscrew four fixing bolts (10 mm) with the rear monitor

lowered.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

24

2G

• Remove four bracket bolts and disconnect the connector and terminals.

• Refer to “Body” section.

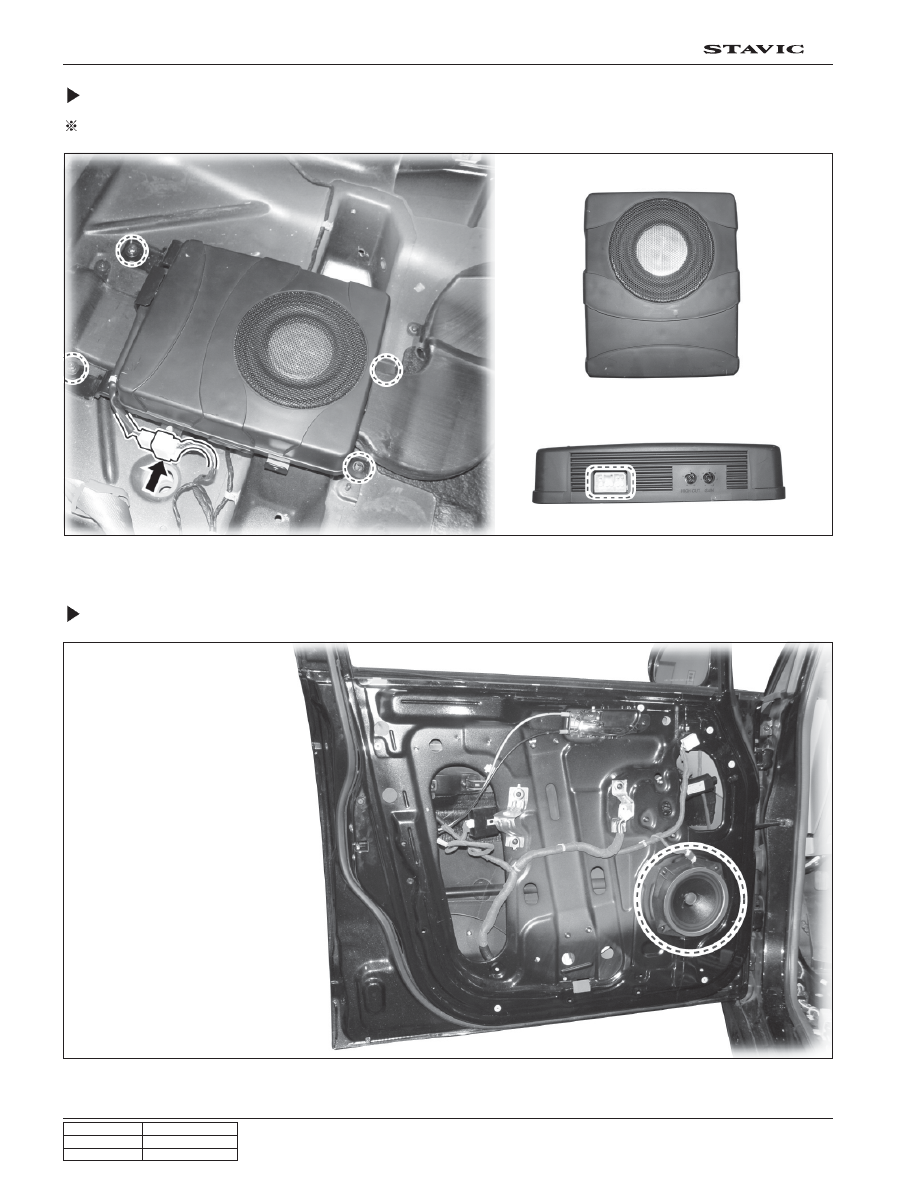

Subwoofer Speaker

Preceding work: Removal of passenger’s seat

Front Door Speaker

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

25

2G

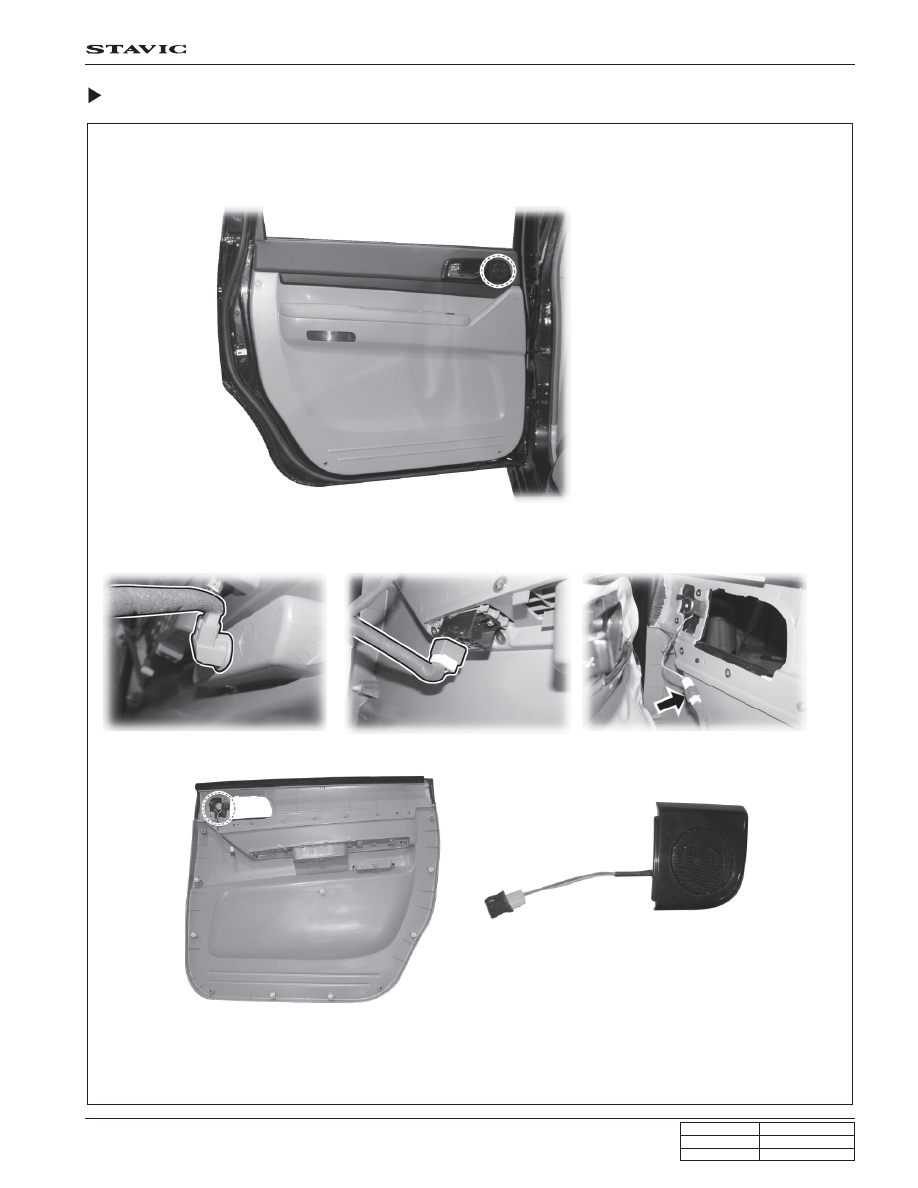

1. Remove the rear door trim.

2. Disconnect the connector from the door trim.

3. Unscrew the bolts from the removed door trim and remove the tweeter speaker.

Rear Door Tweeter Speaker

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

26

2G

Rear Quarter Speaker

Preceding work: Removal of passenger’s seat

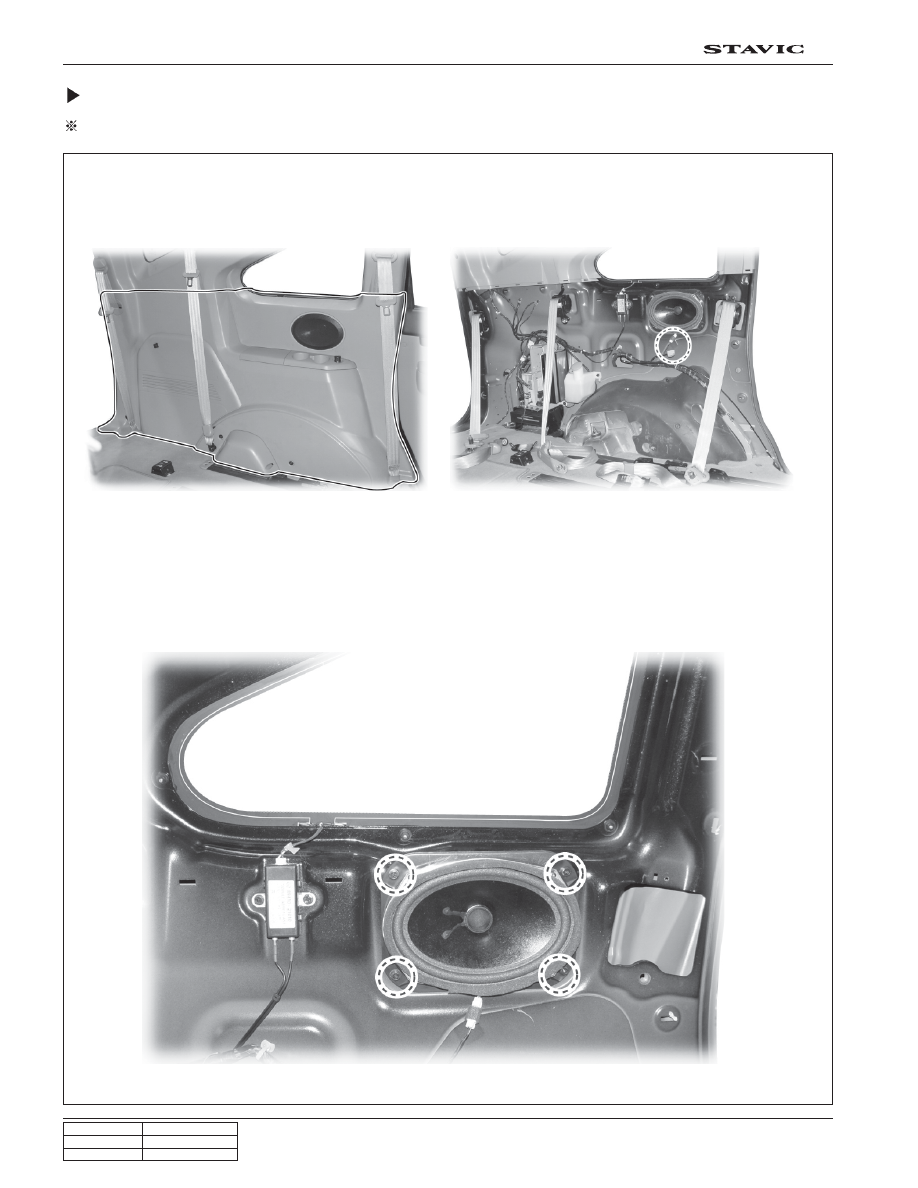

1. Remove the rear lower quarter panel.

2. Disconnect the connector A from the rear quarter

speaker.

3. Unscrew the screws and remove the rear quarter speaker.
