SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 264

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

19

2G

Rearview camera equipped vehicle

When moving the gear selector lever into R (Reverse) position while watching DVD or VCD, the rearview appears on the
front monitor but the rear monitor continues to show the current screen.

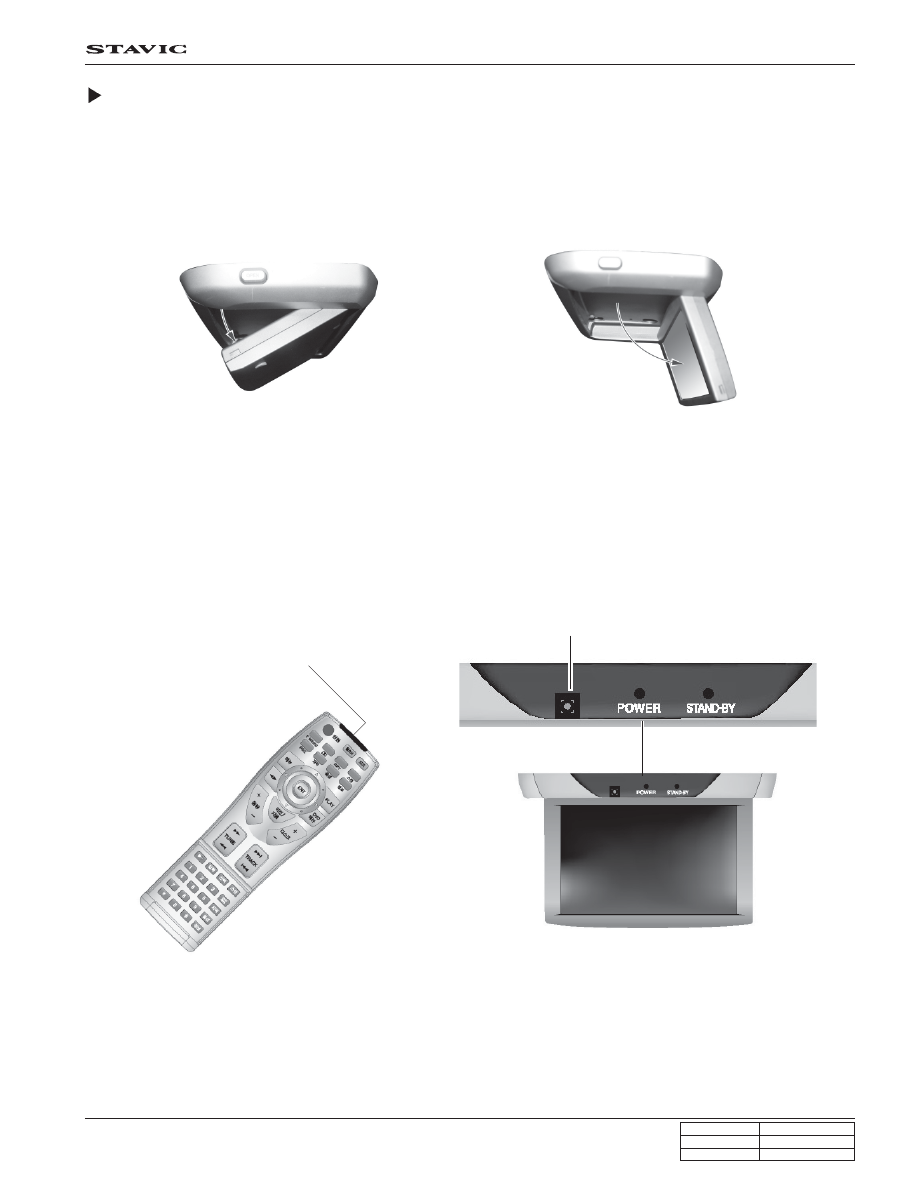

Press OPEN (approx. 25

°)

Maximum opening angle (approx. 100

°)

Location

Opening angle

When pressing the OPEN button, the power is supplied and the rear monitor slide down by approx. 25

°. After then,

manually adjust the monitor to desired angle. Its angle can be adjusted by 100

°.

Remote controller for rear monitor

Remote controller for rear monitor is available. Point the remote controller’s LED toward rear monitor to operate the AV
system. Remote controller works normally when the monitor is closed. Therefore, the system can be operated without
opening the monitor in some modes (radio / tape / audio CD and MP3) that do not need to see display.

Remote controller’s LED

Receiver window

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

20

2G

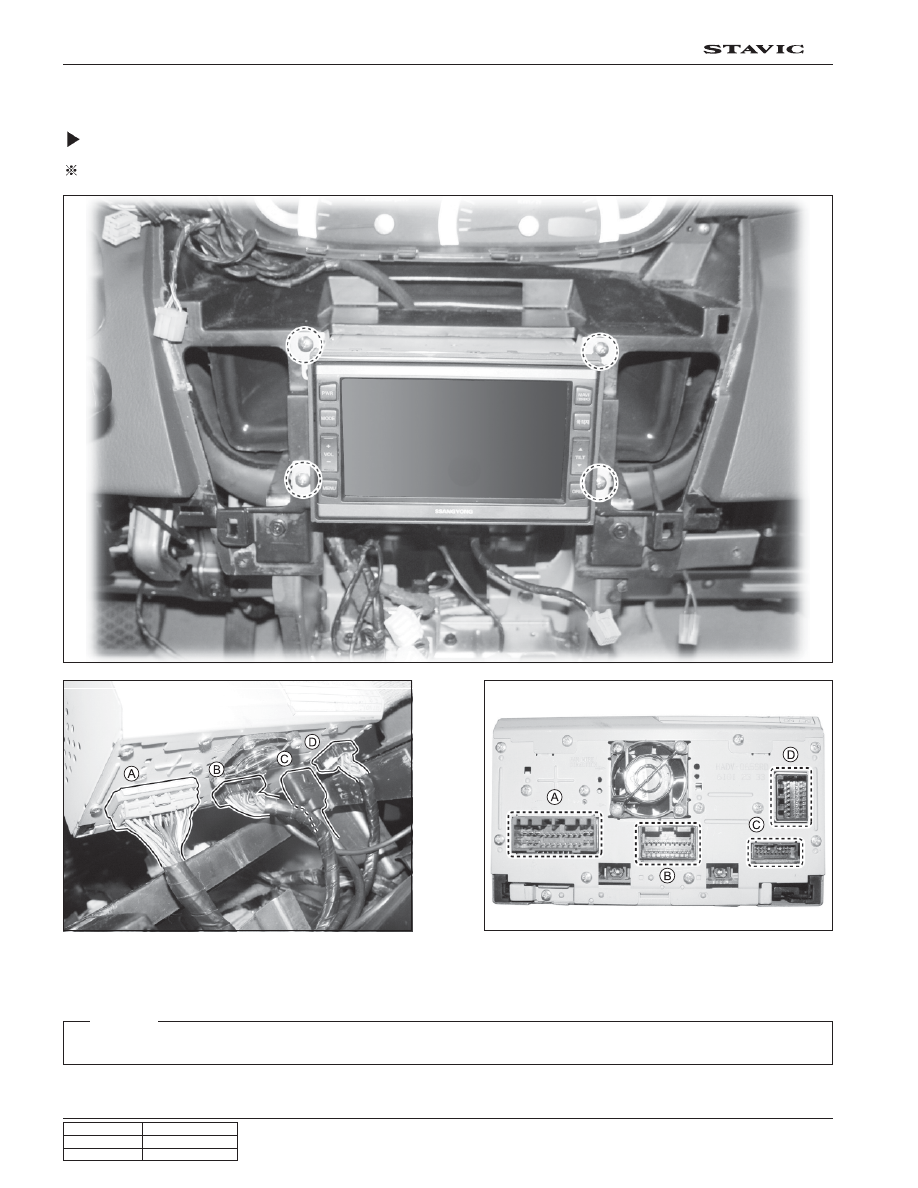

5. REMOVAL AND INSTALLATION

Head Unit (Based on DVD System)

Preceding work: Removal of center panel assembly

1. Remove four screws from the AV head unit.

2. Disconnect the connectors and optical fiber cables from the back of the head unit.

3. Remove the AV head unit assembly.

 [Note]

The unit with DVD changer has two optical fiber cables and the unit without it has one optical fiber cable.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

21

2G

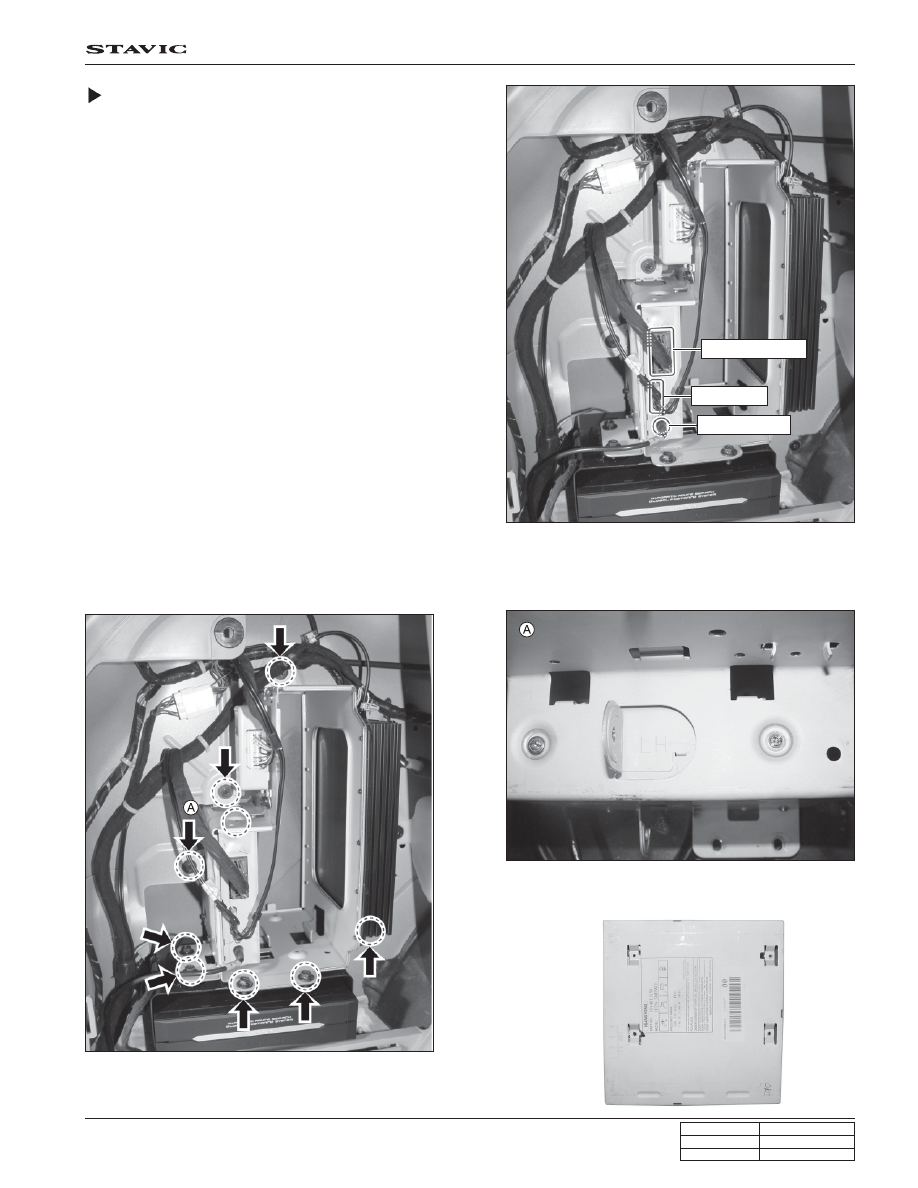

Main connector

TV antenna

Radio antenna

2. Unscrew eight bolts and remove the deck.

3. Unscrew bolts and remove the tuner unit.

[Tuner unit]

Tuner

1. Disconnect four TV antenna terminals, main connector

and radio antenna connector.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

22

2G

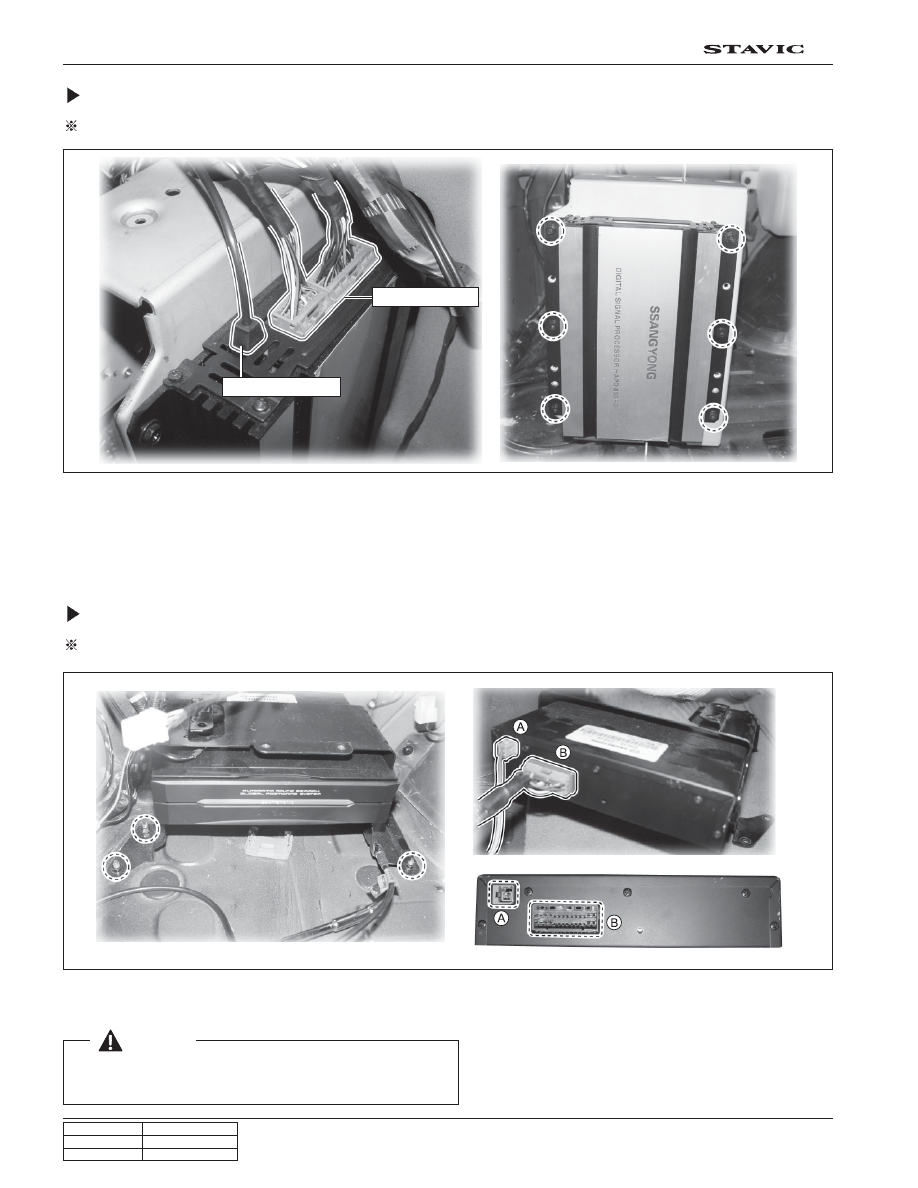

1. Disconnect the amplifier connector.

2. Unscrew bolts (3 x 2) at front and rear sides and remove the amplifier.

• Unscrew the bracket bolts (2 x 2), disconnect the rear amplifier connector, and remove the navigation unit.

Main connector

Optical fiber cable

Amplifier with Built-in DSP

Preceding work: Removal of Tuner/Amplifier deck

DVD Navigation

Preceding work: Removal of Tuner/Amplifier deck

 [Notice]

Make sure to remove the tuner/amplifier deck before
disconnecting the connector.
