AV SYSTEM

STAVIC - 2004.09

11

2G

Turns ON/OFF AV system.

Available while the ignition key is in “ACC” or
“ON” position.

Changes AV mode and turns on/off the Mode
display with Power ON. The display returns back
to previous screen when pressing Mode button
over 2 seconds in NAVI mode.

Volume Up/Down

POWER

MODE

VOL

NAVI (CURRENT LOCATION)

This button is used for changing Mode in AV
mode. In NAVI screen, this button is used for
displaying the current location.

This button is used for setting
Destination in NAVI mode.

DESTINATION

AV MODE: Controls the display, tone and
menu with Power ON.

NAVI MODE: Displays menus in NAVI
mode.

To control the display, volume and others,
press and hold the button for over 2
seconds.

MENU

Moves the monitor to desired tilting position while
pushing this button.

UP button is not available when the fully close
position.

The down tilting angle can be precisely adjusted by
using Down button within a specified range. If it
reaches to its end, no more movement can be done.

Moves the monitor to fully open or close position.

When pressing this button, the monitor moves to
fully open position if it is not in fully open position,
and moves to previously stored tilting position if it
is in fully open position.

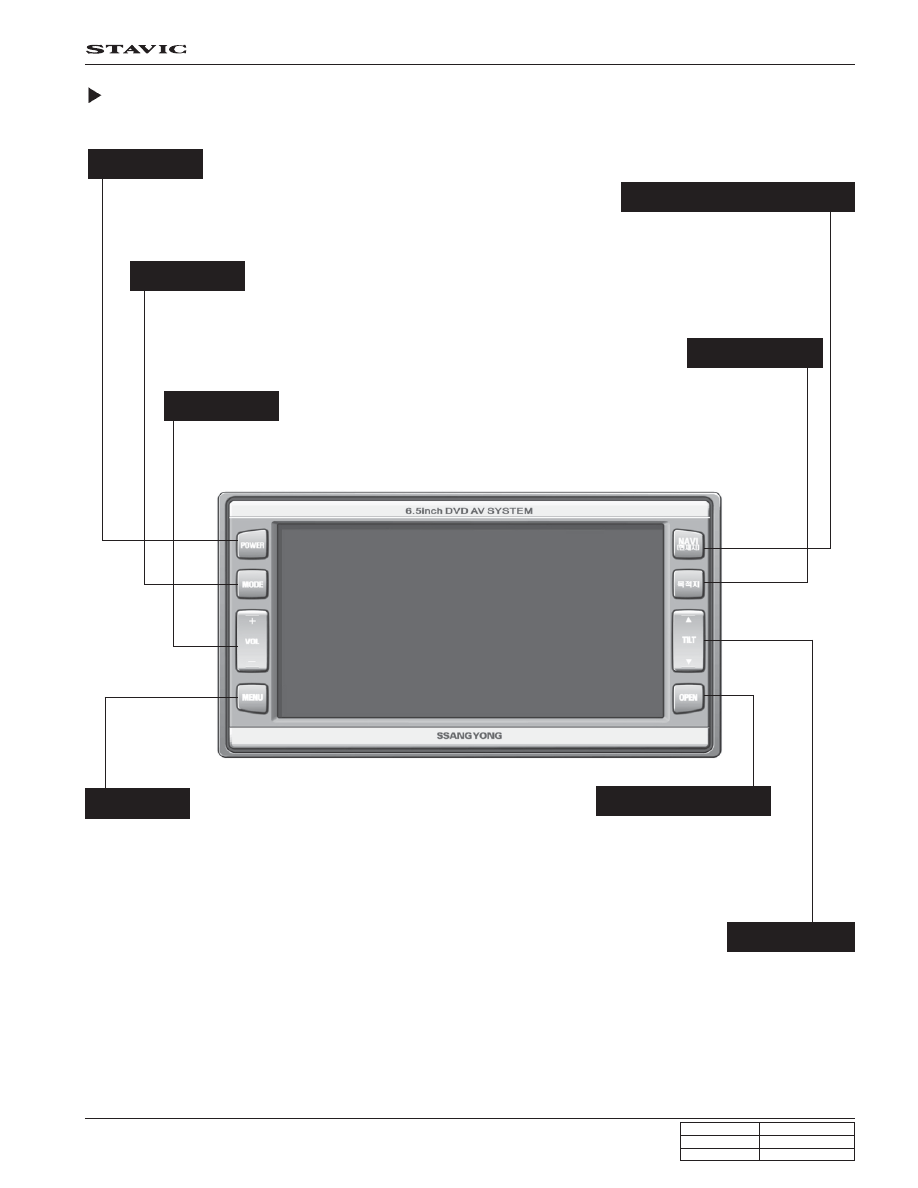

Head Unit Operation Buttons

TILT

OPEN / CLOSE

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

12

2G

1. BUS 1 output
2. BUS 1 input
3. BUS 1 ground
4. TV LH-
5. TV RH-
6. Remote control ground
7. S-Remote control
8. V-ground
9. TV-Video

10. Illumination-

11. Reverse signal

12. ACC+
13. Battery+
14. BUS 2 output
15. BUS 2 input
16. BUS 2 ground
17. TV LH+
18. TV RH+
19. Ground
20. R-Remote control
21. Remote control ground
22. VSYNC
23. Illumination +
24. Parking signal
25. Ground
26. Speed pulse

1. -
2. -
3. M. Ground
4. Rearview camera battery output
5. Rearview camera V–ground
6. Rearview camera video
7. Navigation voice
8. Navigation V–ground
9. Navigation CSYNC

10. Navigation Gi

11. Remote control optic sensor ground

12. Remote control optic sensor signal
13. Amp mute
14. Amp ON
15. Amp voice ON
16. Amp ground
17. Navigation voice output
18. Navigation voice ON
19. Navigation voice BI
20. Navigation GI

1. R–VSYNC
2. R–SYNC
3. V–ground
4. R-G
5. RGB ground
6. R-Mode 1
7. Ground
8. Mute
9. Video

10. Power ON

11. N.C.

12. R-SSW
13. R-B
14. R-R
15. R-Mode 2
16. -

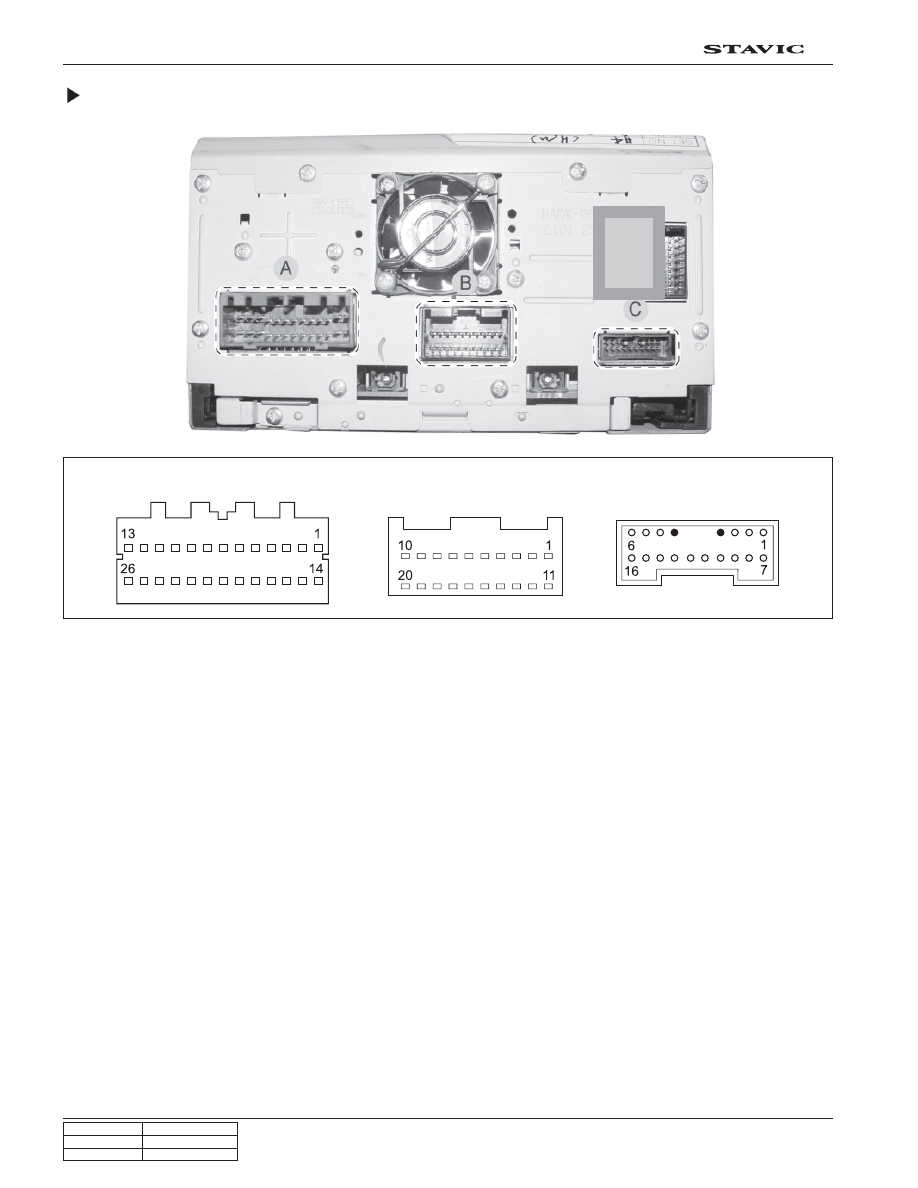

Connector A (26-pin)

Connector B (20-pin)

Connector C (16-pin)

Descriptions of Terminals

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

13

2G

Specifications

Function

System

- Manual preset: FM1 (6), FM2 (6), AM (6), TV1 (6), TV2 (6)

- Manual channel up/down

- Seek up/down

- BSM (AM/FM), auto memory (TV)

- Local/DX (use with BSM: -20db)

- Program/Play

- FF (fast forwarding)/REW (rewinding)

- DOLBY B-NR

- AUTO METAL

- Repeat

- Back-up eject function

- Auto power when tape is inserted

- Chapter, file, track up/down, direct

- FF (fast forwarding), FB (fast back), up/down

- Repeat

- PBC

- SCAN

- Compatible conversion between audio and caption

- MP3 file information display

- CD-DA, video CD, DVD audio, DVD video, MP3

- Touch screen: touch panel

* Displays keys by each mode

- Front key: Potential difference type

* POWER, MODE, MENU

* Eject, slide up/down

* NAVI, Destination

* Volume up/down

- NAVI mode: NAVI graphic video switch shift

- Touch screen key: full touch

- If the display disturbs the driving conditions at night, possible to turn off just display.

- Cancellation of display OFF

* Screen touching

* Power key input

* NAVI key input

* MODE and MENU key input

- Operates only in NAVI mode

* Performs mute under AM, FM, TV, TAPE, DVD, DVDC mode

* Under TAPE mode, deck operation stops

* Under DVD changer and DVD player mode, it stops

- Sliding memory setting

* Set the desired position with slide up/down key

- Returning to slide position

* Open key input under full-open state

* When changing ACC OFF to ON, moves to the latest stored position

Radio/TV

Tape

DVD player

Key input

NAVI display

Display OFF

Audio OFF

Sliding memory

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

14

2G

EQ control

FADER, BALANCE control

POSITION control

DVDC DISC input

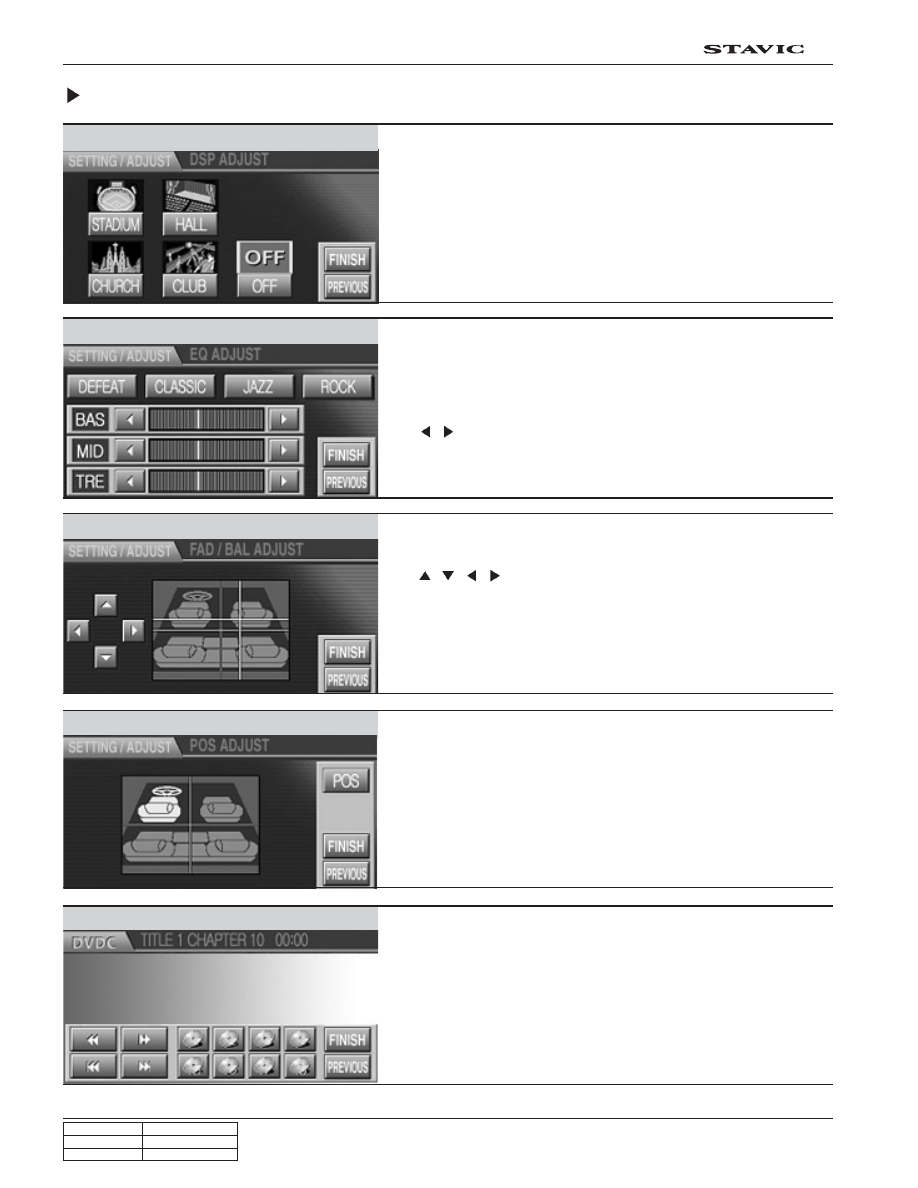

Function Settings on Touch Panel (Example)

DSP control

* DEFEAT: Changes to DEFEAT in EQ mode

* CLASSIC: Changes to CLASSIC in EQ mode

* JAZZ: Changes to JAZZ in EQ mode

* ROCK: Changes to ROCK in EQ mode

*

,

: Up/down in selected band

* Finish: Changes to start page of each mode

* Previous: Changes to basic control display

*

,

,

,

: Up/down in FADER/BALANCE

* Available in DSP OFF

* Finish: Changes to start page of each mode

* Previous: Changes to basic control display

* POS: Changes in order of ALL

→ F/R → F/L → REAR → ALL →

* Finish: Changes to start page of each mode.

* Previous: Changes to basic control display

* Can control if in DSP ON

DVDC DISC input display

* 1~8: DISC selection

* Finish: Moves to normal video display

* Previous: Changes to basic 1 display of DVDC DVD OSD

* STADIUM: Turns off EQ mode and changes to STADIUM

* HALL: Turns off EQ mode and changes to HALL

* CHURCH: Turns off EQ mode and changes to CHURCH

* CLUB: Turns off EQ mode and changes to CLUB

* OFF: Turns off DSP mode and changes to EQ mode

* Finish: Changes to start page of each mode.

* Previous: Changes to basic control display
