SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 261

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

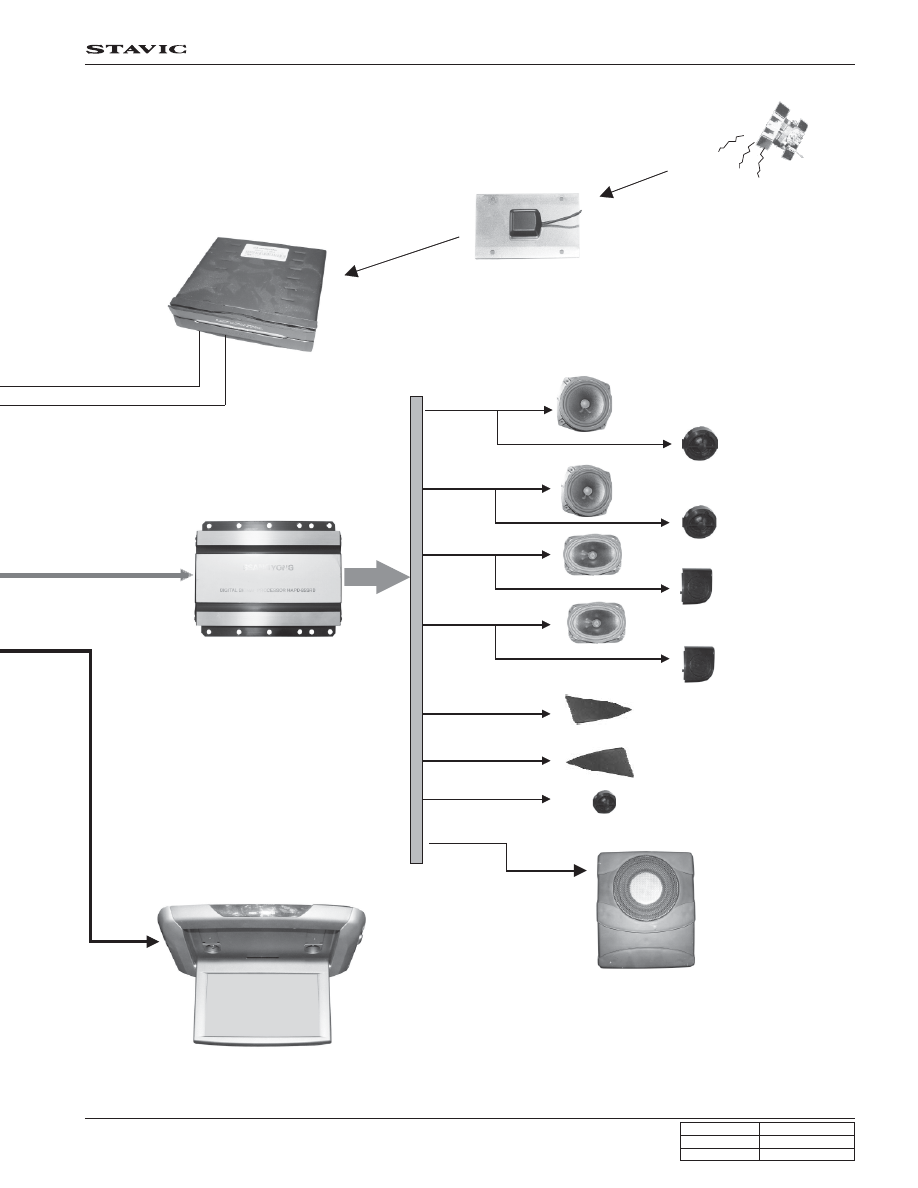

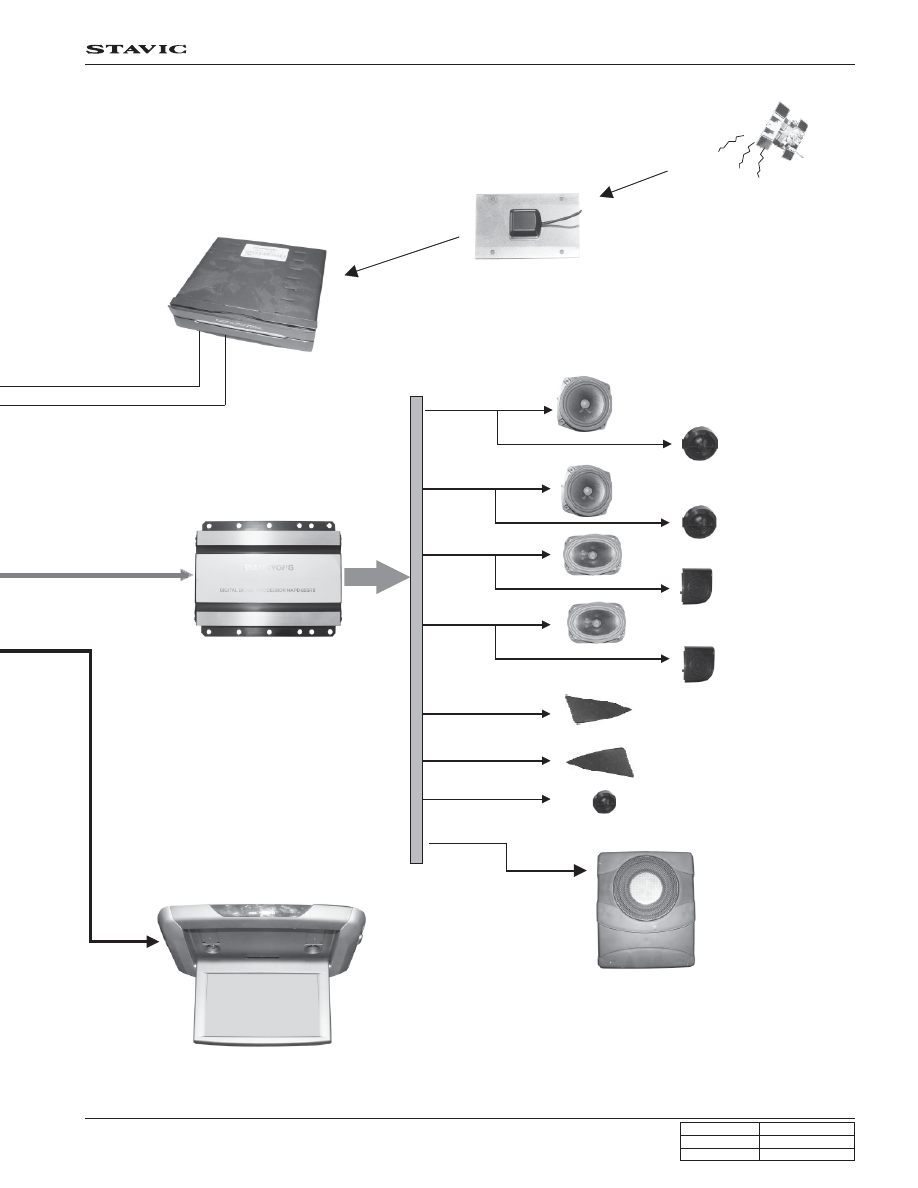

AV SYSTEM

STAVIC - 2004.09

Audio signal

Video signal

GPS satellite

Rear monitor

Front speaker (LH)

Tweeter speaker (LH)

Front speaker (RH)

Tweeter speaker (RH)

Rear speaker (RH)

Tweeter speaker (RH)

Rear speaker (LH)

Tweeter speaker (LH)

Center speaker (RH)

Center speaker (LH)

Center speaker
(back of center console)

AMP (with built-in DSP)

Power AMP in the DVD system has built-in
DSP function that digitalizes sound to divide
and control. It amplifies sound goes to each
speaker and has function of allowing dynamic
and vivid sound.

Subwoofer (with built-in AMP)

Woofer with built-in amplifier is installed at
the bottom of passenger’s seat. It enforces
mid-low sounds and the amplifier built-in the
woofer amplifies sound signal received from
power AMP directly.

GPS antenna (installed behind passen-
ger side instrument panel )

A device that receives and transmits current vehicle
position from and to GPS satellite to display the ve-
hicle position on the map as dot.

Navigation (DVD data)

Displays current vehicle position on the built-in map
after receiving vehicle position signal through GPS
antenna and then transmits to monitor. By using DVD-
ROM, it supports enormous convenience data and
3D view.

Receive

Video signal

The rear monitor (7”) can be folded down approx. 25¡Æ
when the open button is pressed to display. When opened,
the angle can be adjusted up to 100¡Æ manually.

Optical fiber cable

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

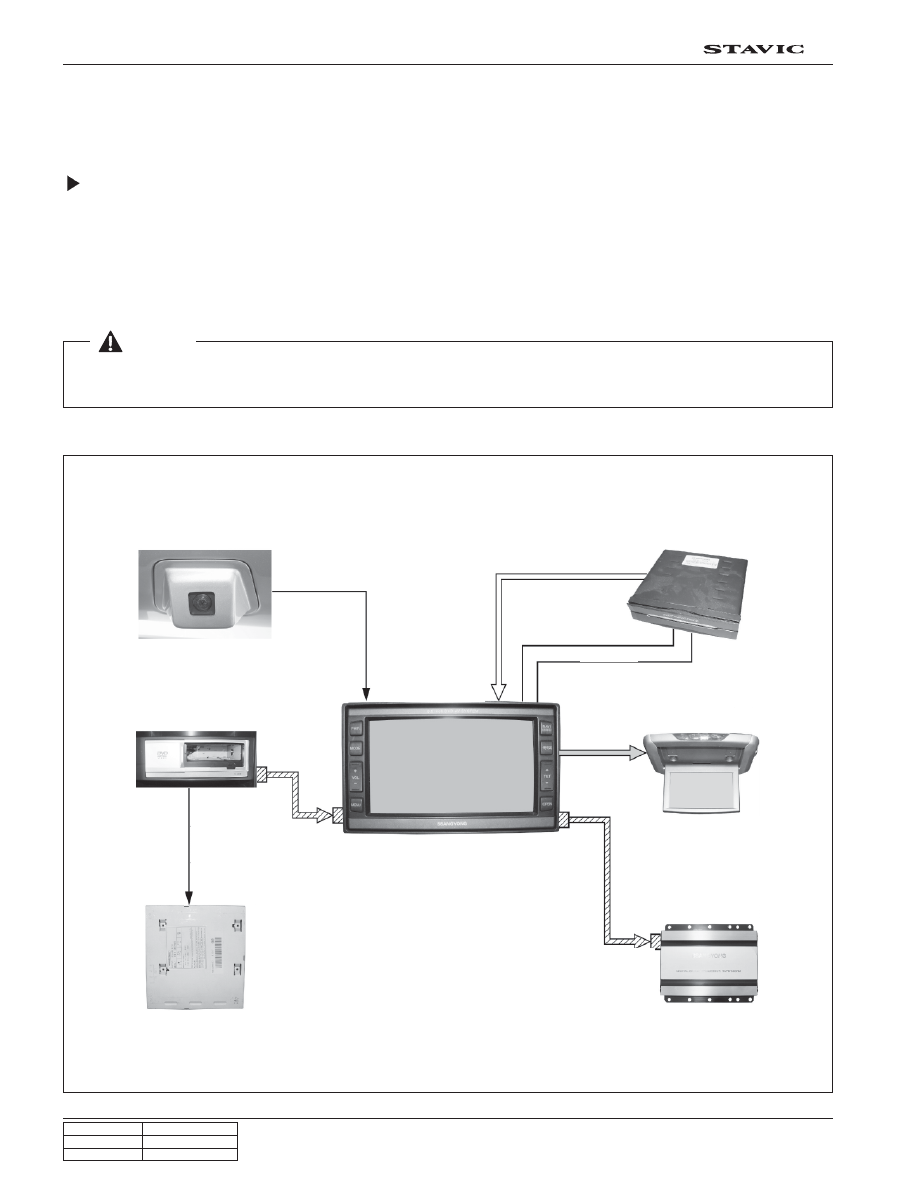

4. SYSTEM LAYOUT (BASED ON DVD SYSTEM)

1) Front Head Unit

Functions

The AV head unit equipped with DVD system has two optical output terminals; one is to receive the sound signal from 8-
DVD changer and the other is to send the sound signal to amplifier with built-in DSP. The tuner unit transmits the TV and
video signals to the head unit through cable. However, the head unit receives the video signal or color and video signal
directly from the rearview camera and navigation without tuner.

If equipped with roof monitor, the AV head unit transmits the video signal to roof monitor through cable.

Rearview camera

(Video signal)

DVD changer

Optical fiber cable

OPTIC
TX

OPTIC

Tuner unit

(Video signal)

OPTIC

AV head unit

(EGA/6.5”)

OPTIC
TX

Audio signal

Roof monitor (7”)

5.1 channel

power amplifier

DVD NAVI

AVC-LAN

Optical fiber cable

[Notice]

The DVD system drives the amplifier, tuner, head unit and 12 speakers and operates two monitors. Therefore, the battery
can be discharged easily if operate DVD system without engine running.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

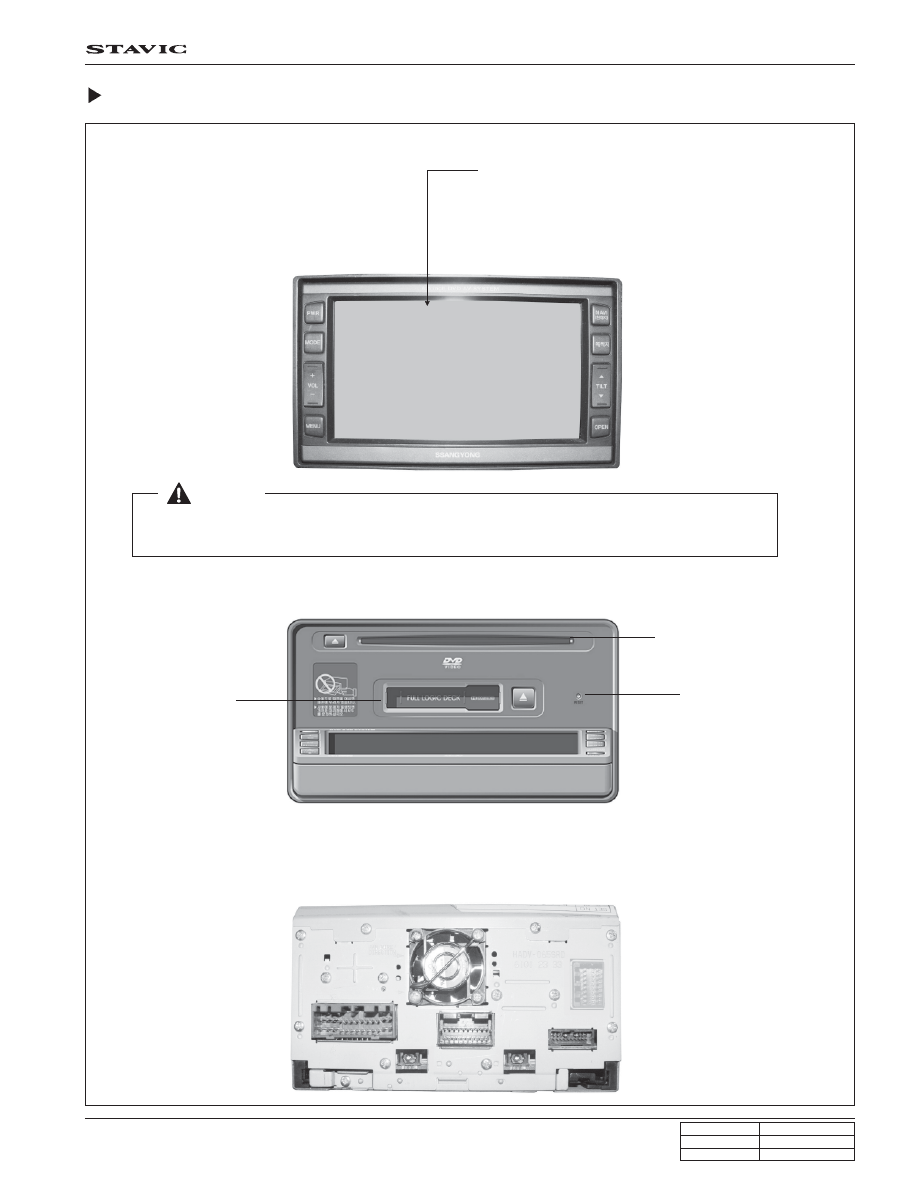

Rear view of head unit

Touch-screen panel

When cleaning the touch screen, turn off the system and clean

the surface with a dry and soft cloth. Never use any coarse

cloth, hard cloth, chemical agent, volatile cleaning solvent

(alcohol, benzene, thinner) for cleaning the touch screen.

Appearance

DVD deck

Tape deck

Reset button

Forceful operation or impeding the

m o v e m e n t o f AV s y s t e m m a y

cause unstable operations. When

the system operation is unstable,

push the reset button with a sharp

object like a ball-point pen to initial-

ize the system.

Front view of head unit

[Notice]

Do not apply excessive force to adjust, open, and close the monitor. Do not impede the automatic
movement of the unit.

When removing LCD monitor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

• DVD-R

• DVD-RAM

• DVD-ROM

• DVD-Audio

• CD-G

• Mixed CD (Date)

• Active Audio (Date)

• VSD

• Multi-section disc

• DVD with region code other than (3) or (ALL)

Bulk CD-R or CD-RW that their quality cannot be secured may not be recognized.

Region code (3)

• DVD player and DVD videodisc has designated region code. If region code is different, the disc cannot be played.

This system cannot play the disc if the region code is other than (3) or (ALL).

PBC (Play back control) – compatible video CD

• This system can play PBC–compatible video CD.

• Typical audio and video CDs can be played and PBC-compatible video CD uses recorded PBC menu on the disc to

play the CD interactively.

Double layer DVD video disc

• When playing the double layer disc, there occurs time lag between at the end of first layer and start of second layer

causing broken display and sound for seconds. It normal for double layer disc so it is not malfunction of the system.

DVD head unit and DVD changer cannot play following discs.

Usable Discs (DVD Head Unit)

Following disc types can be used on the system.

Disc type and logo

DVD video

Video CD

Audio CD

CD-ROM

Disc size

5” (12 cm)

Play time

approx. 133 minutes (SS/SL)

approx. 242 minutes (SS/DL)

approx. 266 minutes (SD/SL)

approx. 484 minutes (DS/DL)

SS = Single side

SL = Single layer

DL = Double layer

approx. 74 minutes

MP3 audio file
