2) Switches on Driver’s Door

* Abbreviations

FLU: Front Left Up

FRU: Front Right Up

RLU: Rear Left Up

RRU: Rear Right Up

Driver’s door window switch

Door lock switch

Window lock switch

Window lock switch

FLD: Front Left Down

FRD: Front Right Down

RLD: Rear Left Down

RRD: Rear Right Down

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

25

2E

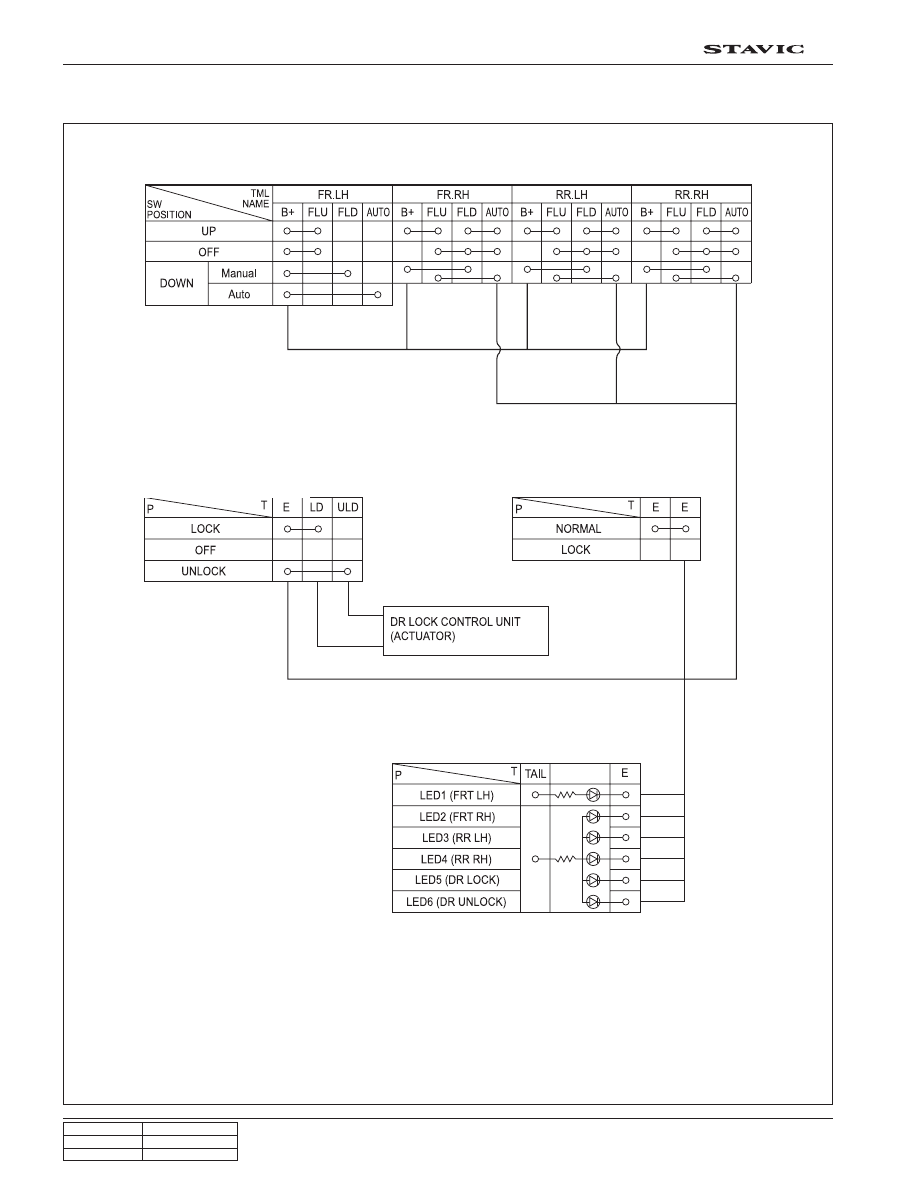

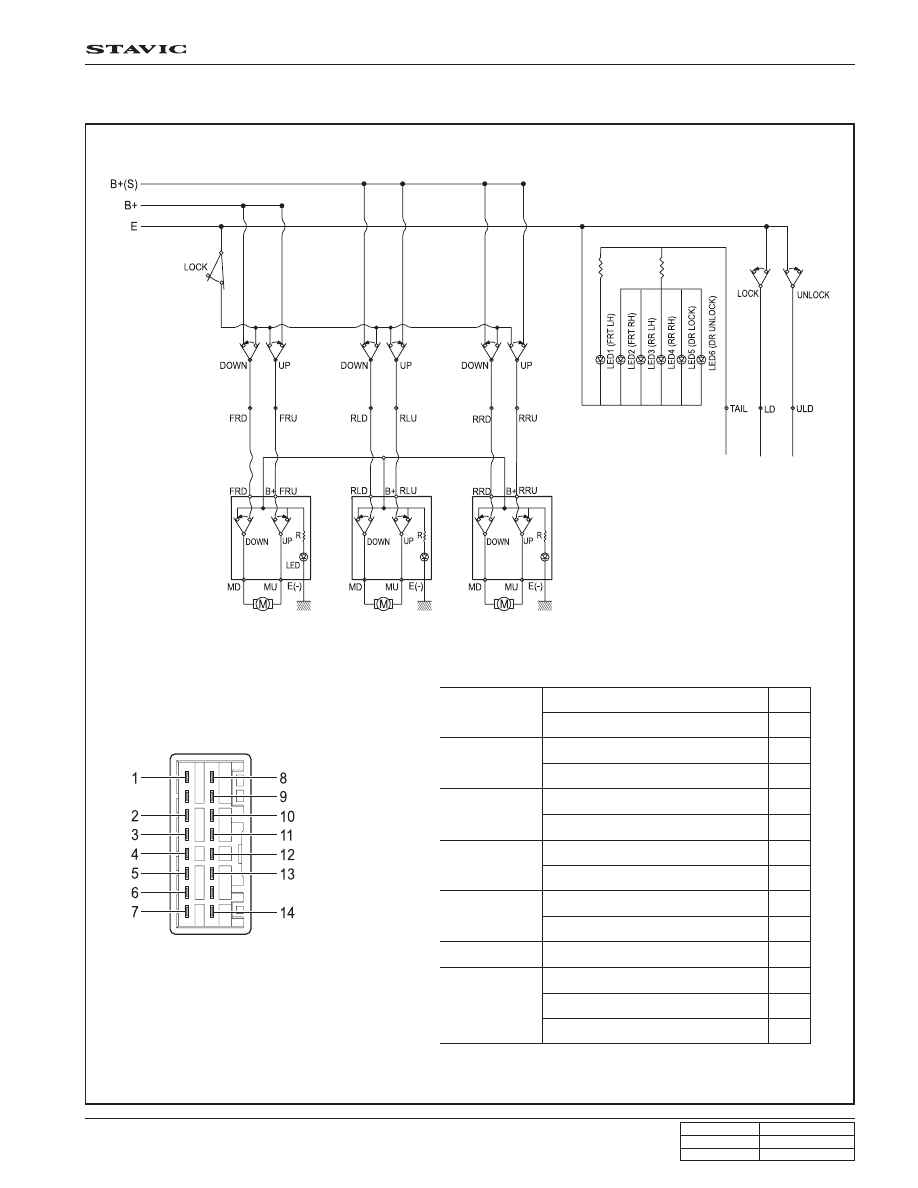

2) Circuit Diagram of Switches on Driver’s Door

Front Left

Front Right

Rear Left

Rear Right

Door Lock

Illumination

Power

Front Left Down (FLD)

Front Left Up (FLU)

Front Right Down (FRD)

Front Right Up (FRU)

Rear Left Down (RLD)

Rear Left Up (RLU)

Rear Right Down (RRD)

Rear Right Up (RRU)

LOCK

UNLOCK

ILL

B+

B+ (S)

E(-)

4

2

5

7

8

11

12

14

10

6

1

3

13

9

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

26

2E

4. Remove the door trim.

Removal of Outside Rearview Mirror Switch

Preceding Work: Disconnection of negative battery cable

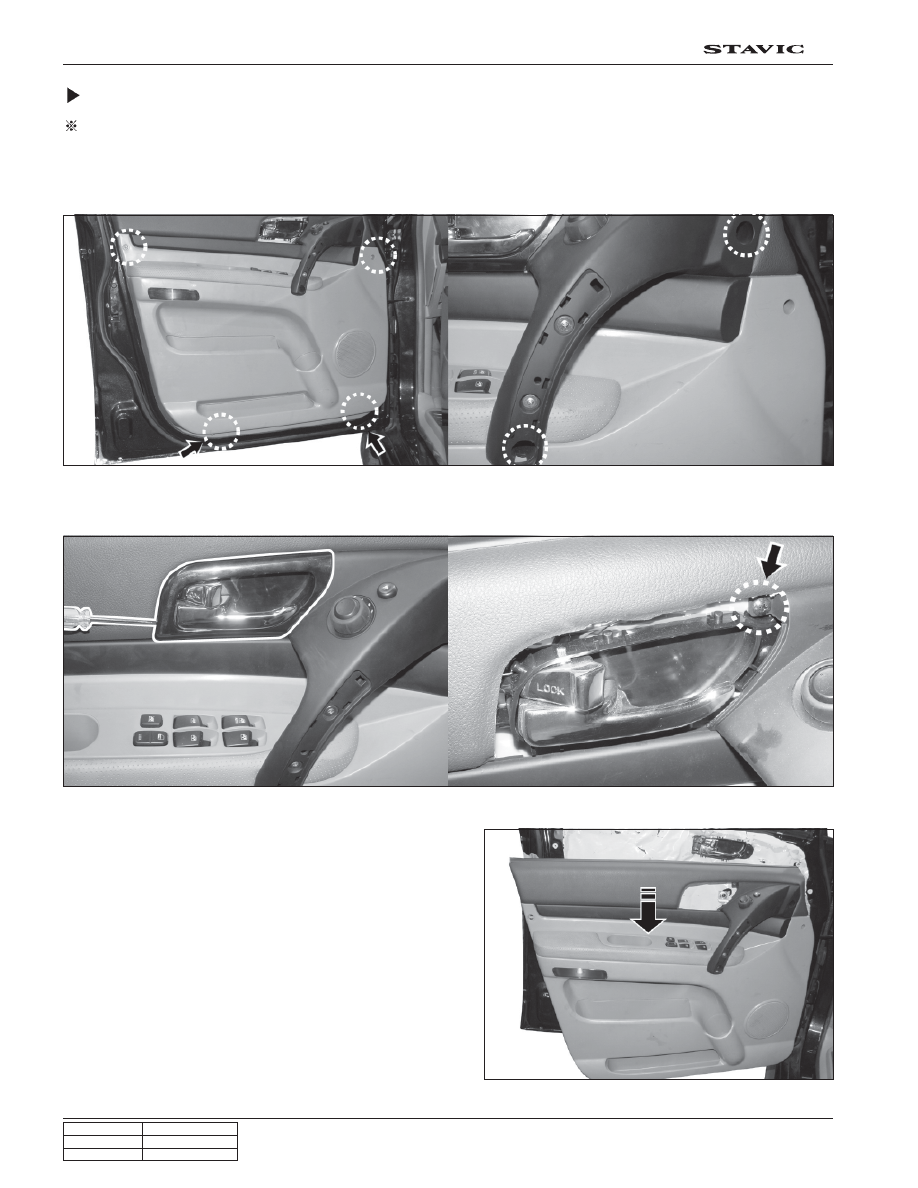

1. Remove the screws (arrows) from the door trim.

2. Remove the door armrest grip cover and unscrew the screw.

3. Pry off the door lever cover and remove the mounting screws.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

27

2E

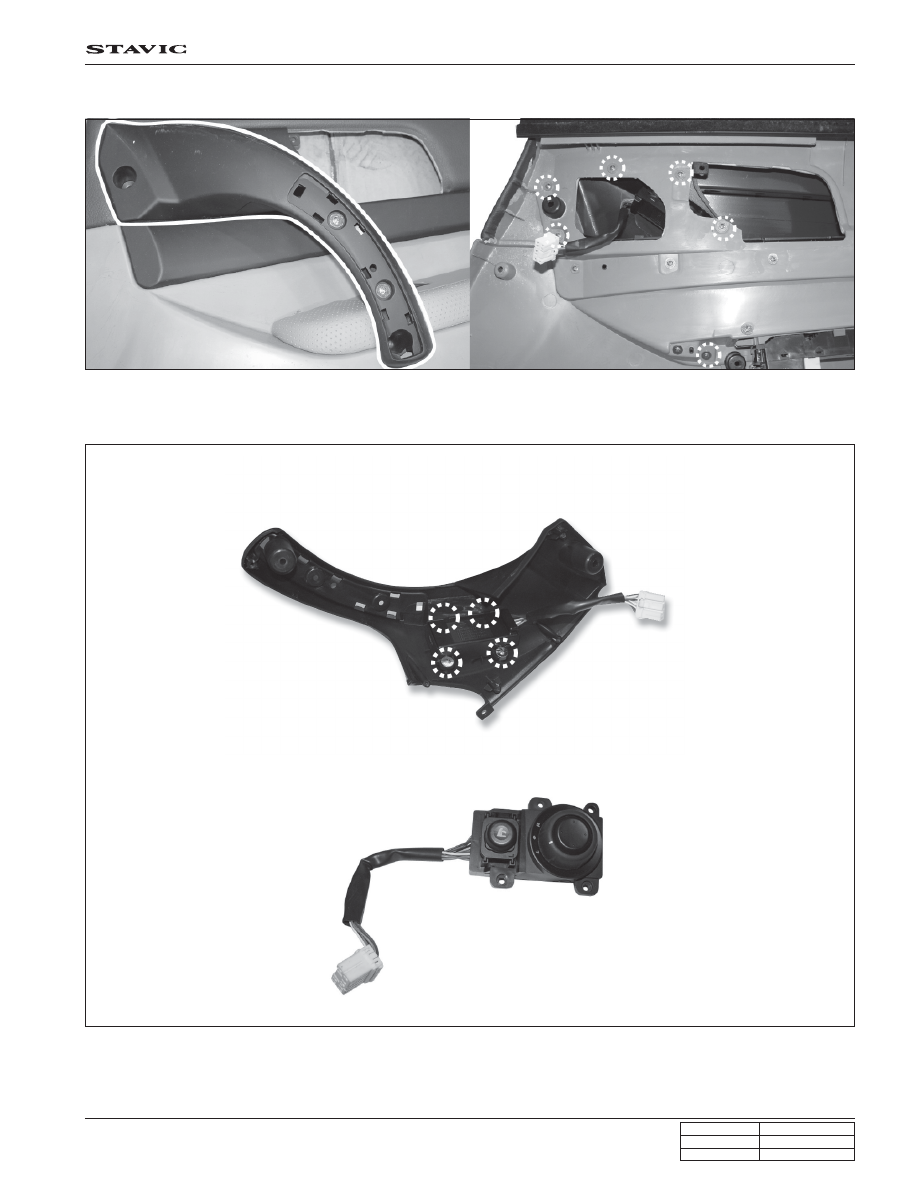

5. Unscrew the bolts and remove the door grip from the removed door trim.

6. Unscrew the bolts and remove the outside rearview mirror switch from the door grip.
