“4H” (4-Wheel Drive, High) : for driving on normal road

“4L” (4-Wheel Drive, Low)

: for maximum traction needed

in slippery roads, steep hills
and rough roads.

4WD SWITCH, REAR WIPER/WASHER SWITCH

1. 4WD (4H

↔

↔

↔

↔

↔ 4L) SWITCH: TOD (FULL TIME 4 WHEEL DRIVE)

Driving Mode Change

Driving mode

Changing requirement

Selected gear

4H

↔

 4L

Vehicle is stationary.

Neutral

4WD CHECK Warning Light

This warning light comes on when the
4WD system is defective.

4WD LOW indicator

This indicator blinks during mode changes
(4H

↔

 4 L), then goes off after completion.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

17

2E

Connector Terminals and Circuit

Rated capacity :

wiper - DC 12V, 3.0A

washer - DC 12V, 3.8A

The rear wiper operates with a specific speed when
pressing this switch. It stops when pressing the switch
again.

The washer fluid is sprayed when pressing the switch.
And, the wiper operates when pressing the switch
over 0.6 seconds.

Rear Wiper/Washer Switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

18

2E

Removal and Installation

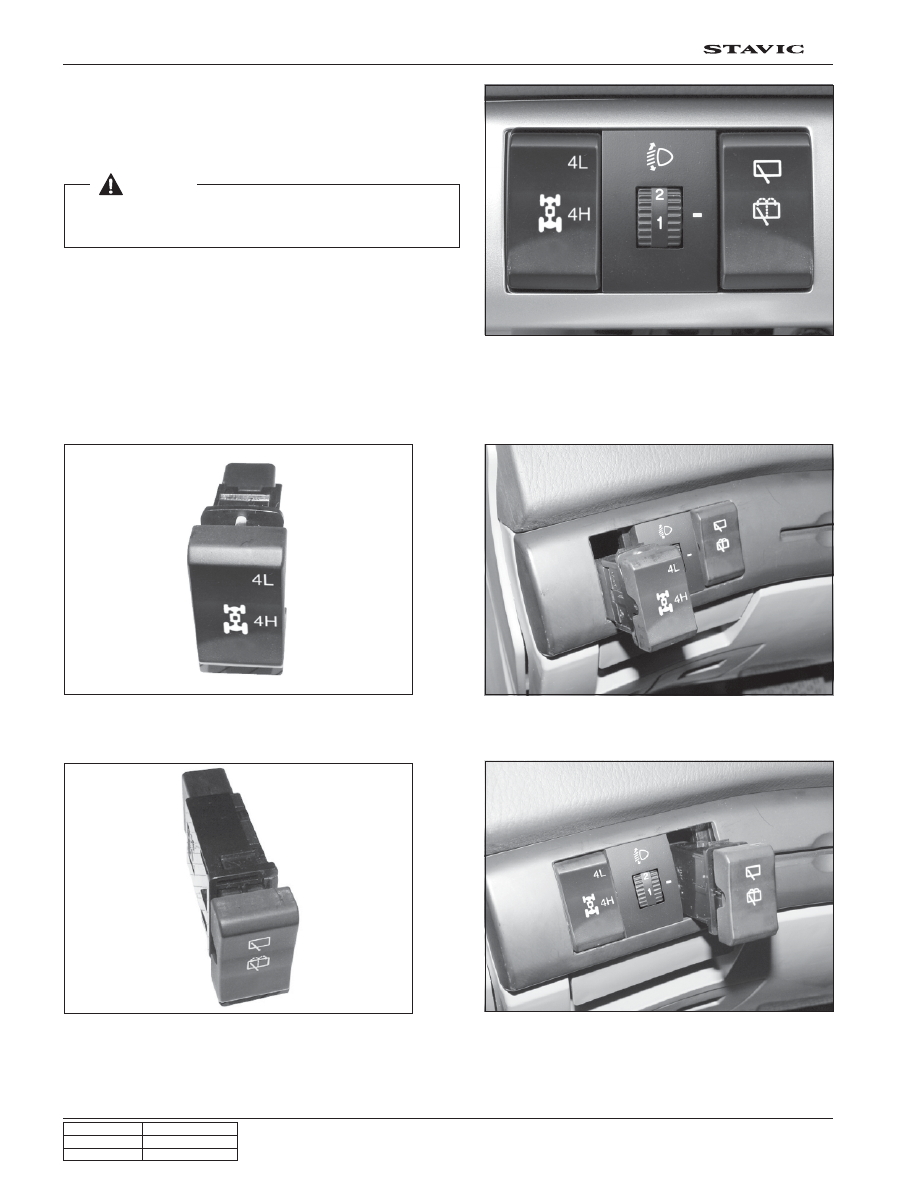

1. Remove the driver side lower switch panel and remove

the switch bezels.

 [Notice]

Be careful not to damage the surroundings during its removal
procedures.

2. Disconnect the connectors and remove the switches.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

19

2E

SWITCHES ON STEERING WHEEL

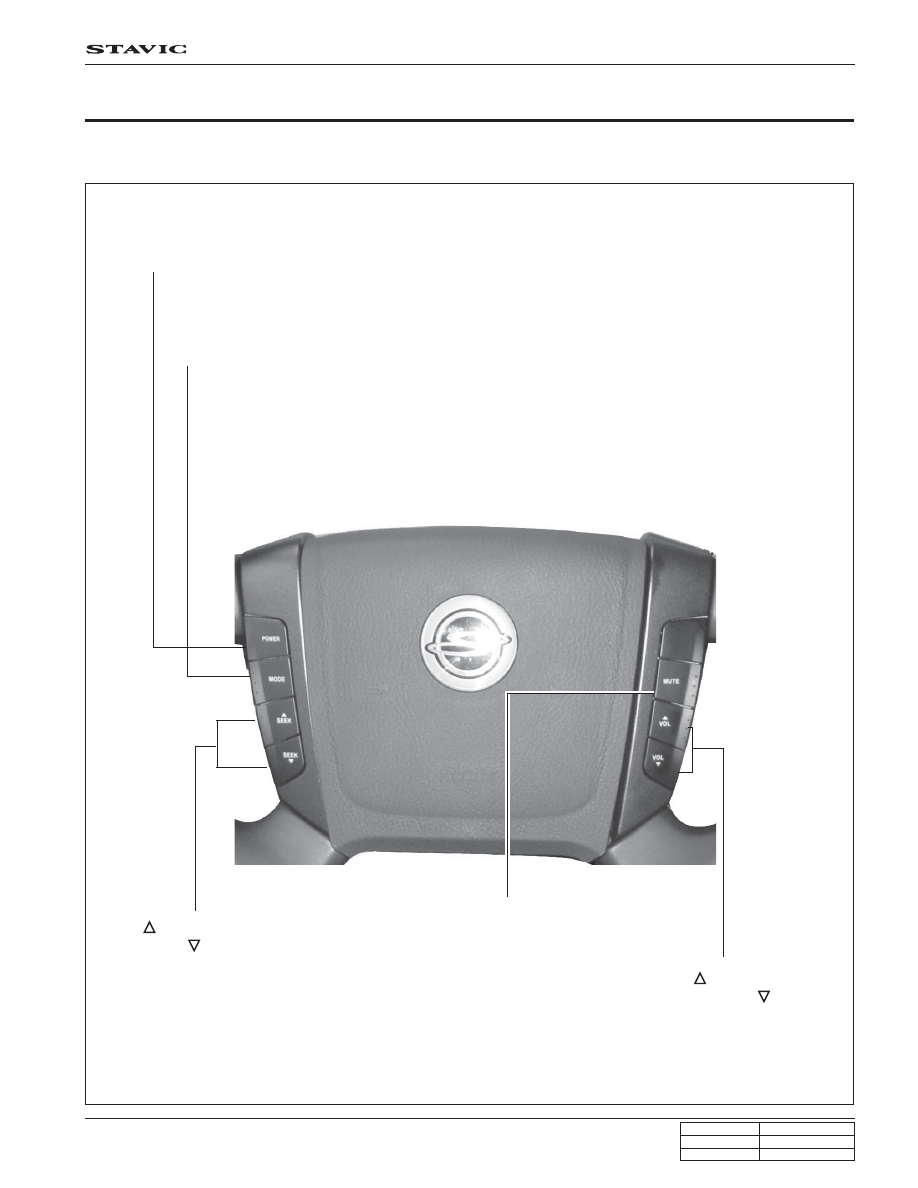

1. AUDIO REMOTE CONTROL SWITCH

POWER

Turns on and off the audio system.

MODE

Changes the audio mode in order as below:

• In radio mode

- Press briefly: Manual searching for a station.

- Press and hold: Automatic searching for a station.

• In CD (DVD) player/Cassette tape mode

- Press briefly: Replay next/previous track.

- Press and hold: Move forward/backward in current tract.

SEEK

SEEK

VOLUME

VOLUME

Increases or decreases the volume.

MUTE

Stops audio output from audio system.
To resume the audio output, press the
button again.
