Defogger Switch

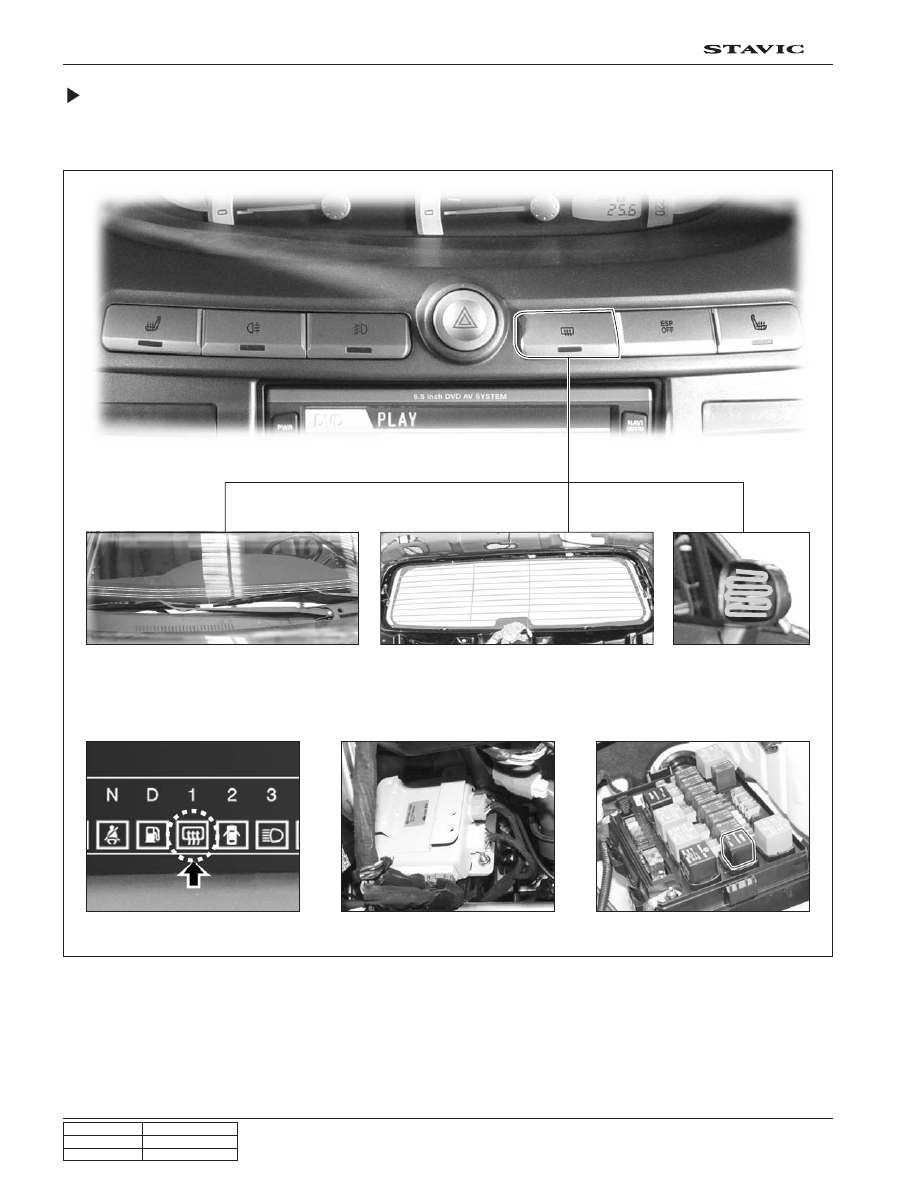

The windshield, tailgate glass, and outside rearview mirrors have heated wire. STICS controls the defogger relay in the
engine room fuse and relay box.

Defogger indicator

STICS

Defogger relay and fuses

Comes on during operation

Controls the heated glass

In the engine compartment

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

9

2E

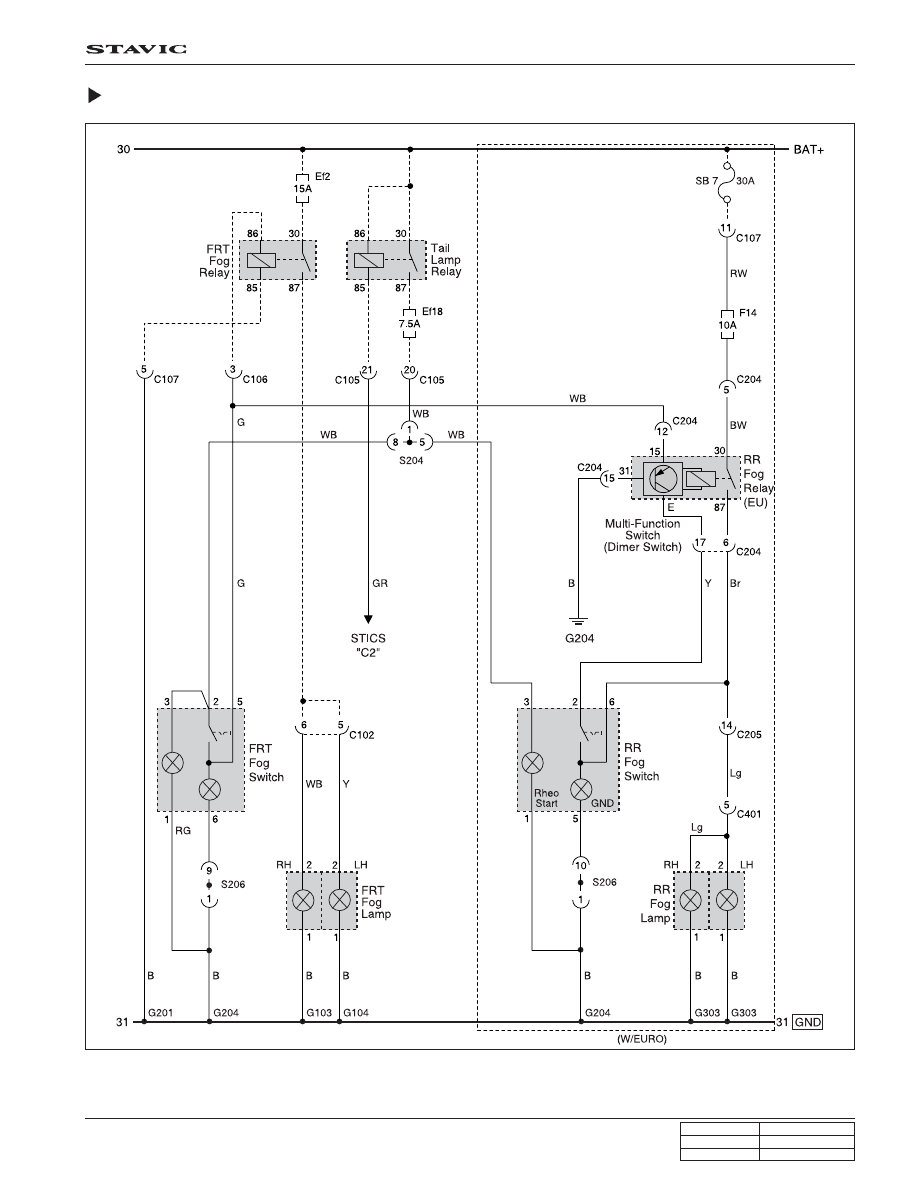

Circuit Diagram

The defogger switch is connected to STICS. The STICS controls the tailgate windshield and outside rearview mirror
heated glass according to the switch operations while the engine is running.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

10

2E

Tailgate Heated Glass, Windshield Galss and Outside Rearview Mirror Heated Glass (controlled
by STICS)

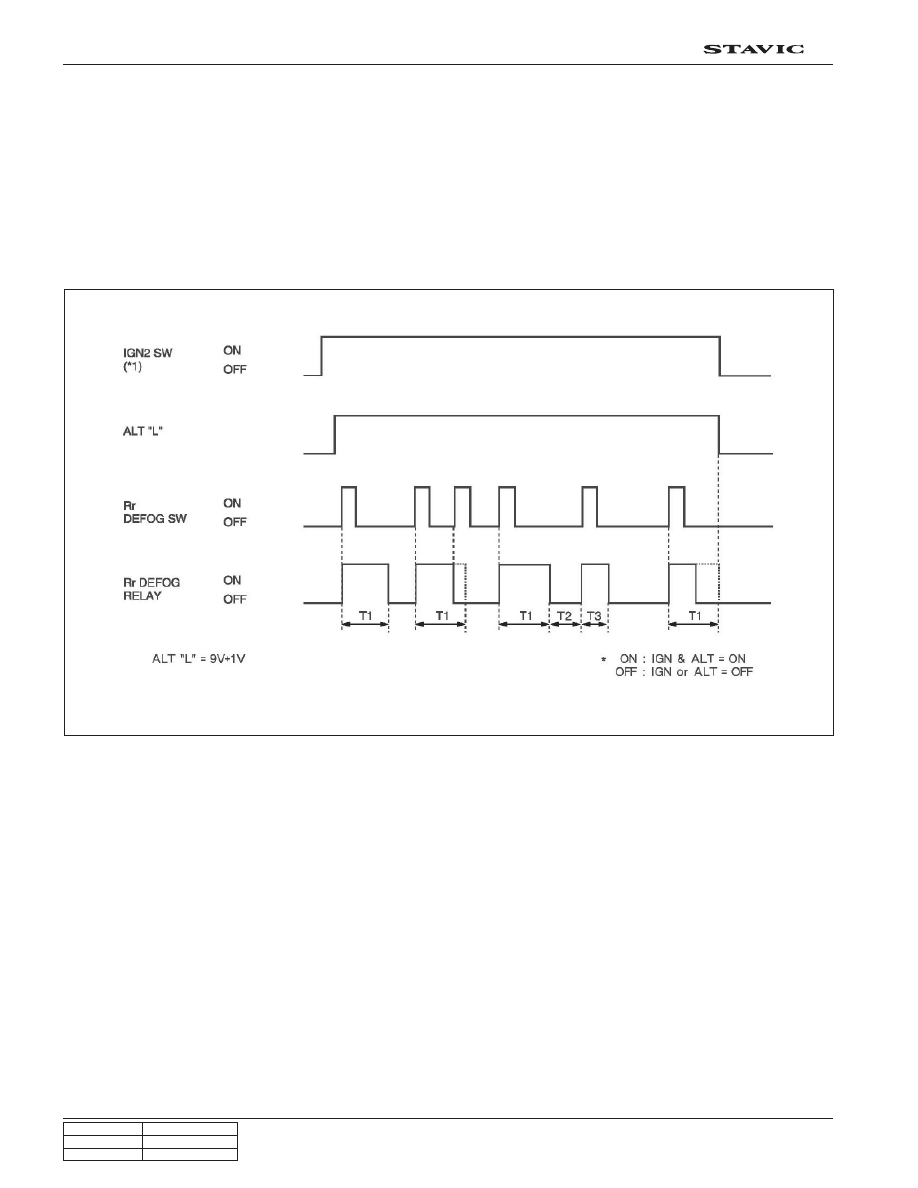

1. The outside rearview mirror heated glass operates for 12 minutes when turning on the defogger switch while the

engine is running.

2. If the defogger switch is pressed again during the operation, the operation stops.

3. If the defogger switch is pressed again within T2 (10 minutes) after completion of the first operation (T1), the

defogger system operates for 6 minutes just for once.

4. The defogger is not available when the ignition switch is in “OFF” position or the alternator is not running.

T1: 12 min.        T2: within 10 min.     T3: 6 min.

OVER 9 V

BELOW 9 V

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

11

2E

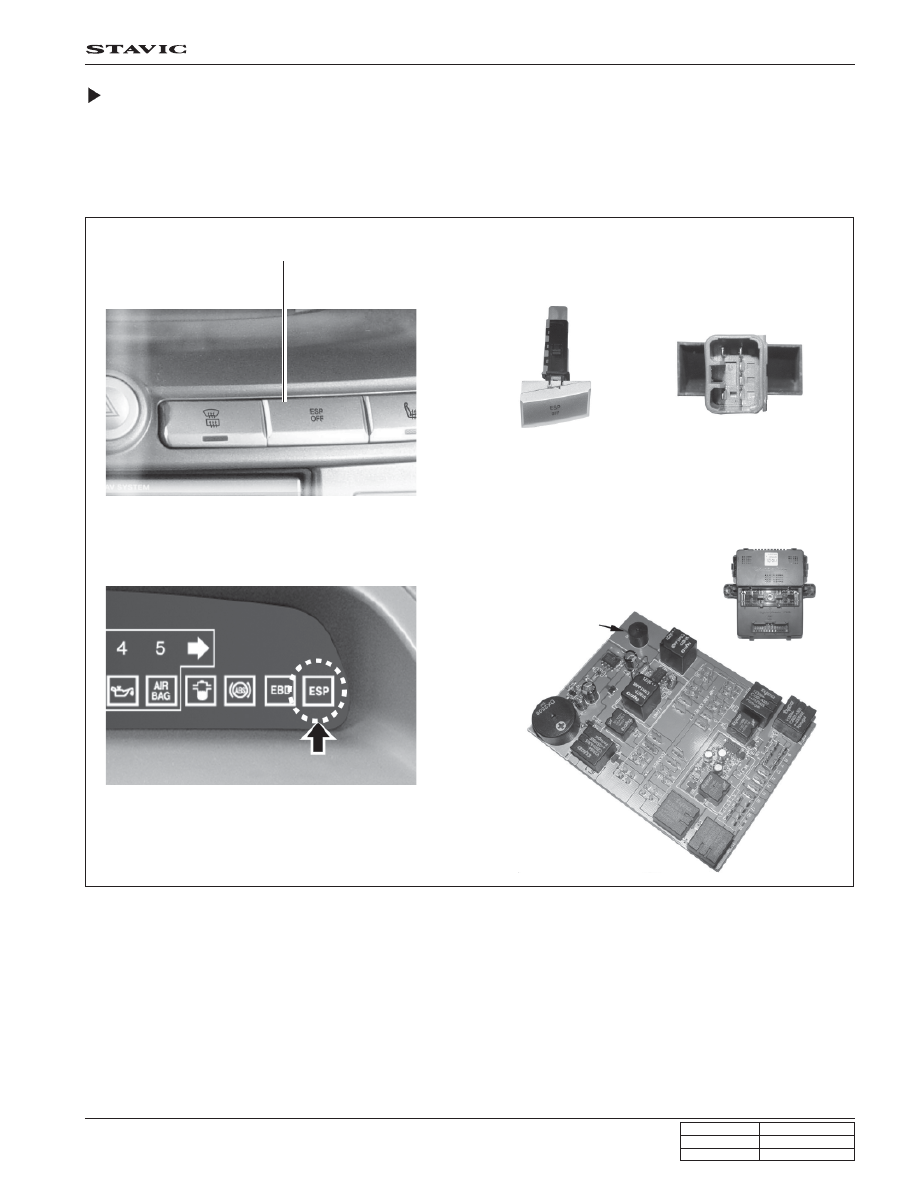

• When the ESP warning light comes on

The lamp comes on when the vehicle posture control function is cancelled by pressing ESP

OFF

 switch or ESP

related system is defective.

• When the ESP warning light blinks and the alarm sounds

It means the ESP function is operating while the vehicle is driving under extremely unstable conditions.

ESP

OFF

 Switch

If the driving wheels are slipping on the snowy or icy road, the engine rpm may not be increased even when depressing
the accelerator pedal, and accordingly, the vehicle may not be started off. In this case, stop the ESP function by
pressing the ESP

OFF

 switch. When the ESP

OFF

 switch is pressed, the ESP function stops and the vehicle is driven

independently from the sensor outputs. However, the ABS function is still activated.

ESP

OFF

 switch

ESP indicator and warning light

ESP operation alarm buzzer

ICM box

ESP

OFF

 switch and connector
