SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 237

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

4

2E

SWITCHES

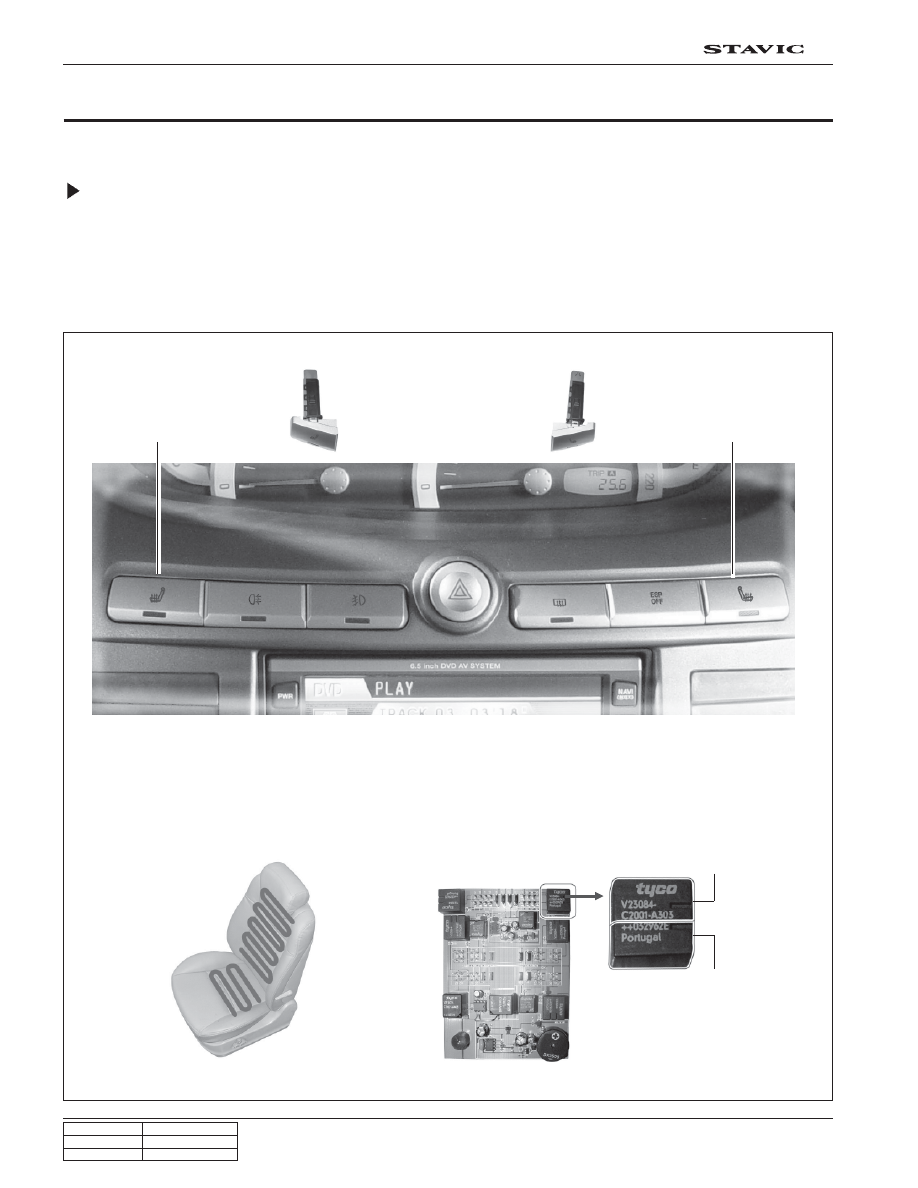

1. CENTER SWITCH

Seat Warmer Switch

The seat warmer relay is installed in ICM box and the seat heated wire is installed in the driver’s and passenger’s seat.

When the seat warmer switch is operated, the seat cushion and seatback gets warm. If the temperature of seat surface
gets 40 ± 5°C, the thermistor cuts or connects the power to heated wire to maintain the temperature to the specified
level.

The is no control switch and unit to control the temperature of the seat surface temperature.

Driver’s seat warmer

switch

Passenger’s seat

warmer switch

Seat heated wire (driver’s and

passenger’s seat)

Seat heated wire (driver’s and passenger’s seat)

– in ICM box

Seat heated wire relay - LH

Seat heated wire relay - RH

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

5

2E

Rated capacity: DC 12V, 1A

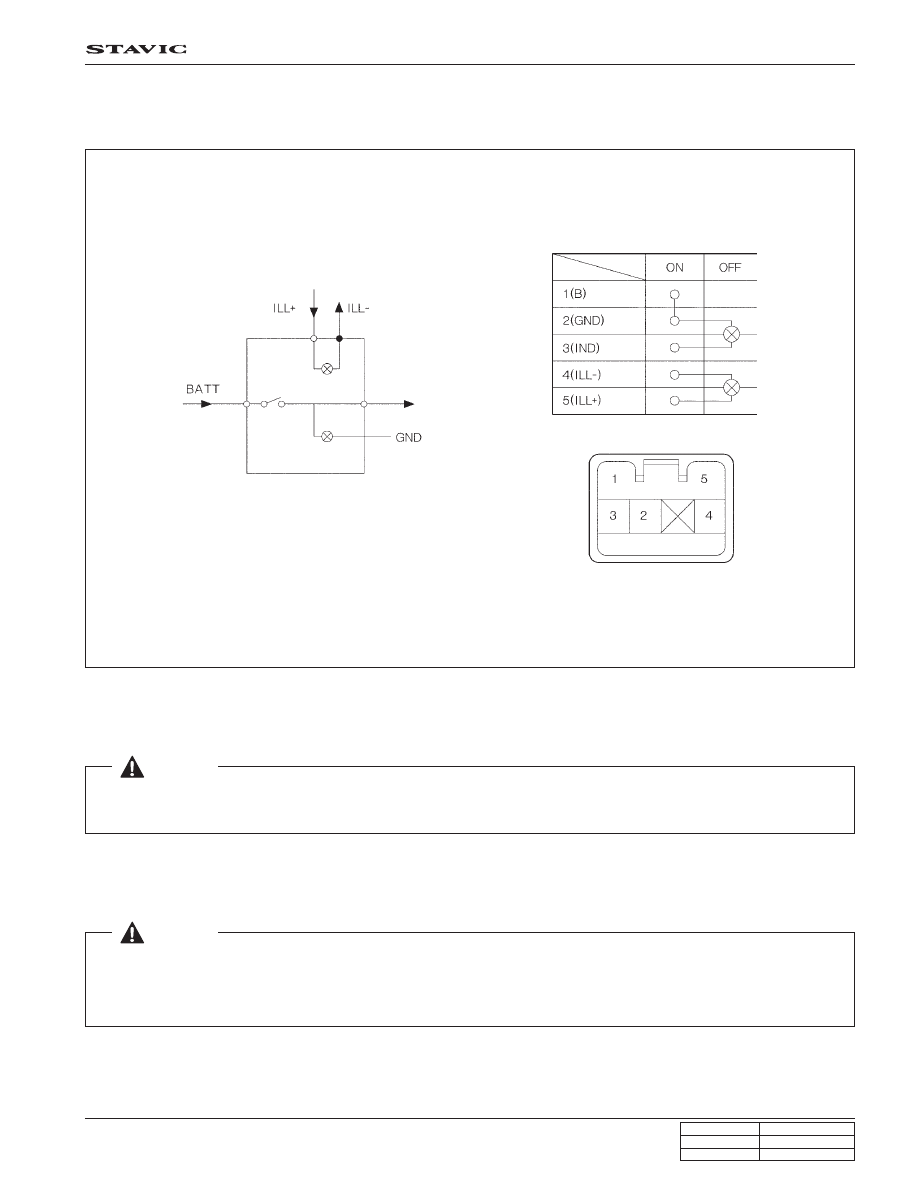

Connector Terminals and Circuit

- Internal circuit diagram of seat warmer switch

Seat warmer relay
(in ICM box)

 [Notice]

- Do not place anything sharp on the seat.

- When cleaning the seats, do not use organic solvents such as benzene or thinner.

- Do not use this function when the engine is not running. The battery could be discharged.

 [Notice]

The temperature of seat surface should be increased over 20

°

C within 3 minutes after turning on the switch while a person

(height: 175 ± 5 cm, weight: 75 ± 5 kg).

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

6

2E

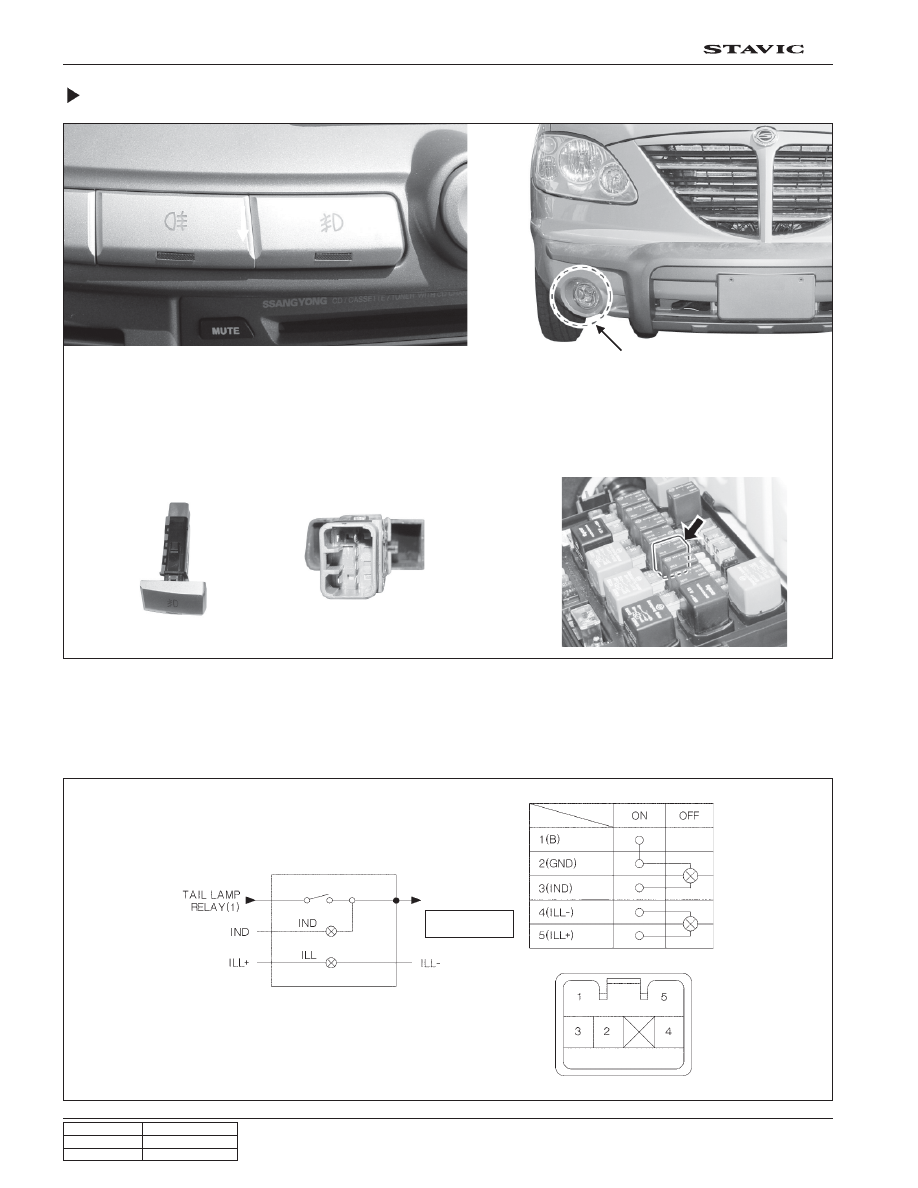

Fog lamp

Fog Lamp Switch

• The fog lamp with indicator comes on when pressing the fog lamp switch while the light switch is “ON”. It goes off

when pressing the switch again.

Connector Terminals and Circuit

Rated capacity: DC 12V, 1A

Fog lamp switch

Fog lamp connector

Fog lamp relay

Fog lamp relay

Engine compartment

fuse and relay box

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

7

2E

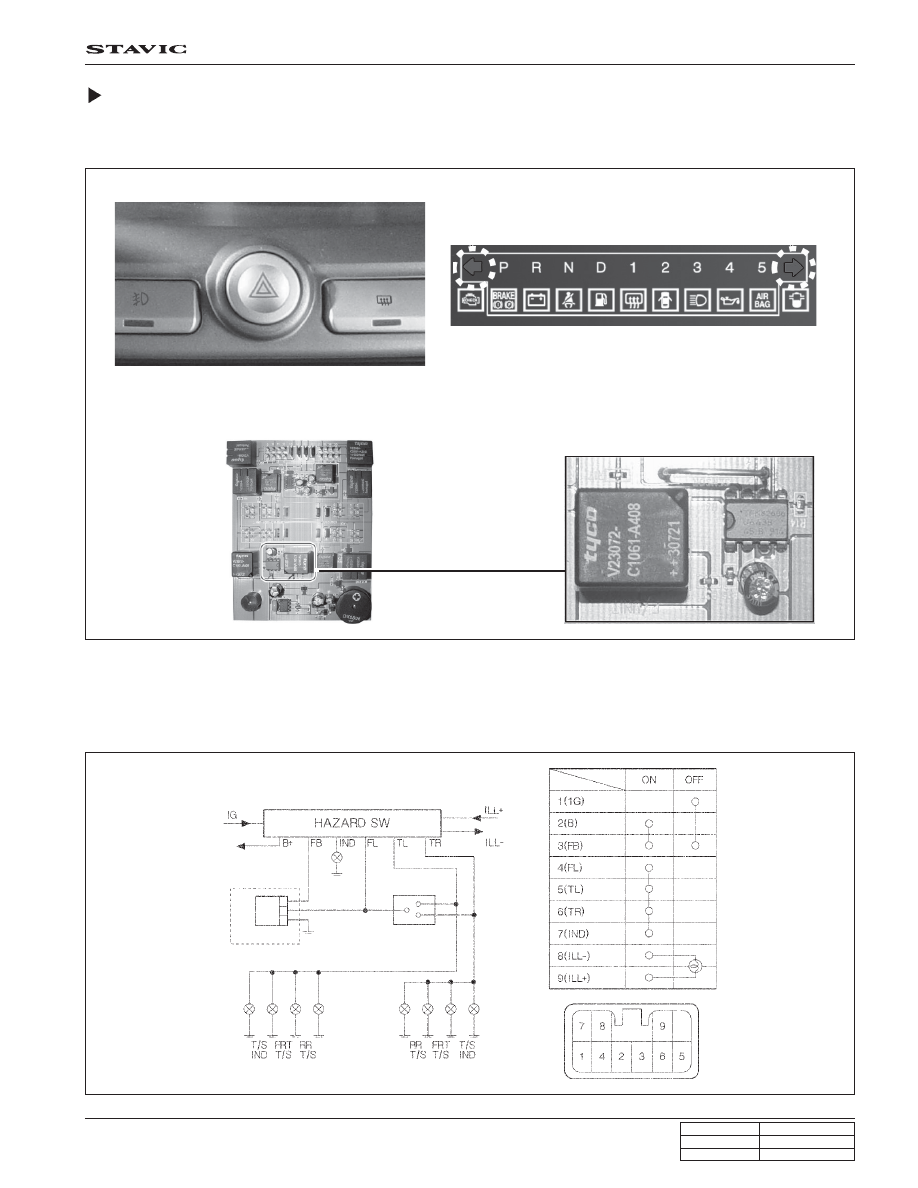

Hazard Warning Flasher Switch

The hazard warning flasher switch is connected to the turn signal lamp circuit. The hazard warning flasher unit is
integrated into the ICM box. If the flasher unit is defective, should replace the ICM box assembly.

• The hazard warning indicators on the indicator display, both turn signal lamps, and both side repeaters blink when

pressing the hazard warning flasher switch.

Connector Terminals and Circuit

Flasher unit (in ICM box)

Indicator lamp

Left side

lamps

Flasher unit

ICM box

Turn signal lamp

switch

Right side

lamps
