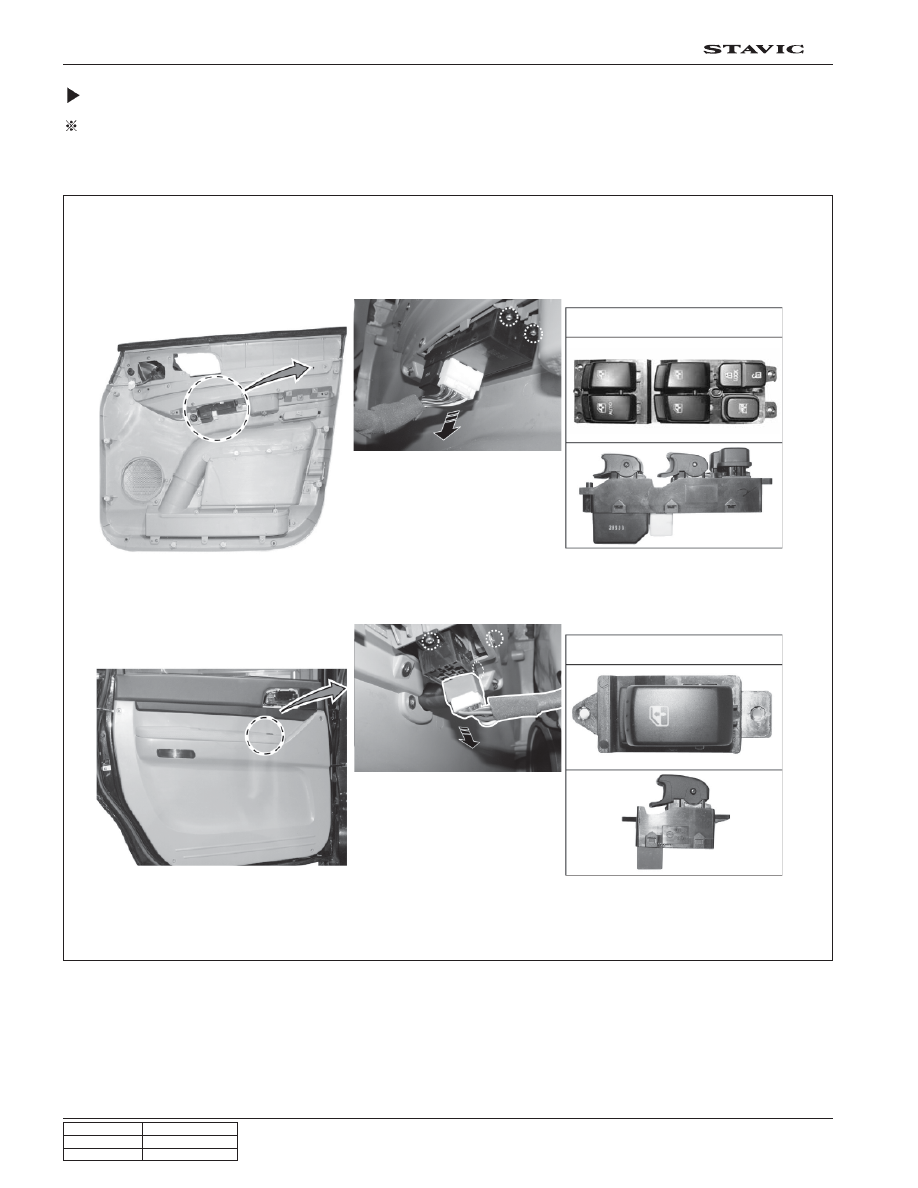

Removal and Installation of Window Switch

Preceding works: Disconnection of negative battery cable, Removal of door trim

Unscrew the screws and remove the window switch from the removed door trim.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

29

2E

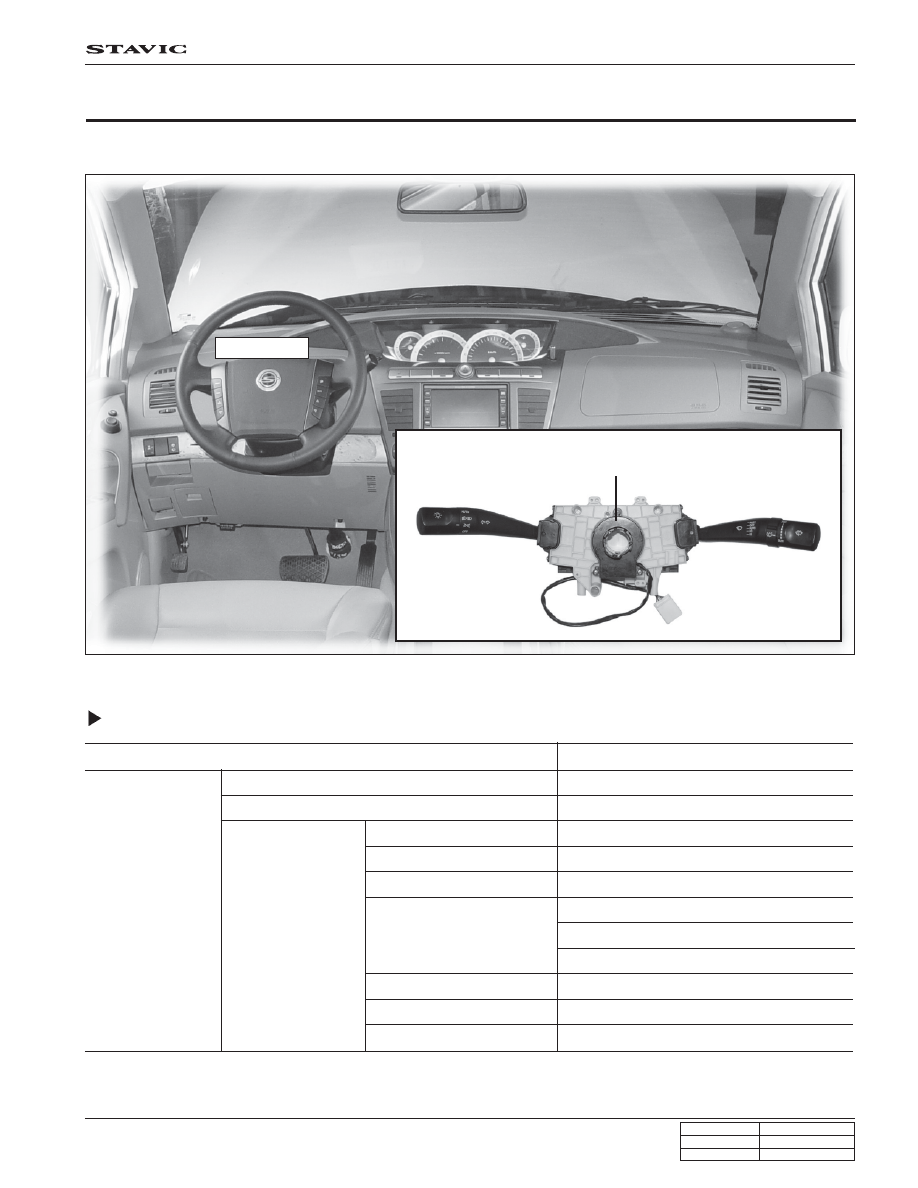

MULTIFUNCTION SWITCH

1. MULTIFUNCTION SWITCH

Specifications

Descriptions

Specifications

Multifunction

switch

Rated voltage

Operating temperature range

Rated load

Light switch

Dimmer and passing switch

Turn signal switch

Wiper switch

Washer switch

Intermittent wiper switch

MIST switch

Steering wheel

DC 12V

-30

°C ~ +80°C

Turn on: 1 A (relay load)

Hi/Low/Passing: 0.3 A (relay load)

6.6 ± 0.5 A (lamp load)

Low: 5 A, Hi: 7 A (motor load)

AUTO: 0.22 ± 0.05 A (relay load)

Fixed: max. 28 A (motor load)

4 A (motor load)

Max. 25 mmA

5 A (motor load)

Light switch

Wiper/washer

s w i t c h

Steering wheel
angular sensor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

30

2E

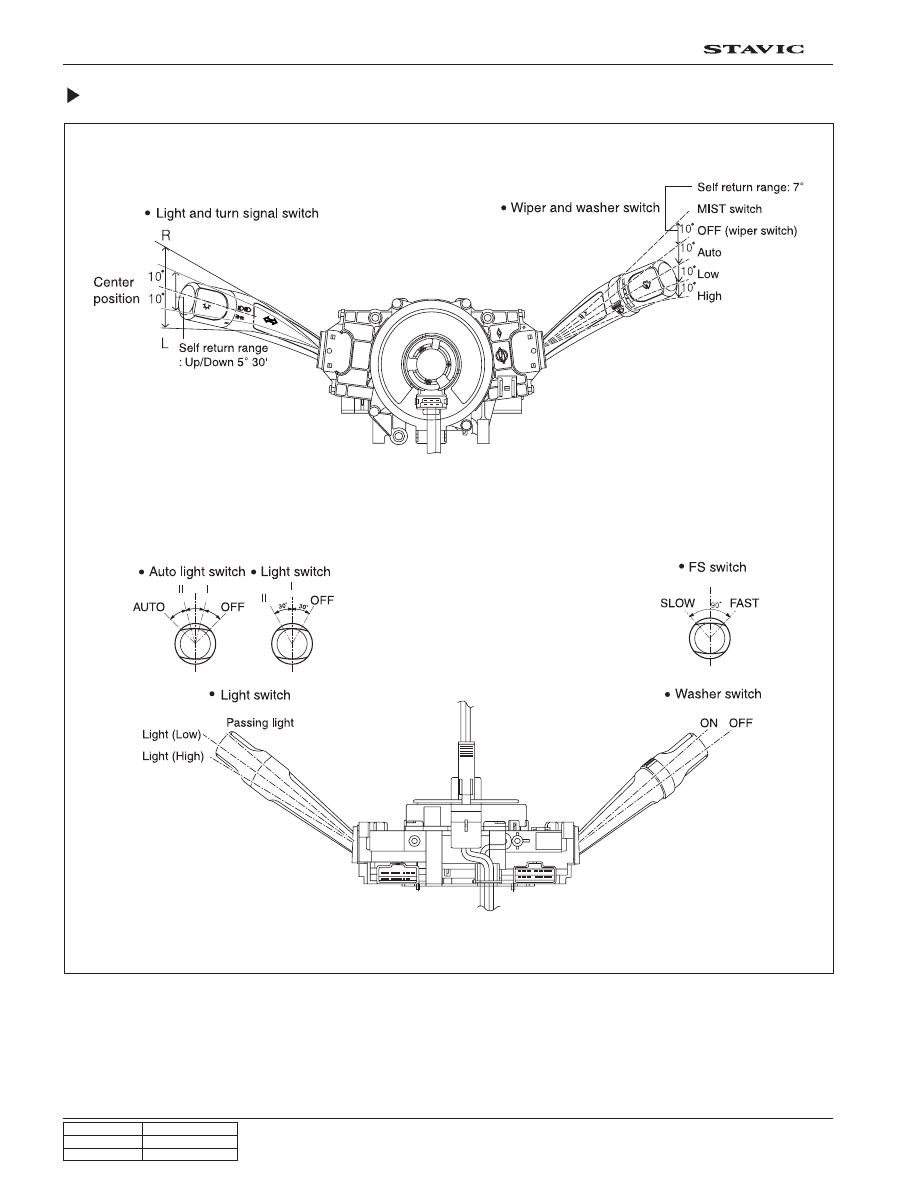

Multifunction Switch Operating Range

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

31

2E

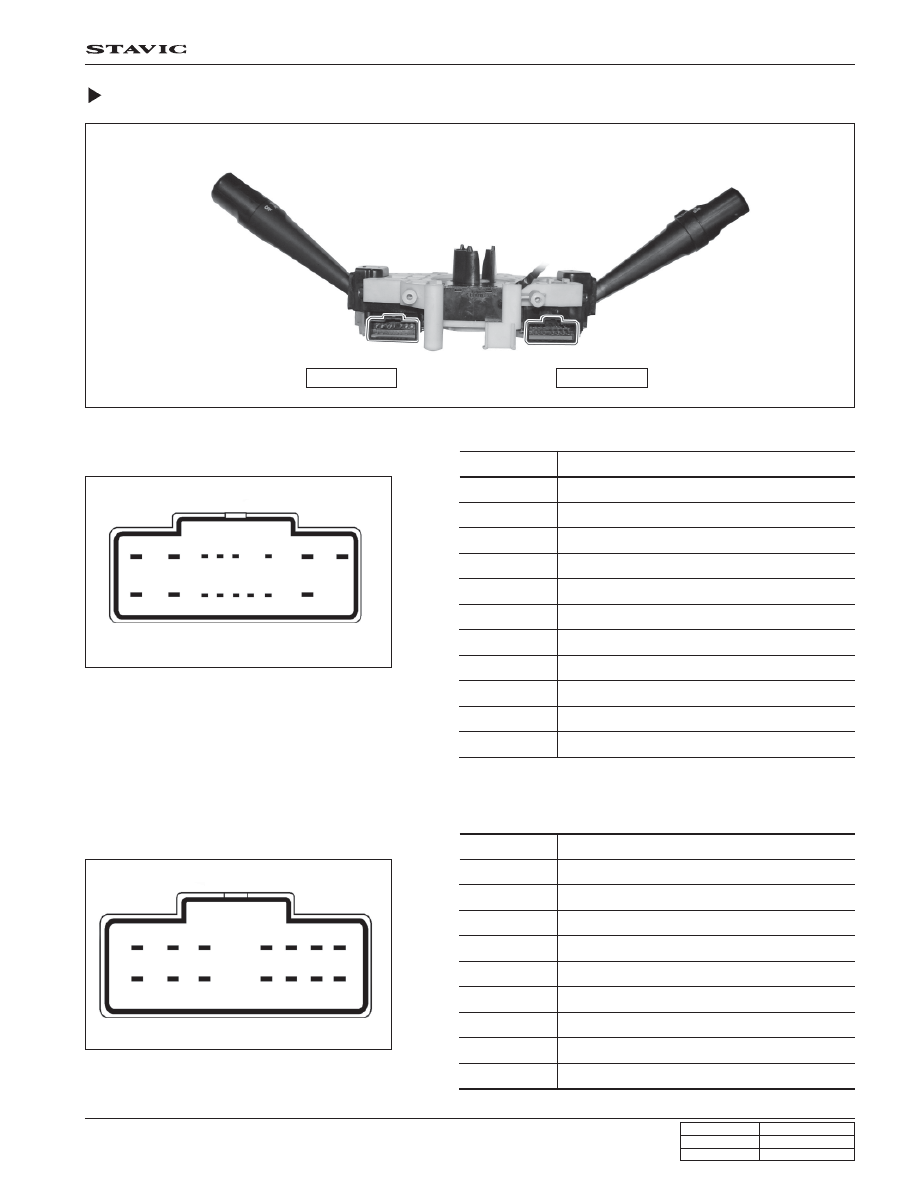

Connector Pins and Designations of Multifunction Switch

1. Connector A

2. Connector A

4

3

11

9

10

2

1

5 6 7

8

15

14 16

22 21 17 20

18 19

Connector A

Connector B

Pin number

1

2

3

4

5

6

7

8

9

10

11

Descriptions

EB: Dimmer and passing ground

HL: Headlamp low beam

HU: Headlamp high beam

HS(2): Passing switch

TS: Tail lamp switch

HS(1): Headlamp switch

F/AUTO: Rear fog lamp

DEL: Light switch ground

TB: Flasher unit power

TL: Turn signal (LH) lamp switch

TR: Turn signal (RH) lamp switch

Pin number

14

15

16

17

18

19

20

21

22

Descriptions

LO: Low wiper speed

HI: High wiper speed

S: Wiper stop

AUTO(W): Intermittent wiper

INT(T): Intermittent WIPER

BWT: Intermittent power

W: Front washer switch

BW: Wiper and washer switch

MS: Low wiper speed (MIST switch)
