37

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

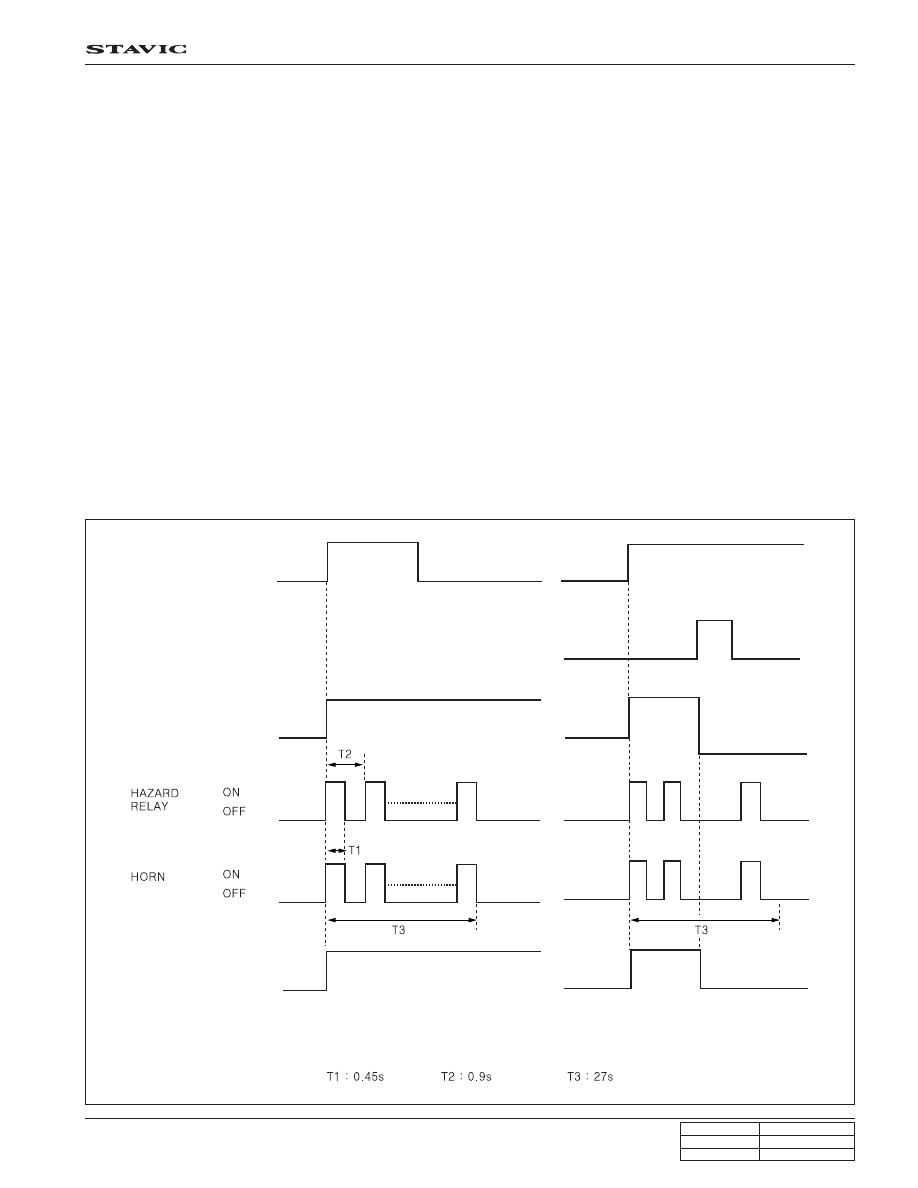

2) Armed mode cancellation requirements

1. Unlocking by remote control key or engine starting.

3) Warning operation requirements

1. When opening the door in armed mode

2. When unlocking the door lock switch in armed mode

3. When closing and then opening the door after completion of warning (27 seconds)

4) Warning operation

1. The theft deterrent horn and hazard warning flasher output is “ON” for T3 (27 seconds) with the interval of T2 (1

second).

5) Warning cancellation requirements

1. Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, START, STOP, PANIC,

CHECK) during warning operation.

2. Cancels warning after 27 seconds (remaining period) while the ignition key is turned to “ON” position.

6) Operation when warning is cancelled

1. The theft deterrent horn and hazard warning flasher outputs are “OFF”.

WARNING

REQUIREMENTS

WARNING

CANCELLATION

THEFT

DETERRENT

STATE

ESTABLISHED

NO ESTABLISHED

WARNING

ARMED

NORMAL

ESTABLISHED

NO ESTABLISHED

38

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

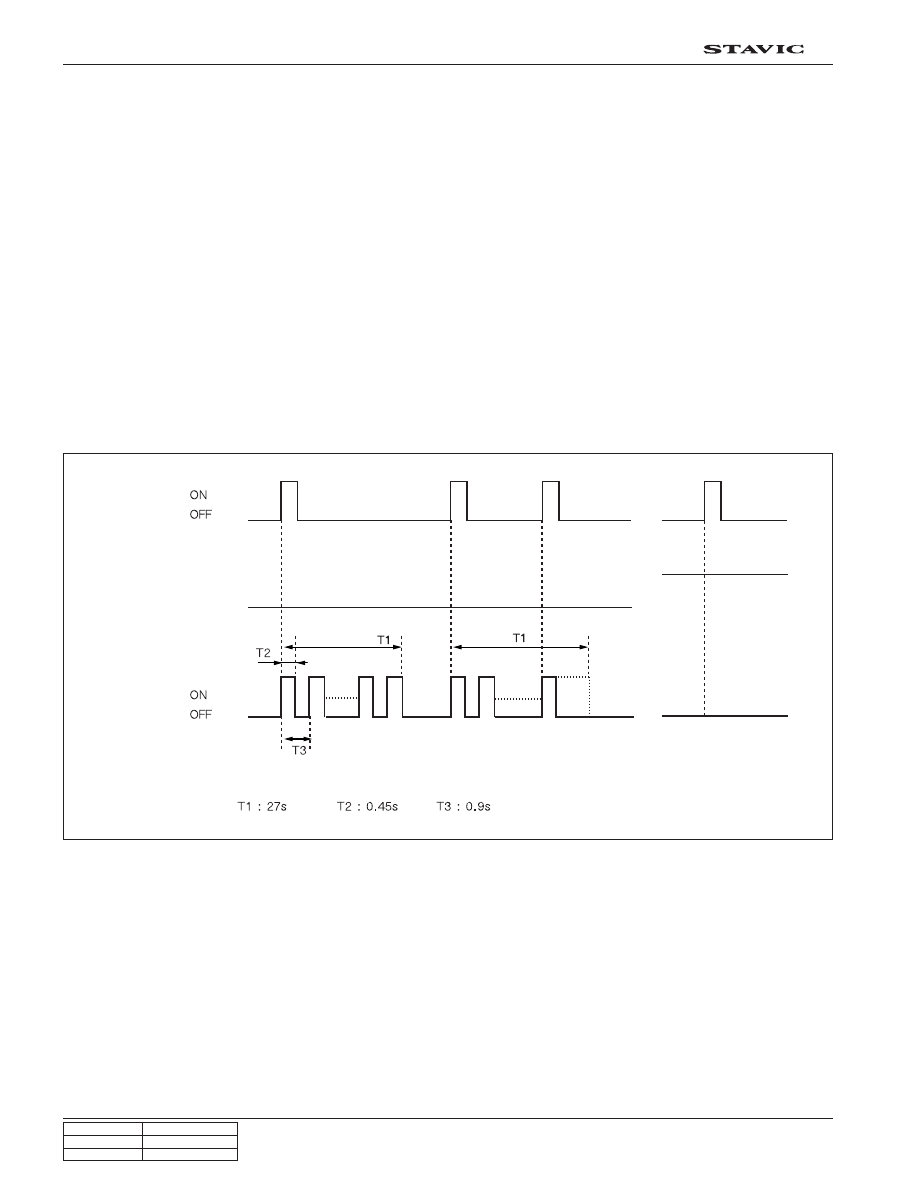

15) PANIC Warning

1. The PANIC warning output is “ON” (theft deterrent horn) when receiving the PANIC signal from the remote control

key (pressing PANIC button for less than 0.5 ~ 1.0 second).

2. The PANIC warning output is “OFF” when receiving any signal from the remote control key during PANIC warning.

3. Followings are theft deterrent warnings:

1) The theft deterrent warning is canceled when receiving PANIC signal from the remote control key during theft

deterrent.

2) The theft deterrent warning output is “ON” when the theft deterrent conditions are established during PANIC

warning (PANIC output is “OFF”).

3) The PANIC warning output is “ON” when receiving the PANIC signal from the remote control key in Armed Ready

/ Armed / Warning Completion / Relock Ready mode (maintaining the theft deterrent mode).

4. This function operates only in armed mode.

5. The system sends the current vehicle conditions (LOCK, engine running) when the PANIC warning is turned off by

the remote control key.

WARNING

OTHERS

REMOTE

CONTROL KEY

PANIC SIGNAL

THEFT

DETERRENT

MODE

HORN

39

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

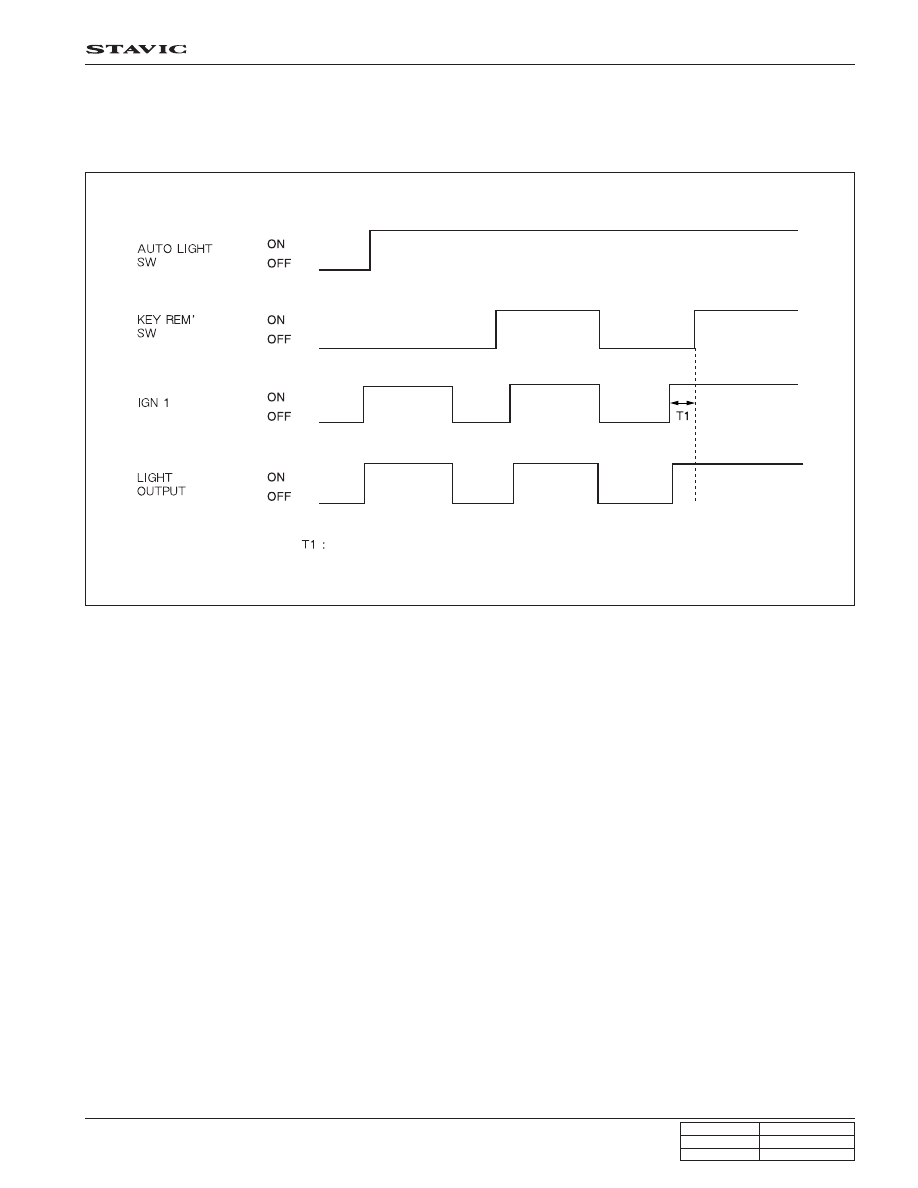

16) Auto Light Function

1. The lights automatically come on and off according to the ambient brightness when the multifunction light switch is

in “AUTO” position while the ignition key is in “ON” position.

40

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

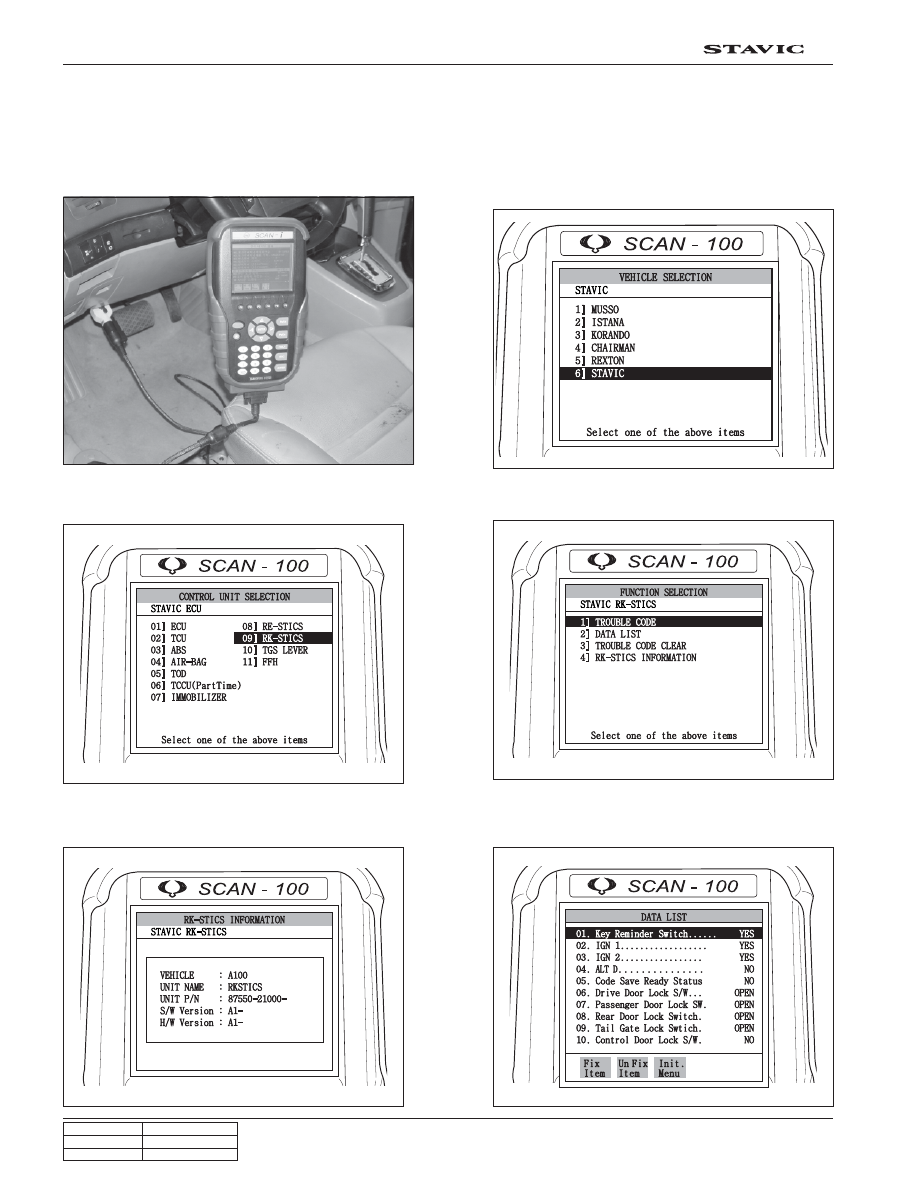

7. DIAGNOSIS TROUBLE CODE AND HELP TIPS

The RK STICS and related devices in this vehicle can be diagnosed by SCAN-100.

Diagnostic Procedures

1. Select the vehicle model.

2. Select RK STICS.

Check the part number and version for
installed units

Sensor data check screen

3. Select the DTC code.
