SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 234





41

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

Descriptions

Defective auto door lock opera-
tion

Defective door lock relay

Defective door unlock relay

Defective driver’s door unlock
relay

Defective wiper relay

Defective INT operation

Abnormal speed signal

Abnormal air bag collision signal

Abnormal door ajar warning light
signal

Abnormal air bag collision
sensor’s input signal

Abnormal air bag collision signal

Abnormal speed signal

Defective parking brake warning
light

Numbers of auto door lock fault

Numbers of door lock relay fault

Numbers of door unlock relay
fault

Numbers of driver’s door unlock
relay fault

Help

This DTC is set when the unit didn’t receive the contact signal of door
lock actuator after the unit has sent the “LOCK” signal to the door lock
relay (while the auto door lock is activated and the vehicle speed is
over 50 km/h).

This DTC is set when the unit didn’t receive the contact signal of door
lock actuator after the unit has sent the “LOCK” signal to the door lock
relay by the remote control key or knob.

This DTC is set when the unit didn’t receive the contact signal of door
unlock actuator after the unit has sent the “LOCK” signal to the door
unlock relay by the remote control key or knob.

This DTC is set when the unit didn’t receive the contact signal of door
unlock actuator after the unit has sent the “LOCK” signal to the door
unlock relay by the remote control key. (When the function that opens
driver’s door only is not operating)

This DTC is set when the wiper stop signal cannot be detected during
the wiper relay operation.

This DTC is set if the “OPEN” signal (4 V) is detected when changing
the INT VOLUME value (0 V: FAST, 4 V: SLOW) in vehicle speed
sensitive INT wiper equipped vehicle.

This DTC is set when more than 3 km/h of vehicle speed is detected
from the vehicle speed signal input area while the ignition key is in
“ON” position and ALT D is “LOW”.

The air bag unit receives the collision signal.

This DTC is set when the door lock actuator is locked in unlock condi-
tions after the collision signal is entered into collision sensor input end
in air bag unit.

This DTC is set when the door ajar warning light comes on while the
vehicle speed is over 3 km/h.

This DTC is set whenever the collision signal is entered into the colli-
sion sensor while the ignition key is in “OFF” position

This DTC is set when the STICS sends the door unlock signal and its
feedback value is normal.

This DTC is set when more than 200 km/h of vehicle speed is detected.

This DTC is set when the brake warning light comes on while the
vehicle speed is over 3 km/h.

Maximum numbers: 20 times

The number increases by 1 up to 20 when the fault is detected during
every IGN ON. It is reset to 0 when the DTC code is erased.

Maximum numbers: 20 times

The number increases by 1 up to 20 when the fault is detected during
every IGN ON. It is reset to 0 when the DTC code is erased.

Maximum numbers: 20 times

The number increases by 1 up to 20 when the fault is detected during
every IGN ON. It is reset to 0 when the DTC code is erased.

Maximum numbers: 20 times

The number increases by 1 up to 20 when the fault is detected during
every IGN ON. It is reset to 0 when the DTC code is erased.

Code

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

42

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

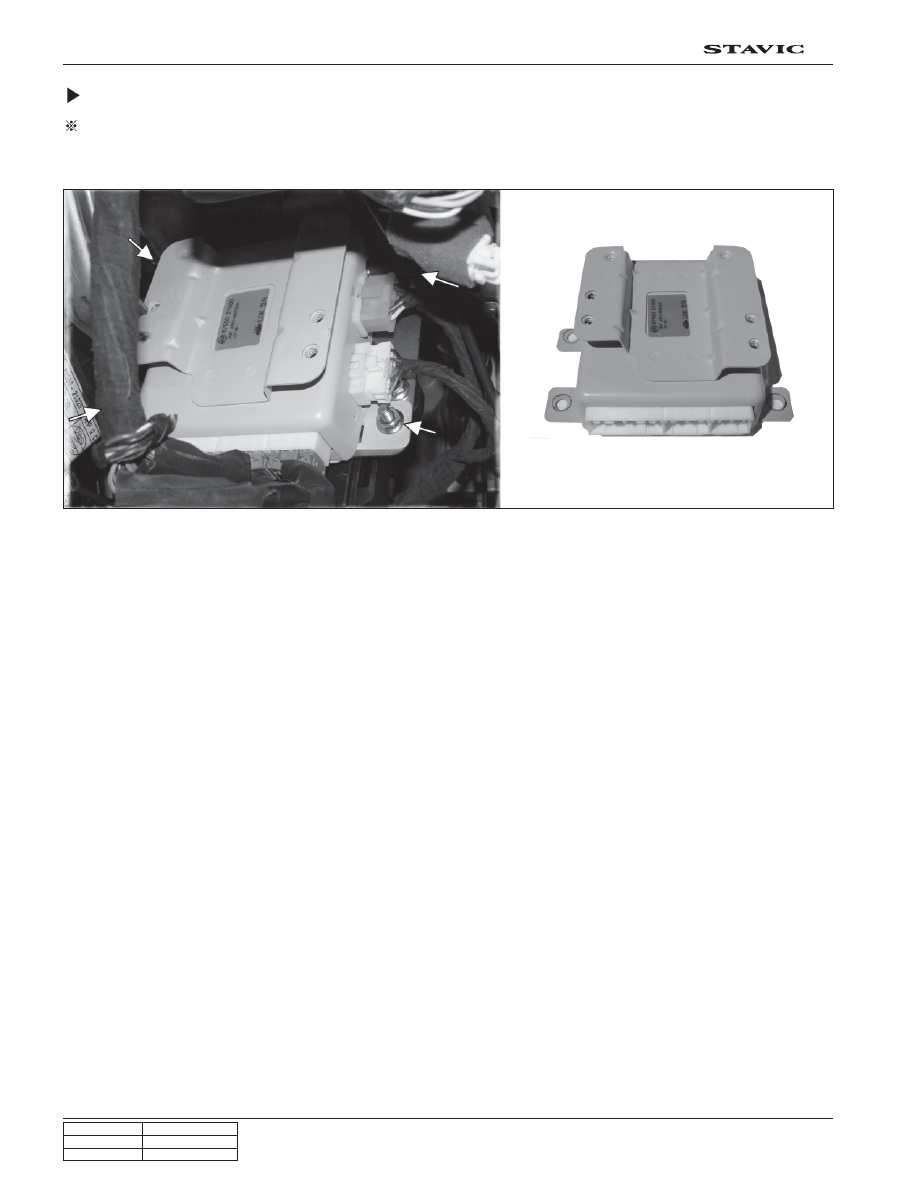

Removal and Installation of STICS

Preceding Work: Removal of driver side instrument panel undercover

1. Unscrew four bolts and remove the STICS unit.

2. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RAIN SENSING WIPER

STAVIC - 2004.09

3

2D

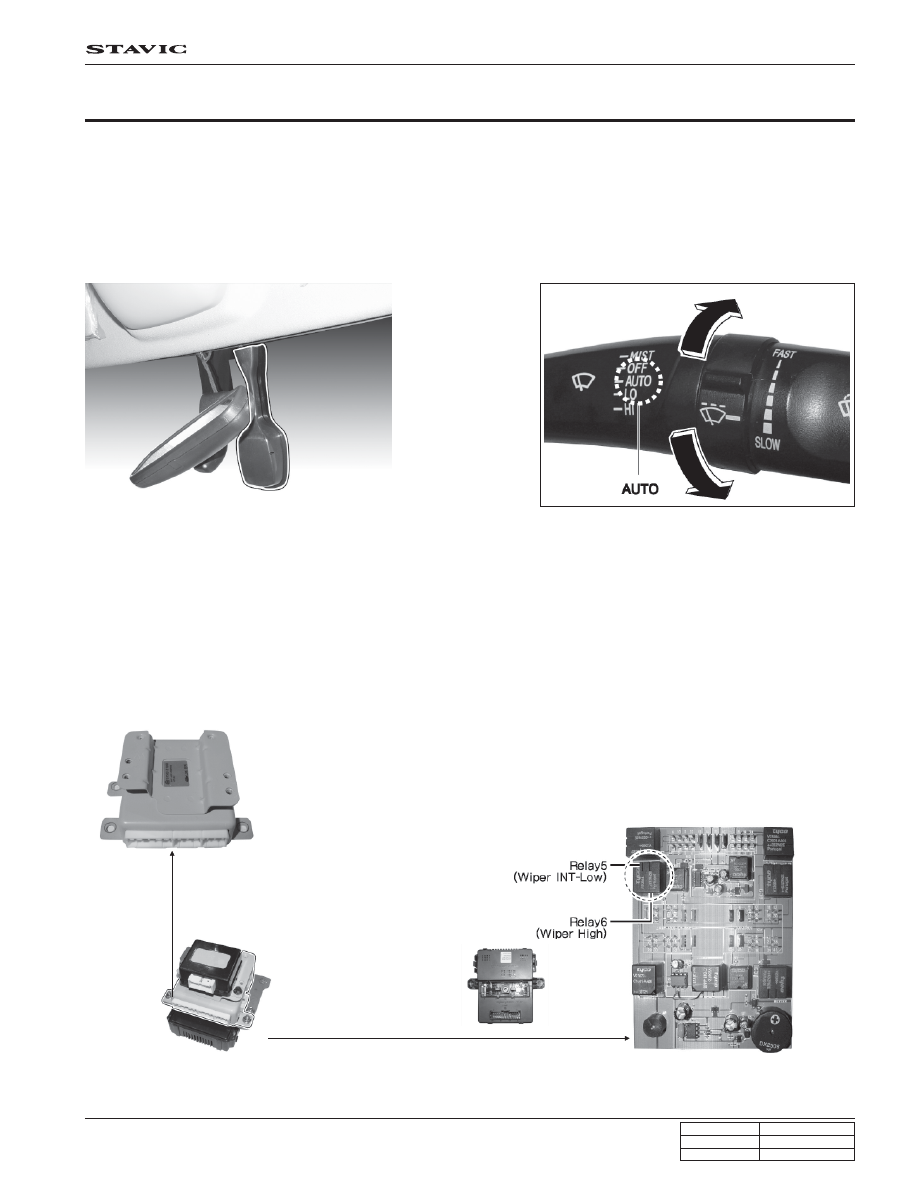

RAIN SENSING WIPER

The rain sensing wiper unit in this vehicle doesn’t control the wiper directly. The rain sensing unit detects the amount of
rain drops and sends the operating signal to STICS, and STICS drives the wiper directly.

1. COMPONENTS

Rain sensing unit

Multifunction wiper switch:

AUTO and sensitivity control

ICM box

The wiper related relays are
installed in ICM box.

STICS

A sensor that emits infrared rays through LED
and then detects the amount of rain drops by
receiving reflected rays against sensing section
(rain sensor mounting section on the windshield)
with photodiode.

The rain sensing unit detects the amount of
rain drops and sends the operating signal to
STICS, and STICS drives the wiper directly.

At this moment, STICS determines the wiper
operation mode (washer, MIST, AUTO), then
sends the information to the rain sensor.

AUTO

: Wiper operates automatically by rain sensor

FAST <-------> SLOW

: Auto delay/Auto speed control. A position that

can control sensitivity against rains on the
windshield and transmits wiping demand
signal accordingly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RAIN SENSING WIPER

STAVIC - 2004.09

4

2D

2. RAIN SENSOR OPERATION

The rain sensor is installed on the specific heat treated windshield that has minimum 13% of transmittance rate with
specified intensity of radiation. It is installed on the glass with a adhesive of Sorepa. It communicates with STICS and
makes the wipers to operate automatically under the rain sensing mode (multifunction switch wiper: AUTO mode). The
emitting section of the rain sensor unit emits infrared rays against the windshield and then detects the amount of rain
drops by receiving reflected rays with photodiode.

The sensing section on the windshield is located just above the center point between LED and photodiode.

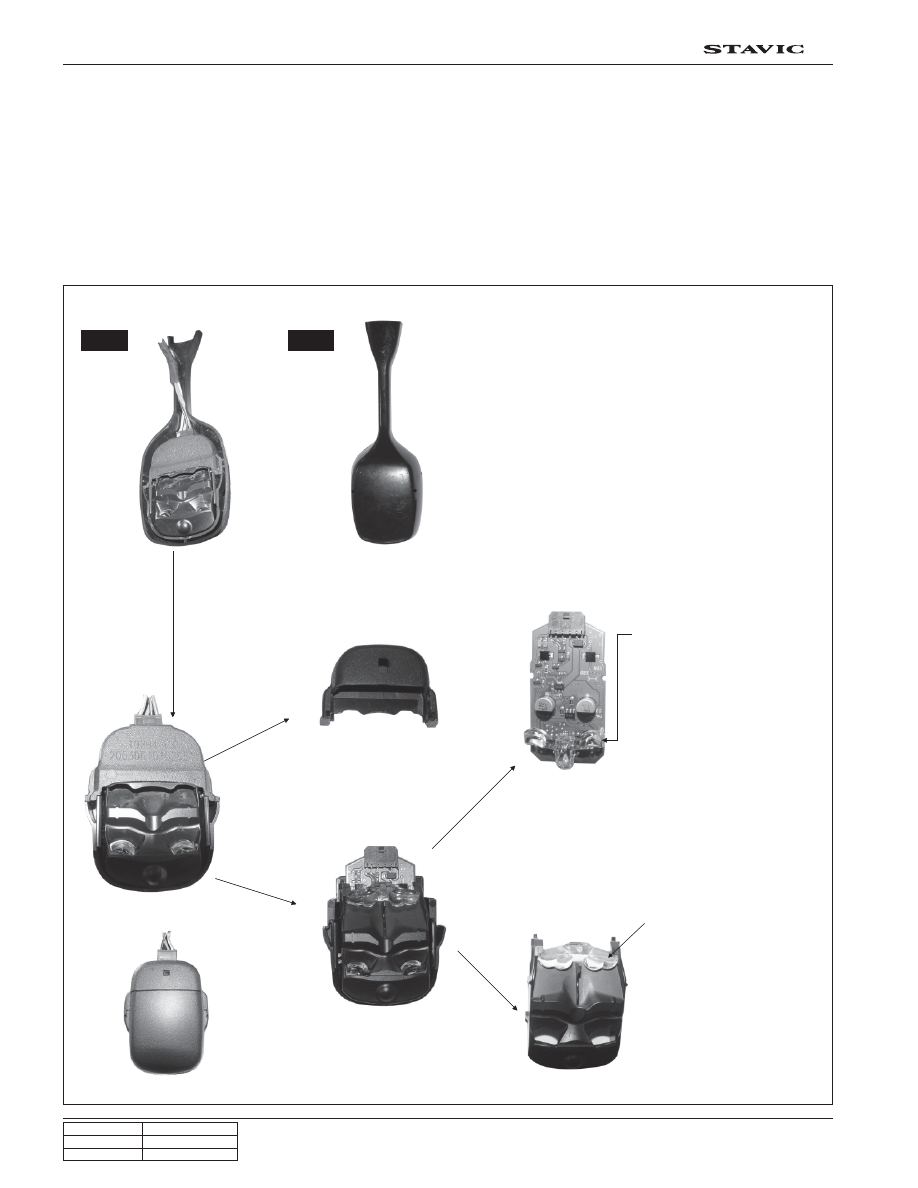

Components and functions of the rain sensor unit

Rain sensor unit (including cover)

Front

Rear

Emitter lens

The LED emits the infrared

rays is located at bottom and

the lens guides the infrared

rays to target point.

Rain sensor
unit

PCB assembly and
emitter lens

Housing and
receiver lens

Unit latch

Housing and PCB

Receiver lens

The receiver lens guides the

reflected infrared rays from

windshield to photodiode.
