SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 10

1B-19

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

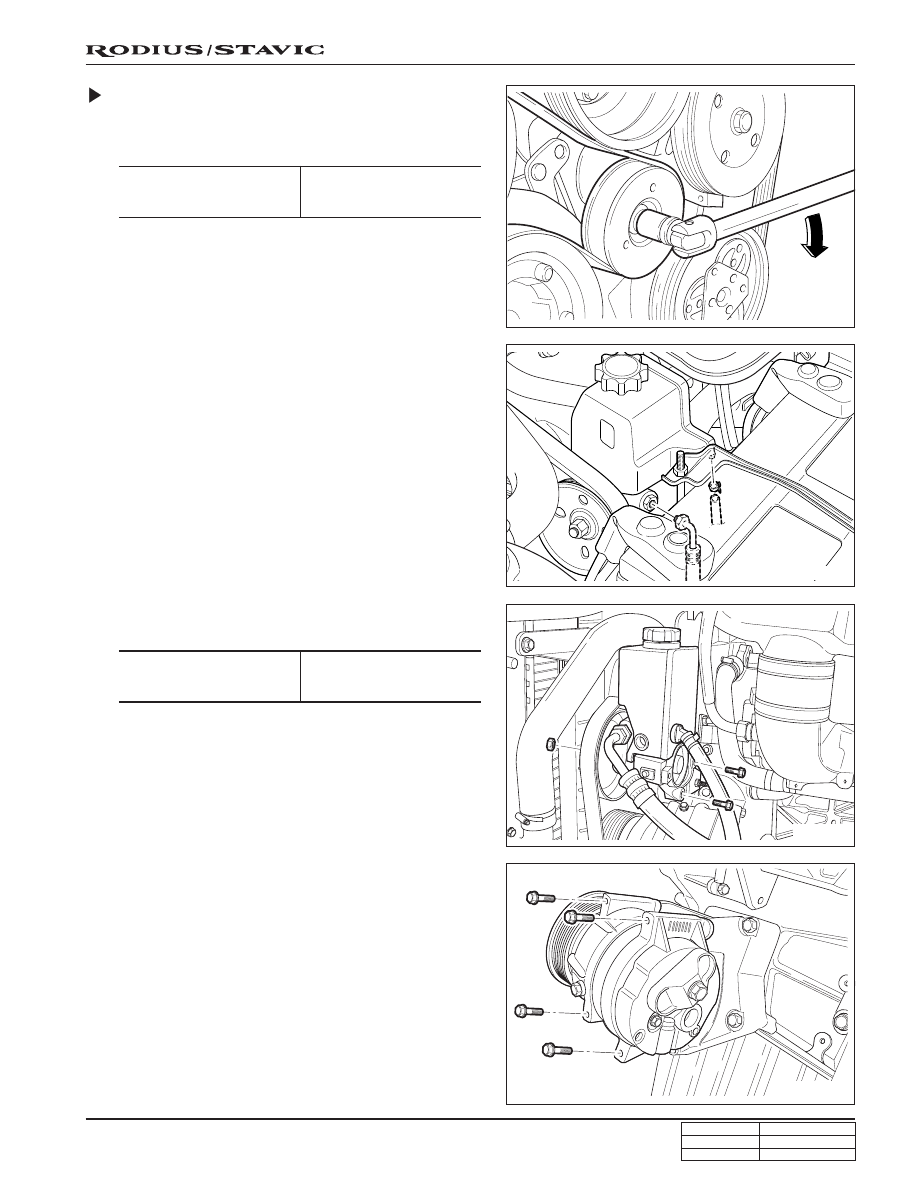

Removal & Installation Procedure

1. Remove the belt tensioning pulley.

Installation Notice

3. Unscrew the bolts and remove the steering pump.

Installation Notice

2. Disconnect the hydraulic pipe of the power steering pump

and drain the oil.

4. Remove the compressor after disconnecting the wiring

connector and refrigerant pipe of A/C compressor.

Notice

Discharge all the refrigerant before removing the
pipes.

Pull the tensioning pulley clockwise as shown in the
figure.

Tightening torque

40.5 ~ 49.5 Nm

(29.9 ~ 36.5 lb-ft)

Tightening torque

22.5 ~ 27.5 Nm

(16.6 ~ 20.3 lb-ft)

1B-20

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

;;;;;;;;;

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

yyyyyyyyy

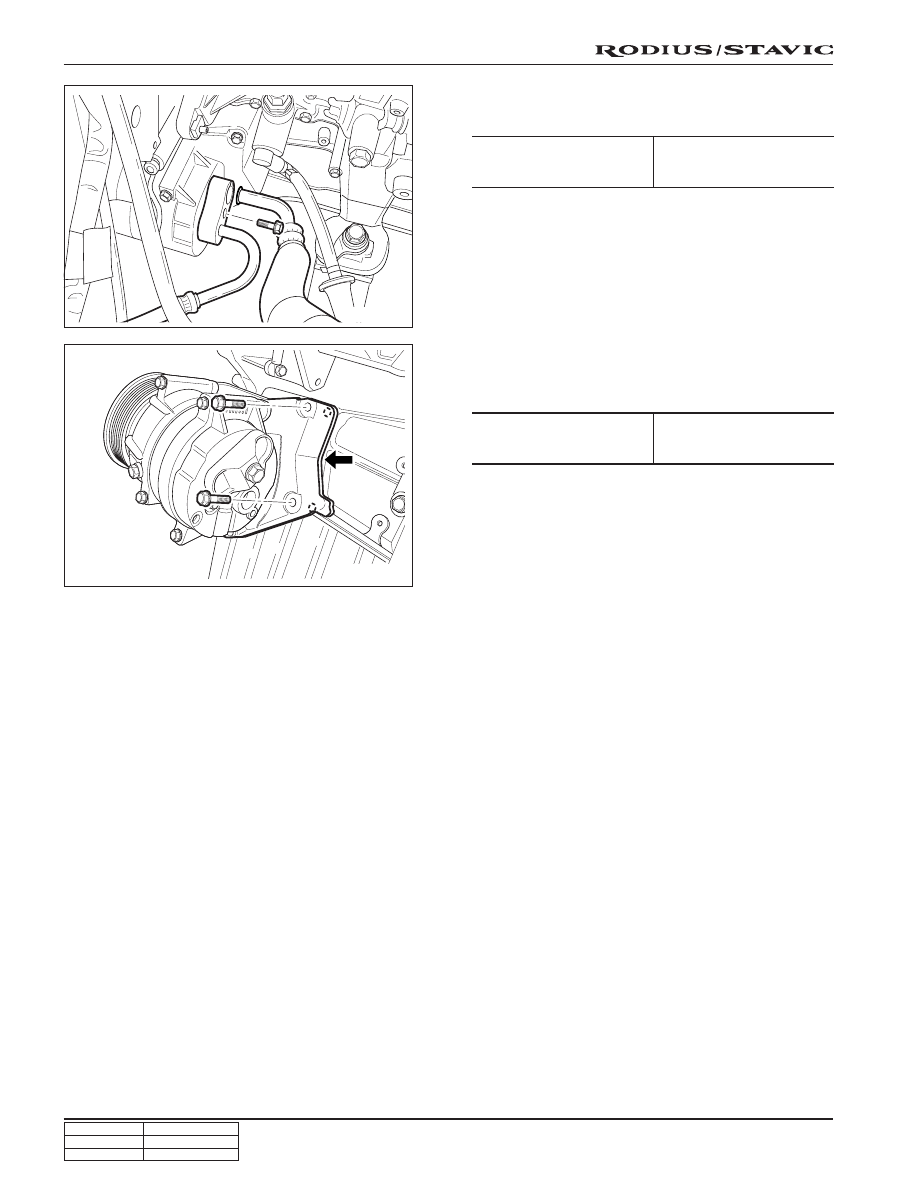

6. Unscrew all the mounting bolts and remove the

A/C bracket and the gasket.

Installation Notice

5. Disconnect the vent hose from the A/C bracket.

Installation Notice

7. Clean the sealing surface.

8. Replace the gasket with new one.

9. Installation should follow the removal procedure in the

reverse order.

10. Check the oil leakage by operating the engine after

installation.

Tightening torque

20 ~ 30 Nm

(15 ~ 22 lb-ft)

Tightening torque

22.5 ~ 27.5 Nm

(16.6 ~ 20.3 lb-ft)

1B-21

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

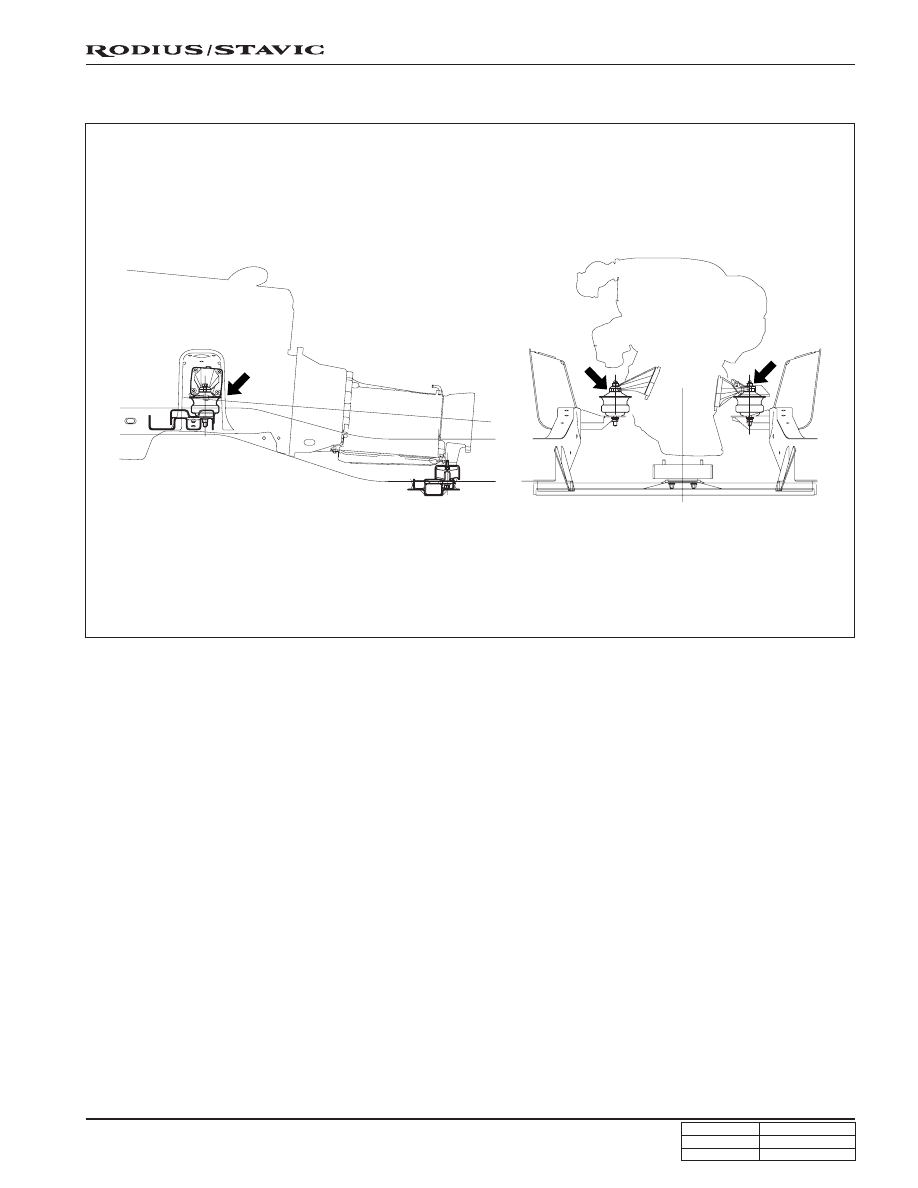

ENGINE MOUNT

1B-22

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

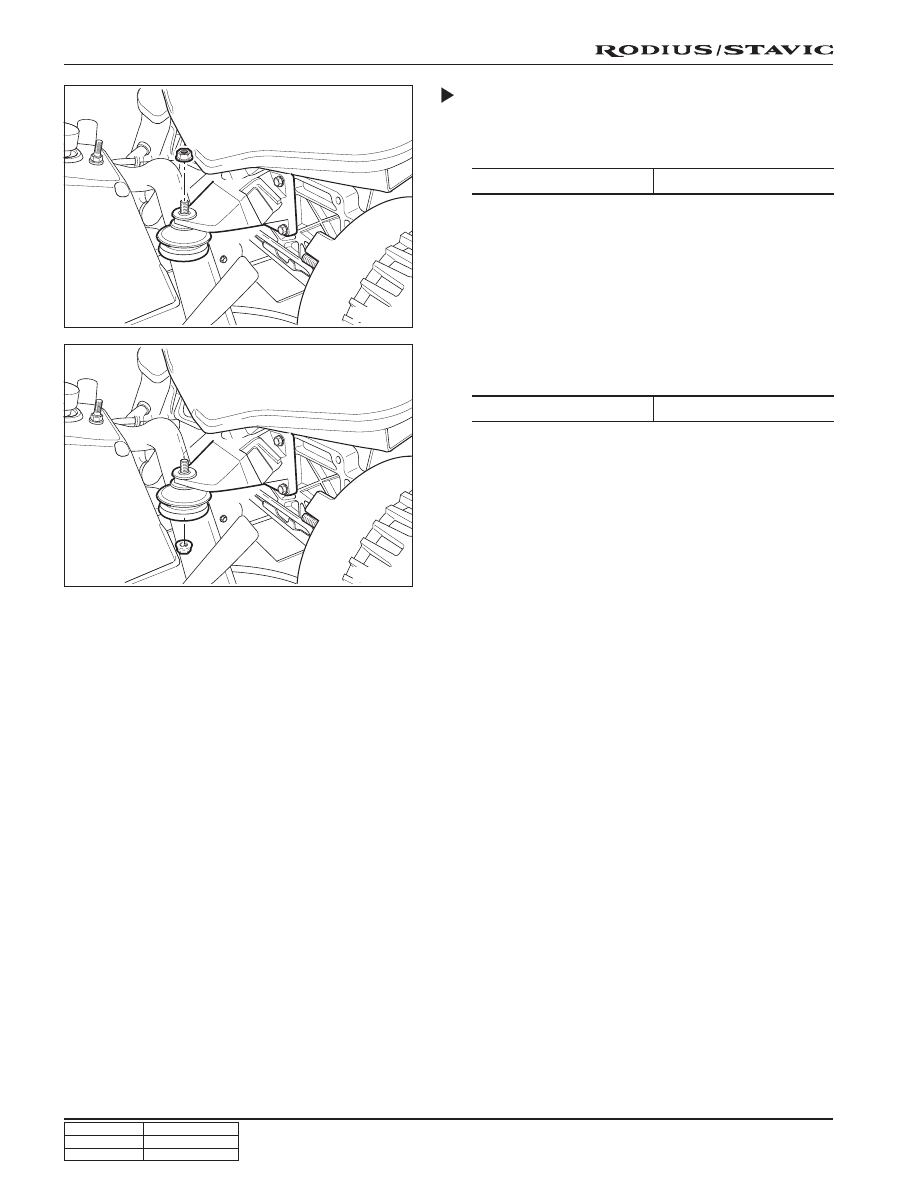

Removal and Installation Procedure

1. Unscrew the upper engine mounting nut.

Installation Notice

2. Unscrew the lower engine mounting nut.

Installation Notice

3. Remove the hydraulic engine mounting insulator.

Notice

If the insulator is spotted with oil, replace the
hydraulic insulator asseambly.

4. Installation should follow the removal procedure in the

reverse order.

Tightening torque

70 Nm (52 lb-ft)

Tightening torque

38 Nm (28 lb-ft)
