SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 8

1B-11

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

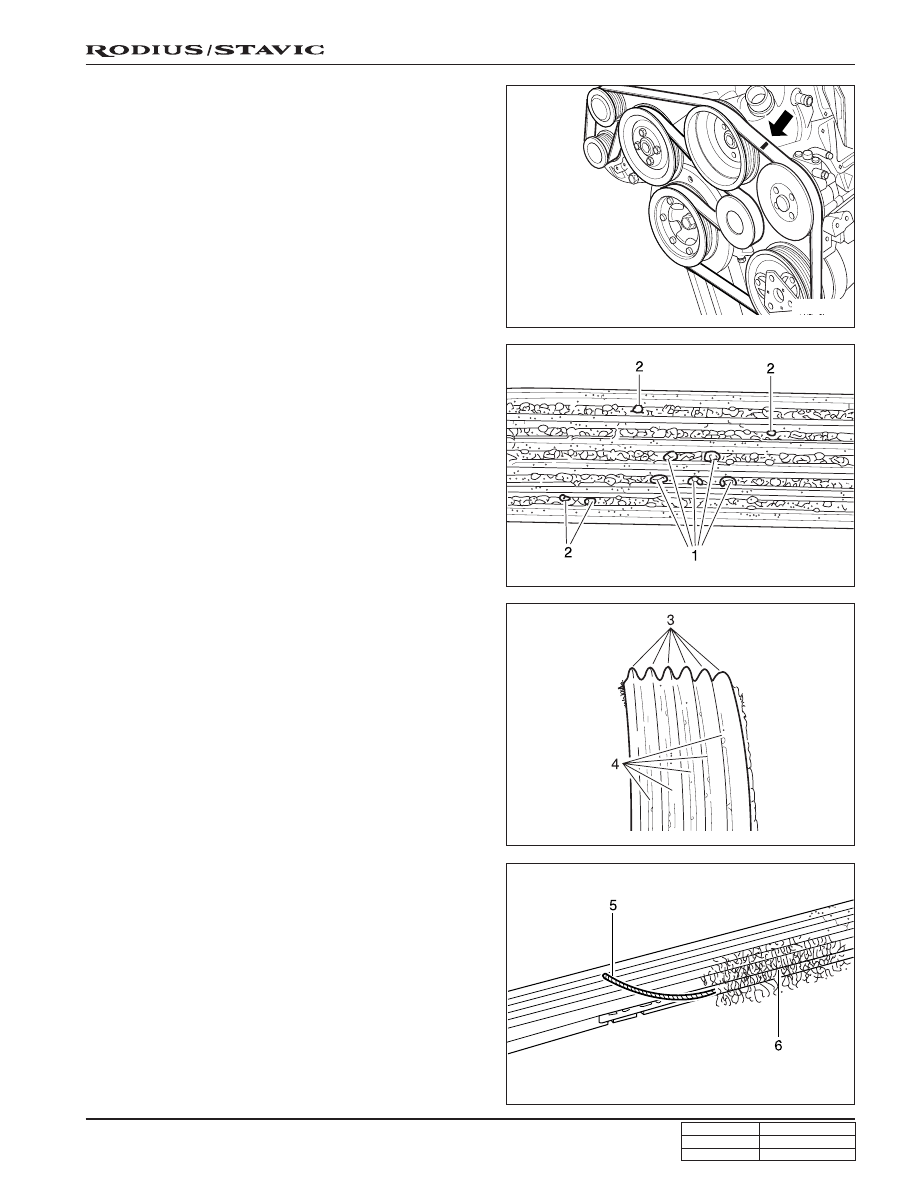

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

3. Pointed rib.

4. Belt cord visible in the base of rib.

POLY V-BELT INSPECTION

• Make marks on the belt with chalk.

• Rotate the engine and check the belt for damage.

Notice

If one of the following types of damages is found,
replace the belt.

1B-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

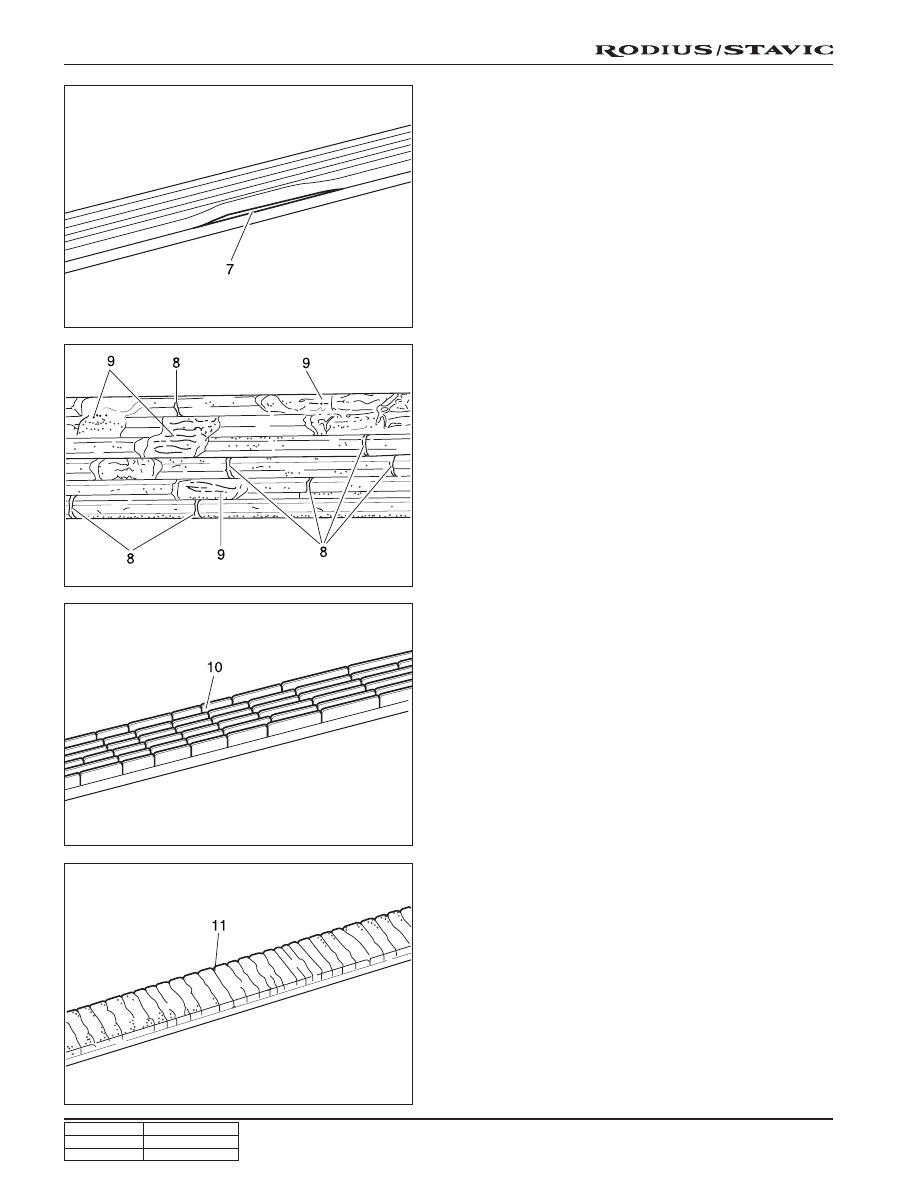

8. Splits across the rib.

9. Sections of rib torn out.

11. Splits across the back of the belt.

10. Splits across several ribs.

7. Rib detached from the base of belt.

1B-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

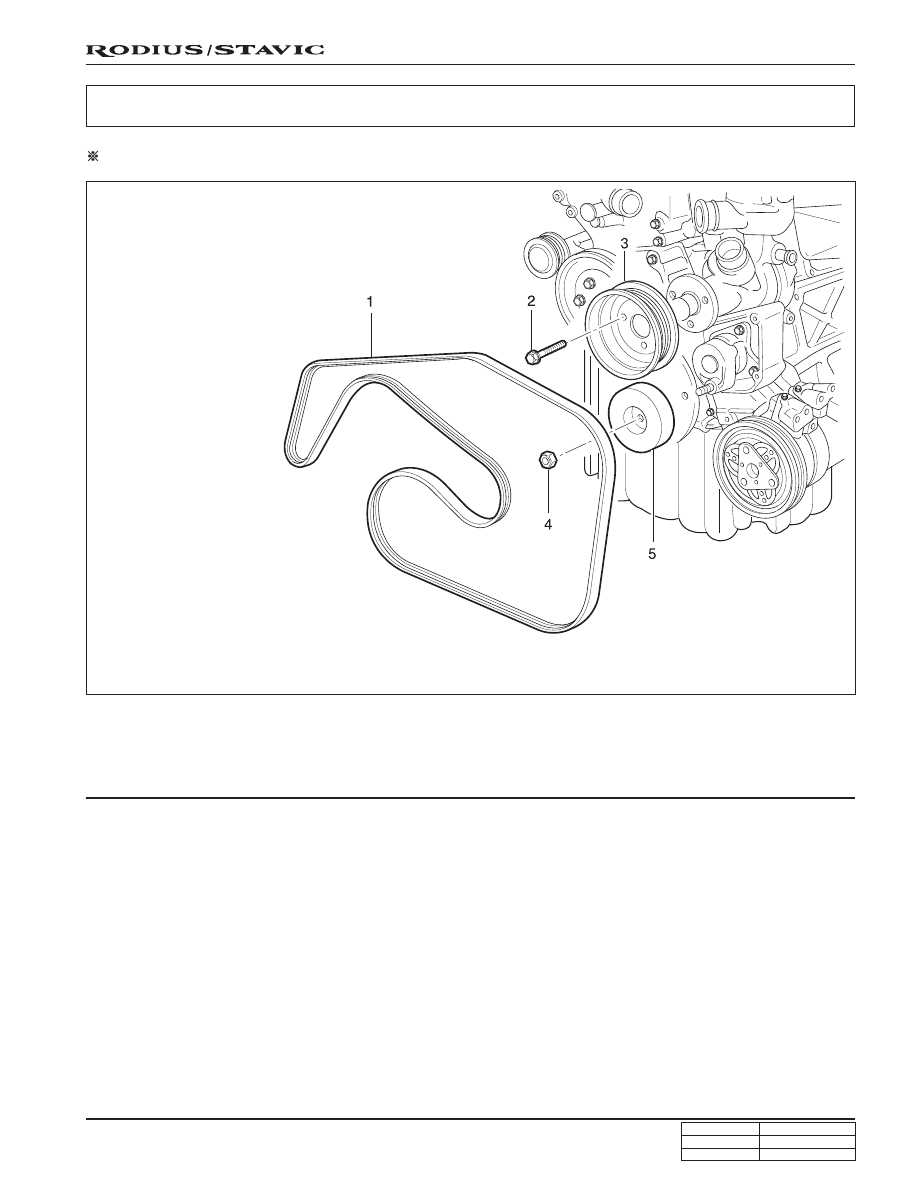

Preceding Work: Removal of poly v-belt

1. Belt (L = 2245)

2. Bolt combi (M8 x 14, 3 pieces) + Washer

............................ 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

3. Water pump pulley

4. Nut

5. Belt tensioning pulley

TENSIONING DEVICE

1B-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

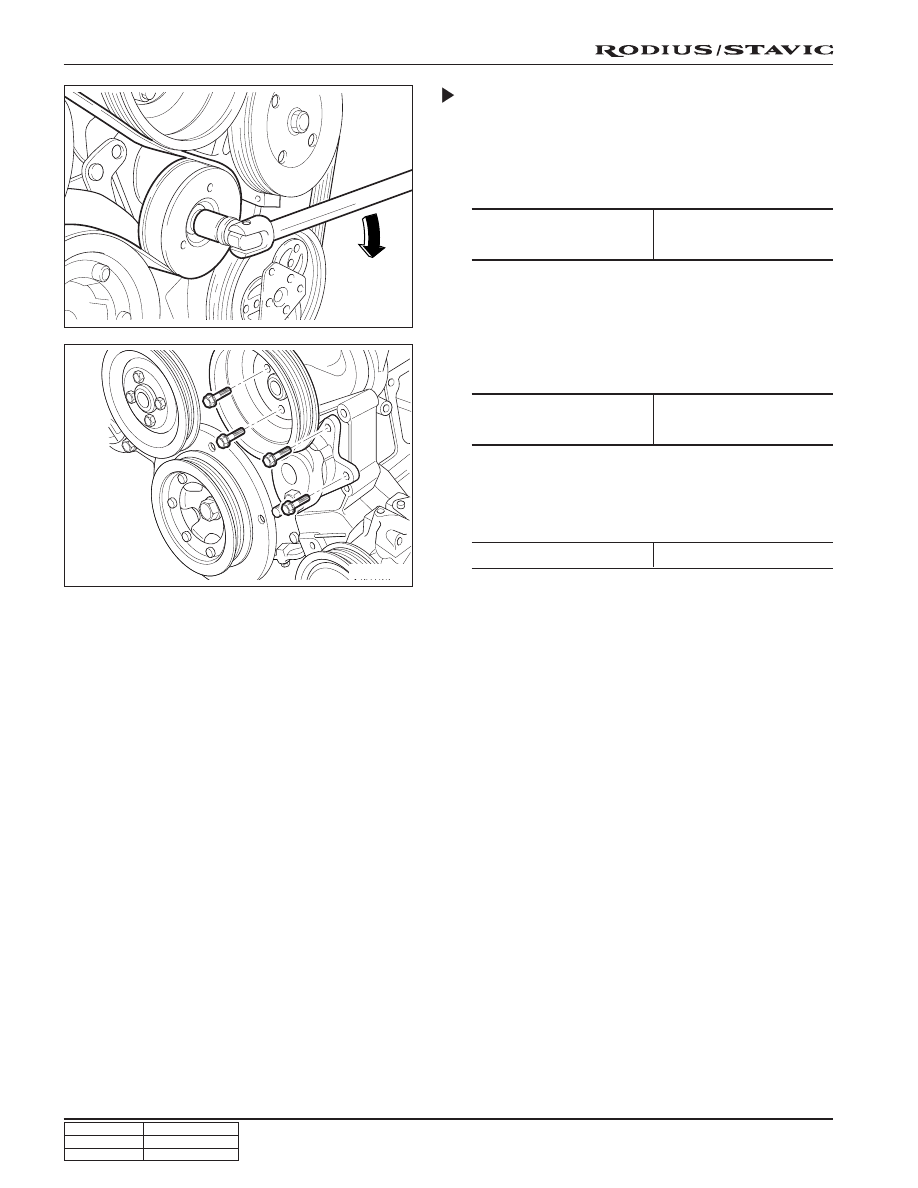

Removal & Installation Procedure

1. Remove the poly v-belt.

2. Remove the tensioning pulley by turning its mounting

nut counter clockwise as shown in figure.

Installation Notice

3. Remove the bolts and remove the water pump pulley.

Installation Notice

4. Remove the mounting bolts (M8 x 30, 3 pieces) at the

tensioning device, and remove the tensioning device.

Installation Notice

5. Installation should follow the removal procedure in the

reverse order.

Tightening torque

40.5 ~ 49.5 Nm

(29.9 ~ 36.5 lb-ft)

Tightening torque

22.5 ~ 27.5 Nm

(16.6 ~ 20.3 lb-ft)

Tightening torque

26 ~ 32 Nm (19 - 24 lb-ft)
