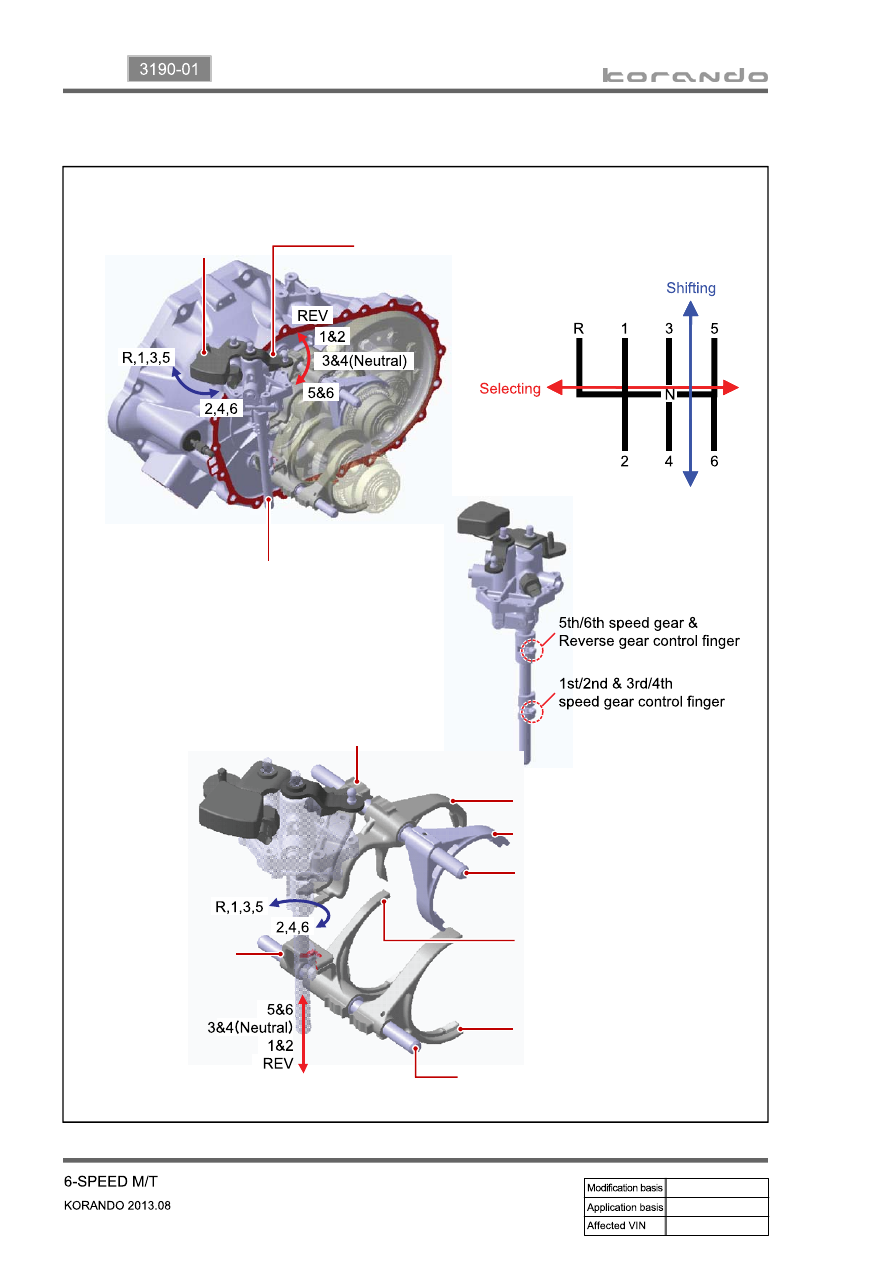

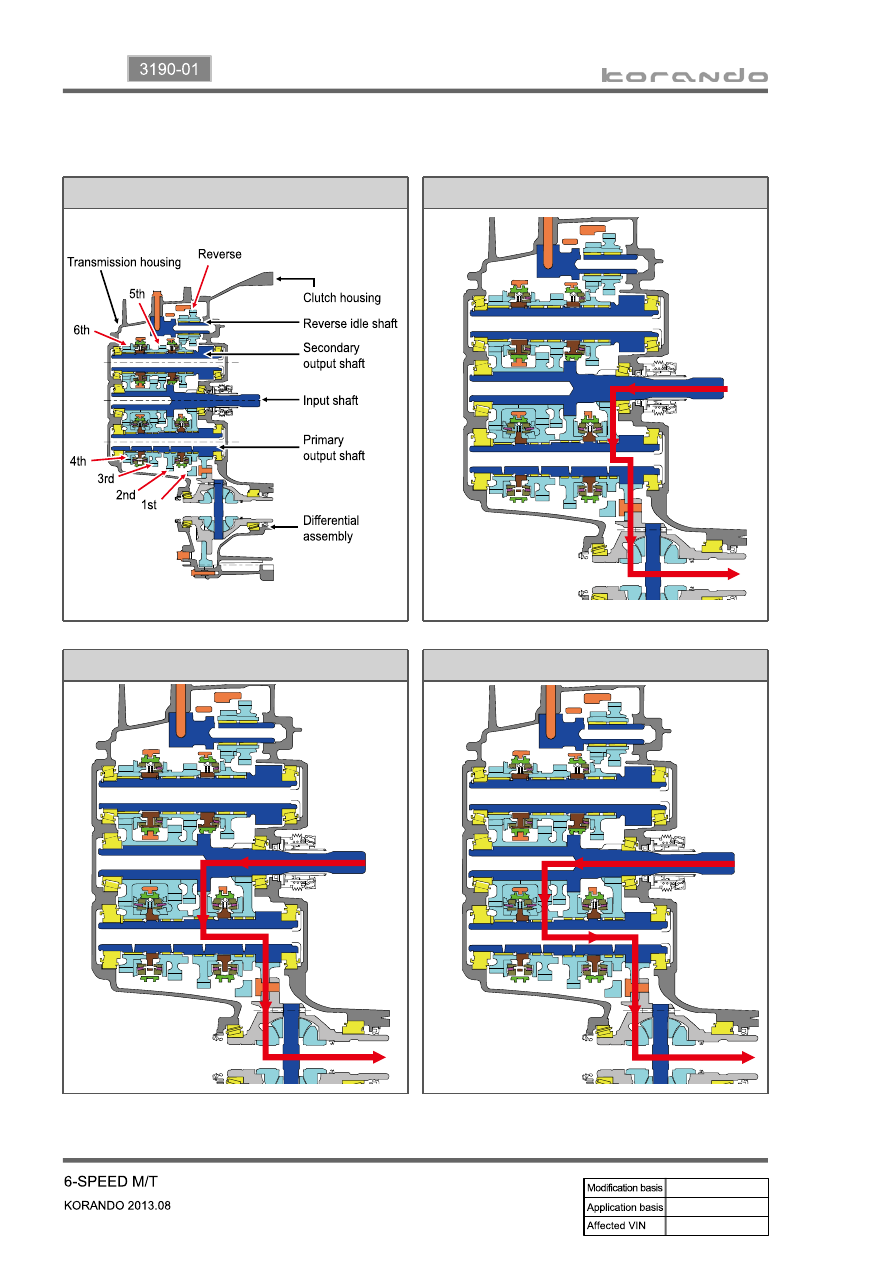

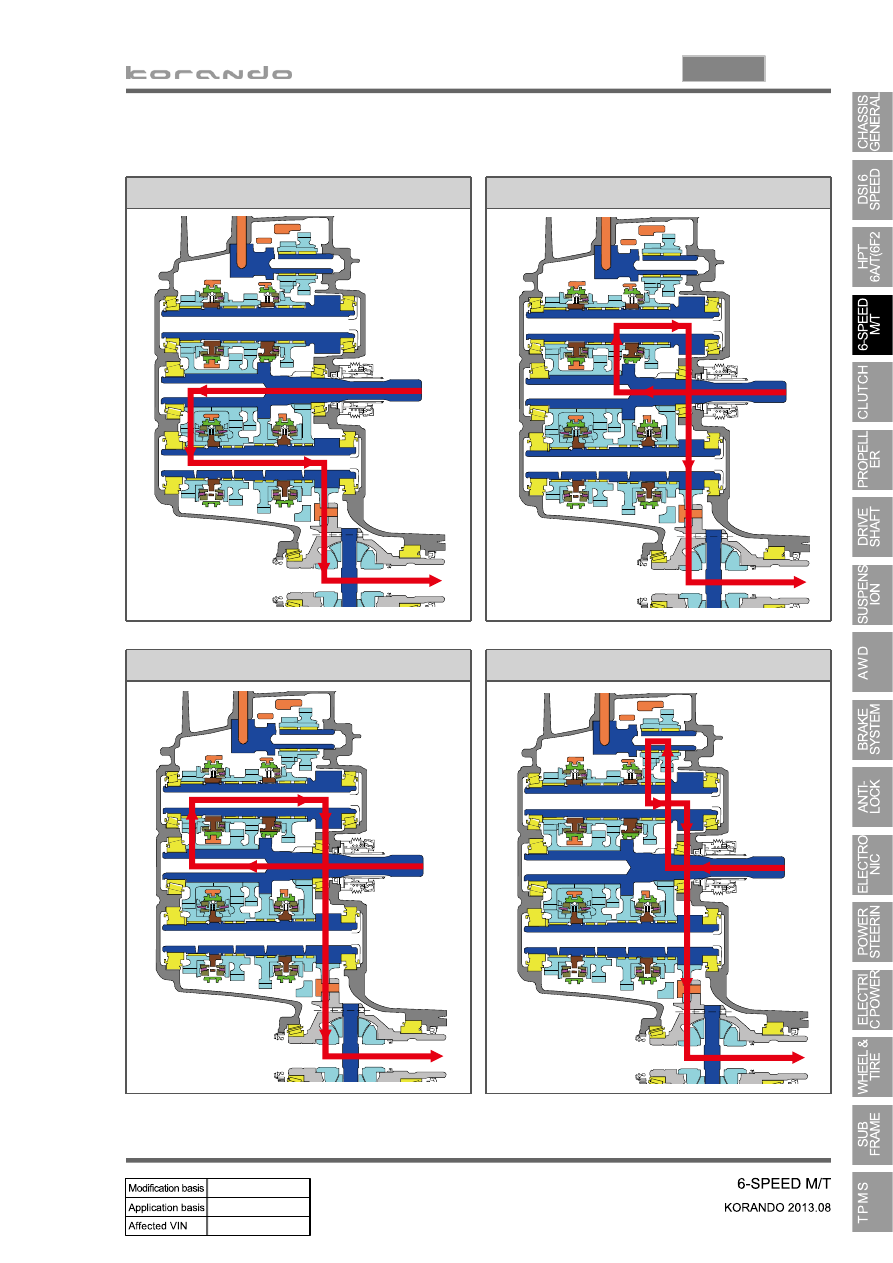

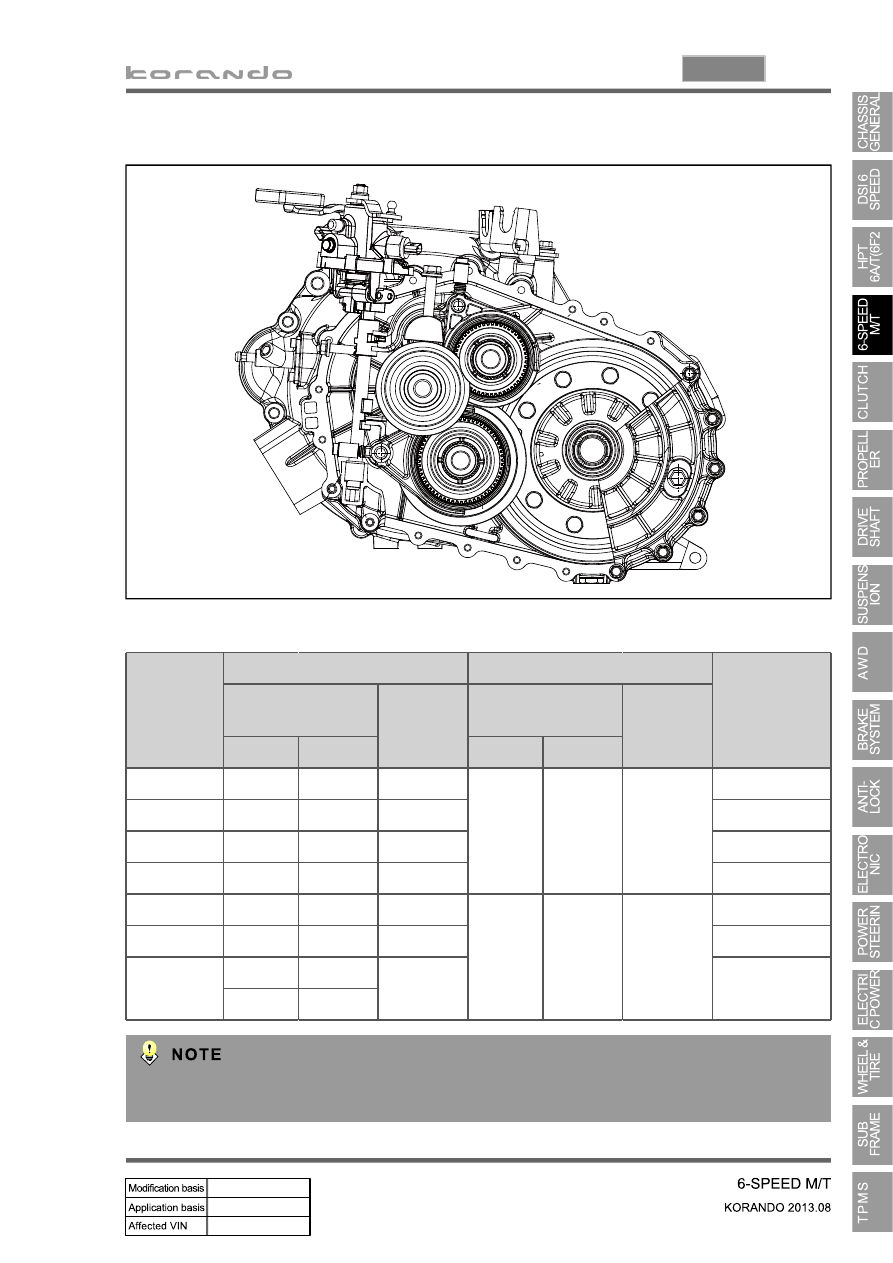

04-9 3190-01 3) Schematic Diagram 4) Gear Ratio Item Speed gear Final gear Total gear ratio Number of teeth Gear ratio Number of teeth Gear ratio Input Output Input Output 1st 13 46 3.538 13 59 4.538 16.059 2nd 22 42 1.909 8.664 3rd 28 33 1.179 5.349 4th 43 35 0.814 3.694 5th 38 28 0.737 15 59 3.933 2.898 6th 43 27 0.628 2.47 Reverse 13 17 3.91 15.377 24 36 One input gear is used for 1st forward driving and back-up driving. One input gear is used for 4th and 6th forward driving. - - |
