SsangYong Korando III (2010 year). Manual - part 535

04-5

3190-01

2. TIGHTENING TORQUE

Part name

Tightening torque

Remark

1. Drive gear mounting bolt of differential carrier

166.6 to 176.4 Nm

10 EA

2. Reverse shaft mounting bolt

74.5 to 89.2 Nm

3. Transmission case mounting bolt

19.6 to 26.5 Nm

22 EA

4. Concentric slave cylinder mounting bolt

11.8 to 14.7 Nm

3 EA

5. Backup lamp switch

29.4 to 34.3 Nm

6. Neutral switch

29.4 to 34.3 Nm

7. Oil filler plug

58.8 to 78.4 Nm

8. Oil drain plug

58.8 to 78.4 Nm

9. Oil plug

58.8 to 78.4 Nm

10. Shift lever mounting nut

42.2 to 53.9 Nm

11. Selector lever mounting nut

42.2 to 53.9 Nm

12. Control shaft assembly mounting bolt

9.8 to 11.8 Nm

7 EA

13. Guide bolt

42.2 to 53.9 Nm

04-6

Front view

Rear view

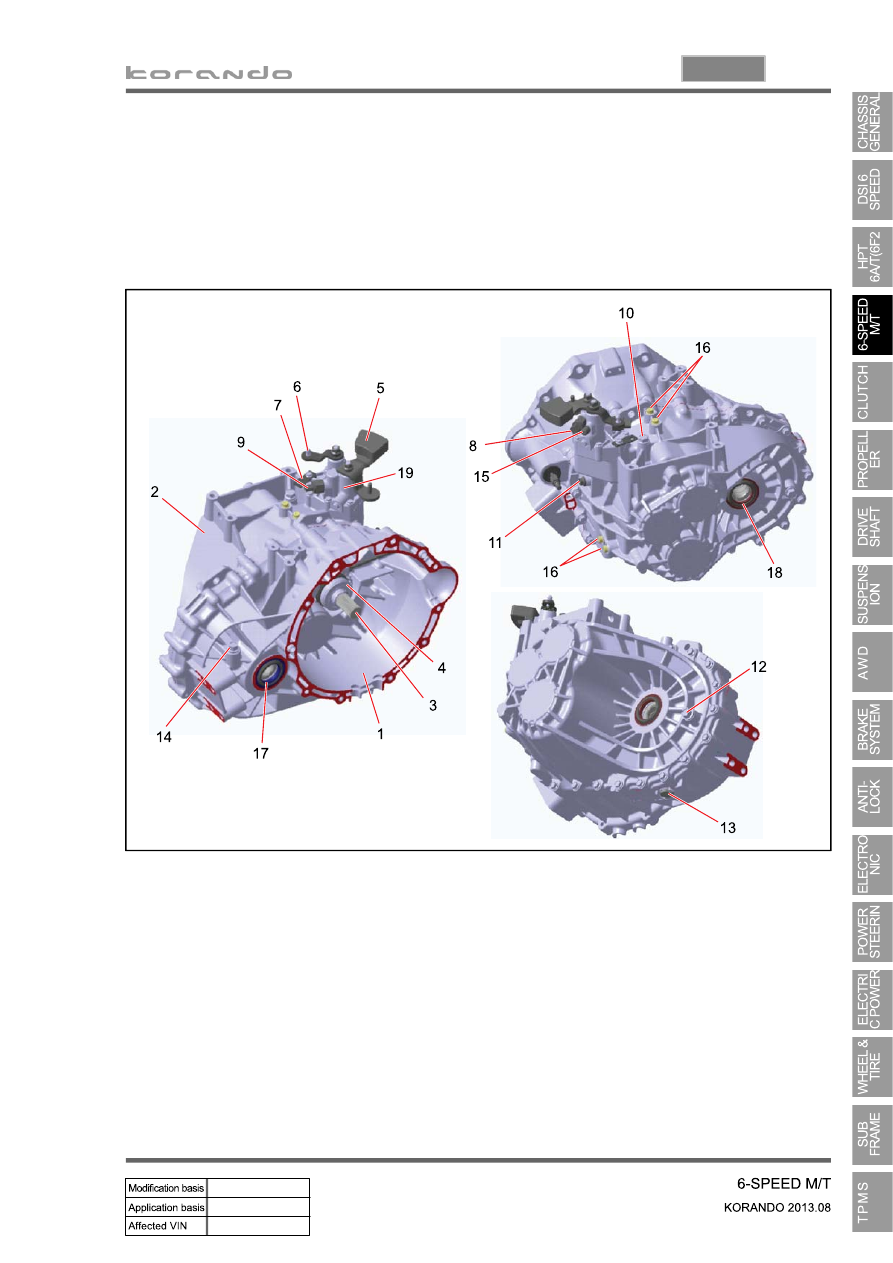

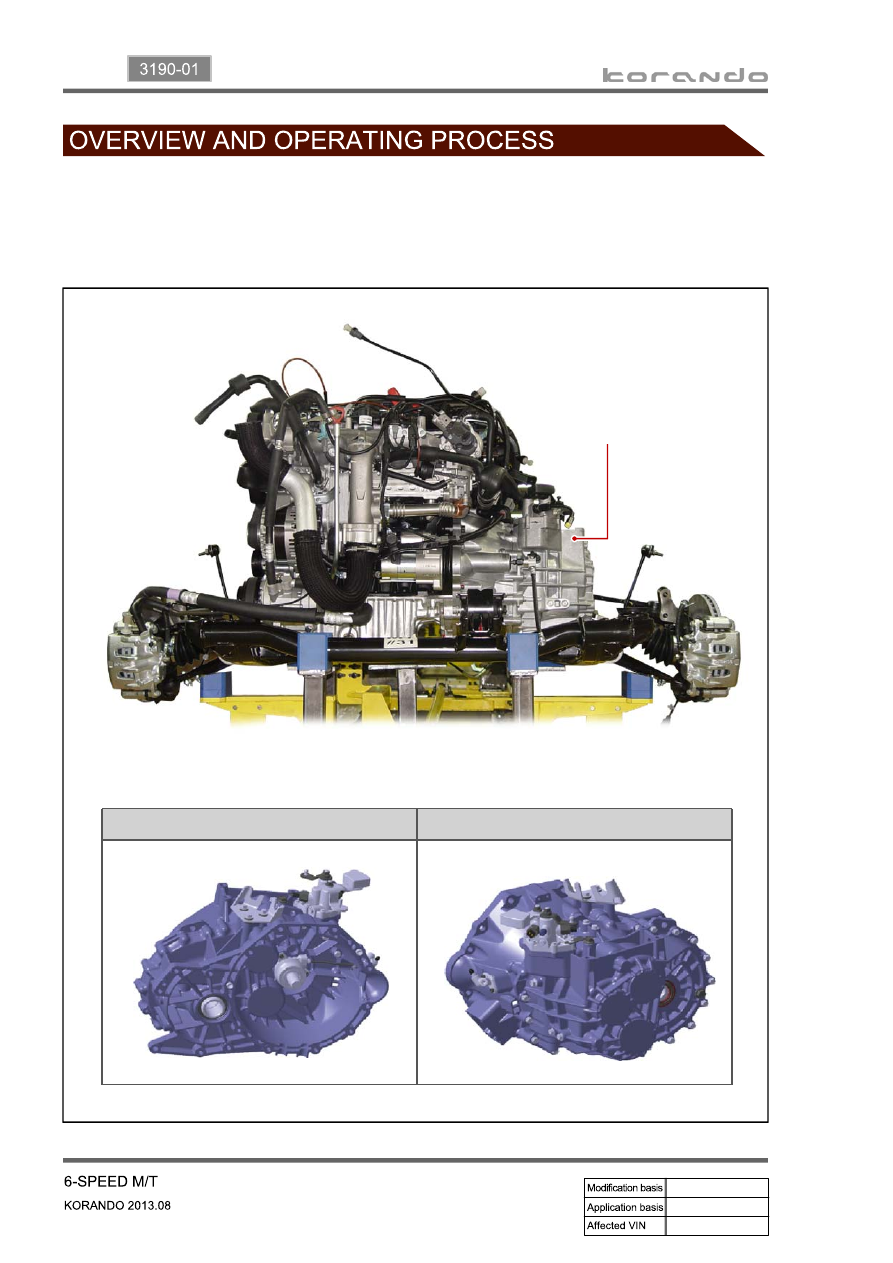

1. OVERVIEW

This vehicle is equipped with WM6F1 M/T (Manual Transmission). This transmission is integrated with an

axle and designed to maximize the driving performance by optimizing the gear ratio according to the

engine torque.

WM6F1 M/T assembly

04-7

3190-01

1) Characteristics of WM6F1 M/T

Both Forward and Reverse gears use the helical gear and are made of high-strength material.

Drives the clutch with a concentric slave cylinder mounting bolt.

Shifting the transmission gears is performed through the remote control cable.

A pull type clutch is used for Reverse gear shifting.

Features triple/double/single synchronization.

-

-

-

-

-

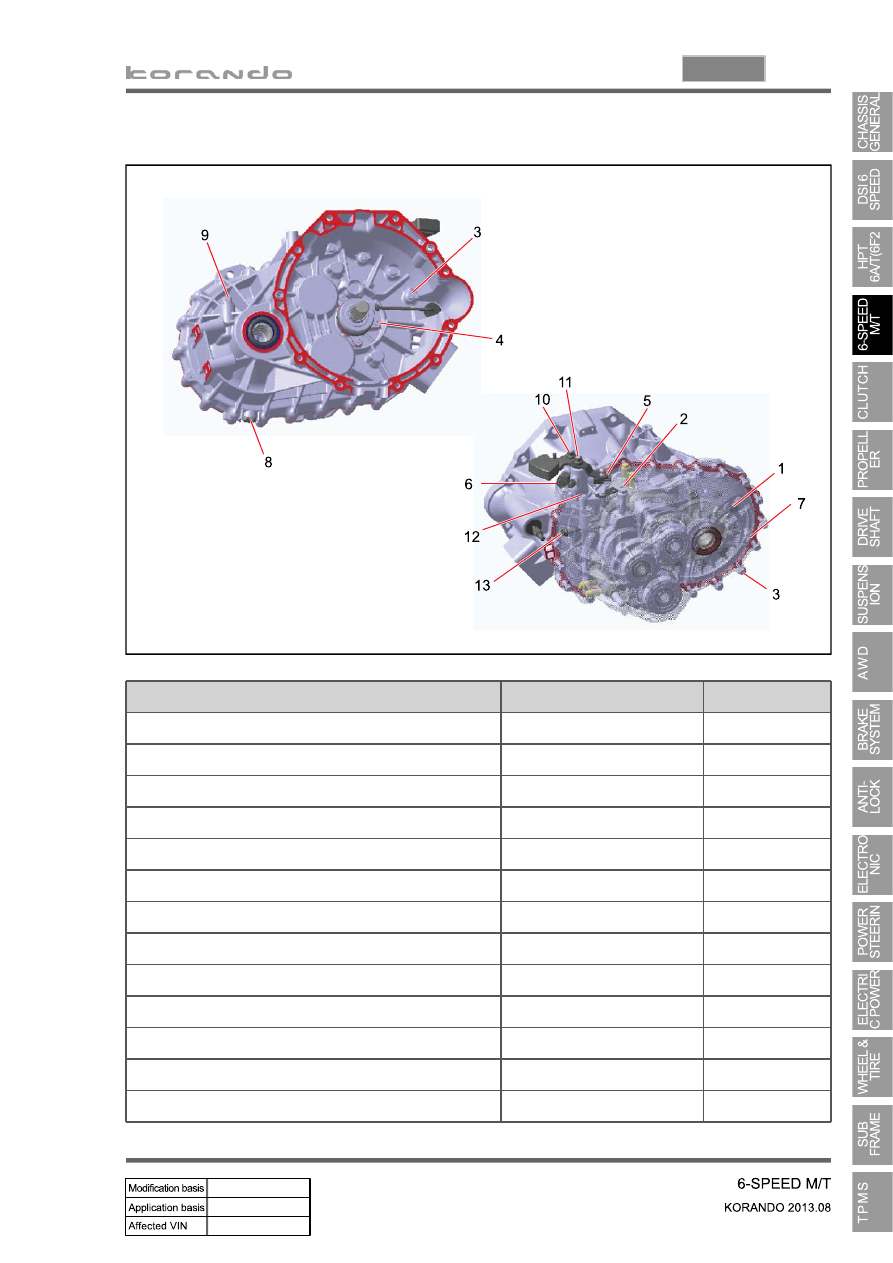

Clutch housing

Transmission case

Input shaft

Concentric slave cylinder

Shift lever

Selector lever

Wiring bracket

Neutral switch

Backup lamp switch

Reverse idle shaft mounting bolt

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Control guide bolt

Oil filler plug (for servicing)

Oil drain plug

Oil filler plug (for manufacturing)

Air breather

Detent pin (for securing shift fork)

Oil seal (RH)

Oil seal (LH)

Control housing

11.

12.

13.

14.

15.

16.

17.

18.

19.

04-8

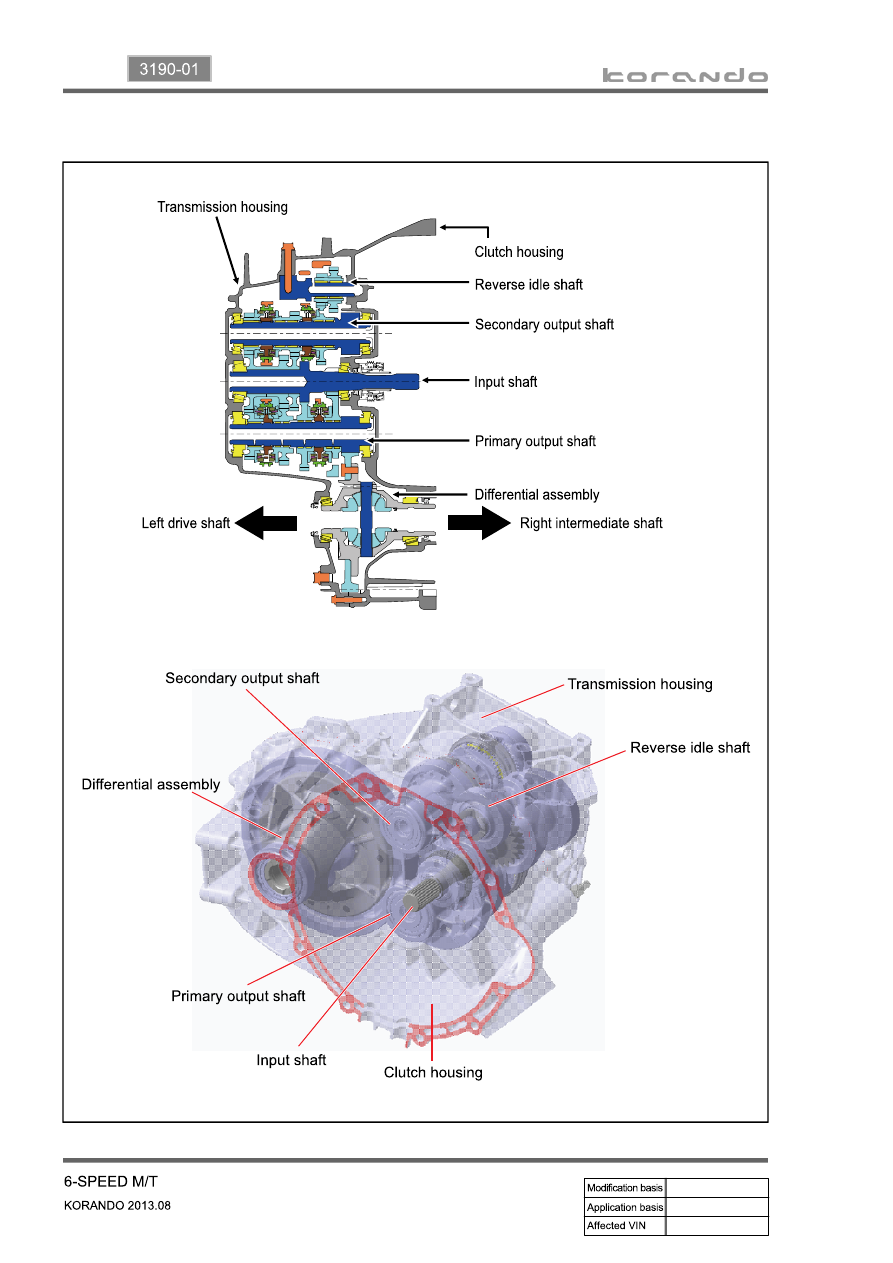

2) Internal Configuration
