11-24

Ensure that the connection or disconnection between the audio system and the USB memory/iPod

is carried out only when the engine is switched off. If the engine is switched on or off while the USB

memory is connected or disconnected, the USB memory may be damaged or not operate normally.

The audio system may not recognize some USB memory depending on the comparability or

condition. Check whether the USB memory operates normally in the vehicle before using it.

Take great care to ensure that the USB connection does not come in contact with the human body

or any object and the USB linking cable does not disturb a safe driving.

When you connect and disconnect the USB memory to the audio system several times in a short

periods, it may cause the USB memory to corrupt. If you particularly disconnect USB memory

during playback, it may be broken or operate incorrectly.

When you use the USB device for charging or heating by using the USB terminal on the audio

system, it may cause the system to deteriorate or fail.

iPod is a registered trademark of Apple Inc.

This audio system supports only the following iPod products: iPod Nano /iPod/iPod Touch/ iPhone.

This audio system may not support some iPod/iPhone products.

Always use the linking cable included with the iPod product when connecting it to the audio system.

The other cables may not be compatible and cause the audio system to fail.

In some cases, the iPod product may be damaged or not operate normally when the engine is

switched on while it is connected to the audio system. When not in use, always disconnect the iPod

product with the engine switched off.

When you use the iPod by connecting it to the audio system, the playback function and information

display may differ from original.

The iPod product can't be recharged using a iPod linking cable.

-

-

-

-

-

-

-

-

-

-

-

-

Cautions for using USB memory/iPod

01-3

0000-00

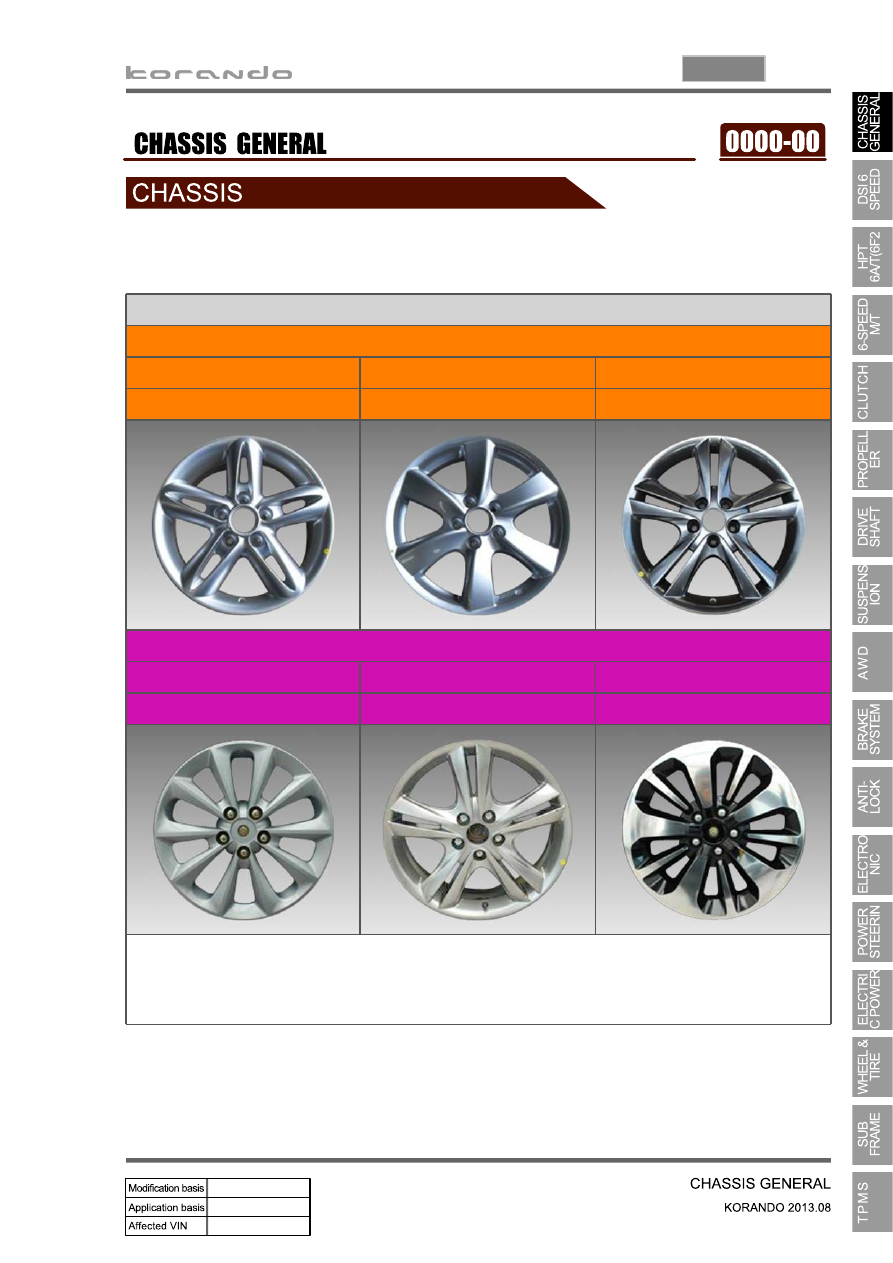

Wheel assembly changed

Wheel Assembly

Old

16-inch Silver

17-inch Silver

18-inch Hyper silver

PN: 41730-34000

PN: 41730-34100

PN: 41730-34220

New

16-inch Silver

17-inch Silver

18-inch Diamond cutting

PN: 41730-34200

PN: 41730-34300

PN: 41730-34400

- 16, 17 and 18-inch wheel assembly design changed
   (For 17-inch: existing 18-inch design used)
   (For 18-inch: Hyper silver type → Diamond cutting type)
- Wheel offset and tire size same as before

1. MAJOR CHANGES

01-4

Newly added TPMS (Tire Pressure Monitoring System)

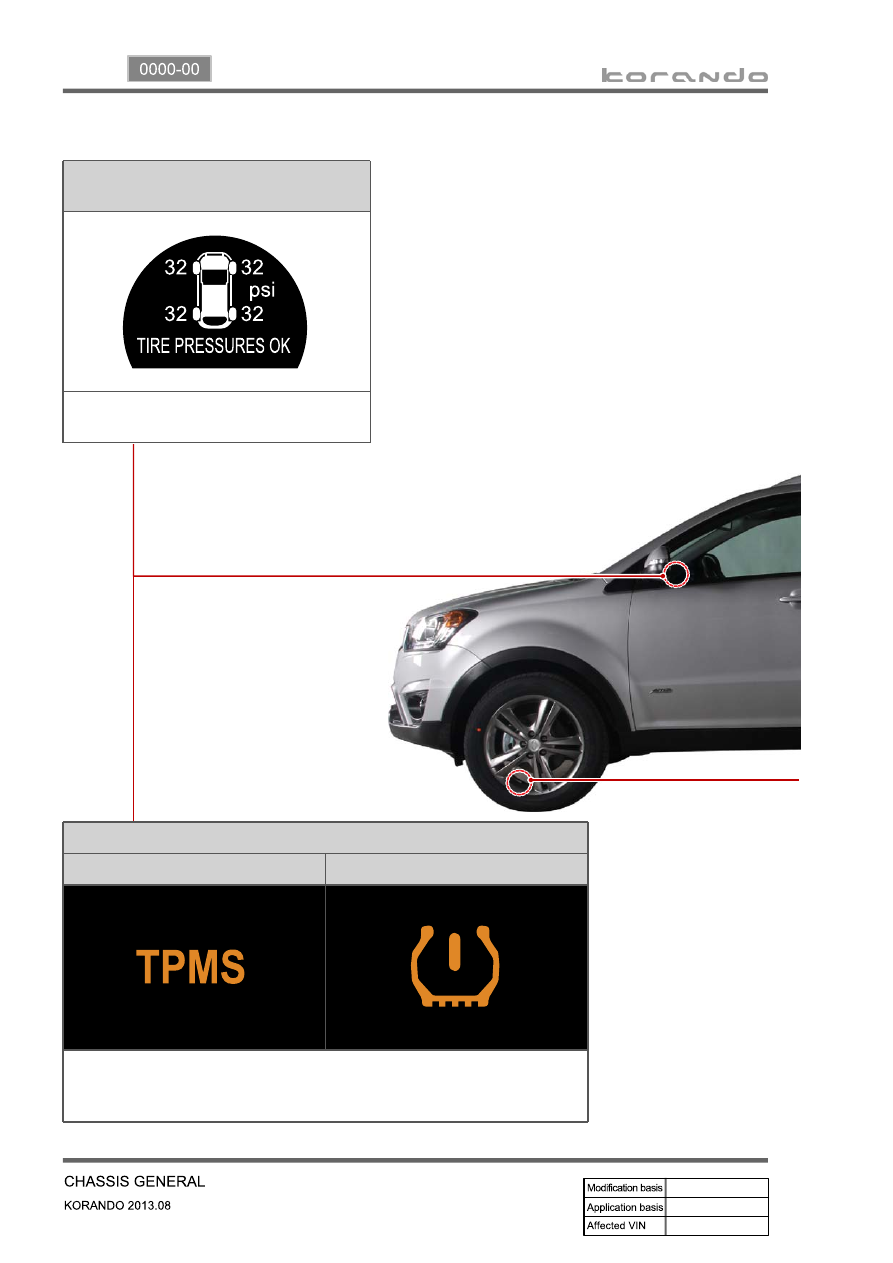

TPMS related warning lamp

TPMS warning lamp

Global warning lamp

- TPMS warning lamp: Comes on if an error occurs in any component
  related to the TPMS regardless of tire inflation pressure.
- Global warning lamp: Comes on when the tire pressure is low.

DOT LCD display window (supervision

type)

Displays current tire pressure and
abnormality.

01-5

0000-00

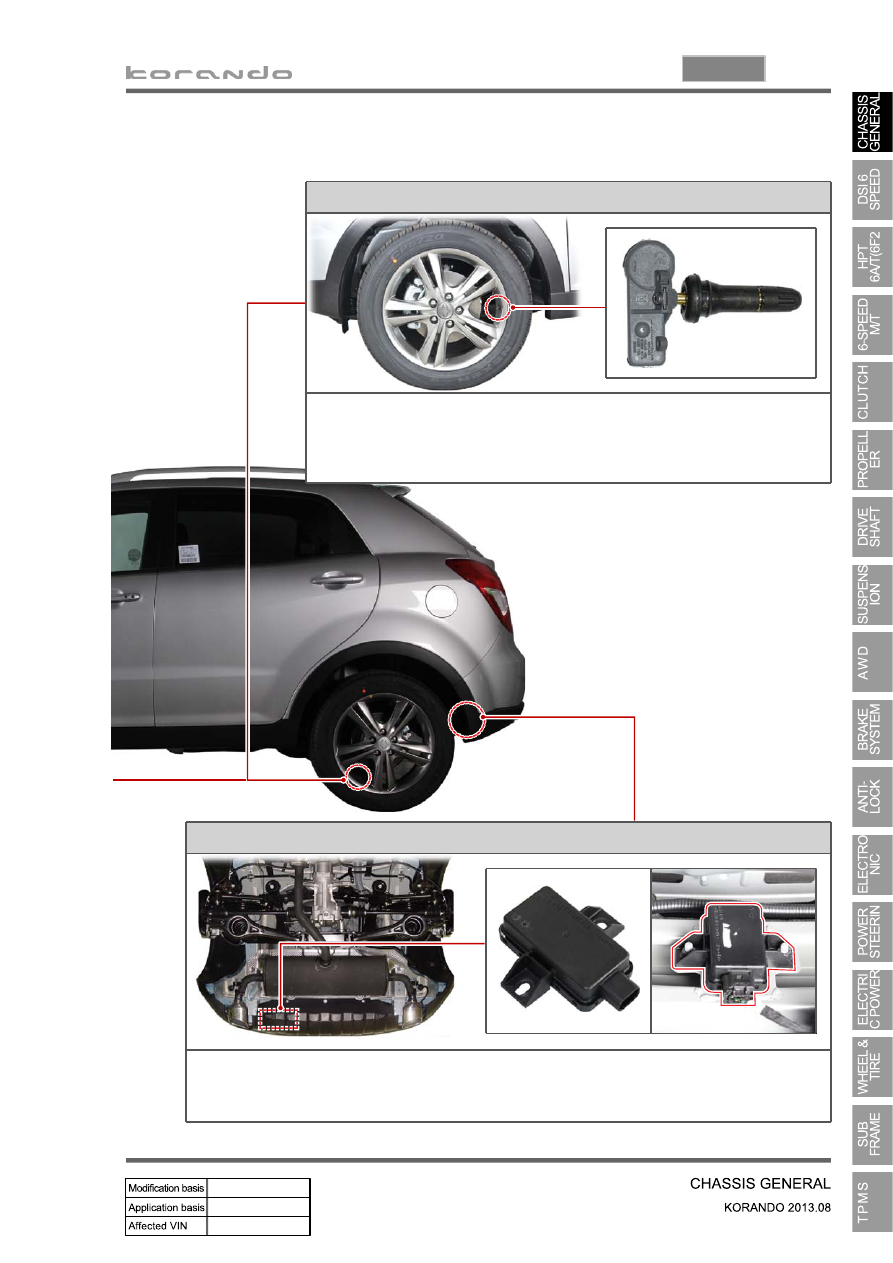

Wheel module

The wheel modules are mounted to each wheel rim and hole. They transmit
the signal of the pressure and temperature in tire, rotating direction and
wheel module ID code, etc. using the radio frequency to the TPMS ECU.

TPMS ECU

The TPMS ECU is located to the rear bumper rail under the vehicle. It outputs the tire pressure
and each wheel’s condition to the instrument cluster, based on the wheel module
information and CAN data.
