HECU (Hydraulic & Electronic Control Unit)

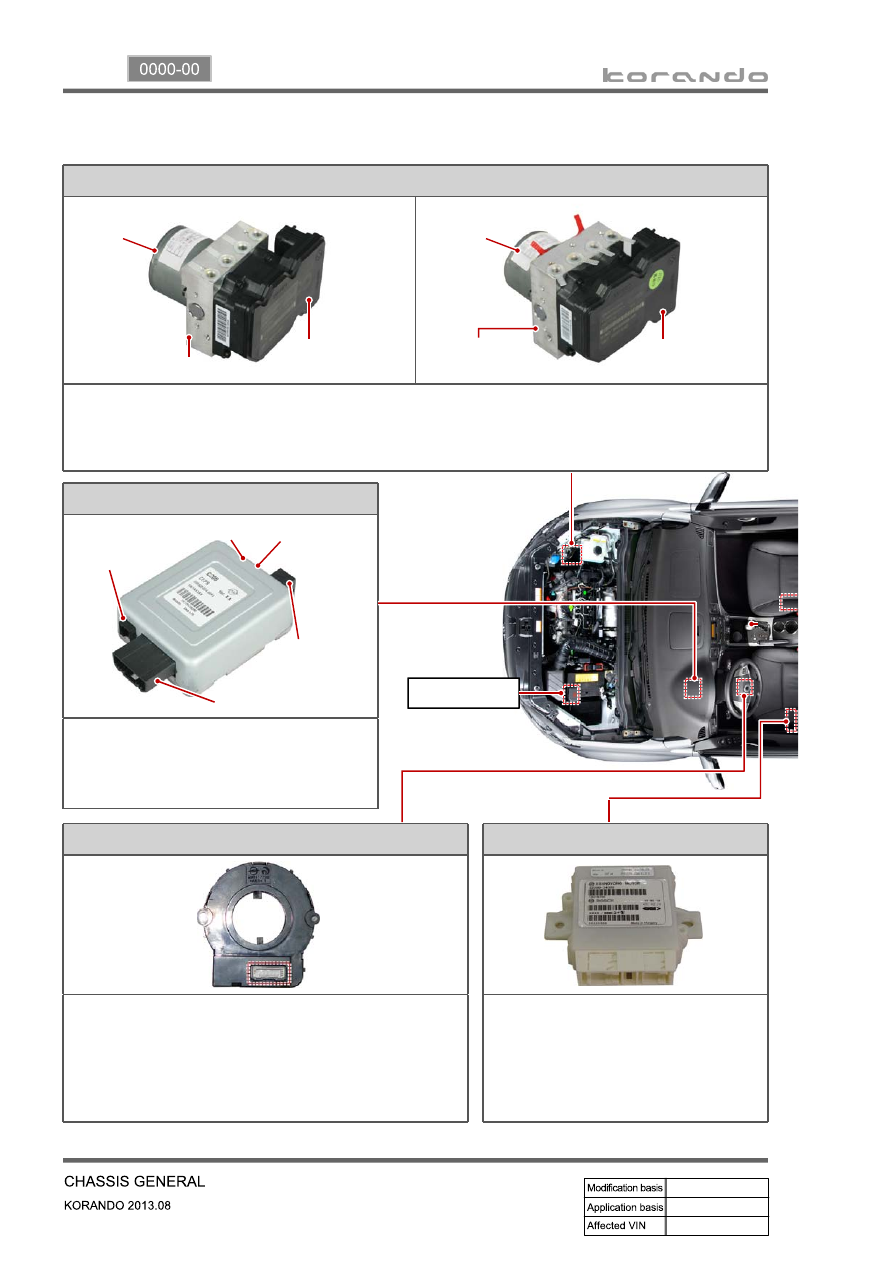

HECU for ABS
HECU for EPS
The HECU (Hydraulic & Electronic Control Unit) determines the slip conditions of vehicle wheels by
calculating each wheel's speed and the increment/decrement of speed based on the information
detected by the sensors, and controls the pumping and boosting/reducing/keeping pressure by
operating the valve and motor of HECU.

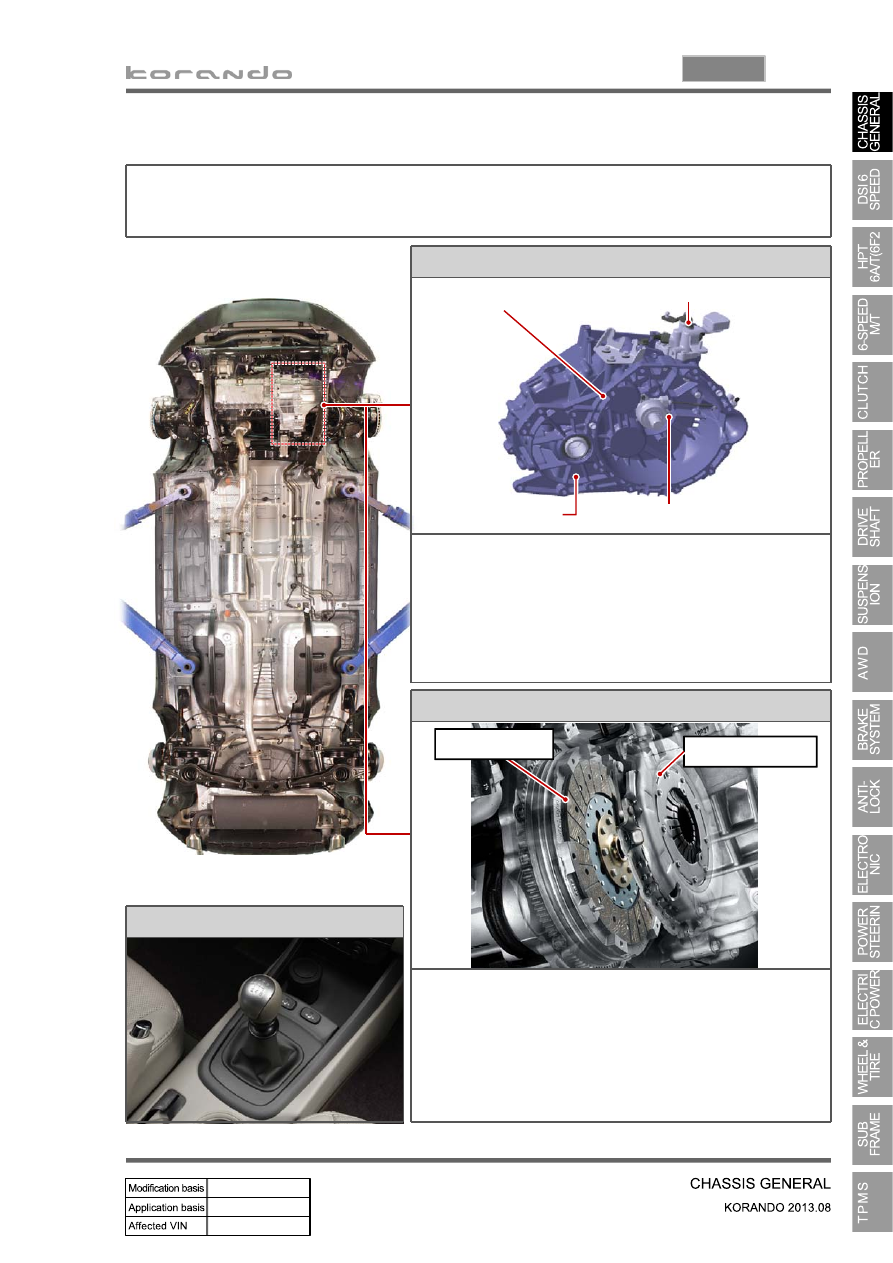

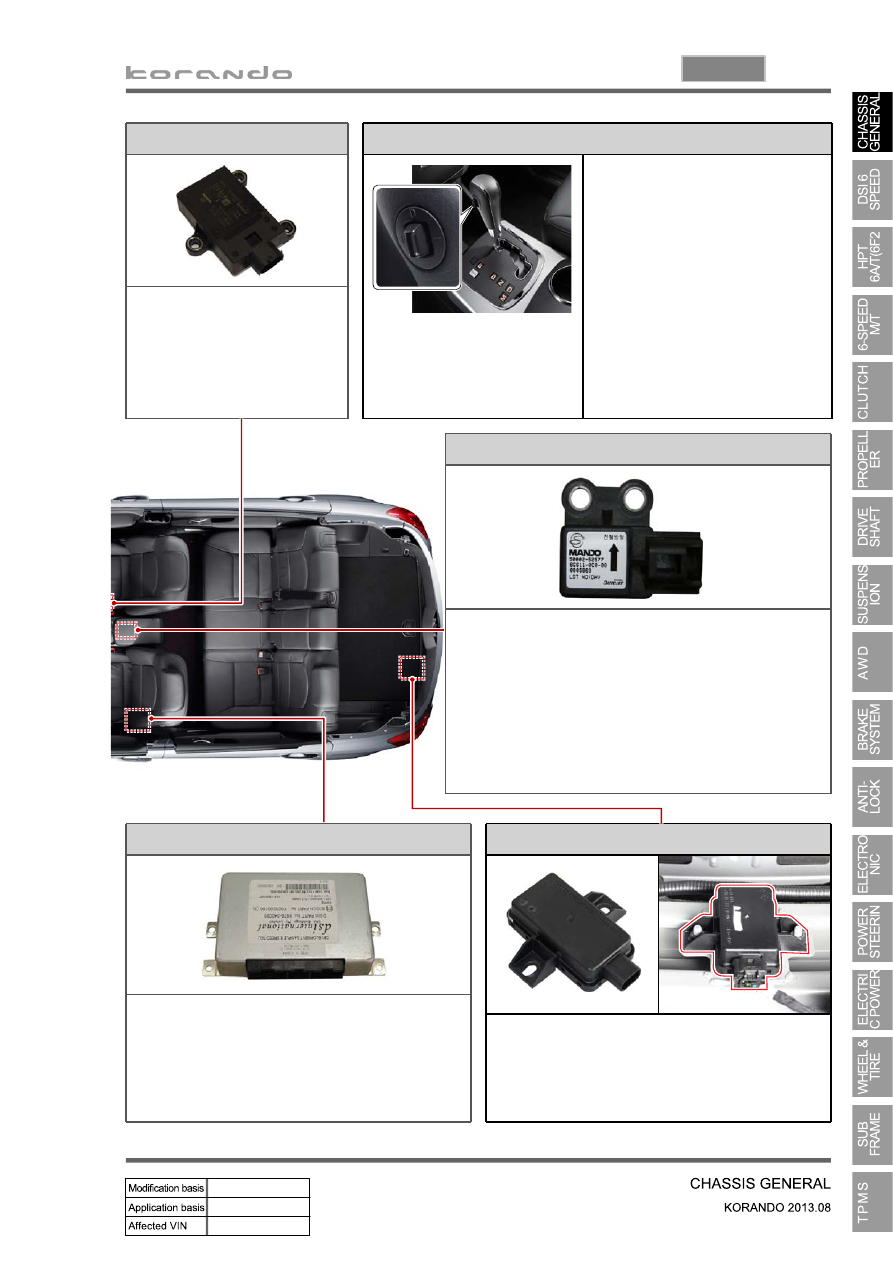

2. MOUNTING LOCATIONS (CHASSIS)
Moto
HU (Hydraulic Unit)
ECU (Electronic
Control Unit)
Moto
HU
(Hydraulic Unit)
ECU (Electronic
Control Unit)
Motor
angle (8P)
Motor power (3P)
Torque angle
sensor (8P)
Battery (2P)
Connector to
vehicle (8P)
Fuse for EPS
Steering wheel angle sensor (SWAS)
The steering wheel angle sensor is mounted between the
steering column and the steering column shaft. It is
commonly used by the ESP (Electronic Stability Program)
system. And it receives signals of the steering wheel angle
sensor from the ESP HECU (Hydraulic & Electronic
Control Unit).
EPS unit
The ECU controls the electric power steering
system depending on the driving conditions,
based on the signals from the torque and
angle sensor.

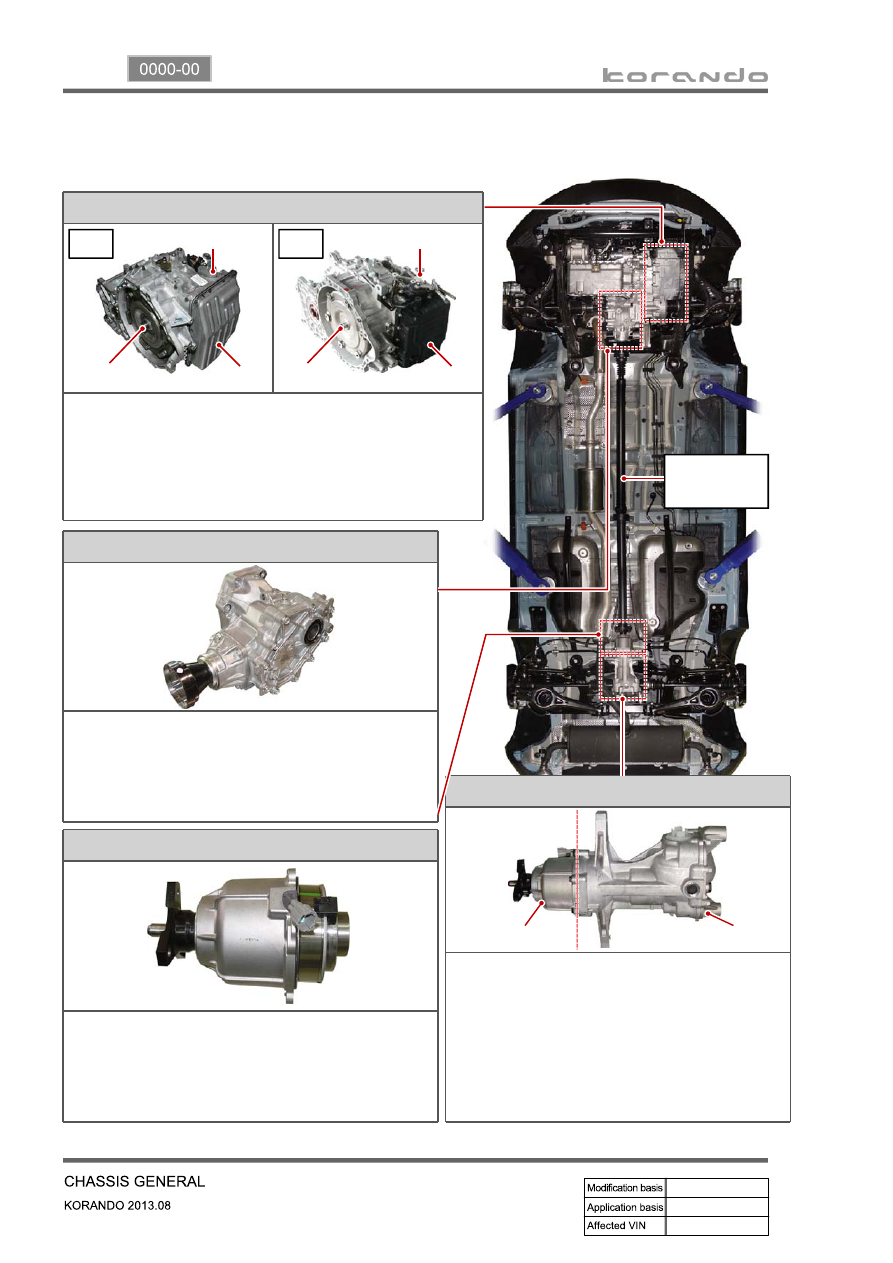

E-coupling unit
The E-coupling unit is a control unit
which determines the magnetic force by
considering CAN signals (wheel speed,
engine torque, pedal opening, ABS/ESP
CAN signals, etc.) from other ECUs.
