06-51

8510-00

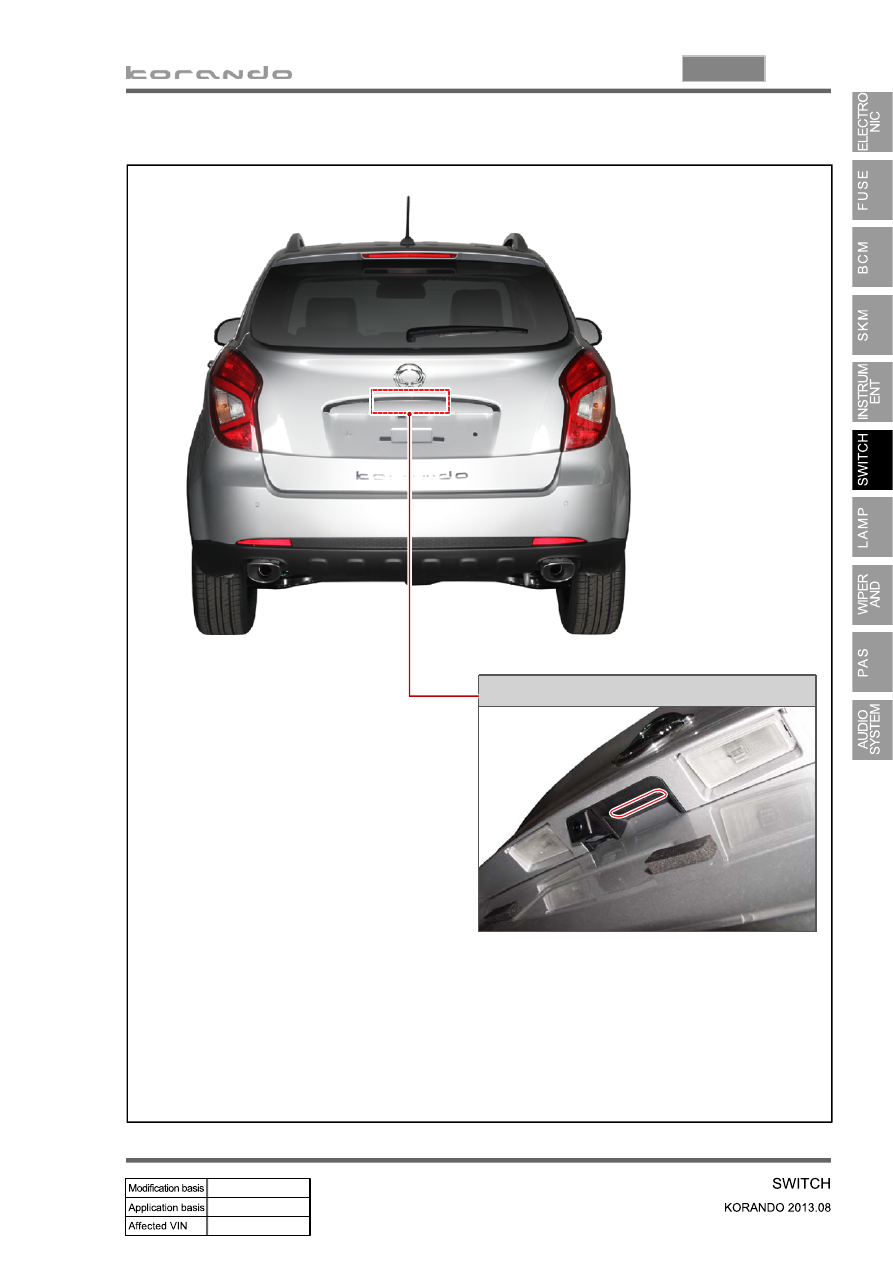

Tailgate open switch

7. TAILGATE SWITCH

06-52

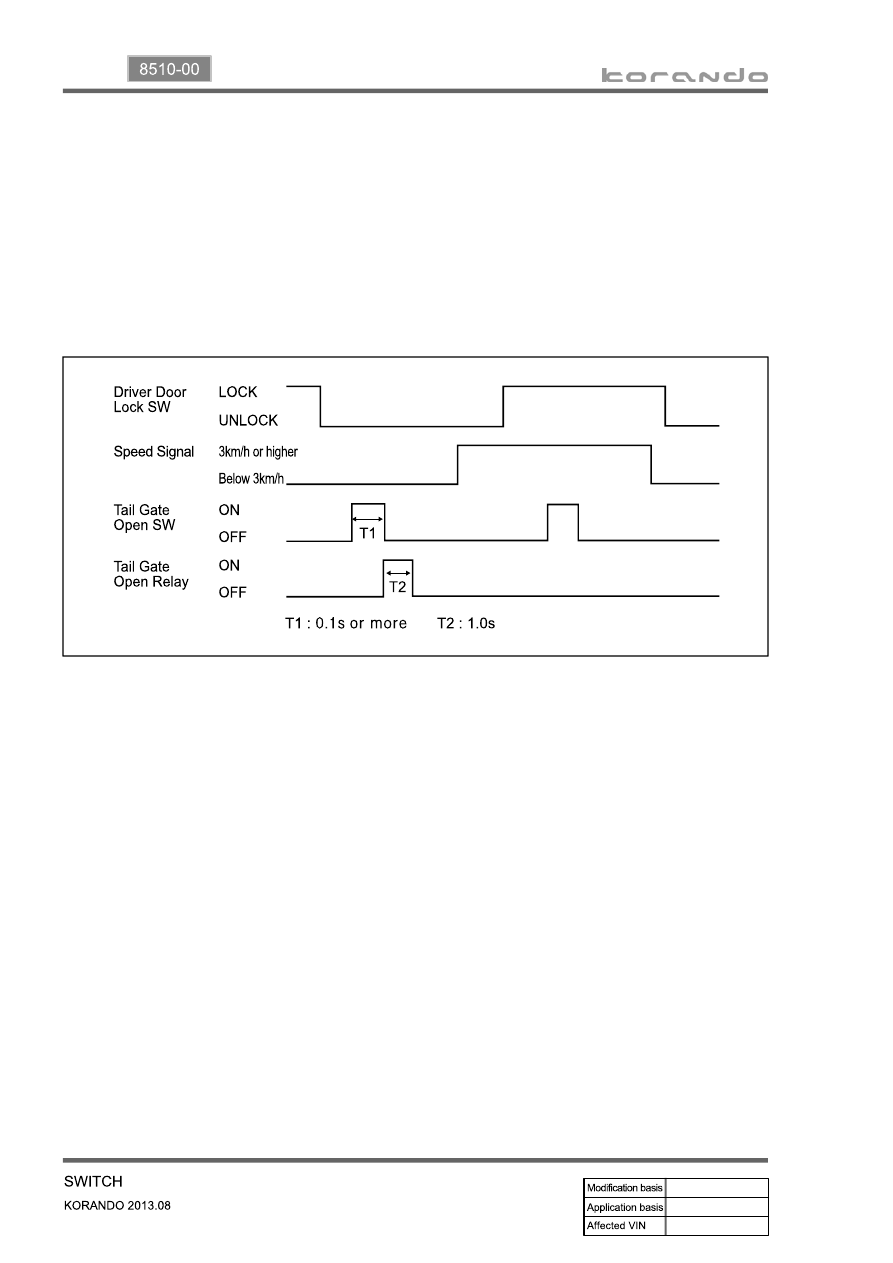

Tailgate open

▶

When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
speed below 3 (±0.1) km/h, the tailgate open relay is turned ON for about 1 second, with

power OFF, ACC ON or IGN ON. However, it is turned ON when the vehicle speed is below 3
(±0.1) km/h, with IGN ON.

The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed

goes over 3 km/h with IGN ON during its operation. However, the BCM does not operate if the tailgate

open switch is pressed when the vehicle speed is above 3 km/h.

1.

2.

Tailgate open: REKES unlock (disarmed deterrent mode) → Tailgate open signal → Tailgate

open

-

Without SKM

When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
speed below 3 (±0.1) km/h, the tailgate open relay is turned ON for about 1 second.

The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed

goes over 3 km/h during its operation.

When the tailgate switch on smart key is pressed in theft deterrent mode or with the smart key

detected by the exterior antenna, the SKM verifies the smart key and disarms the tailgate only. When

the tailgate is open and closed, the system enters into the theft deterrent mode again. If the tailgate

switch is not operated for 30 seconds, the system also does so.

The BCM checks that the verified smart key is in the luggage room 1 second after when the closed

tailgate is detected by the tailgate open switch with power OFF.

If there is a verified smart key in the luggage room when the tailgate is open and closed in theft

deterrent mode, the external buzzer sounds for 5 seconds.

When the driver press the tailgate open switch in order to look for the smart key, the BCM deactivates

lock so that the tailgate can be opened even though the driver door is locked. (maintains standby for

opening without verification)

1.

2.

3.

4.

With SKM

07-3

8310-00

1. LAMP SPECIFICATIONS

1) Exterior Lamps

2) Interior Lamps

Description

Numbers

Specification

Front room lamp

2

10W

Glove box lamp

1

5W

Center room lamp

1

10W

Luggage lamp

1

10W

Door courtesy lamp

2

5W

Description

Numbers

Specification

Headlamp

High beam

2

H1-55W

Low beam

2

H7-55W

Turn signal lamp

2

P21W

Position lamp

-

LED

Front fog light

2

H16-19W

Rear fog light

2

21W

Side repeater

-

LED

Rear combination lamp

Tail lamp

-

LED

Turn signal lamp

2

PY21W

Back-up lamp

2

W16W

Stop lamp

2

P21W

License plate lamp

2

W5W

High mounted stop lamp

-

LED

Puddle lamp

2

LED

07-4

Luminous intensity is a measure for the amount of light which passes through the unit area per

time unit. The SI unit of luminous intensity is the candela (cd), an SI base unit.

-

Luminous Intensity

▶

Luminance describes the amount of light that passes through or is emitted from a particular area,

and falls within a given solid angle. It is measured in sb or nt.

-

Luminance

▶

This indicates the amount of light reaching a given area. Measuring unit is lux (lx) and it is not

directly proportional to the brightness of the area as the reflection rate is not included.

-

Intensity of illumination

▶

The LED stands for "Light Emitting Diode" or "Luminescent Diode." LED is a semiconductor diode

that emits incoherent narrow-spectrum light when electrically biased in the forward direction of the

p-n junction, as in the common LED circuit. In short, it is an element that converts electric signals

into light signals. Yellow, blue, red and white LEDs are currently available.

The followings are the advantages of LED.

It is not glaring and doesn't have short circuit unlike the conventional lamps.

It is semi-permanent and doesn't generate heat.

Its power consumption is much lower than those of conventional bulbs.

-

 -

▶ LED

Pin No.

Specification

Operating voltage

9 V to 16 V

Load

Max. 200 mA (relay load)

Operating temperature

-30℃ to 85℃

Storage temperature

-40℃ to ±120℃

Mounting location

Top center of inner side of windshield glass

2. AUTOMATIC LIGHT SENSOR SPECIFICATIONS
