3. MAJOR CHANGES

Front side

▶

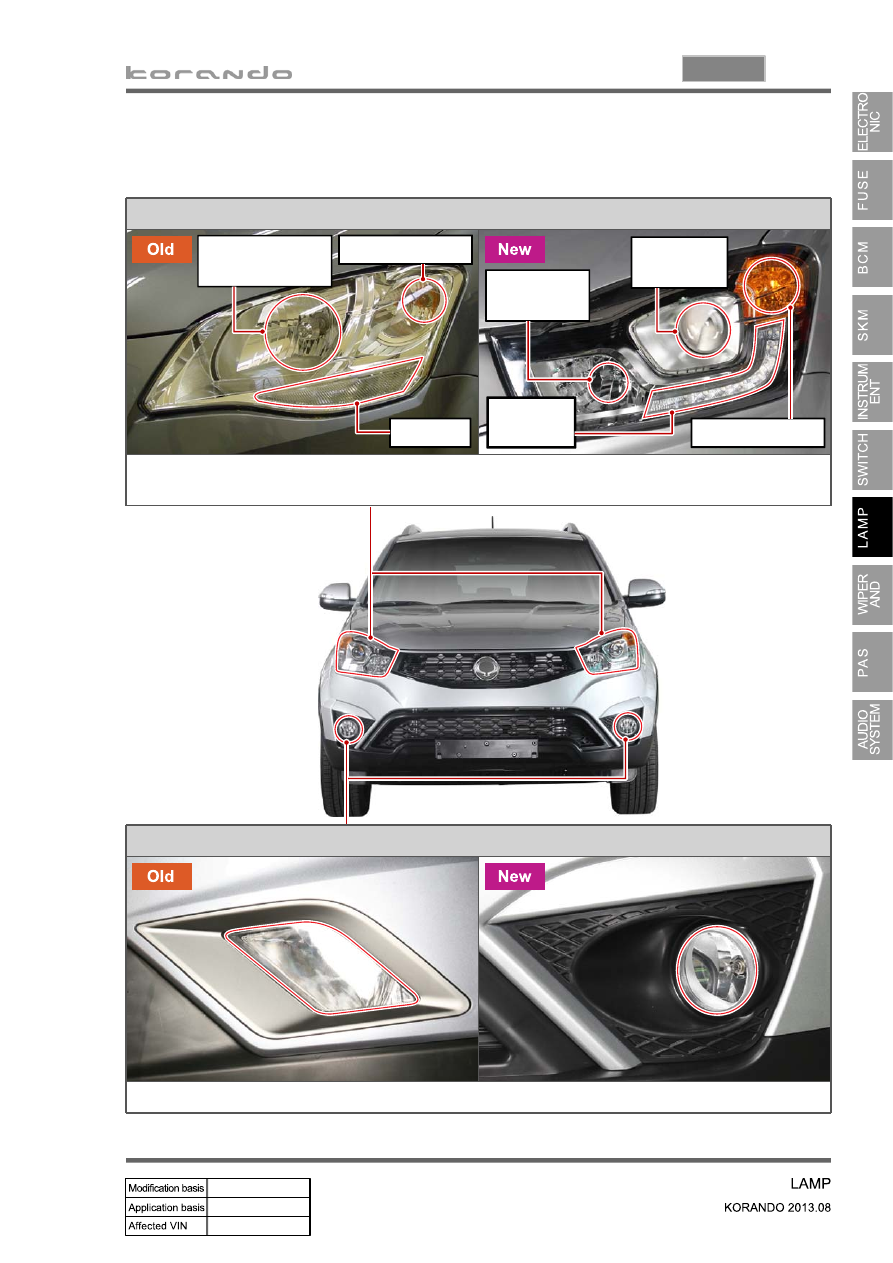

Headlamp

- Headlamp design and its function changed (2 lamp system → 4 lamp system)
- Headlamp (high/low beam) dualized and tail lamp changed to LED type

Fog lamp

- Fog lamp design changed

Headlamp

(high/low beam)

Turn signal lamp

Tail lamp

Turn signal lamp

Tail lamp,

DRL (EU)*

Headlamp

(high beam)

Headlamp

(low beam)

07-6

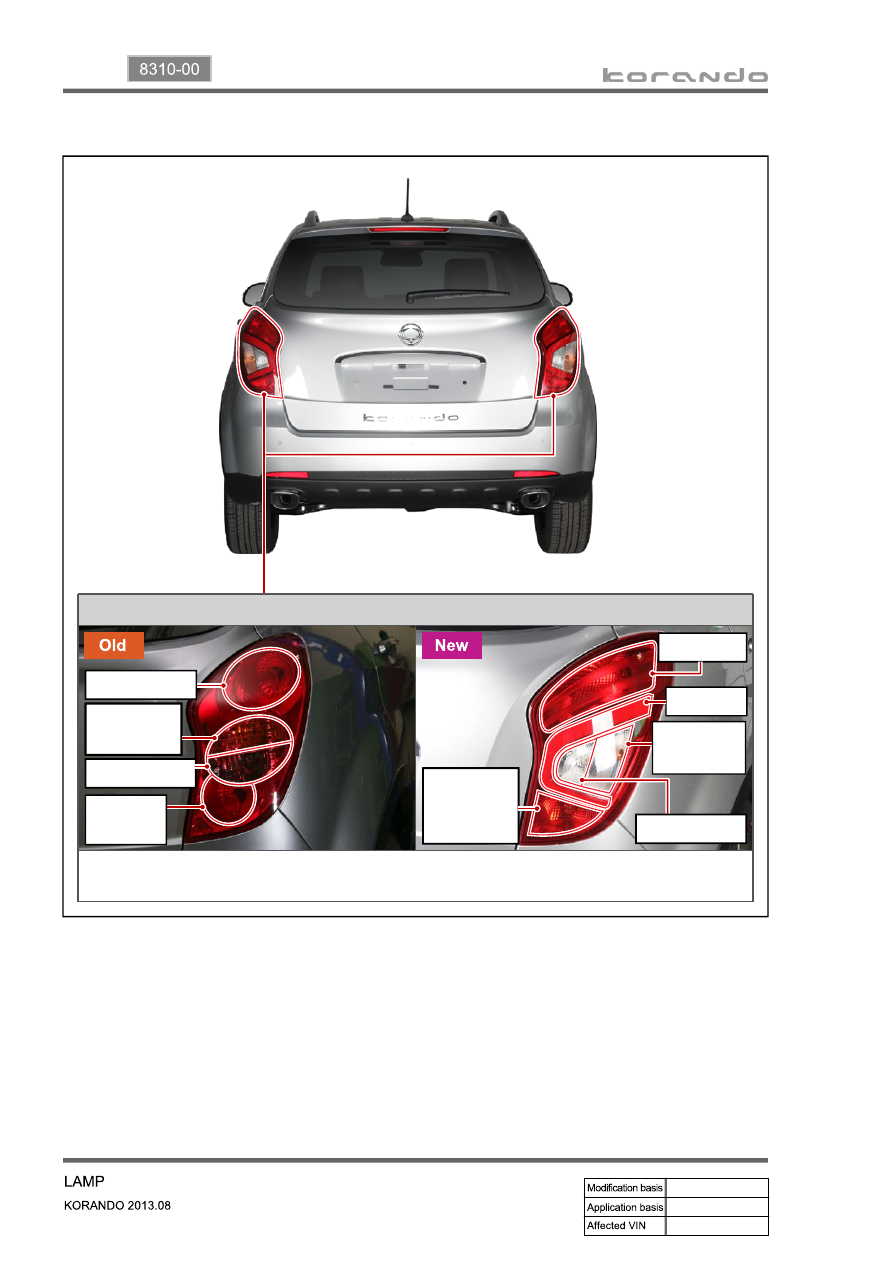

Rear side

▶

Rear combination lamp

- Rear combination lamp design and its function changed
- Tail lamp (stop lamp) changed to LED type

Backup lamp

Turn signal

lamp

Stop/tail lamp

Rear fog

light

Tail lamp

Stop lamp,

Rear fog

light (EU)

Turn signal

lamp

Backup lamp

Stop lamp

07-7

8310-00

Indoor

▶

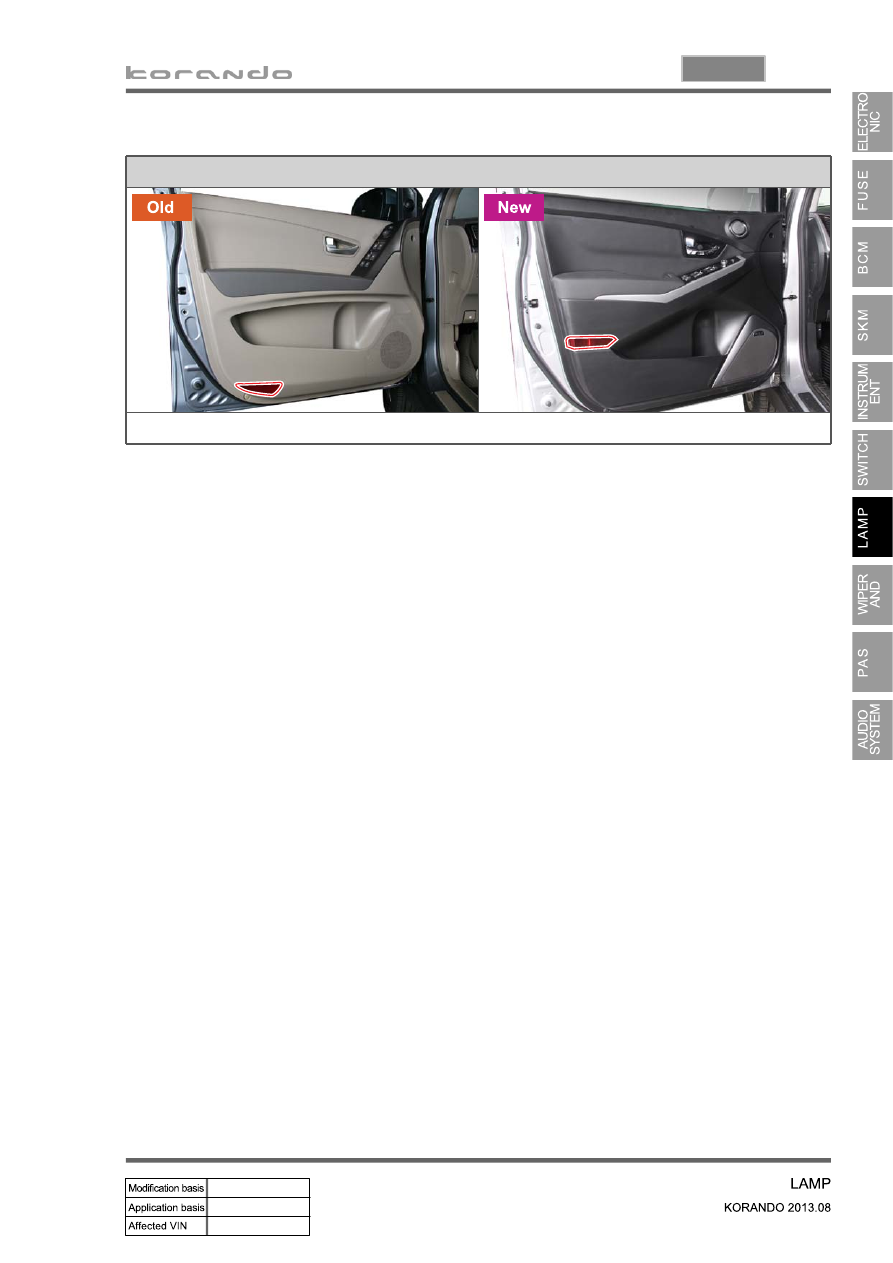

Front door courtesy lamp

- Door courtesy lamp design changed due to modified front door trim

07-8

1. EXTERIOR LAMP

1) Overview

Exterior lamps can be divided into front, rear and side lamps as follows.

Front lamp: headlamp and fog lamp

Rear lamp: combination lamp, license lamp, high mounted stop lamp and reflex reflector lamp

Side lamp: outside turn signal lamp and puddle (approach) lamp

-

-

-

2) Layout

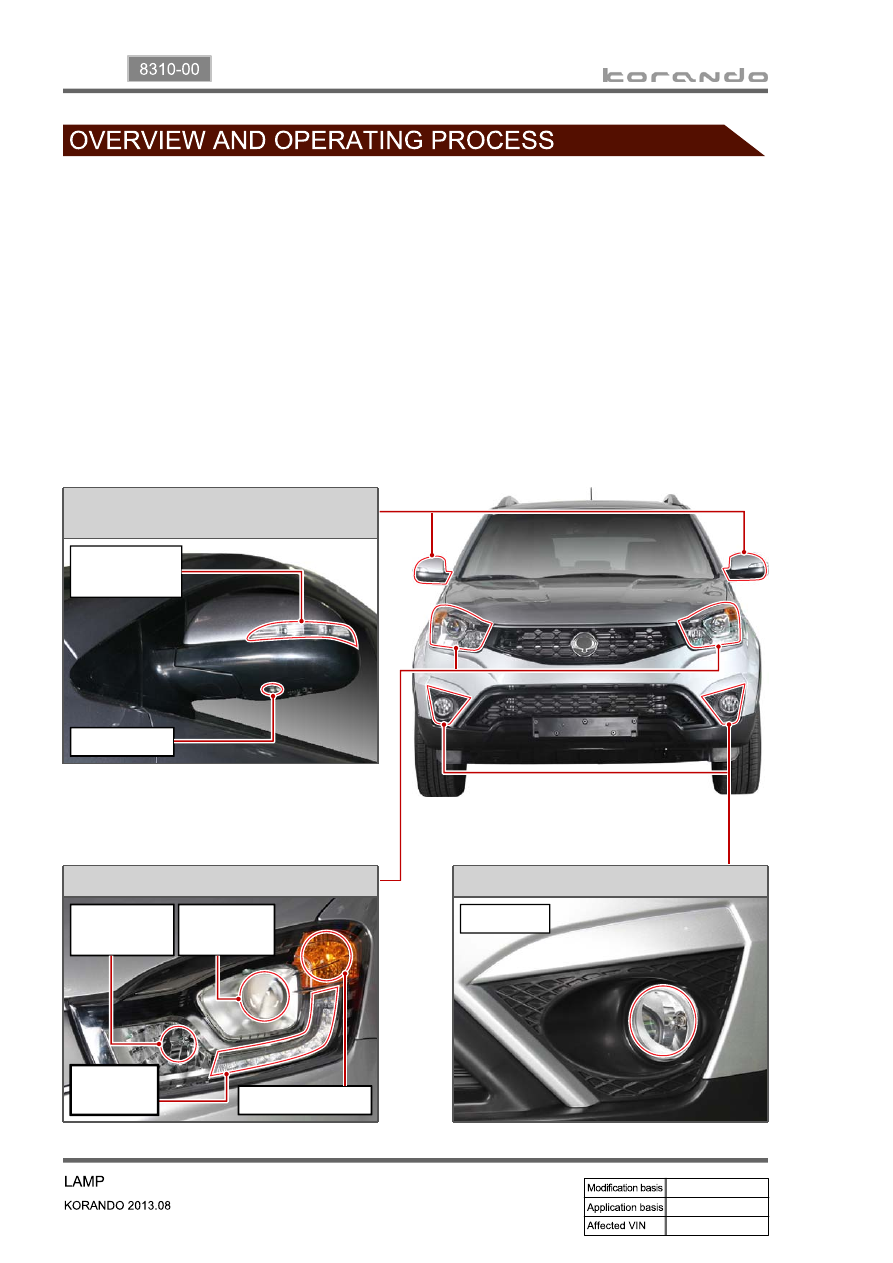

Front side

▶

Outside turn signal lamp and

puddle lamp

Headlamp

Fog lamp

Turn signal lamp

Headlamp

(high beam)

Headlamp

(low beam)

Puddle lamp

Outside turn

signal lamp

Fog lamp

Tail lamp,

DRL (EU)*
