03-16

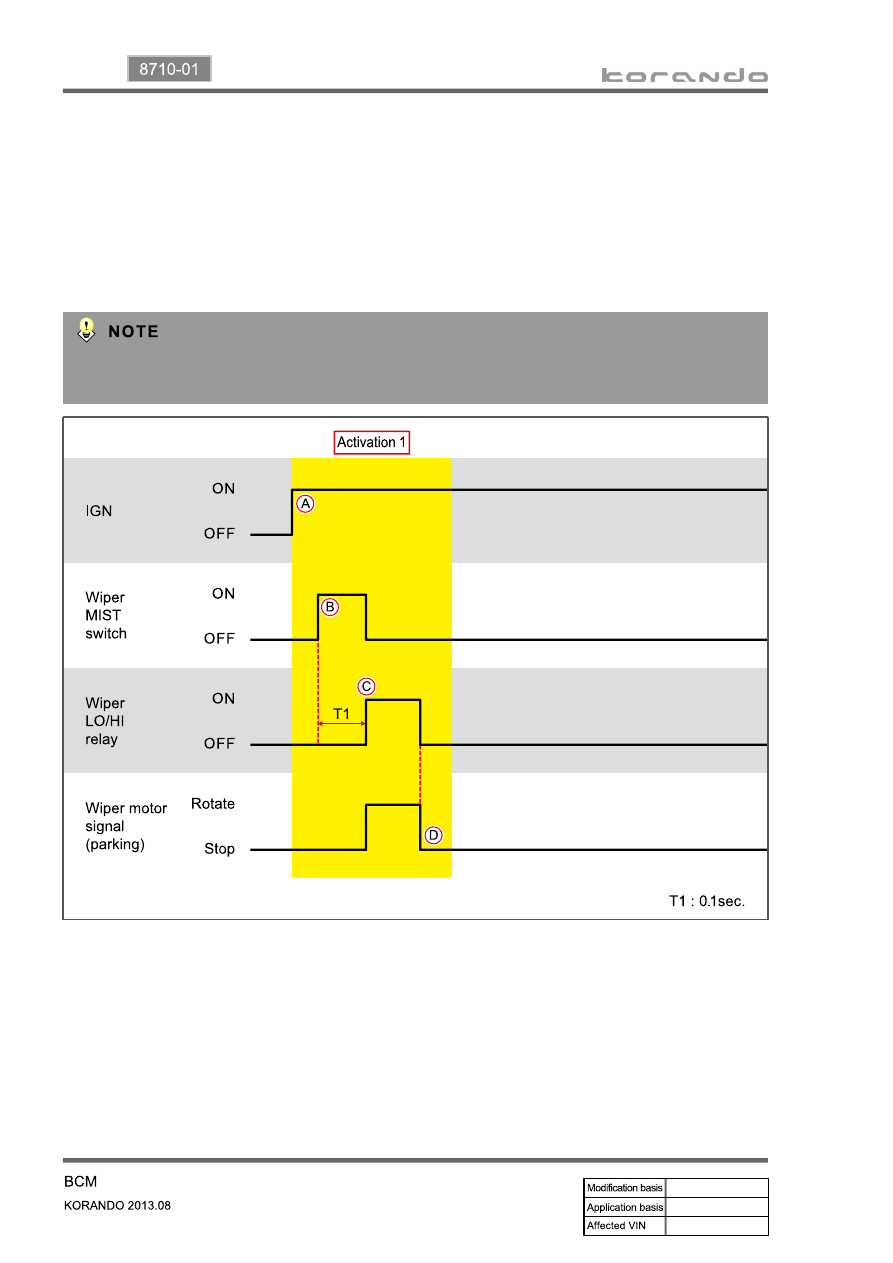

Windshield wiper MIST operation

▶

The ignition is turned ON.

The MIST switch is turned ON for 0.1 seconds or more.

The wiper LO/HI relay is activated 0.1 seconds (T1) after the MIST switch is turned ON.

The wiper LO relay is deactivated when the MIST switch is turned OFF and the wiper motor parking

signal is input.

A.

B.

C.

D.

Operation 1.

The wiper HI relay is activated when the MIST switch signal is input. If no signal from the MIST

switch is input, the wiper LO relay is activated.

03-17

8710-01

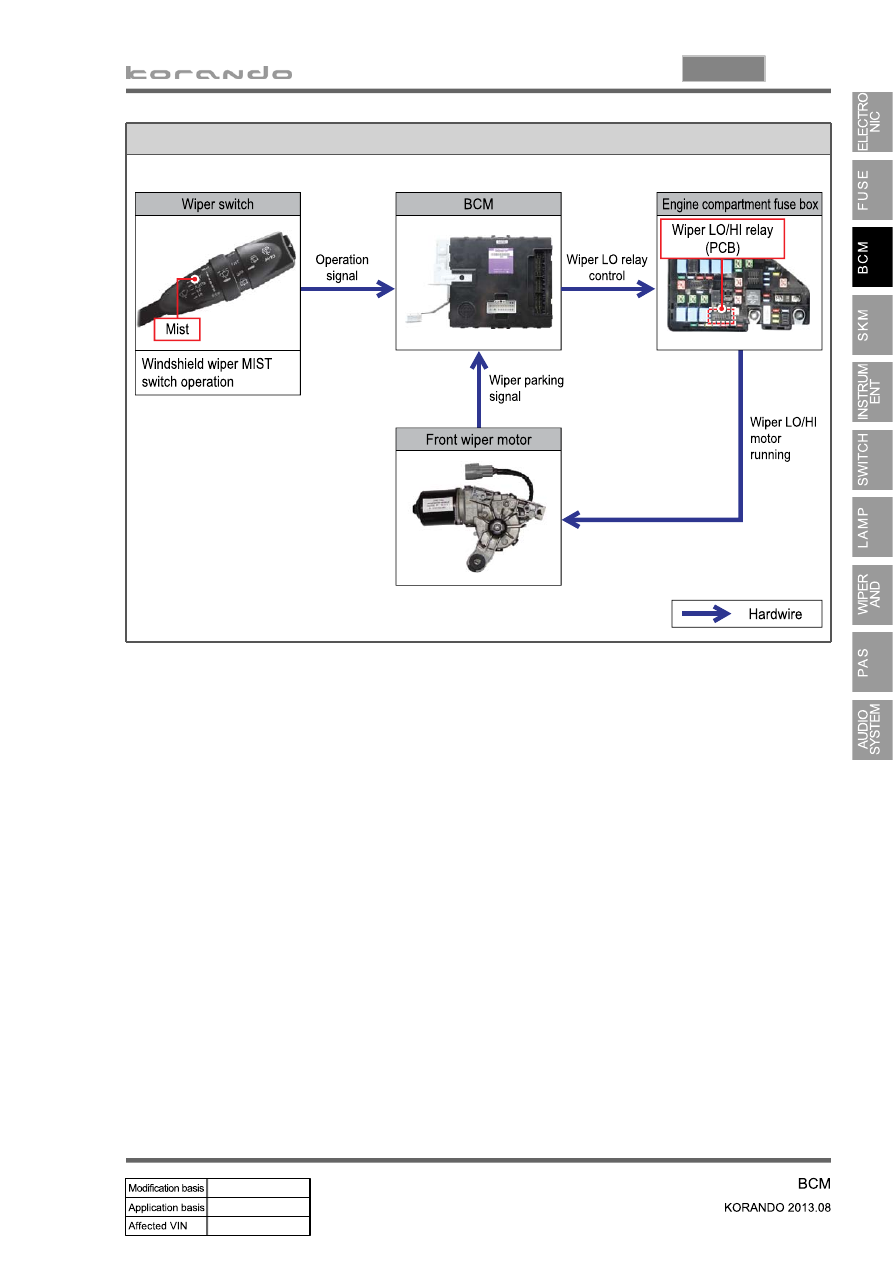

Operating process

- IGN ON

03-18

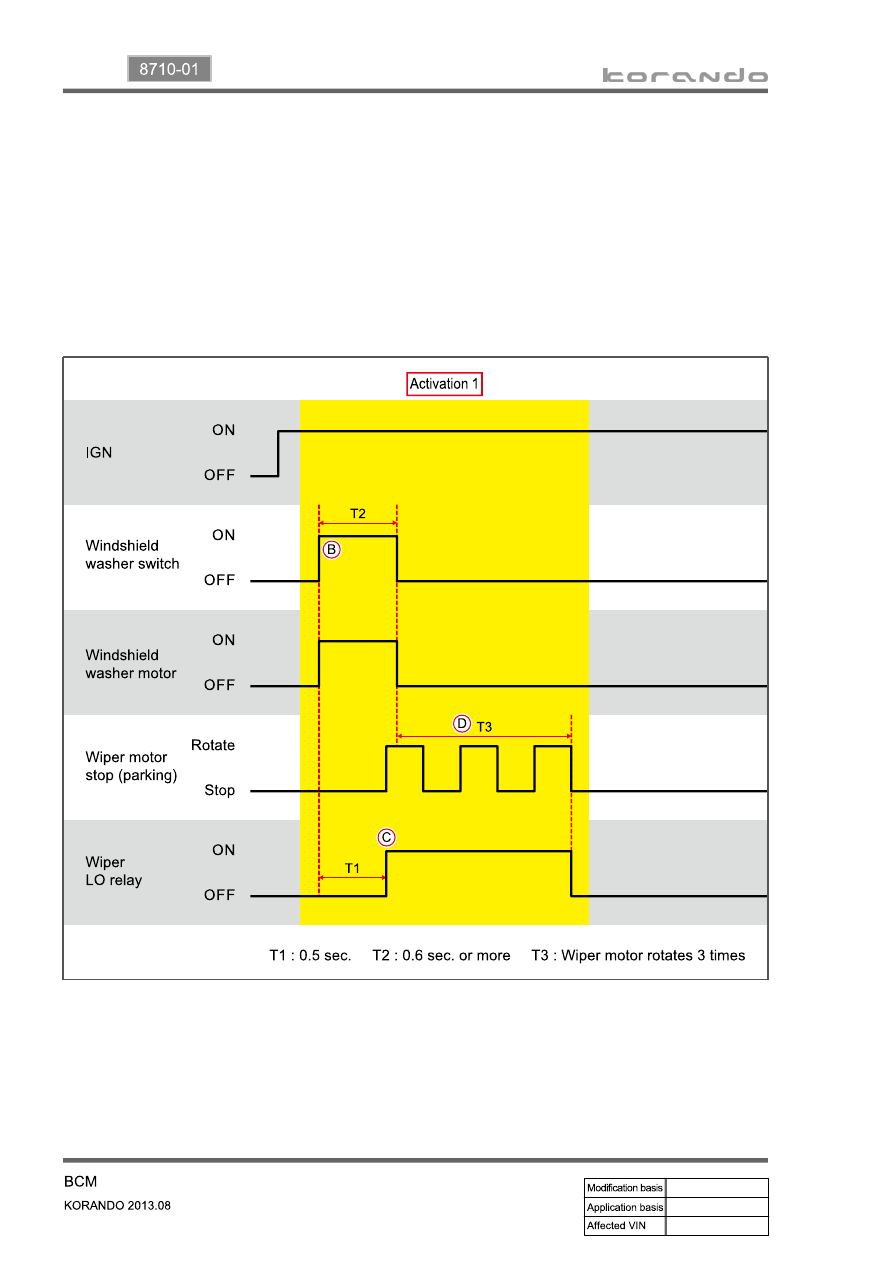

Windshield washer switch coupled windshield wiper operation

▶

The ignition is turned ON.

When the windshield washer switch is turned ON for 0.6 seconds or more (T2), the windshield

washer motor is activated.

The windshield wiper LO relay is activated 0.5 seconds (T1) after the windshield washer switch is

turned ON.

When the windshield washer switch is turned OFF, the windshield wiper LO relay is deactivated after

the windshield wiper motor rotates 3 times (T3).

A.

B.

C.

D.

Operation 1. (washer switch pressed for 0.1 to 0.59 seconds)

03-19

8710-01

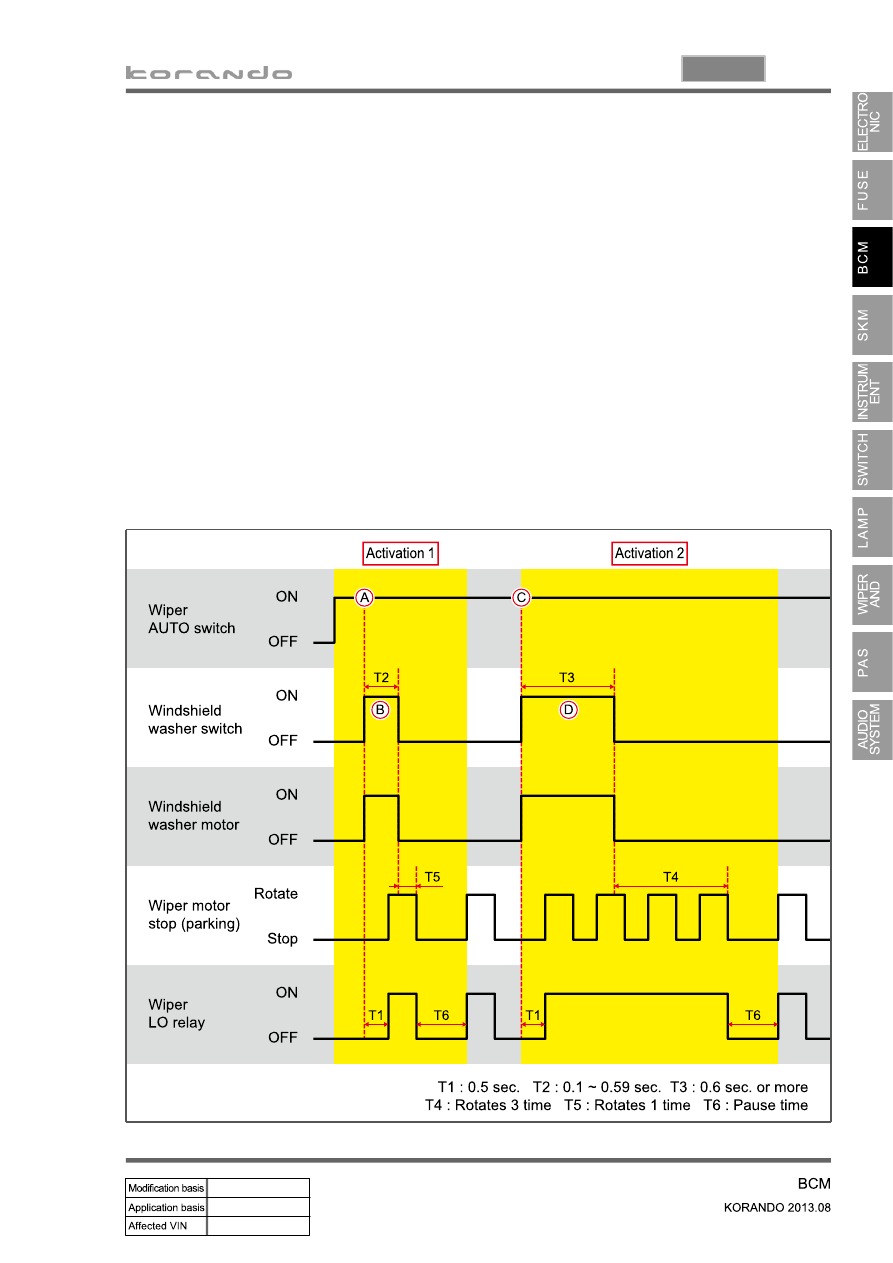

Windshield washer switch coupled windshield wiper operation (during intermittent

windshield wiper)

▶

The ignition is turned ON with the wiper AUTO switch ON.

The windshield wiper LO relay is activated 0.5 seconds (T1) after the windshield washer switch is

turned ON for less than 0.6 seconds (T2).

A.

B.

Operation 1. (windshield washer switch pressed for 0.1 to 0.59 seconds)

When the windshield washer switch is turned OFF, the windshield wiper LO relay is deactivated

after the windshield wiper motor rotates once (T5), and then the windshield wiper is operated

intermittently after the rest time (T6).

-

The ignition is turned ON with the wiper AUTO switch ON.

The windshield wiper LO relay is activated 0.5 seconds (T1) after the windshield washer switch is

turned ON for 0.6 seconds or more (T3).

C.

D.

Operation 2. (windshield washer switch pressed for 0.6 seconds or more)

When the windshield washer switch is turned OFF, the windshield wiper LO relay is deactivated

after the windshield wiper motor rotates 3 times (T4), and then the windshield wiper is operated

intermittently after the rest time (T6).

-
