03-12

1. OVERVIEW

BCM (Body Control Module) is a module that inputs/outputs data from various switches, sensors, and

other modules through the hard wire and CAN communication, and controls the body, electronic system,

and chassis of the vehicle.

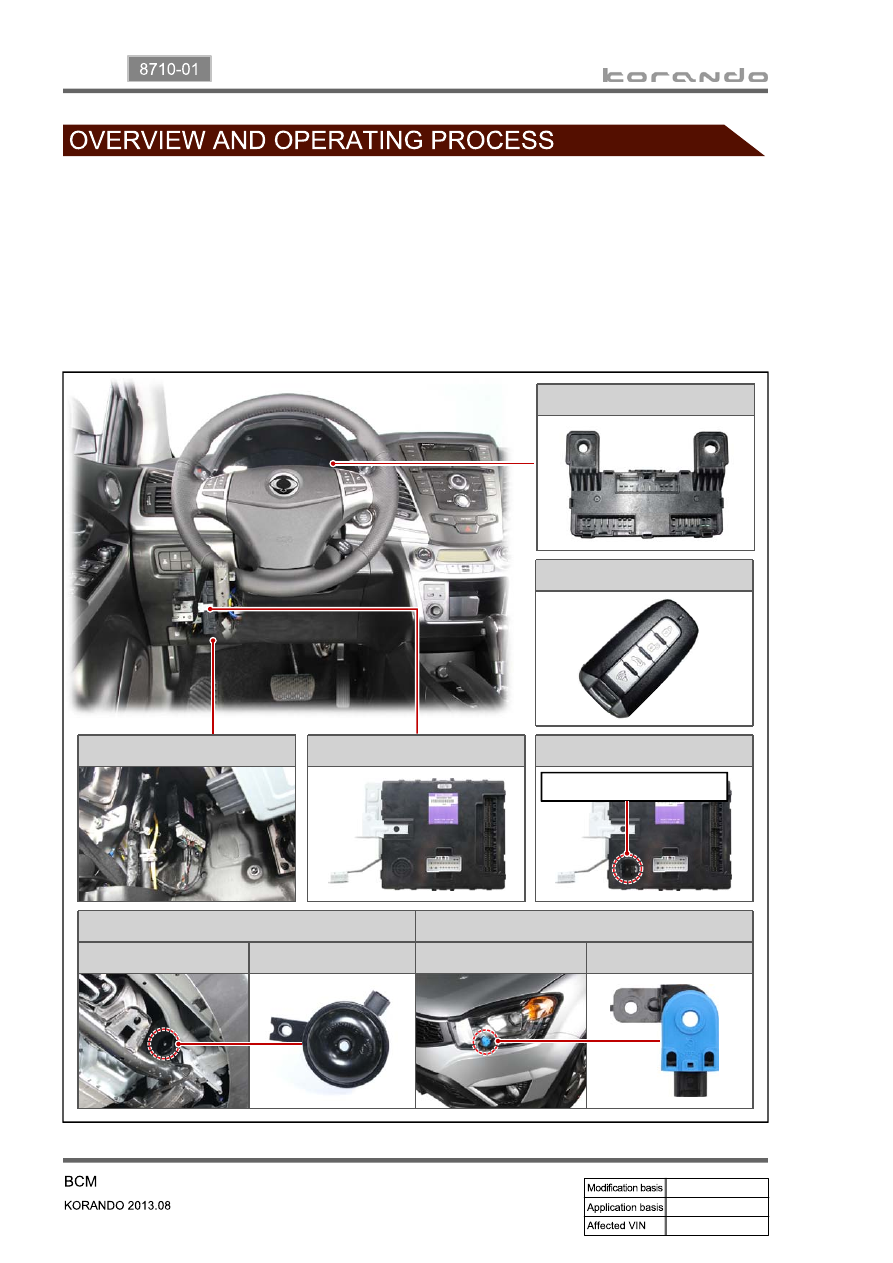

2. SYSTEM CONFIGURATION

1) Vehicles With SKM

SKM

BCM

Internal buzzer (chime)

Smart key

ICM box

Internal buzzer (chime)

Warning horn

External buzzer (SKM buzzer)

Mounting location

Component

Mounting location

Component

03-13

8710-01

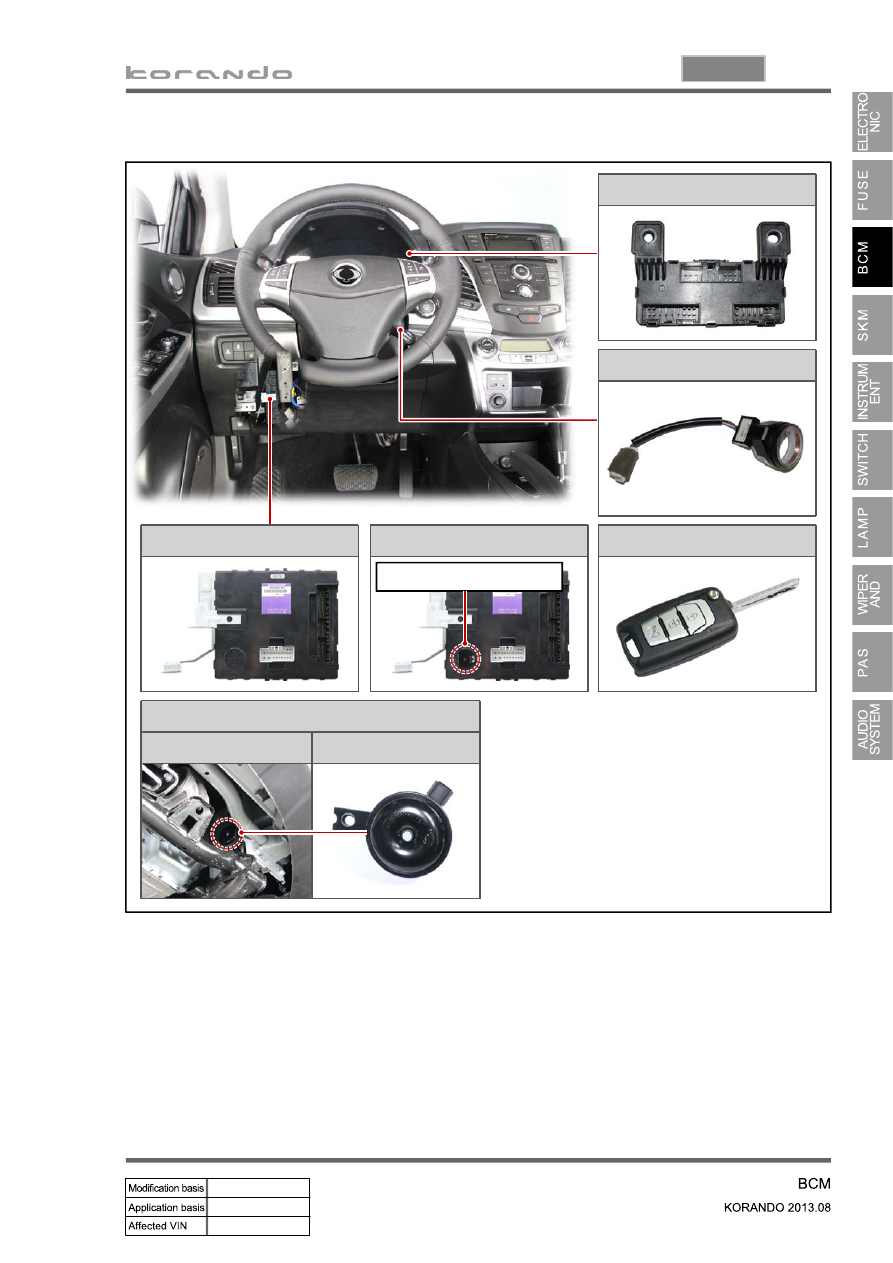

2) Without SKM

BCM

Internal buzzer (chime)

REKES key

Immobilizer

ICM box

Internal buzzer (chime)

Warning horn

Mounting location

Component

03-14

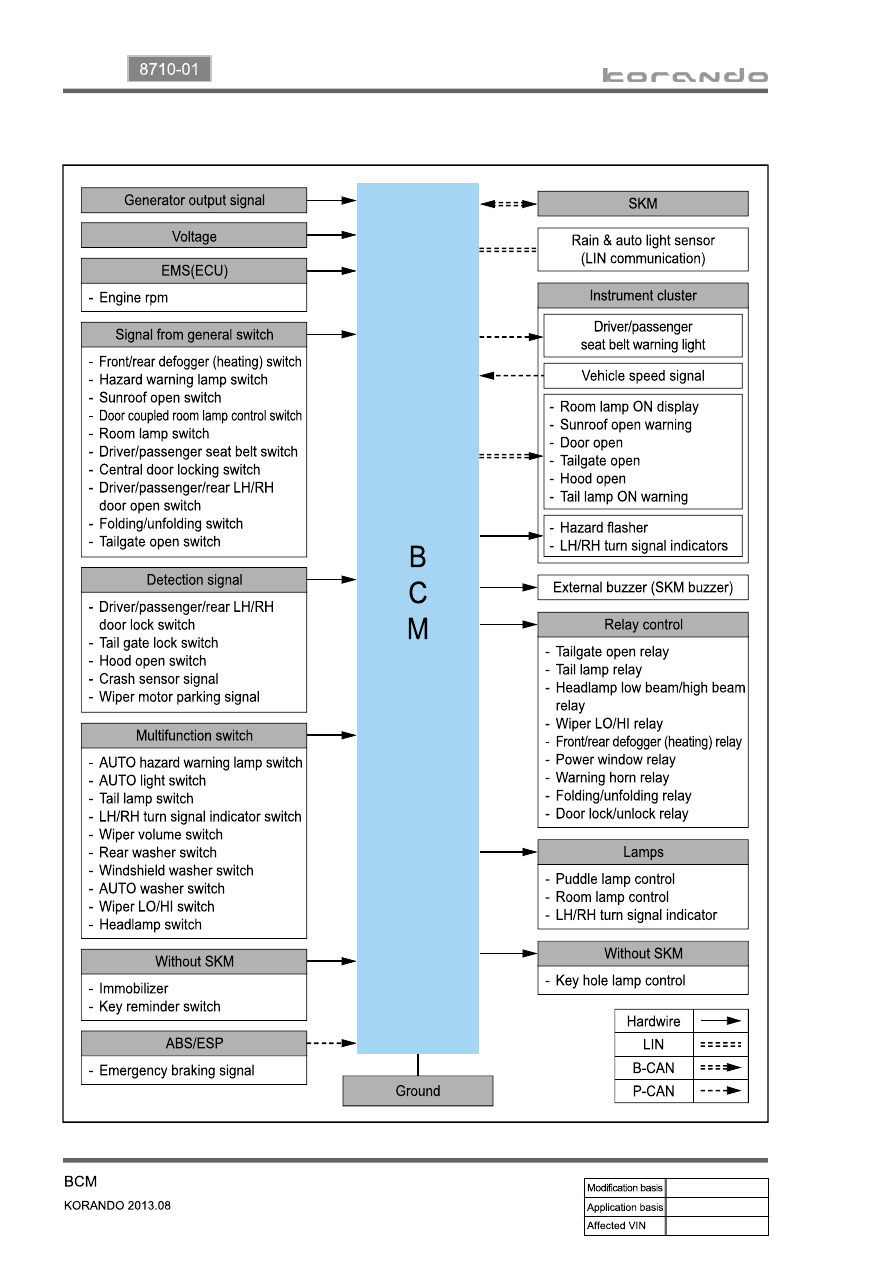

3. INPUTS AND OUTPUTS

03-15

8710-01

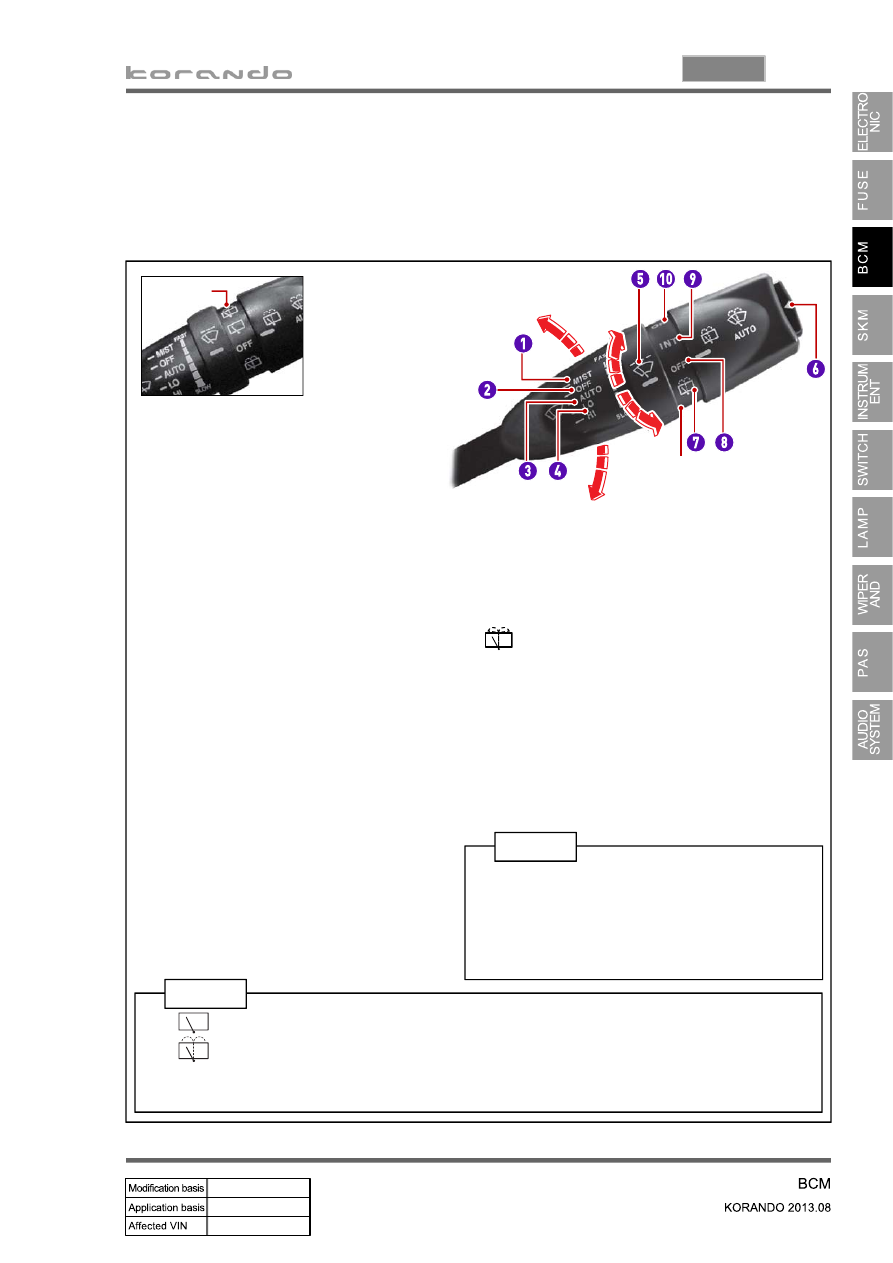

Windshield wiper and washer switch function

▶

The wiper system operates the wiper and washer using the signals from the multi-function switch, and

receives rain sensing signal from the rain sensor unit.

4. WIPER CONTROL

1. MIST

When the wiper switch is pulled up and

released, the wiper cycles once and then

returns to the park position.

-

2. OFF

Stops the windshield wiper operation.

-

3. AUTO

When the wiper switch is set to the AUTO

position, the wiper speed is adjusted

automatically according to the amount of

rain measured by the rain sensor mounted

on the windshield.

-

4. LO/HI

When the wiper switch is set to the LO

position, the wiper speed is decreased.

When the switch is set to the HI position, the

wiper speed is increased.

-

5. Wiper speed control switch

The wiper speed can be adjusted with this

switch as follows when the wiper switch is in

AUTO position.

* FAST: increases wiper speed

* SLOW: decreases wiper speed

-

6. AUTO washer switch

When the AUTO washer switch is pressed, the

washer fluid is sprayed once and the wiper is

operate 4 times. Then, the fluid is sprayed once

again with 3 wiping operations.

-

7.

When the switch is fully turned, washer fluid will

be sprayed onto the rear window glass and the

wiper will also operate. When the switch is
released, it will return to the “OFF” position

and turn off the wiper and washer.

-

8. OFF

Rear wiper is not in operation.

-

9.

Rear wiper operation (Intermittent)

-

10.

Rear wiper operation (Normal Speed)

-

Type B

Type A

TYPE A

TYPE B

Rear wiper operation

When the switch is fully turned, washer fluid will be sprayed onto the rear window glass

and the wiper will also operate. When the switch is released, it will return to the Rear

Wiper Operation mode and only the wiper will keep operating.

9. INT

10. ON
