3. MAJOR CHANGES

Changes for engine compartment fuse box

▶

8410-02

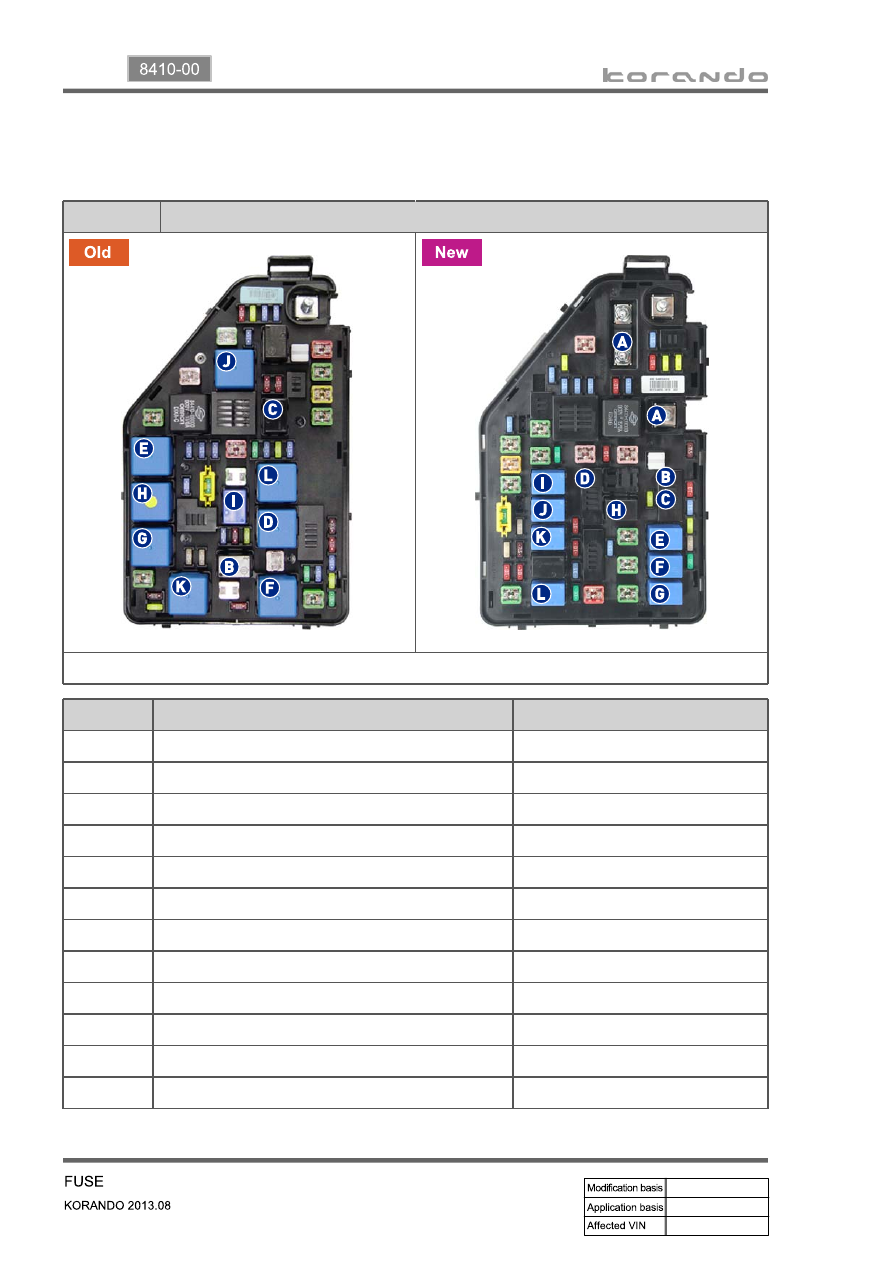

Engine compartment fuse box

- Changed layout

Name

Changes made

A

ALT terminal and fuse (150A)

Newly adopted

B

A/C compressor relay

Changed to PCB type

C

Headlamp high beam

Changed to PCB type

D

Rear glass/heated mirror relay

Changed to PCB type

E

Cooling fan high-speed relay

Changed to Micro type

F

Blower motor relay

Changed to Micro type

G

Cooling fan low-speed relay

Changed to Micro type

H

Cooling fan relay

Changed to Micro type

I

Fuel heater relay

Changed to Micro type

J

PTC1 heater relay

Changed to Micro type

K

Power window relay

Changed to Micro type

L

Starting relay

Changed to Micro type

02-7

8410-00

8410-02

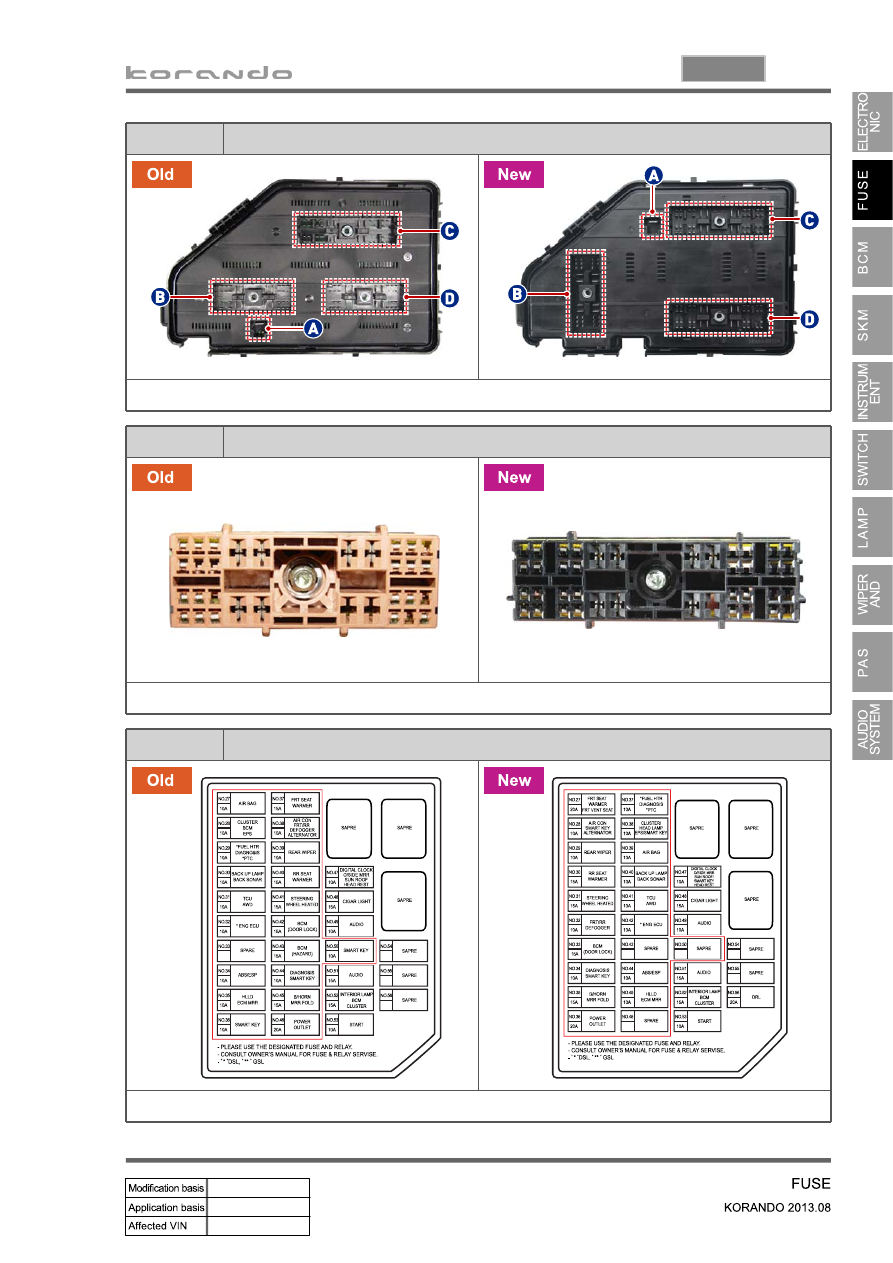

Changed connector position

- Change position of connectors A, B and D

8410-02

Changed connector D

- Connector D changed (32 pin → 40 pin)

8410-02

Interior fuse box

- Interior fuse box label changed

02-8

ICM box

Interior fuse box

Engine compartment

fuse box

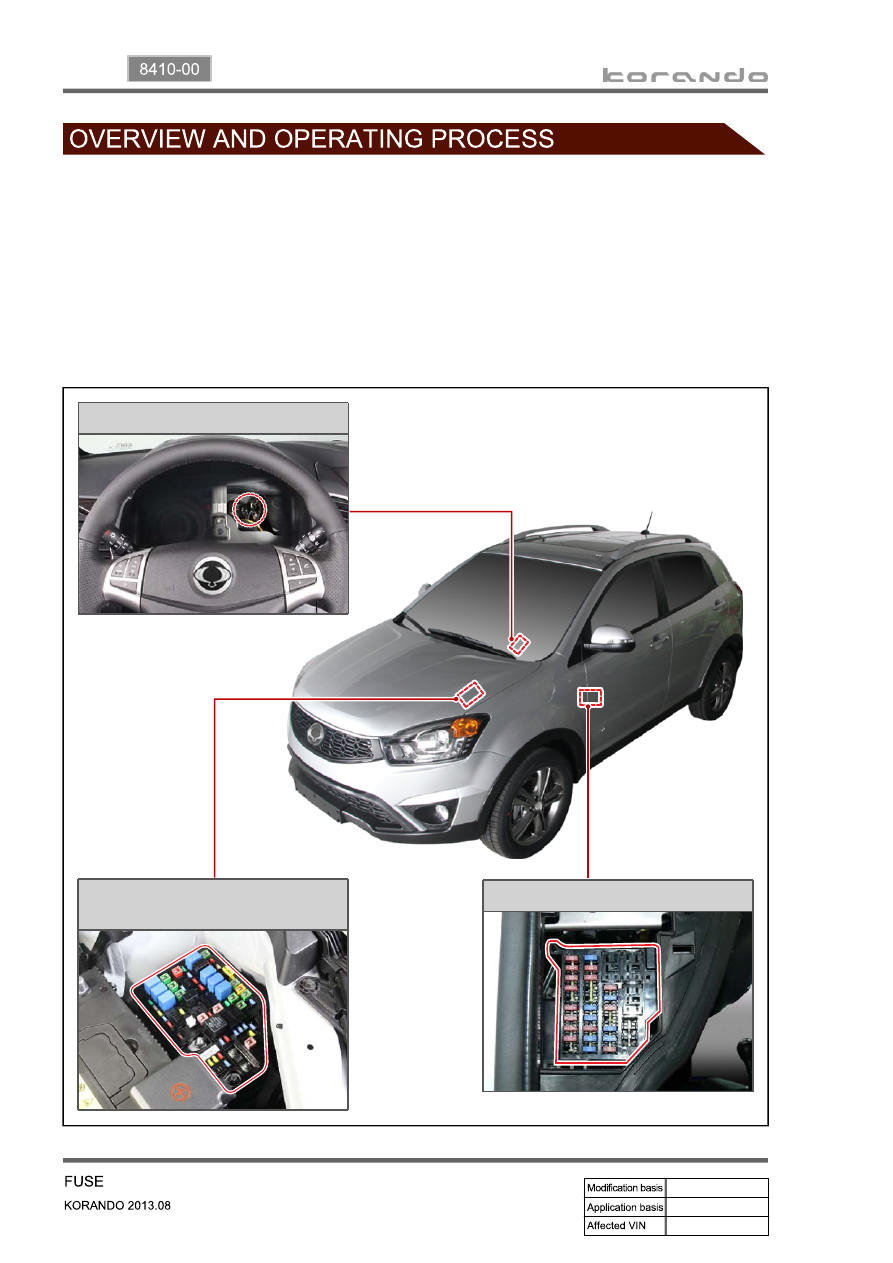

The fuse and relay boxes in this vehicle are mounted on the engine compartment, left side of the

instrument panel and rear of the instrument cluster (3 off in total). The capacities and its names for each

fuse and relay are marked on the each fuse and relay box cover.

The label attached on each fuse box indicates only major fuses and relays. For detailed information, see

the power distribution circuit diagram.

1. OVERVIEW

2. SYSTEM LAYOUT

03-3

8710-01

1. SPECIFICATIONS

Item

Conditions

Description

Rated voltage

13.5 V

Operating voltage

9.0 V to 16.0 V

(CAN communication: 7.0 V to 18.0 V)

Should be operated normally within
this range.

Operating

temperature

-30℃ ~ +80℃

Should be operated normally within
this range.

Storage temperature

-40℃ to +85℃

Max. operating

humidity

95%

Dark current

BCM without SKM: 7.0 mA or less

BCM with SKM: 4.0 mA or less

All switches turned OFF, Key
removed, entering sleep mode after
all doors are locked
