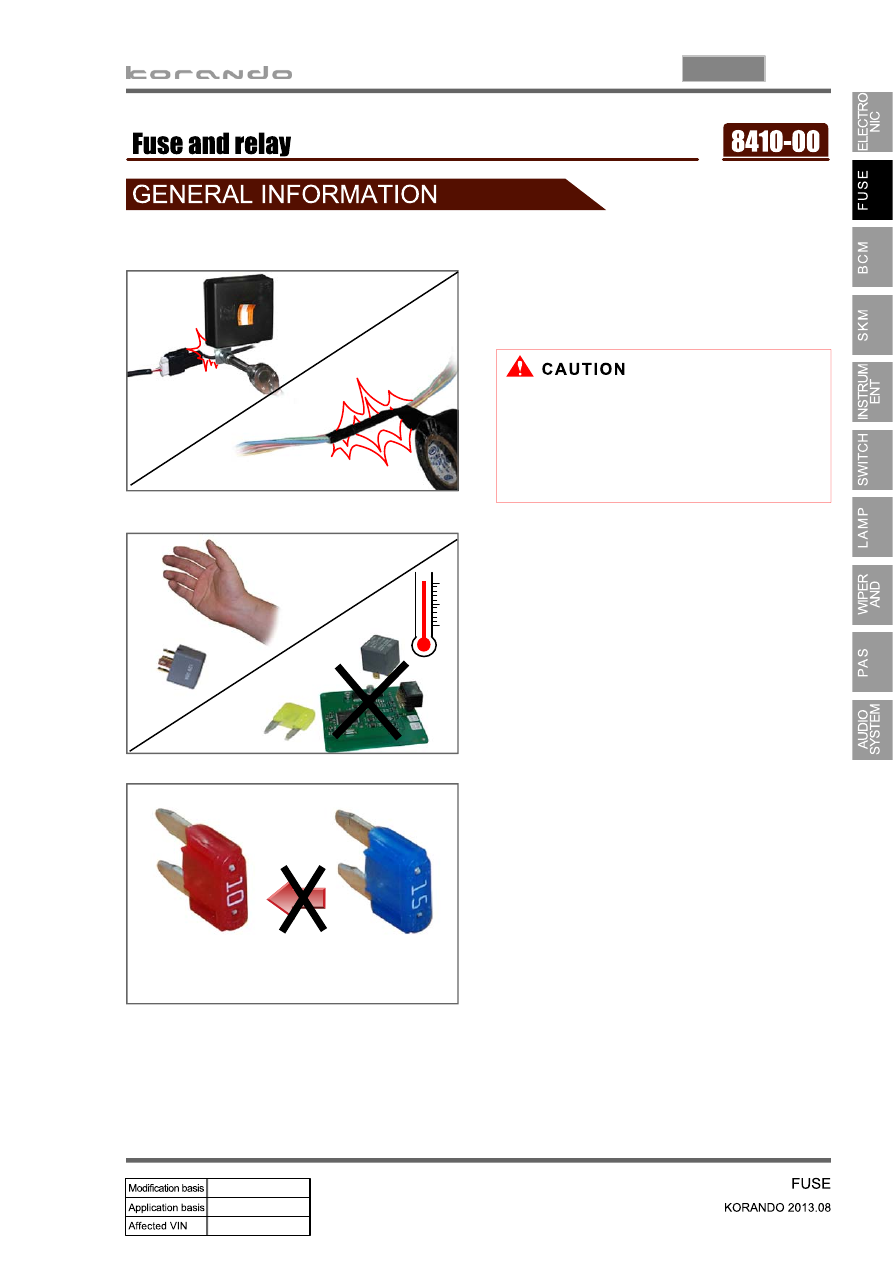

02-3

8410-00

1. CAUTIONS WHEN WORKING ON ELECTRICAL UNITS

Disconnect the negative cable from the battery

in advance when working on electrical units.

-

If a fuse is blown, replace it with a fuse which

has the correct amperage rating. If you use a

fuse with higher capacity than the

specification, the component can be

damaged or catch fire.

-

Do not drop or appy excessive impact to

sensors and relays.

-

80℃

10 A

15 A

Make sure to turn "OFF" the ignition switch

and other lamp switches before disconnecting

or connecting the negative battery cable.

(Otherwise, semiconductor parts can be

damaged.)

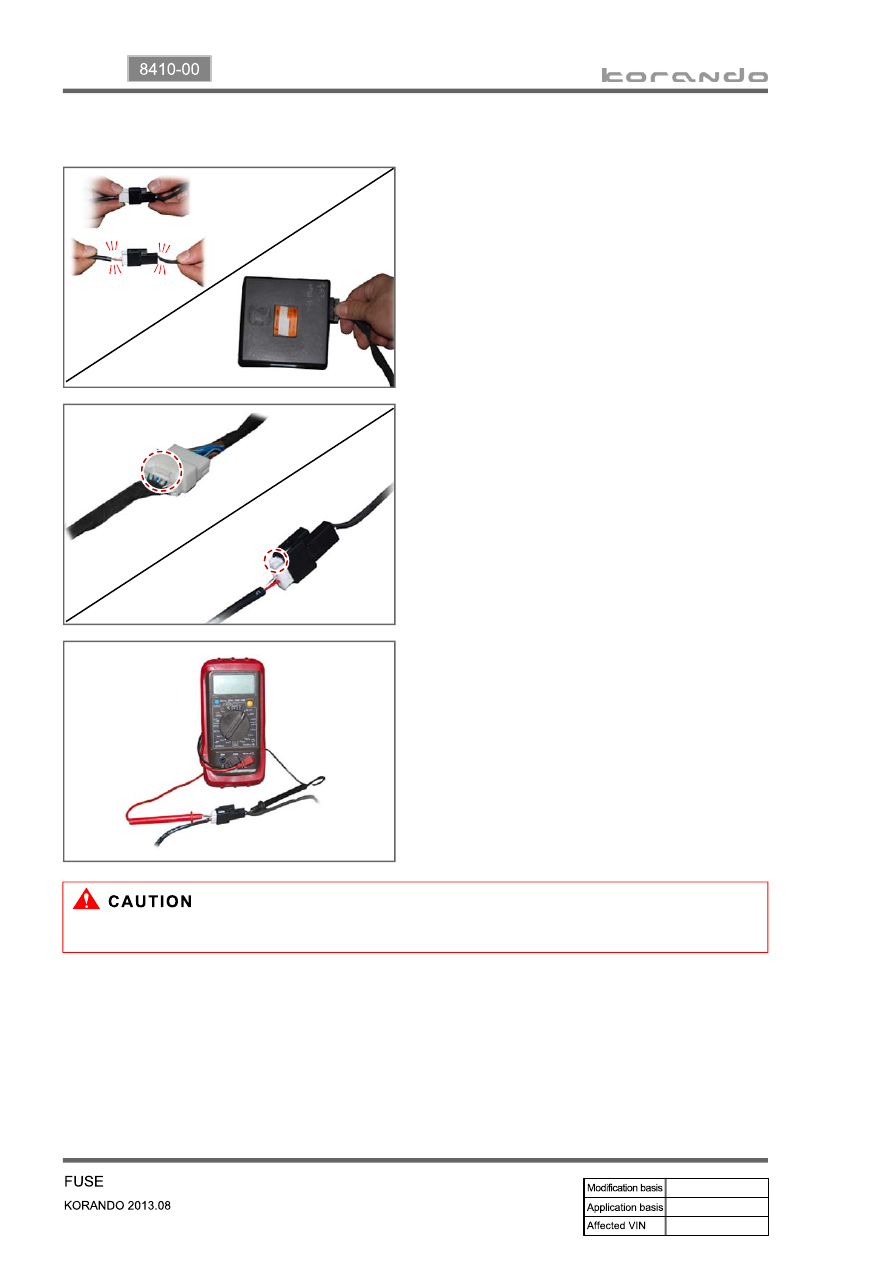

02-4

Make sure a connector is connected

securely. Loose connection results in

malfunction.

-

When disconnecting a connector equipped with

a lock, press it down to the direction in the below

figure.

-

When checking voltage or continuity of the

connector terminal with a circuit tester, connect

the tester probe to the terminal at the harness

side. For a sealed type connector, connect the

probe to the terminal through the hole in the

rubber cap of the wiring. Take care not to

damage the insulation of the wires. Insert the

probe until it contacts the terminal completely.

-

When inspecting the airbag system, make sure to use a diagnostic device, not a circuit tester.

02-5

8410-00

2. CHECKING CABLES AND WIRES

Check for loose connection or rust.

Check terminals and wires for corrosion due to electrolyte leakage.

Check terminals and wires for open circuit.

Check the wire insulation and coat for damage, cracks or deterioration.

Check if the conductive parts of the terminals do not contact with vehicle body or other metal parts.

Check that the grounding part has continuity with mounting bolts and vehicle body.

Check that wires are properly routed.

Make sure that wires are securely fixed to avoid contact with sharp body parts and high-temperature

parts, such as the exhaust manifold and exhaust pipes.

The rotating parts, such as fan pulley and fan belt, perturbative parts and wiring should be secured

tightly at regular intervals.

Secure the wiring between the fixed parts, such as the vehicle body, and vibrating parts, such as the

engine, after slackening it slightly to prevent it from being damaged.

-

-

-

-

-

-

-

-

-

-
