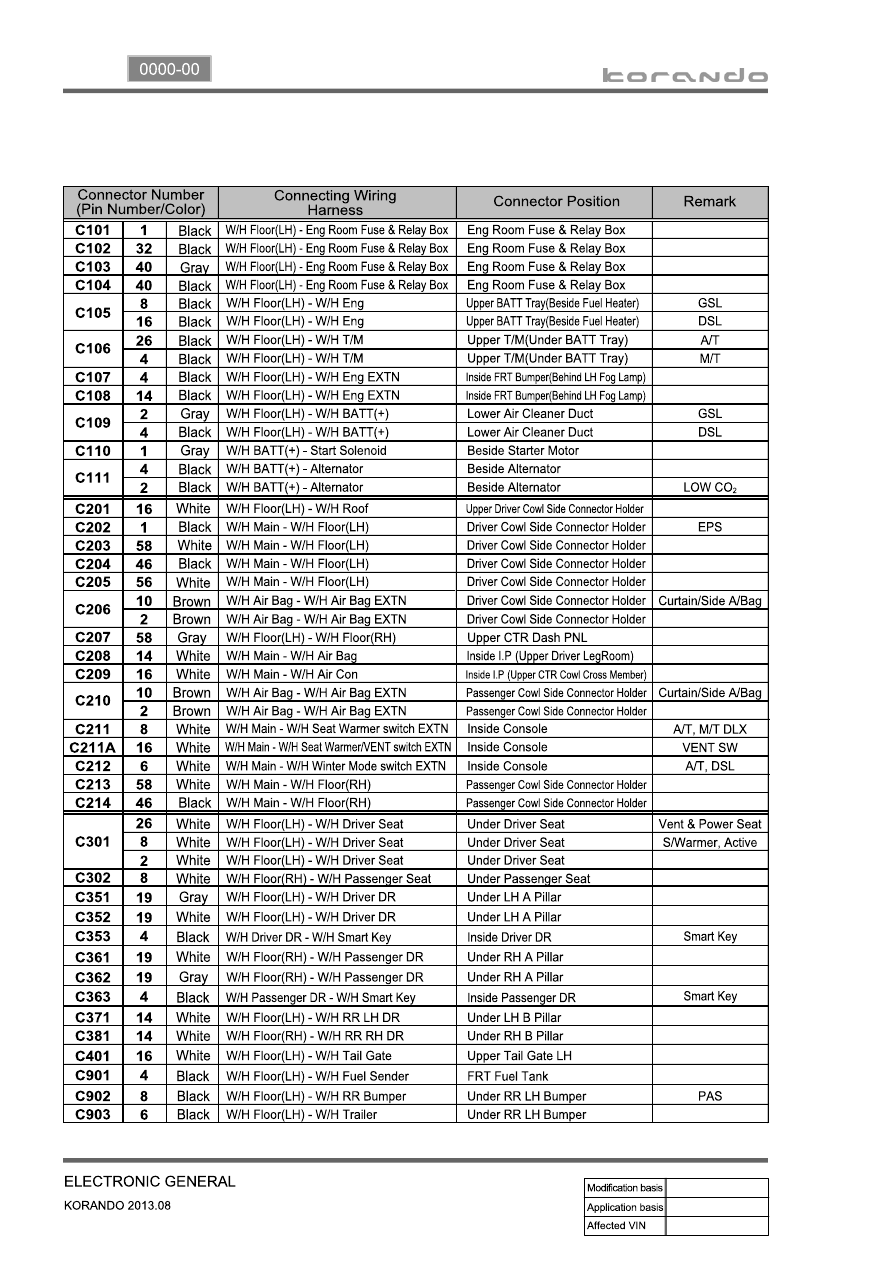

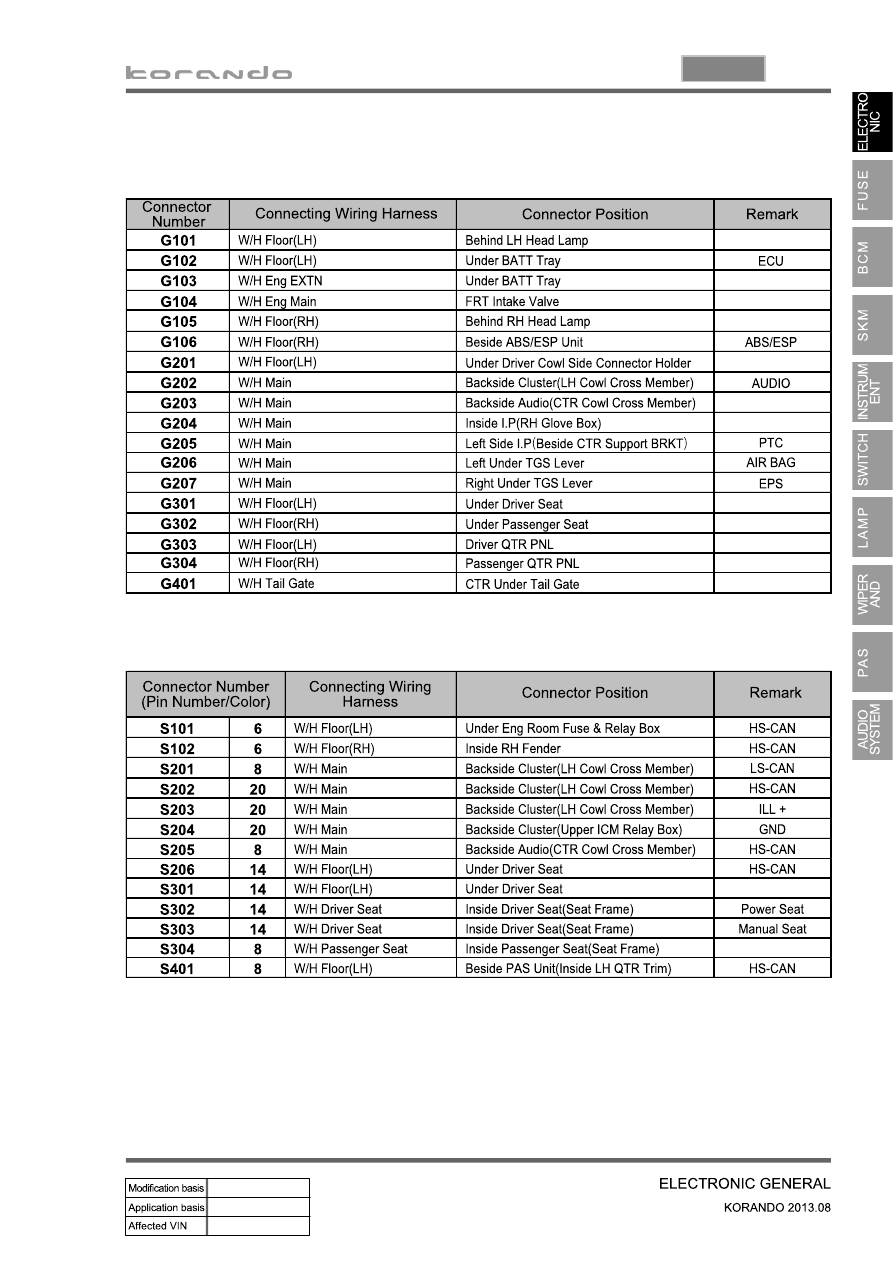

3) Connector, Ground And Splice Pack

Connector

▶

01-13

0000-00

Ground

▶

Splice pack

▶

01-14

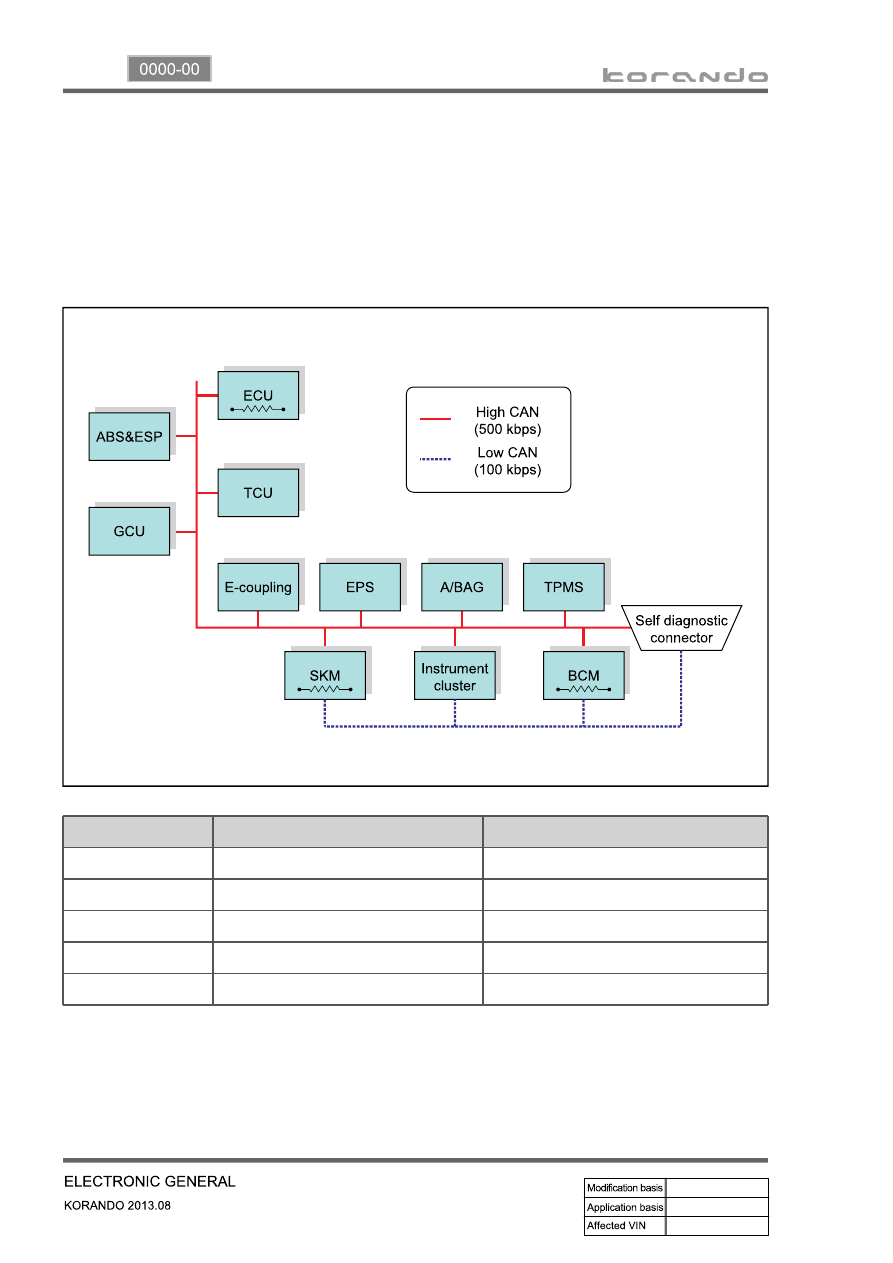

5. CAN COMMUNICATION CONFIGURATION

The CAN topology is linked with CAN communication system, which consists of P-CAN and B-CAN.

The instrument cluster and BCM (Body Control Module) communicate through both P-CAN and B-CAN

at the same time, and the SKM (SMART Key Module) communicates with the instrument cluster and

BCM through B-CAN.

1) CAN Configurations (P-CAN/B-CAN)

Abbreviations

Meaning

Function

GCU

Glow Control Unit

Glow Control Unit

EPS

Electronic Power Steering Unit

Electronic Power Steering Unit

BCM

Body Control Module

Body Control Module

SKM

Smart Key Module

Smart Key Module

TPMS

Tire Pressure Monitering System

Tire Pressure Monitering System

01-15

0000-00

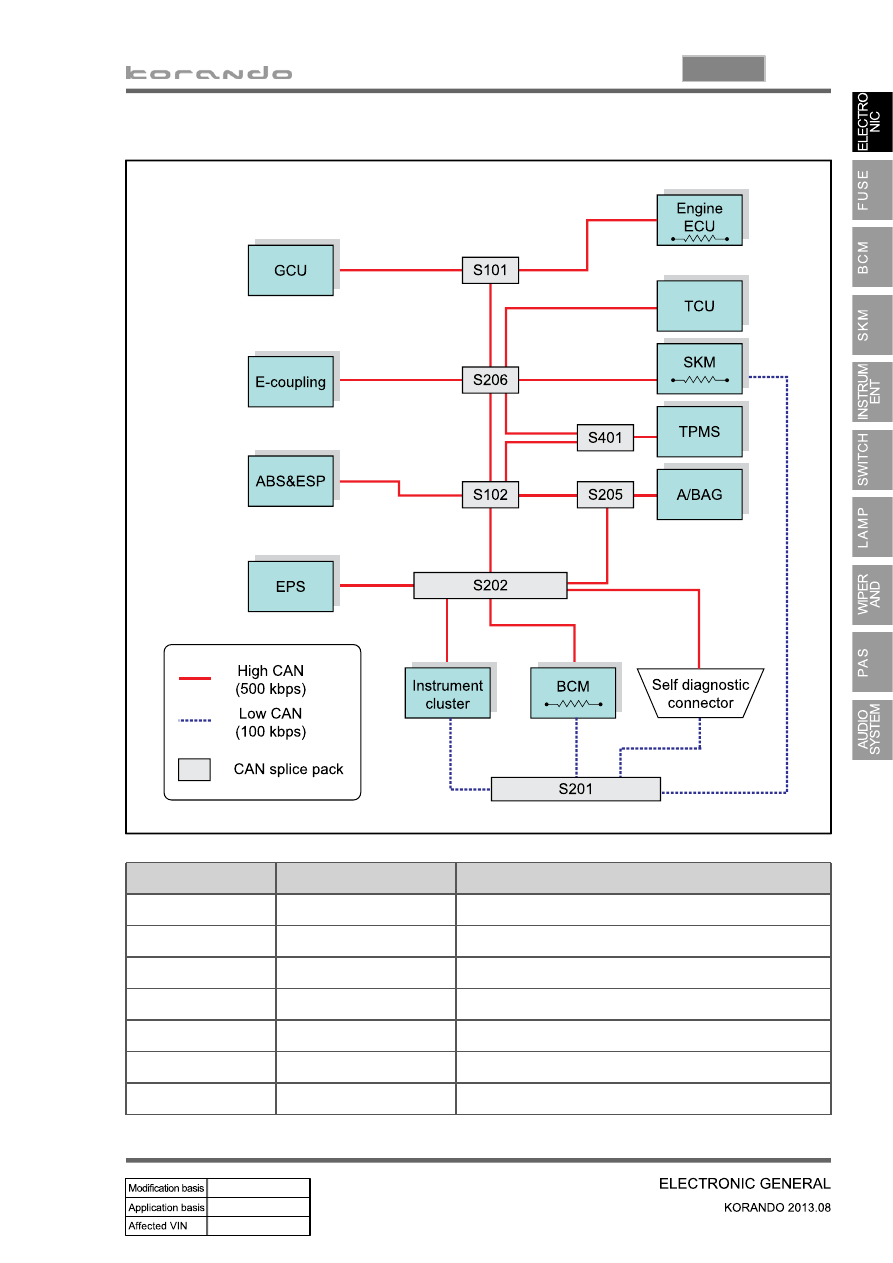

2) CAN Communication Wiring Diagram

Splice pack

Wiring

Location

S101

W/H Floor (LH)

Glow Control Unit

S102

W/H Floor (RH)

Inside RH Fender

S202

W/H Main

Backside Cluster (LH Cowl Cross Member)

S204

W/H Main

Backside Cluster (Under ICM Relay Box)

S205

W/H Main

Backside Audio (CTR Cowl Cross Member)

S206

W/H Floor (LH)

Under Driver Seat

S401

W/H Floor (LH)

Beside PAS Unit (inside LH QTR Trim)
