06-10

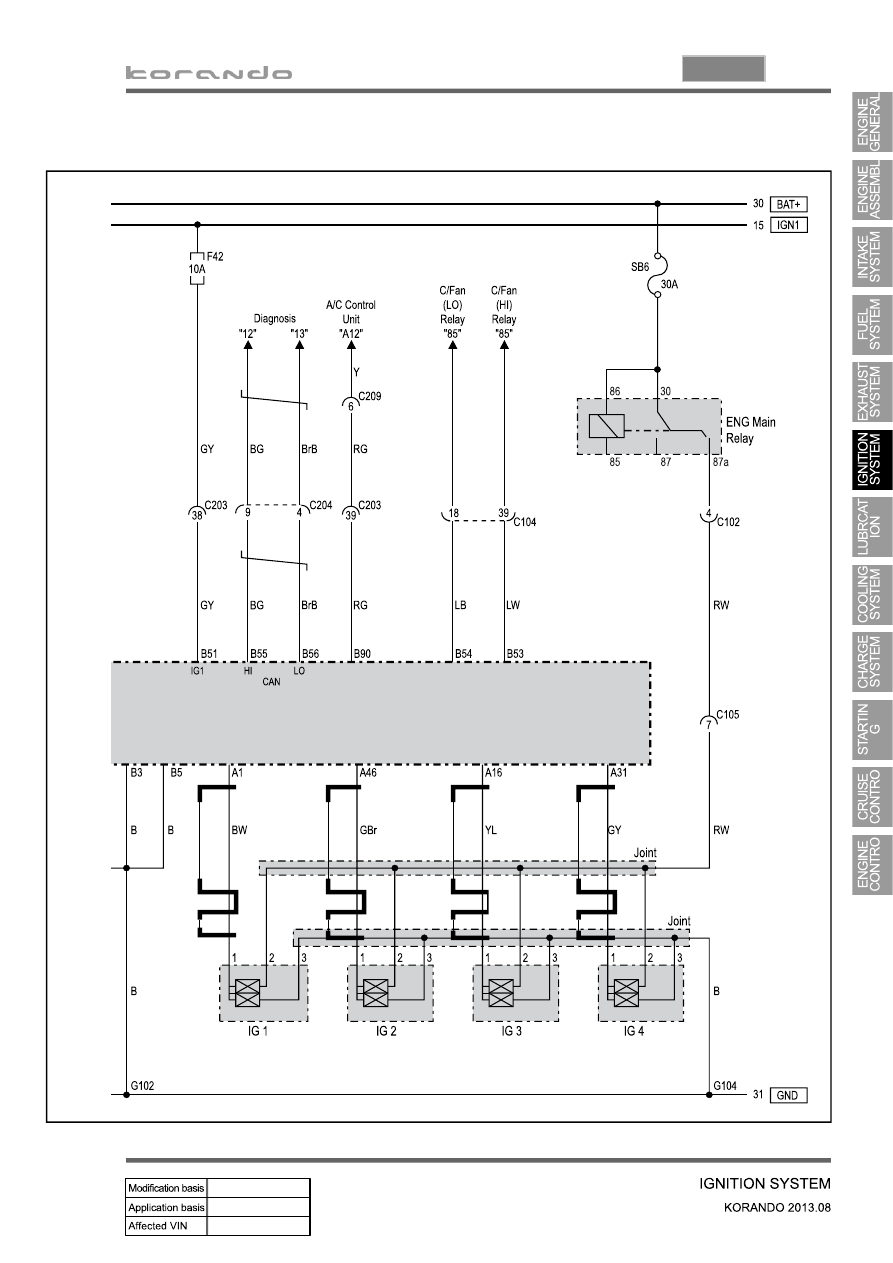

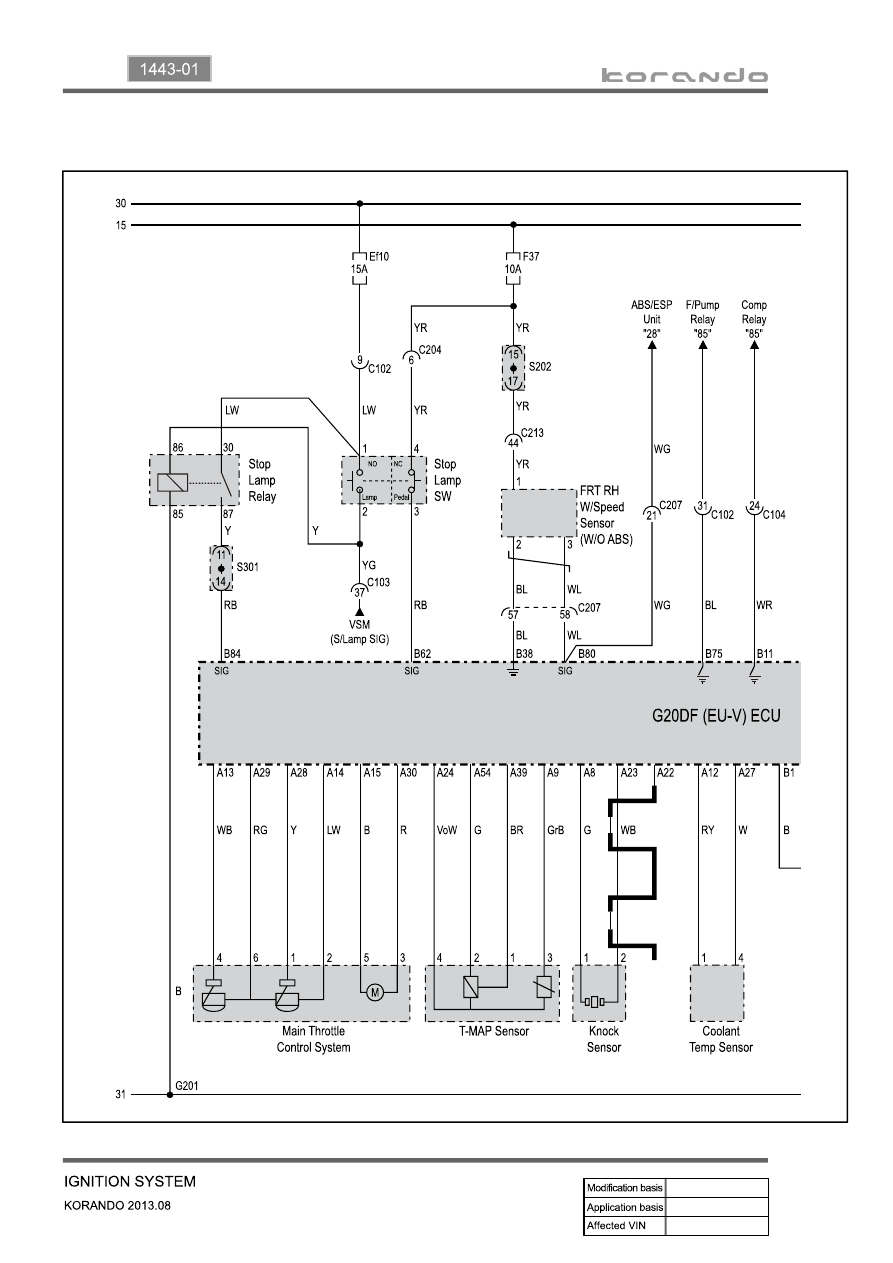

4. CIRCUIT DIAGRAM

06-11

1443-01

07-3

1535-01

1. SPECIFICATION

Description

Specification

Oil pump

Lubrication type

Gear pump, forced circulation

Type

Internal gear

Oil filter

Type

Full flow/Paper element

Engine oil

Oil

Quality class: Ssangyong genuine engine oil

(Approved by MB 229.51 SAE 5W30)

Capacity

4.5 L

Oil injection nozzle

Type

Flange and bolt type

Regularly check the engine oil level and add the engine oil if necessary.

Remember to check the engine oil level and shorten the cycle to replace the engine oil under

severe driving conditions.

-

-

The engine oil filter element should be changed at the same time with the engine oil.

Frequent stop-and-go traffic, extended idling, short driving distance below 6 km, driving distance

below 16 km when the outside temperature remains below freezing

Driving in a hilly or mountainous terrain, sandy, or dusty area

High load driving such as trailer towing

Taxi, patrol service or delivery service (extended idling and excessive driving with low speed)

-

-

-

-

Severe Driving Condition?
