05-10

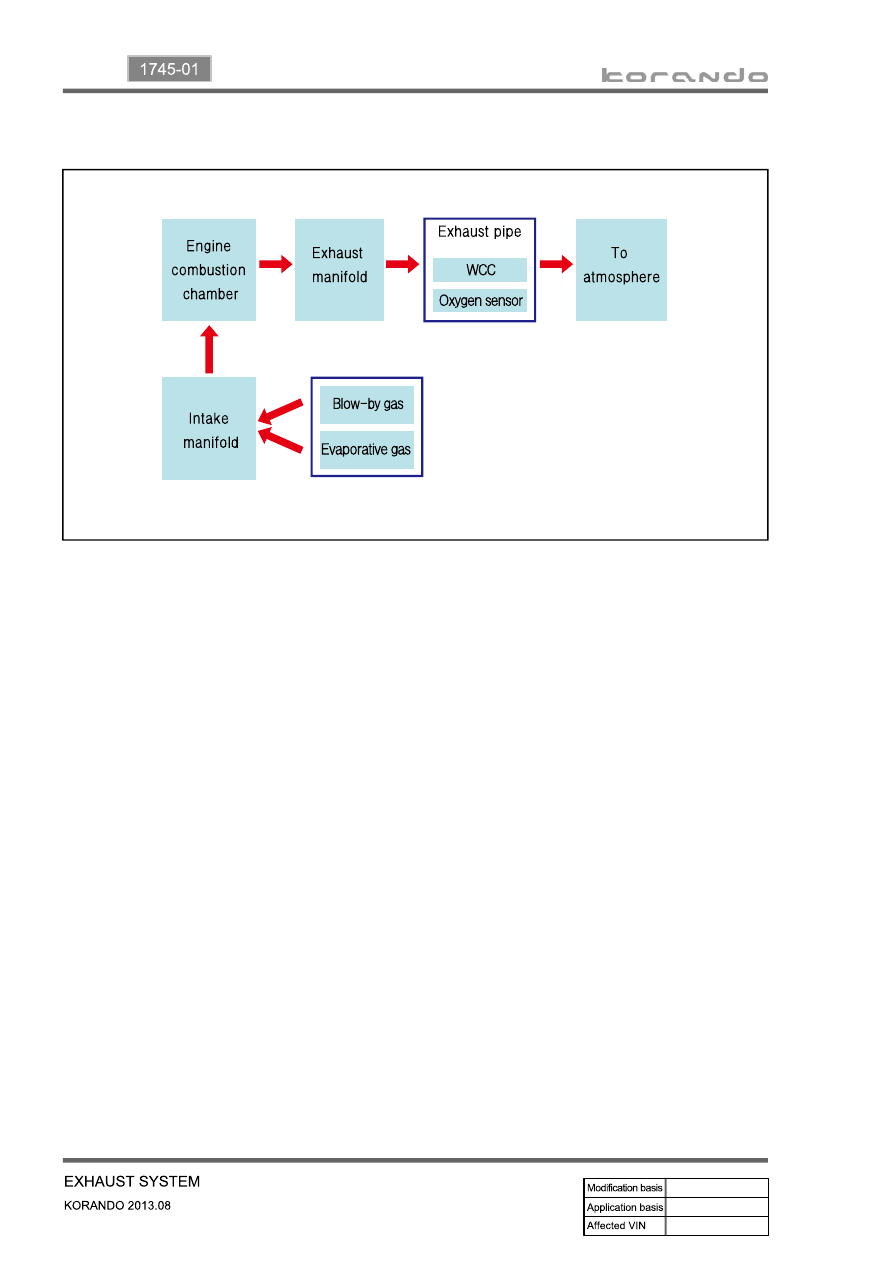

3. WORK FLOW IN EXHAUST SYSTEM

05-11

1745-01

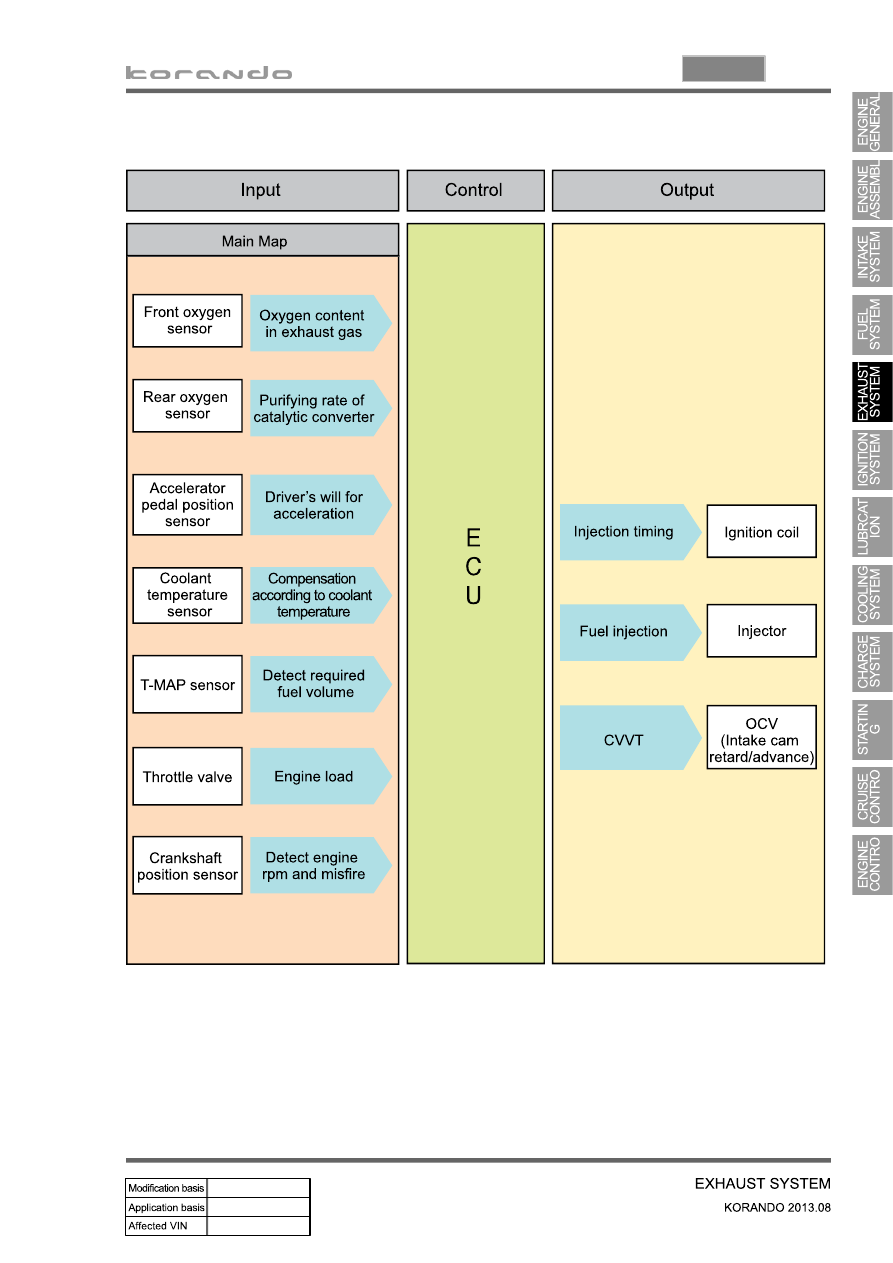

4. INPUT/OUTPUT DEVICES

06-3

1443-01

1. SPECIFICATION

Description

Specification

Spark plug

Internal resistance

3 ~ 7 kΩ

Center electrode

Iridium alloy

Ground electrode

Platinum alloy

Electrode clearance

1.1 mm

Change interval

160,000 km

Ignition coil

Primary operating current

7 ± 0.5A

Generated voltage

(primary/secondary)

Max. 400 V / 5~20 kV

Ignition type

Independent ignition type

Ignition sequence

1-3-4-2

06-4

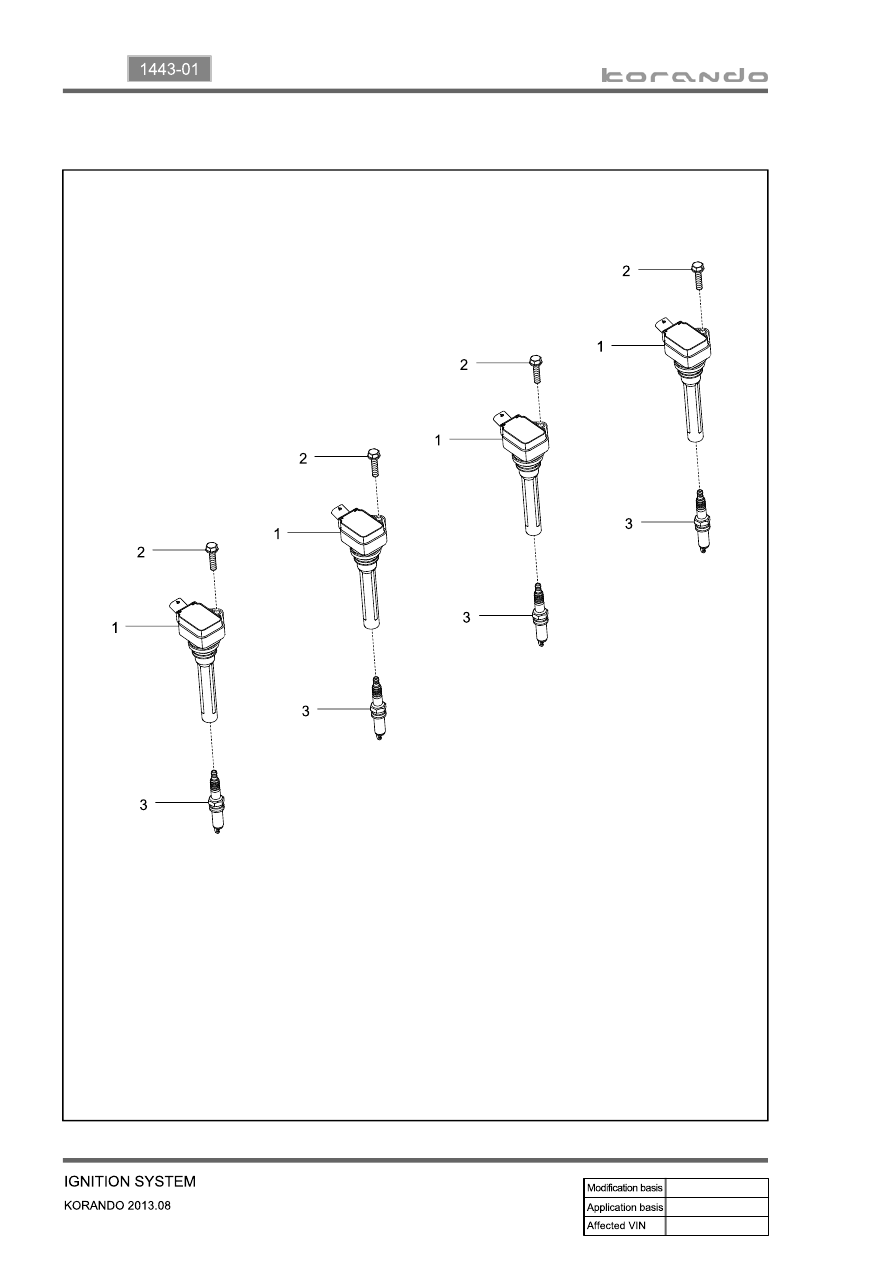

2. LAYOUT

Ignition Coil

Bolt

Spark Plug

1.

2.

3.
