4. INPUT/OUTPUT DEVICES

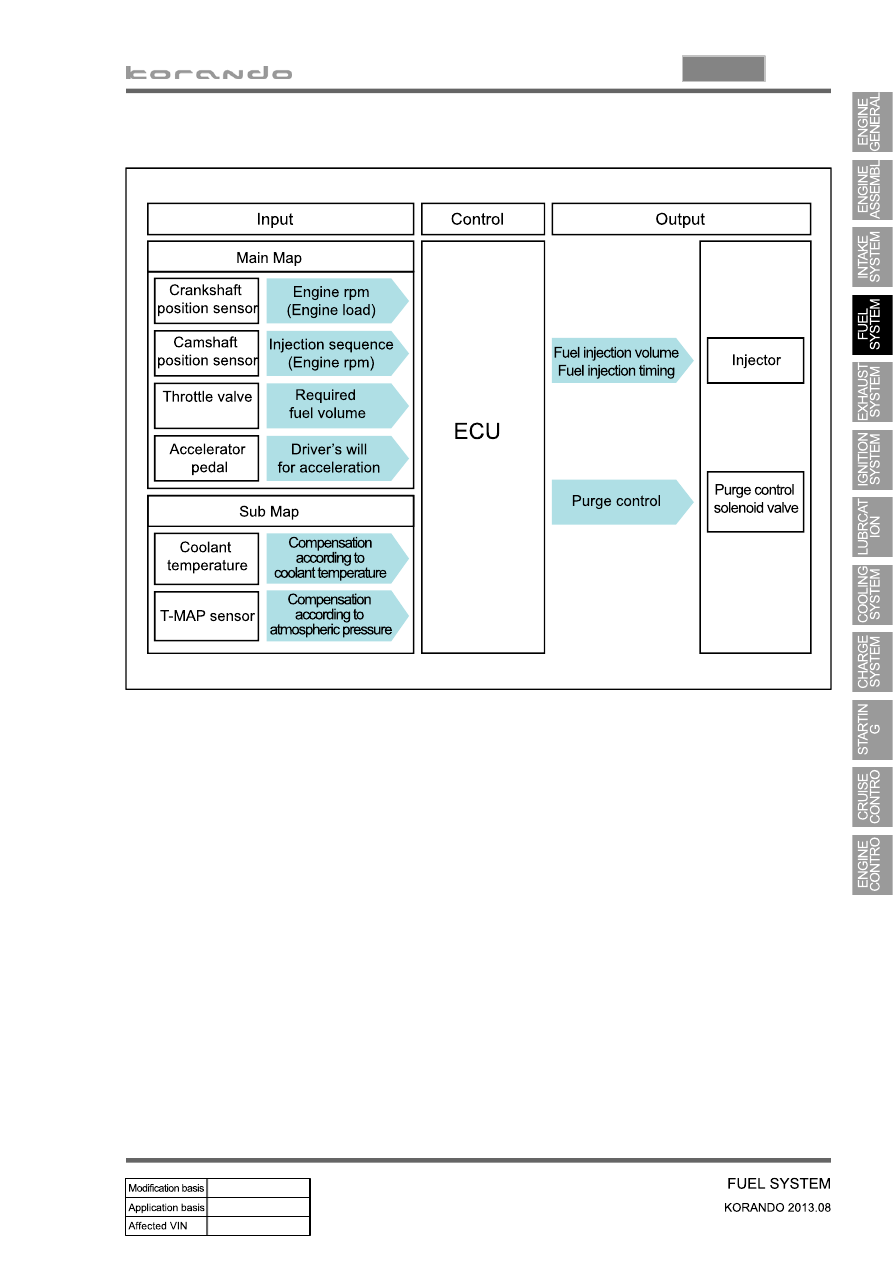

The engine ECU calculates the accelerator pedal based on the input signals from various sensors, and

controls the overall operation of the vehicle.

The ECU receives the signals from various sensor through data line, and performs effective airfuel ratio

control based on these signals.

05-3

1745-01

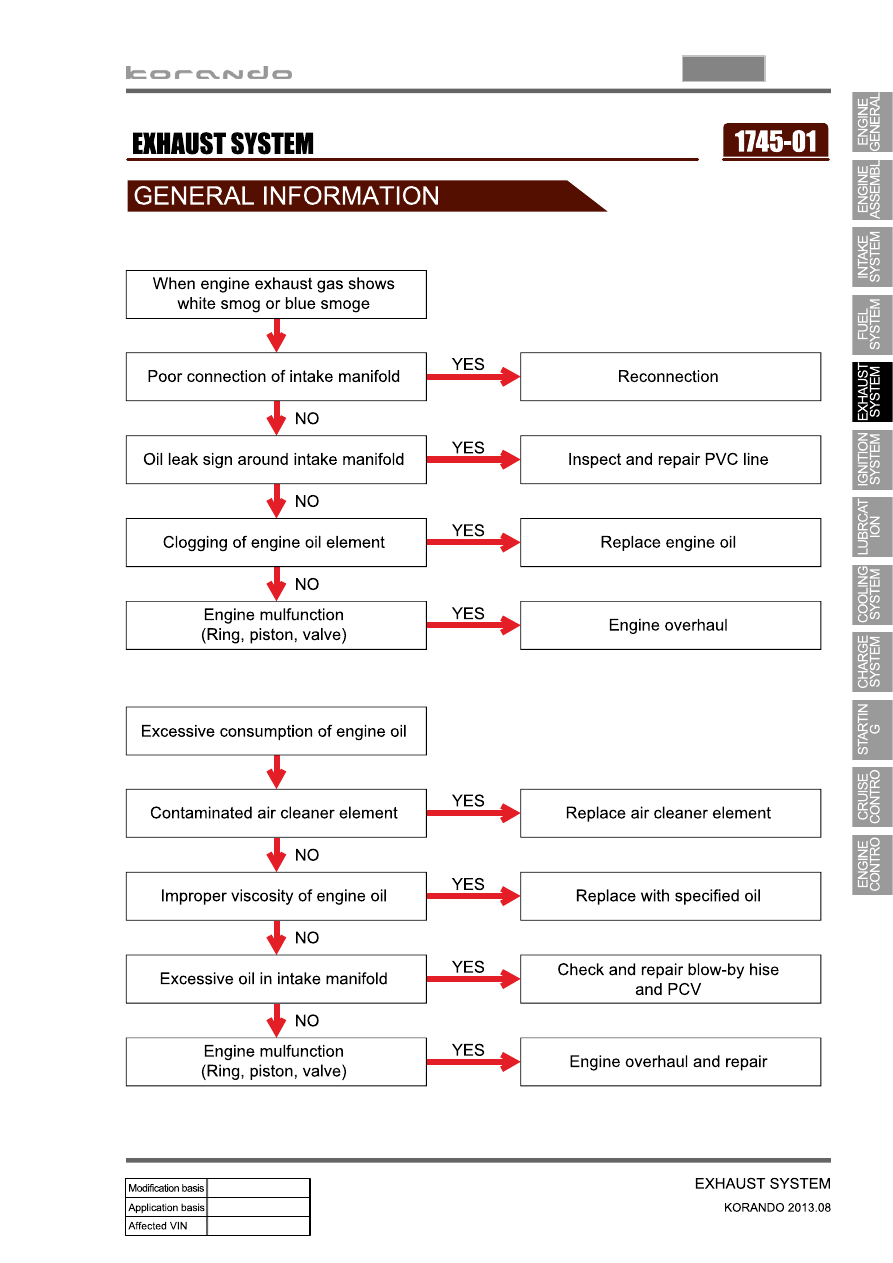

1. TROUBLESHOOTING

05-4

2. LAYOUT

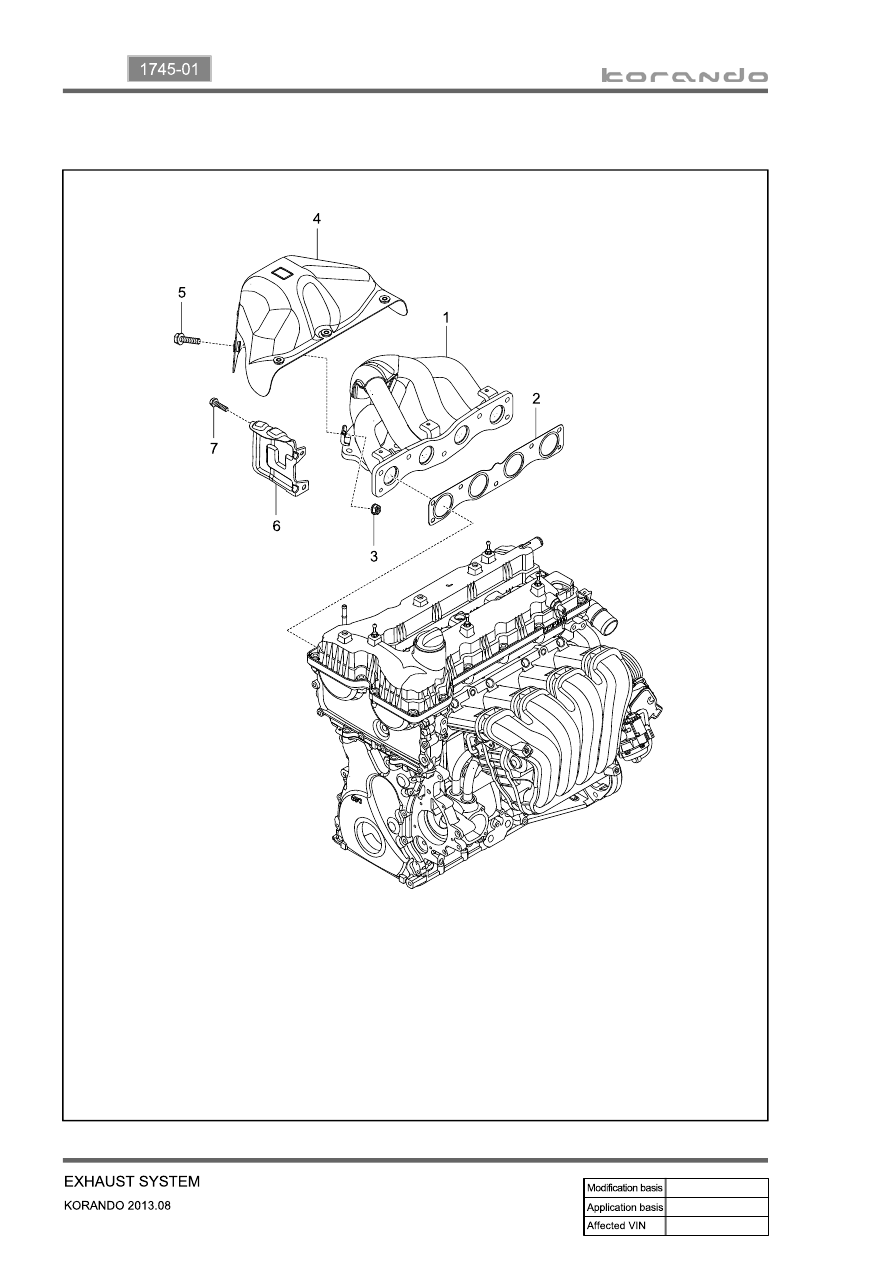

Exhaust Manifold Assy

Exhaust Manifold Gasket

Hex Flange Nut

Heat Protector Assy

Hex Bolt (M6 X 1 X 25)

Heat Protector Assy

Hex Bolt (M8 X 1.25 X 16)

1.

2.

3.

4.

5.

6.

7.

05-5

1745-01

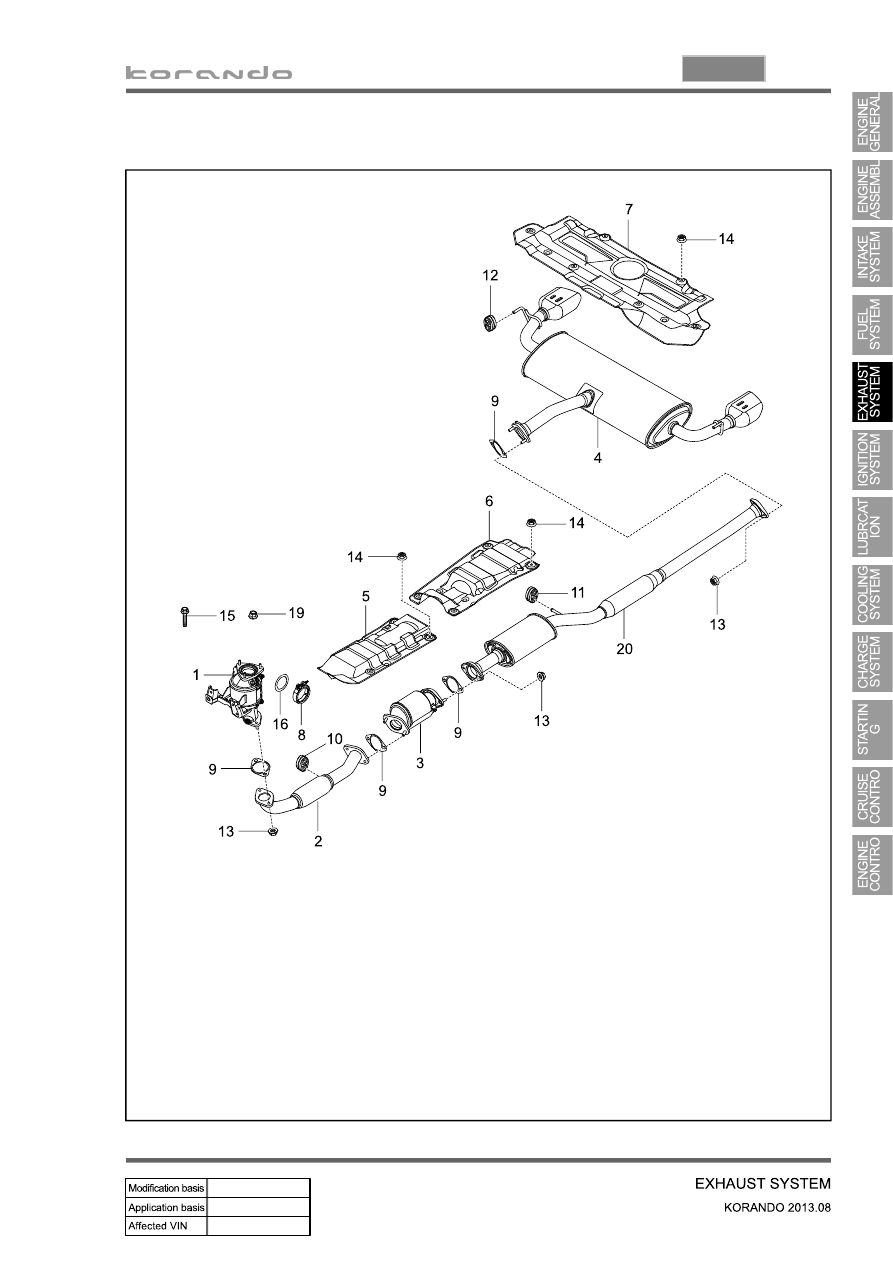

WCC Compl

Exhaust FRT Pipe Assy

UCC Compl

Muffler Complete ?RR

Exhaust FRT Heat Protector

CTR Muffler Heat Protector

RR Muffler Heat Protector

Clamp

Gasket

1.

2.

3.

4.

5.

6.

7.

8.

9.

Hanger

Hanger

Hanger

Nut

Nut

Bolt

Gasket Ring

Nut

CTR Muffler Complete

10.

11.

12.

13.

14.

15.

16.

19.

20.
