03-8

Fuel pump and fuel sender assembly

2. COMPONENTS

Canister

Fuel filter

Fuel tank assembly

Primary fuel

sender

Fuel tank assembly

Fuel neck hose

Canister

Fuel filter

03-9

2221-01

Engine ECU

Engine compartment

Injector

Purge control solenoid

valve

Fuel rail

Secondary fuel sender

03-10

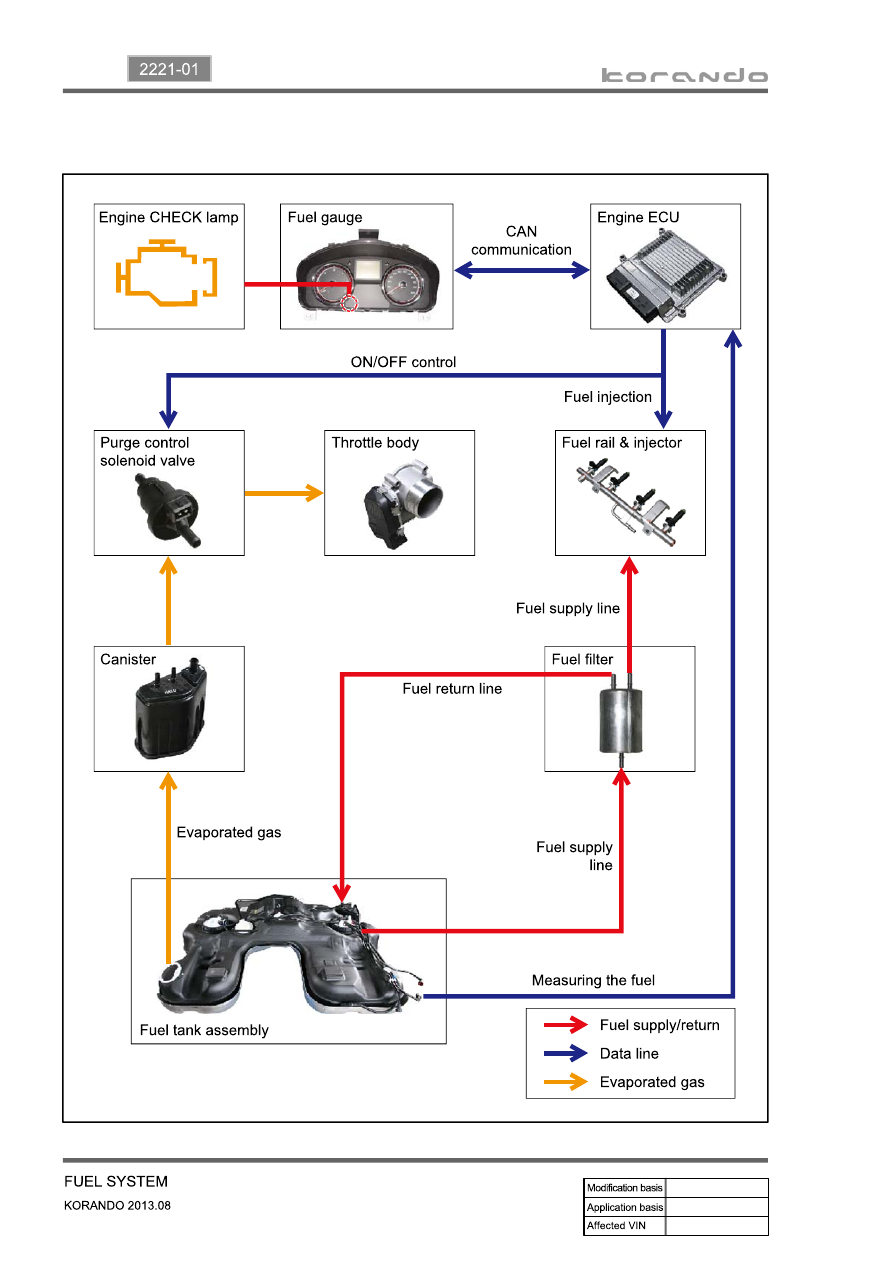

3. SCHEMATIC DIAGRAM OF FUEL FLOWS
