04-7

0000-00

Purge control solenoid

valve

Blow-by hose

PCV valve

Electronic throttle body

Air cleaner element

04-8

When Long Runner is operating

When Short Runner is operating

3. OPERATING PROCESS

Intake air flows

04-9

1740-01

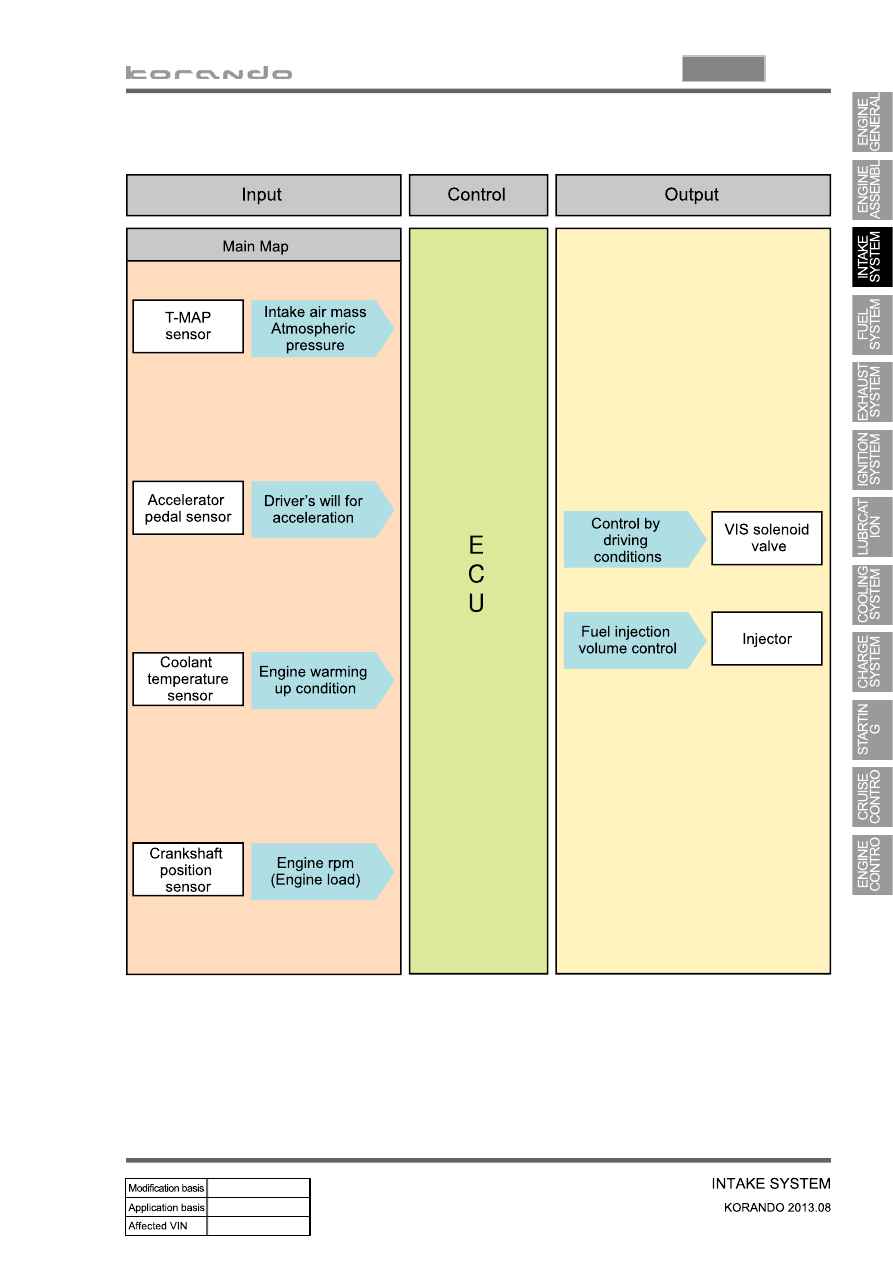

4. INPUT/OUTPUT DEVICES

04-10

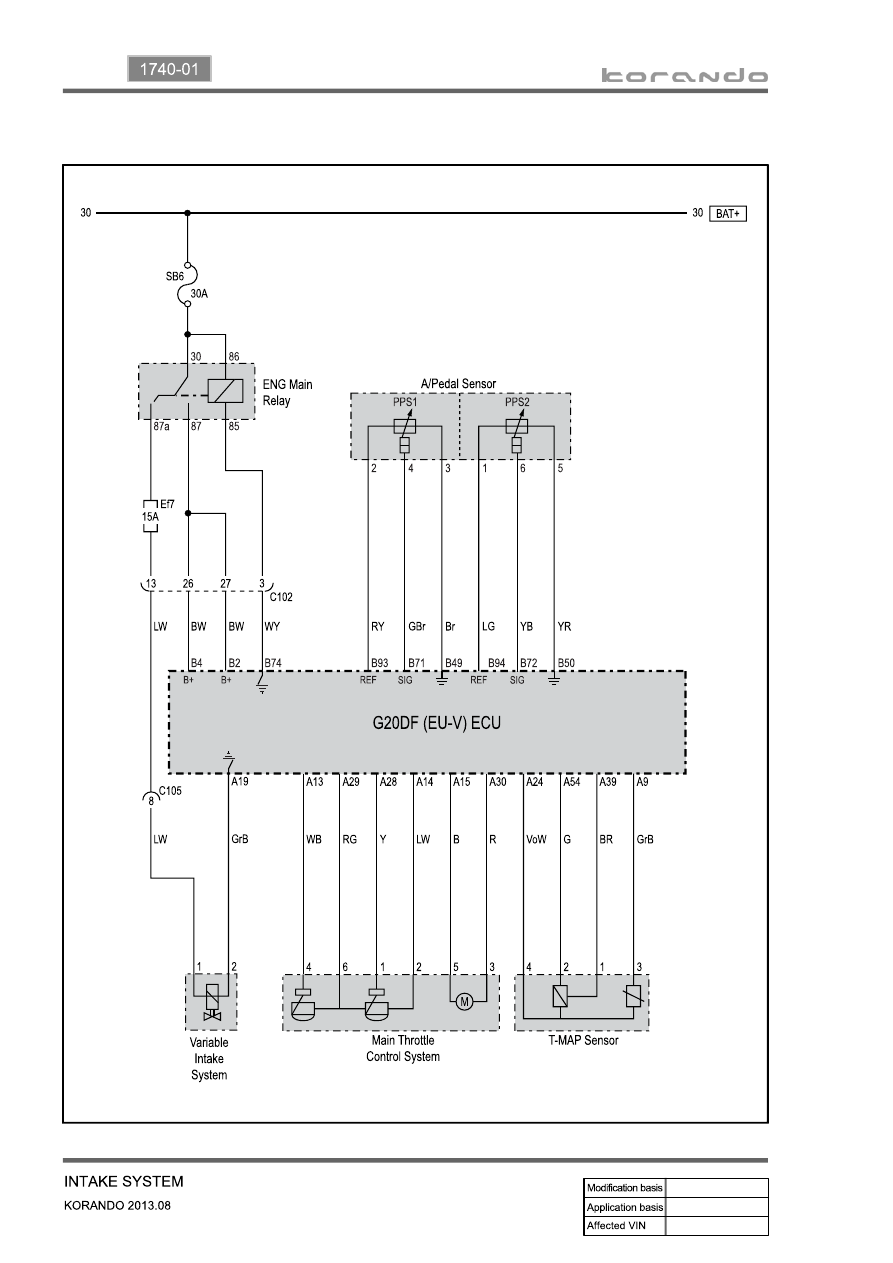

5. CIRCUIT DIAGRAM
