04-3

1740-01

1. SPECIFICATION

Unit

Description

Specification

Air cleaner element

Filter type

Dry, filter element

Filtering area

0.225 m²

Service interval

Clean every 7,500 km

Change every 15,000 km

Air cleaner assembly

Weight

1.45 kg

Operating temperature

25℃

Capacity

7L

Shorten the service interval under severe conditions such as driving on a dusty road or offroad.

*

04-4

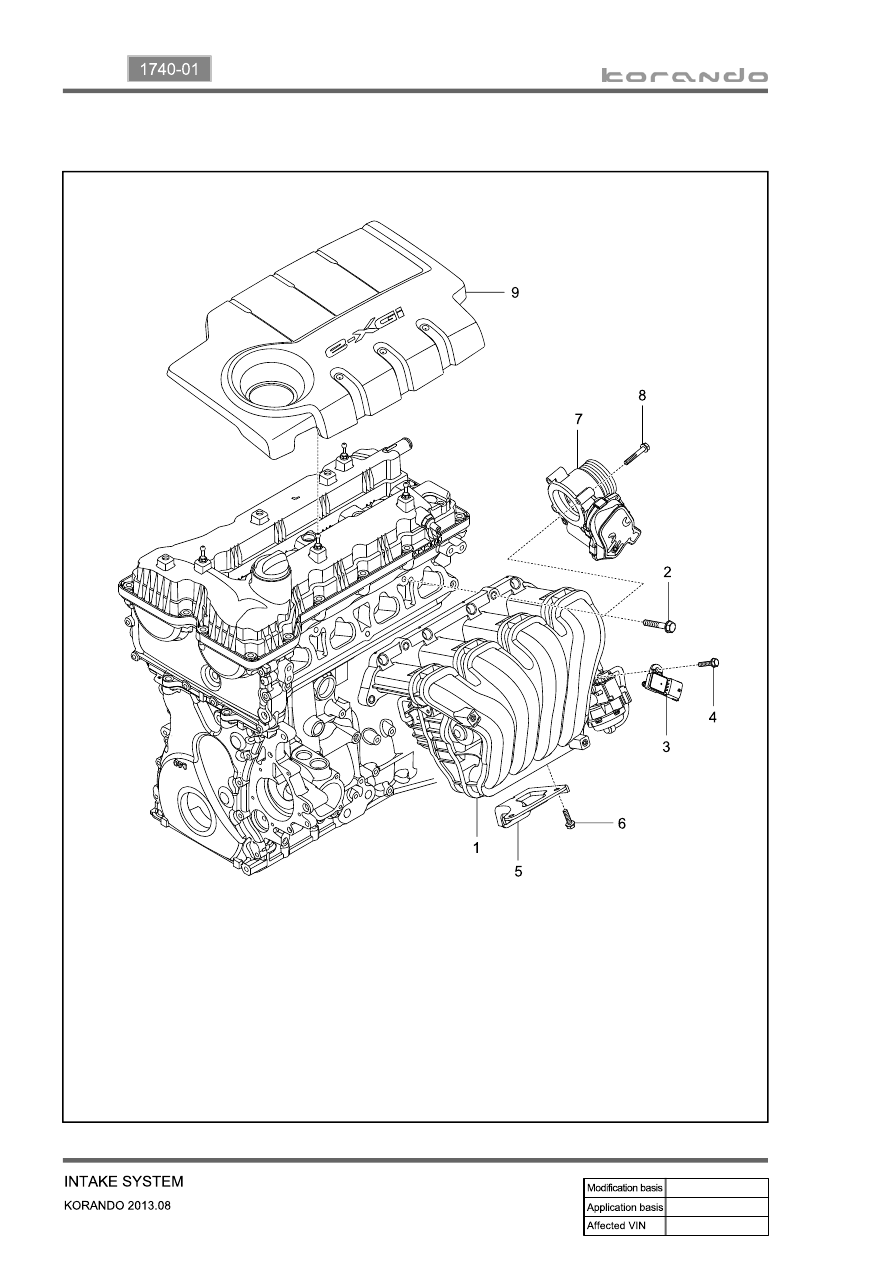

2. LAYOUT

Intake Manifold Assy

Bolt

T-MAP sensor

Bolt

Intake Manifold Brkt

1.

2.

3.

4.

5.

Bolt

Electric Throttle Body

Bolt

Acoustic Cover

6.

7.

8.

9.

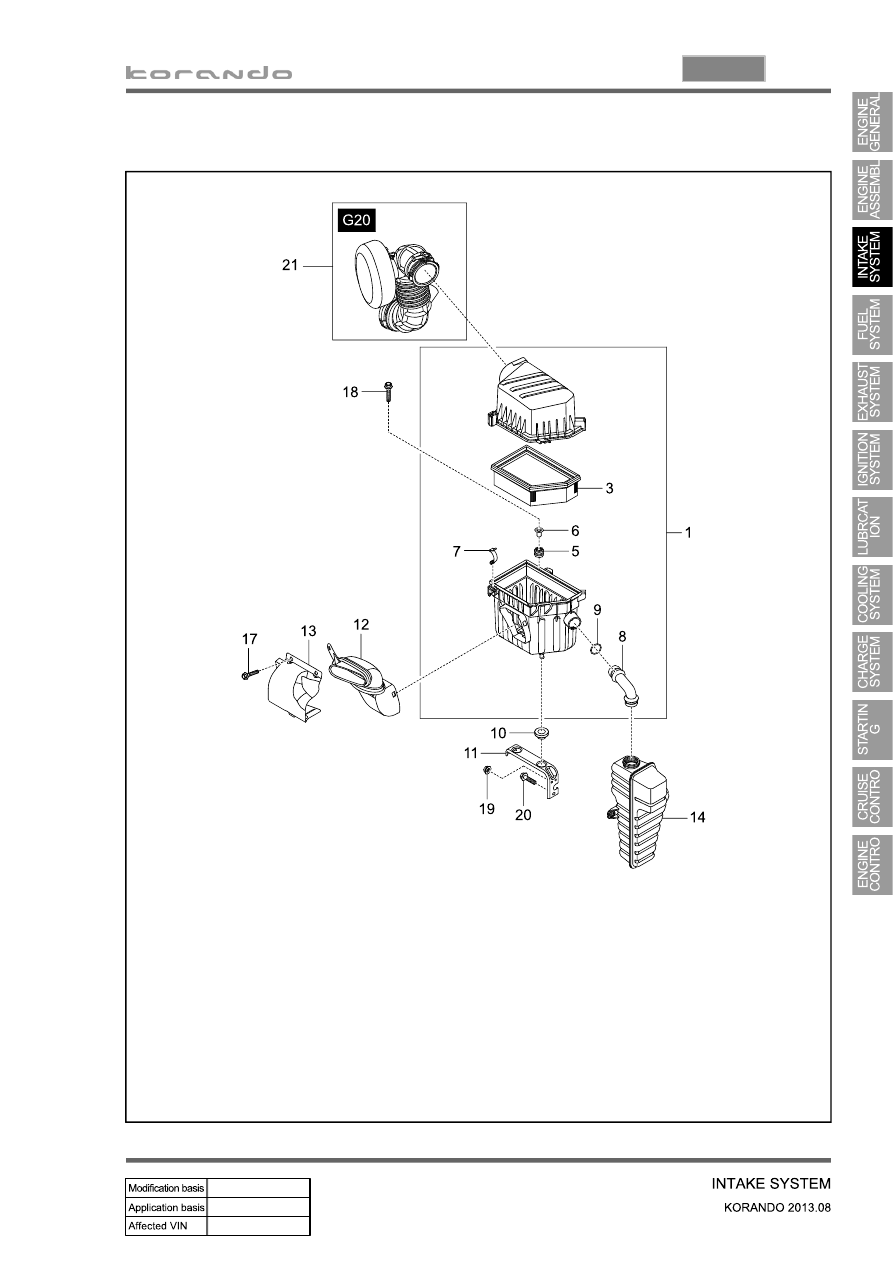

04-5

0000-00

Air Cleaner Assy

Element Assy

Air Cleaner MTG NO.2

Insulator Collar

Spring Clamp

Resonance Duct

Resonance O-Ring

Air Cleaner MTG NO.1

Air Cleaner MTG Bolt

1.

3.

5.

6.

7.

8.

9.

10.

11.

Snorkel Assy

Water Portector

Resonator Assy

RR Fascia MTG Screw Rivet

Bolt

Nut

Screw

Air Cleaner to Engine Hose Assy

12.

13.

14.

17.

18.

19.

20.

21.

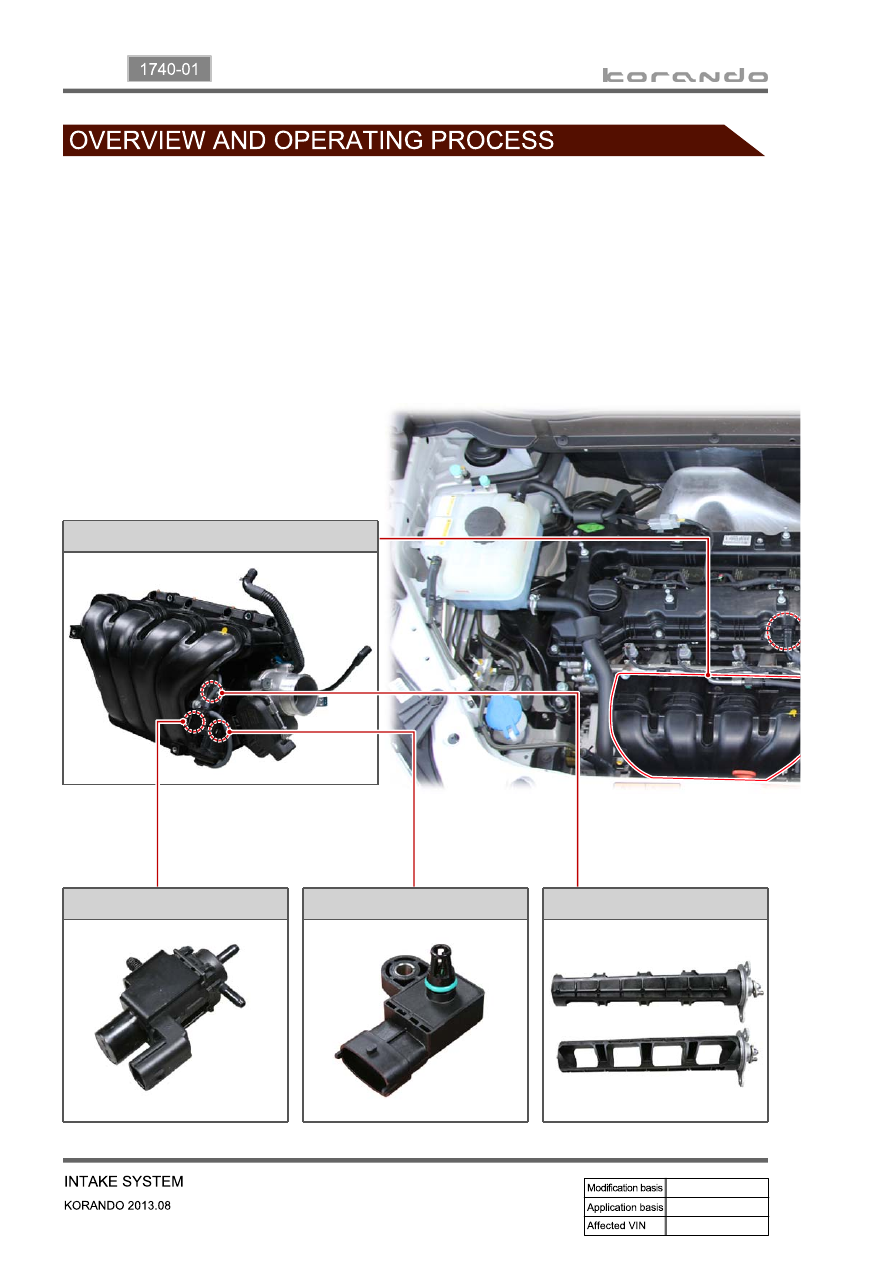

04-6

Intake manifold assembly

T-MAP sensor

VIS valve

1. OVERVIEW

To improve the engine performance, the VIS system has been introduced in the intake manifold. It
provides the “Long Runner” in low speed and the “Short Runner” in high speed.

And, to reduce the internal pulsation in the intake manifold, the Runner # 1 and #2 are located in
symmetry position with Runner #3 and #4. To reduce the air resistance, the throttle body is tilted b

2. COMPONENTS

VIS solenoid valve
