03-5

7410-00

Rear center seat belt

Previous

Current

2-point type

3-point type

4. MAJOR CHANGES

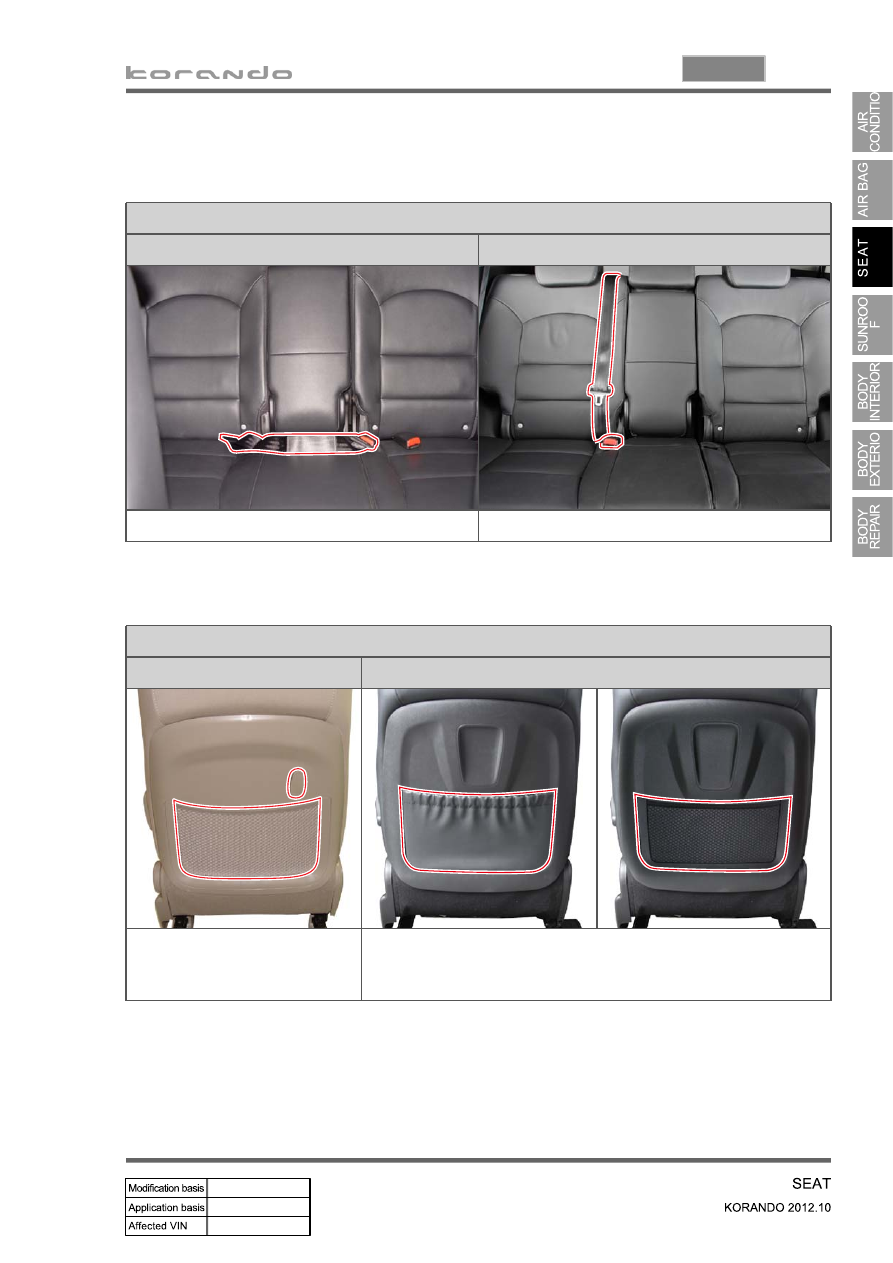

1) Rear Center Seat Belt

2) Front Seat Back Board

Front seat back board

Previous

Current

Hook: Installed
Pocket: Net type

Hook: Not installed
Pocket: Fabric seat - Net type
         Leather seat - Band type

03-6

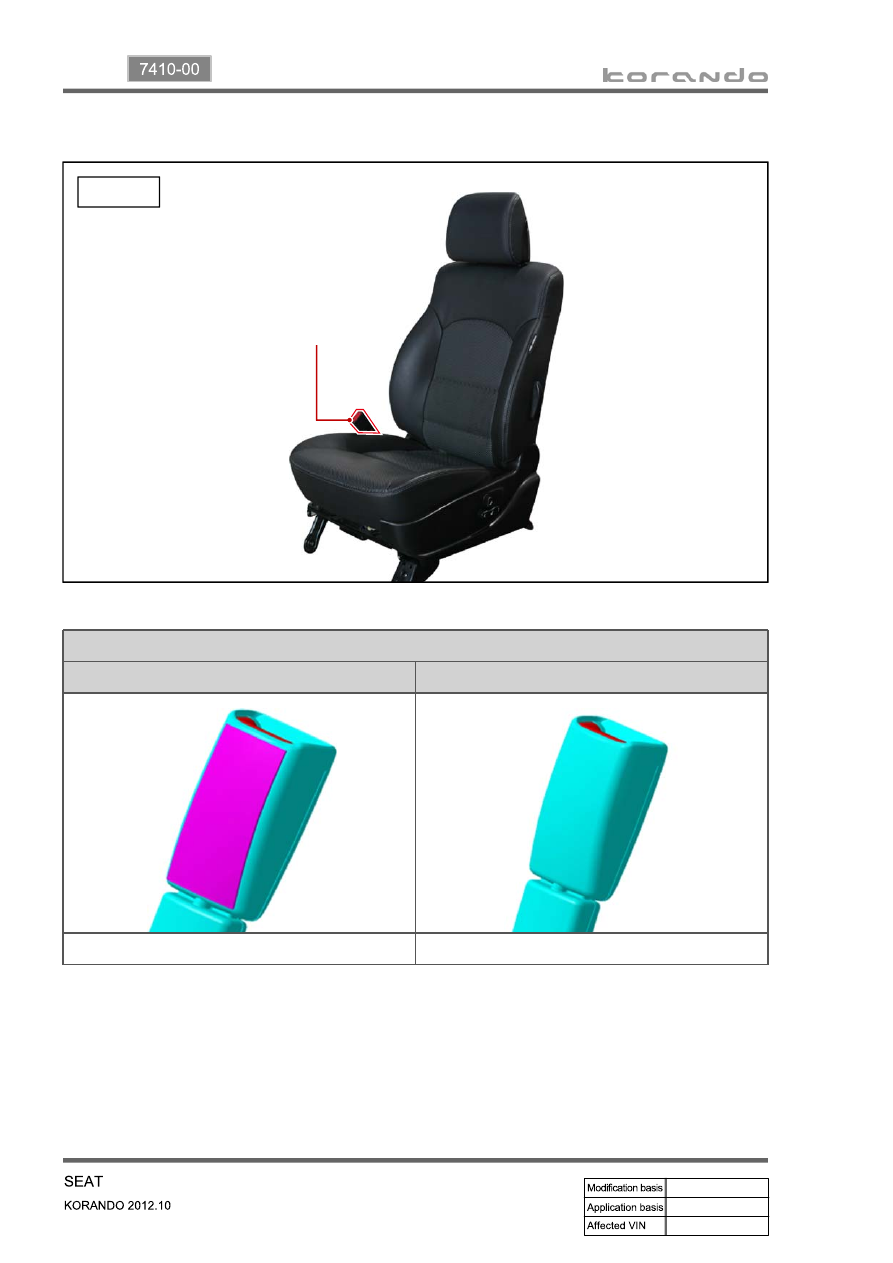

3) Front Buckle

Front buckle

Previous

Current

Pad is attached to buckle

No pad is attached to buckle

Front buckle

Driver's

04-3

7340-00

1. SPECIFICATIONS

2. CAUTIONS WHEN WORKING

Wear clean work clothes and gloves.

Replace and wash the gloves frequently.

Any unauthorized modification or operational test is not allowed since the sunroof motor and control

unit are preset at the factory.

You can use basic tools, e.g. a 25T/10T star screwdriver, flat-bladed and cross-tip screwdrivers. Do

not use any similar tool.

Take care not to drop the sunroof assembly when removing it and do not keep it right up.

1.

2.

3.

4.

5.

Operating voltage

9 to 16 V

Operating current (open & close)

Max. 6 A

At no load

Approx. 3 A

Leakage current

Max. 1 mA or less

Roof motor operating speed
(at opening and closing)

1.4 ± 0.5 sec./100 mm

Motor overload stop conditions

Current for 25 A or higher and torque (load) for 7.5 Nm

or higher

2-step opening amount

1st step sliding open: 370 ± 5 mm

2nd step sliding open: 450 ± 5 mm

Vertical/horizontal tolerance for
sunroof glass panel

± 2 mm

04-4

Sunroof switch

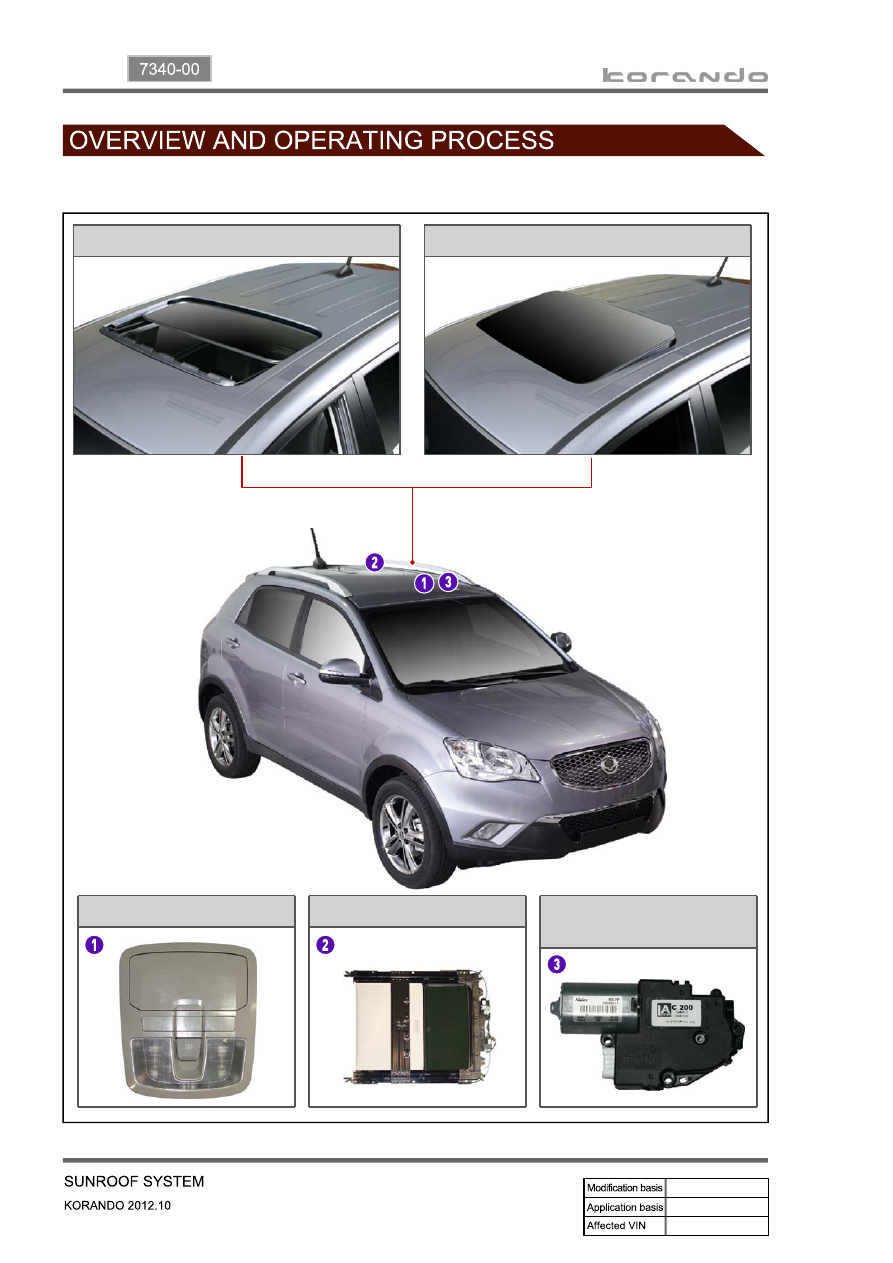

1. SYSTEM LAYOUT

Sunroof assembly

TILT

OPEN

Sunroof motor &

control unit
